Manual Hydraulic Stacker 2016
Model-VIMS2016,
Capacity-2000 kg,

Mast Type-Single Mast
Close Height- 90 mm,
Lift Height -1600 mm,
Fork Width -350 to 750 mm adjustable,
Fork Length -1150 mm (Possible to customized)
Steering Wheel PU Dia- 180 mm x 50 mm.
Load Wheel Nylon Dia -80 mm X 70 mm.

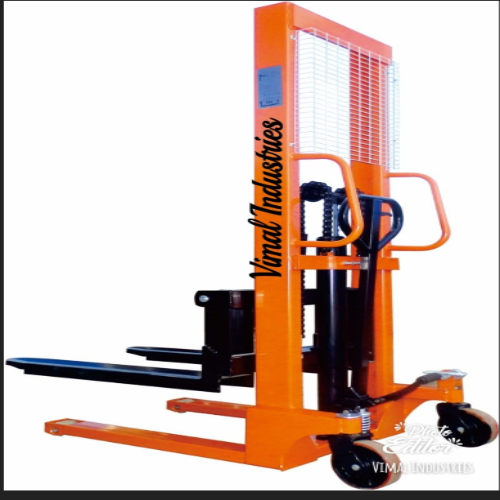

Vimal Manual Stacker

Make-VIMAL
Model-VNXMS1516,
Capacity - 1500 kg,
Close Height -90 mm,
Lift Height -1600 mm
Fork Width -350 to 750 mm adjustable,
Fork Length -1150 mm (Customization possible)

Steering Wheel PU Dia -180 mm x 50 mm.
Load Wheel Nylon Dia- 80 mm X 70 mm

Manual Hydraulic Stacker

Make-VIMAL
Model -VIMS1016,
Capacity -1000 kg,
Close Height- 90 mm,
Lift Height -1600 mm,
Fork Width -350 to 750 mm adjustable,
Fork Length - 1150 mm (Cutomization possible)
Steering Wheel PU Dia -180 mm x 50 mm.
Load Wheel Nylon Dia - 80 mm X 70 mm

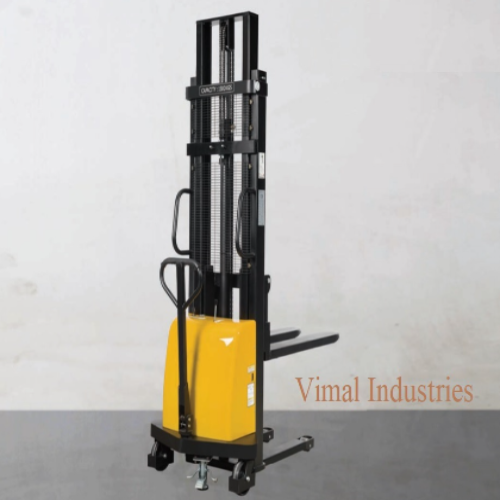

Semi Electric Stacker

Make-VIMAL
Model- VISES1530,
Capacity -1500 kg,
Mast Type Single,
Lift Height of Fork -3000 mm,
Lowered Height of Fork -90 mm ,
Fork Length -1150 mm,
Adjustable width of forks 360 to 550 mm,
Turning Radius -1326 mm,
Mast extended Height -3500 mm,
Mast lowered Height -2032 mm.
Overall Width -904 mm,
Overall Length -1673 mm,
Min Ground Clearence - 84 mm,
Charging voltage AC220V,
Motor power -1.6KW,
Stearing wheel size -180x50 mm,
Front wheel size - 80x70 mm,
Surface Powder Coated.

Semi Electric Stacker

Make-Vimal
Model- VISES1030,
Capacity -1000 kg,
Mast Type Single,
Lift Height of Fork -3000 mm,
Lowered Height of Fork -90 mm ,
Fork Length -1150 mm,
Adjustable width of forks 360 to 550 mm,
Turning Radius -1326 mm,
Mast extended Height -3500 mm,
Mast lowered Height -2032 mm.
Overall Width -904 mm,
Overall Length -1673 mm,
Min Ground Clearence - 84 mm,
Charging voltage AC220V,
Motor power -1.6KW,
Stearing wheel size -180x50 mm,
Front wheel size - 80x70 mm,
Surface Powder Coated.

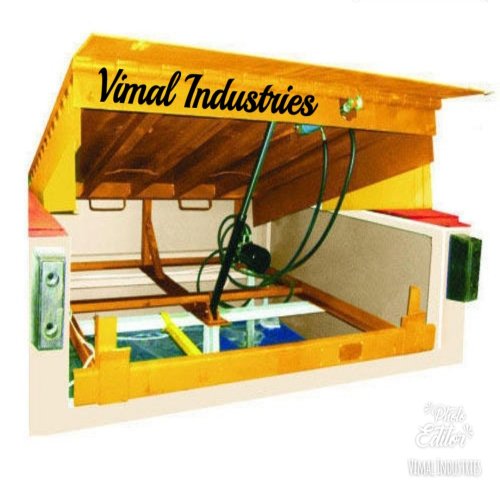

DOCK LEVELER
MAKE-VIMAL
Model-VIDL10T/6T/3T
Capacity-10T/6T/3T
Dock Width-2000 mm,
Dock Length-2500 mm
Flap Length-400 mm
Flap Width-295+1430+295 mm
Overall length with Flap Extended-3100 mm,
Height Of Frame / Dock Home Position-480 mm.

Lifting Height Down-180 mm

Lifting Height Up-350 mm
With suitable Power Pack,
Bumper 2 no's,
Deck Cylinder 63 bore -1 No’s,
Flap Cylinder 50 bore-1Nos.
Rubber Bumper-2 No’s
Suitable 1HP AC Power Pack with Electric panel,
Required fasteners, Hose Pipe 3 meter

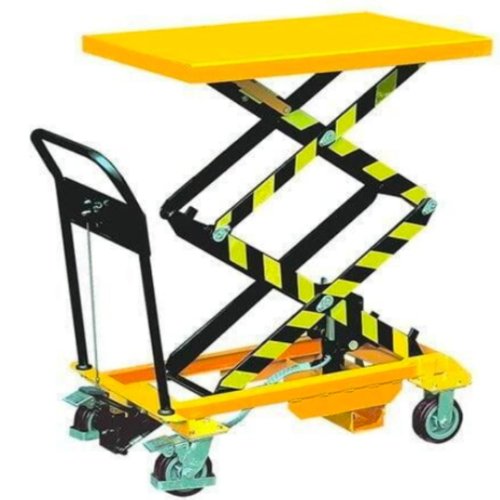

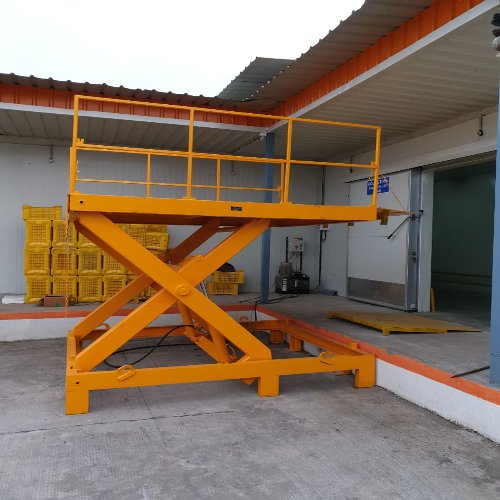

Customized Scissor Lift Table,

Make-VIMAL

Model-VICSLT
Type- Floor Mounted/ Pit Mounted/Movable
Capacity - 1000 kg to 5000 Kg
Platform Size -2000Lx1500W (As per requirement)

Platform Material- Checker Sheet 5 mm (As per requirement)

Lifting Cylinder-1 or 2 Nos (As per requirement)
Min Height - 600 mm to 1000 mm (As per requirement)
Max Height - 1000 mm to 3000 mm (As per requirement)
Suitable AC Power Pack 2.5 HP to 7.5 HP (As per requirement)

With Two Side safety railing & two side Flaps (As per requirement)

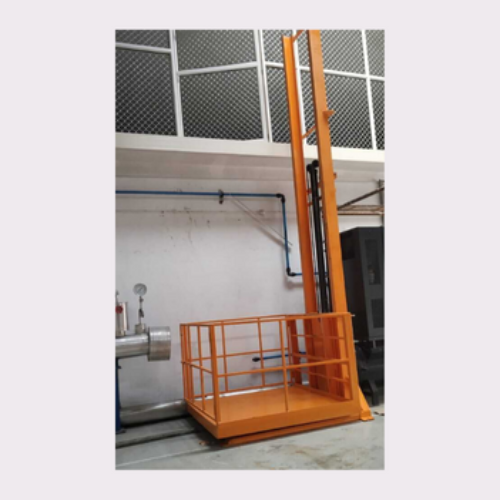

Goods Lift

Make-VIMAL

Model-VICGL
Type- Pit Mounted / Floor Mounted Single Mast GoodsLift
Cap-300 Kg to 1500 Kg. (As per requirement)
Platform Size-1500mm x 1000 mm (As per requirement)
Lift Height from Ground- 1500 mm to 5000 mm (As per requirement)
Number of Stops-G+1 to G +3 (As per requirement)
Two  side Railing & Two side Gates (As per requirement)

With control Pnnel & pendant

With Limit switches
With safety alarm

Optional- Collapsible Doors, Wire Mesh Covering ,Metal Sheet covering

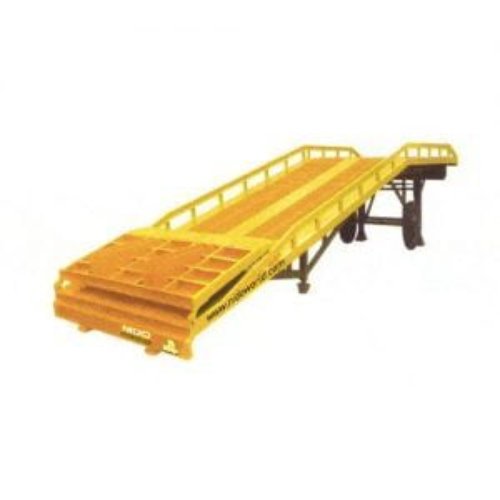

Hydraulic Mobile Dock Ramp -Manual (Without Grating)

Make-VIMAL

Model - VIMDRM10,

Capacity -10000 kg,

Fix Ramp Length-7000 mm

Fix Ramp Width-2100 mm

Movable Platform Length-2500 mm

Operating- Manual Hand Pump Operated Without Grating

Fix Height Ramp-900 mm

Min Height 1200 mm,

Movable Ramp Up & Down- 800 mm

Max Height-1700 mm,

Railing -250 mm

Overall Length-11000 mm

Flap Width-2100 mm

Flap Length- 400 mm

Hydraulic Lift Cylinder- 2 Nos

Wheels Rubber Tyre -2 Nos

With Floor Locks-8 Nos

Surface-Pre-primer yellow Painted.

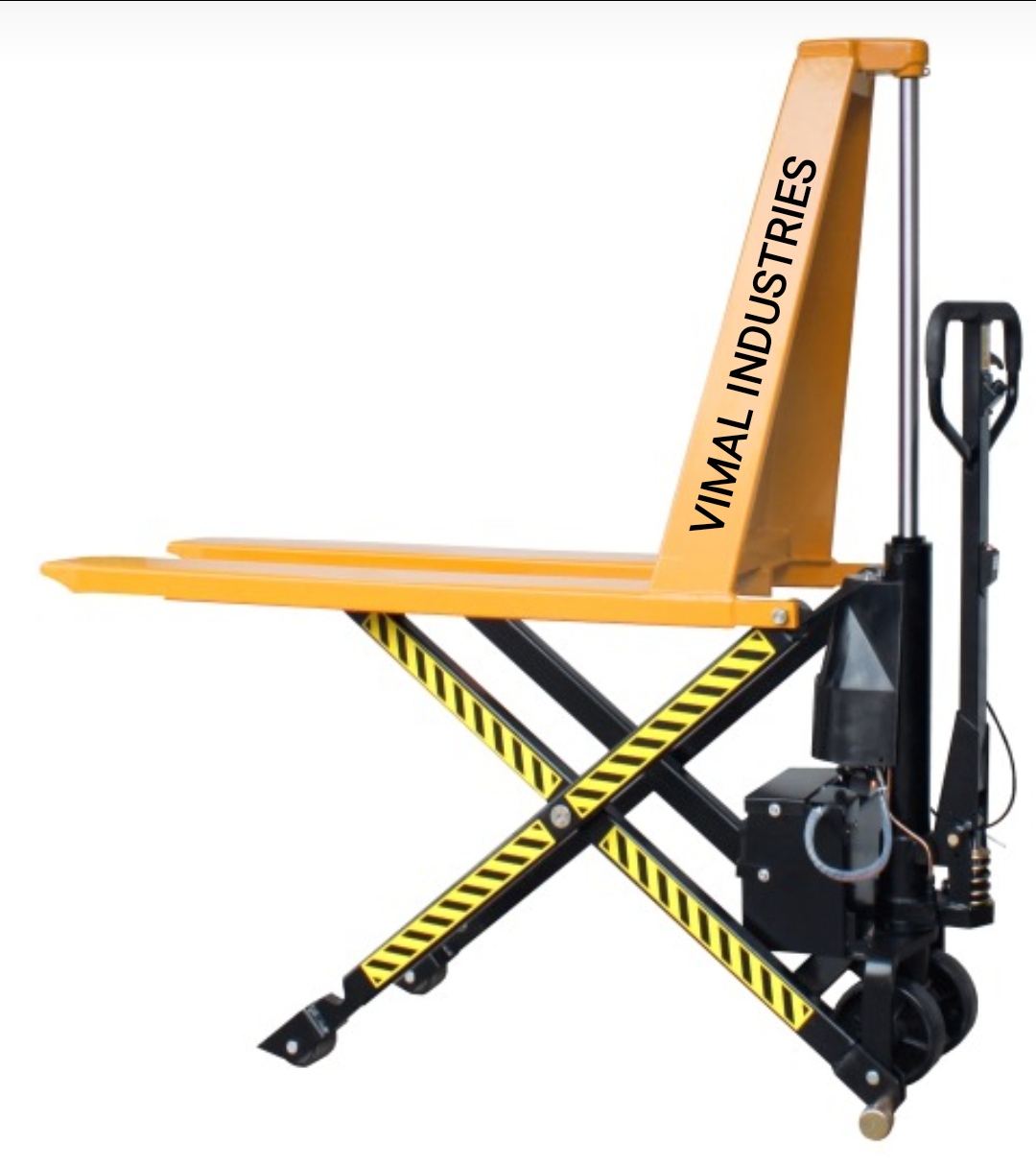

Semi Electric High Lift Pallet Truck

Make- VIMAL
Madel-VI-ESLP-1000-1150-540-85X
Capacity- 1000 kg
Lifting height- 800 mm
Fork length- 1150 mm
Fork width- 540 mm
Min/Max fork height- 85/800 mm
Battery- 12/ 60 V/Ah
Charging voltage- 220 V
Power output- 0.8 KW
Weight- 169 Kg

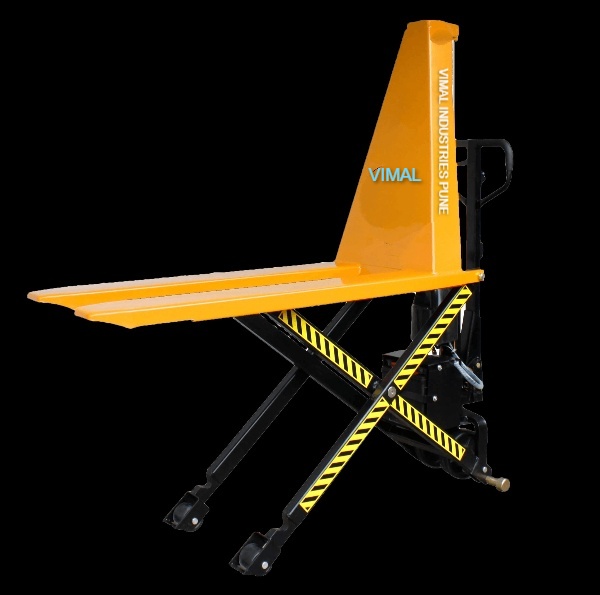

High Lift Pallet Truck (Manual)
Make-VIMAL
Model - VISHPT15
Capacity -1500 kg,
Fork Width -540 mm,
Fork Length -1150 mm,
Close Height - 85 mm,
Lift Height - 800 mm
Surface powder coated.

High Lift Pallet Truck (Manual)
Make-VIMAL
Model - VISHPT10
Capacity -1000 kg,
Fork Width -540 mm,
Fork Length -1150 mm,
Close Height - 85 mm,
Lift Height - 800 mm
Surface powder coated.

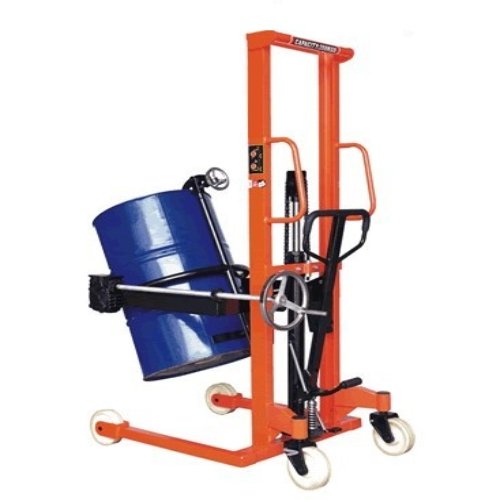

MANUAL DRUM LIFTER CUM TILTER

MAKE-VIMAL
MODEL : VIDLCT35,
CAPACITY - 350 KG
LIFT HEIGHT DRUM
BOTTOM 1425 MM,
LIFT - HAND PUMP, OVERALL
LENGTH - 1190 MM,
OVERALL WIDTH - 890 MM,
OVERALL HEIGHT -2020 MM
WITH NYLON WHEELS.
OPERATING-MANUAL

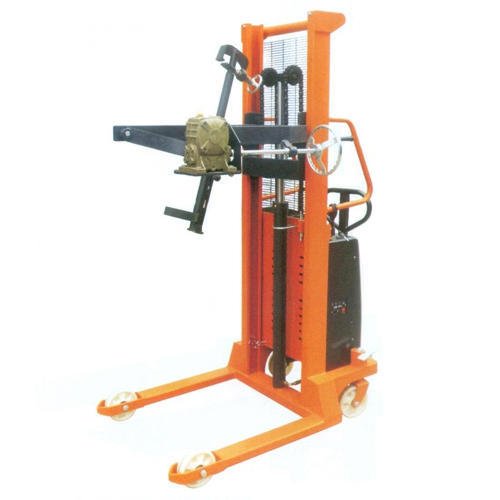

Semi Electric Drum Lifter Cum Tilter,
Make-VIMAL
VI-D-SES-ST-0515
CAPACITY - 520 KG ,
Lift Height - 1500 MM,
Inner/Outer Width of Front Support legs-640/800
Overall Size-1400*980*2080
Lifting Speed-120mm /second
Wheel Dimension (Front/Rear)-80*55/150*50
Operating - Semi Electric DC
Battery operated with inbuilt charger
Battery-120Ah/12V
Turning Radius-1620mm
Charging voltage -AC220V,
Motor power 1.6KW,
Min Ground Clearance 84 mm,
Wheels Material - NYLON WHEELS.
Steering wheel size 150x50 mm,
Front wheel size 80x70 mm,
Surface Powder Coated.

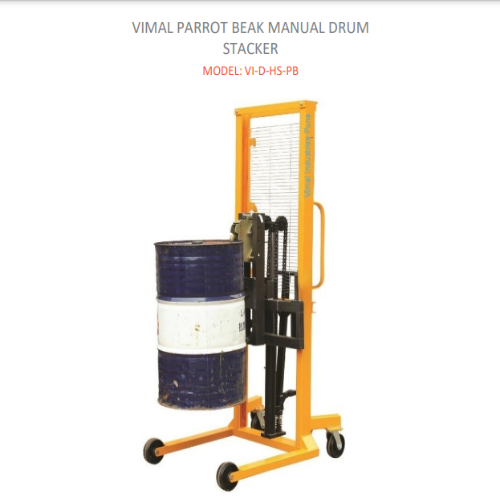

DRUM STACKER (Manual)
BRAND-VIMAL
Model-VIDHS400
CAPACITY- 400 Kg
LIFT HEIGHT -1500 mm,
INNER OUTER WIDTH OF FRONT LEG630/810 mm
TURNING RADIOUS-1400 mm
Wheels-Dia-150x50 mm /100 xx50 mm
Outline Dimensions-(L x W x H)
1110*900*2100 mm
Approx. Weight-136 Kg

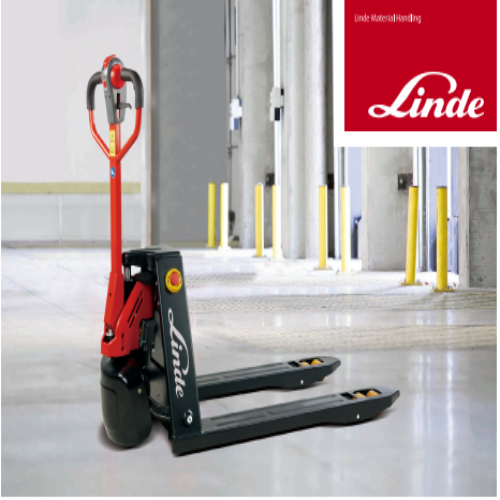

Electric Pallet Truck
Model- MT15C
Brand - LINDE
Capacity: 1500 kg
Load Centre: 600 mm
Fork: 1150 x 150x 50 mm
Fork width: 560 mm
Wheels: Drive- Polyurethane
Load- Polyurethane
Overall width: 560 mm
Lift: 115 mm
Fork Height Lowered : 80 mm
Overall Length : 1550 mm
Turning Radius: 1390 mm
Travel Speed: 4/4.5 Km/hr
Lift Speed: 0.017/0.024 m/s
Lowering Speed: 0.09/0.06 m/s
Working Aisle width : 2062 mm (With 800 x 1200 mm Pallet )
Maximum Climbing ability: 6%/16%
Drive Motor Ratings : 0.75 Kw
Lift Motor : 0.5 Kw
Battery: 24V/ 20Ah Lithium Ion
Charger: Inbuilt

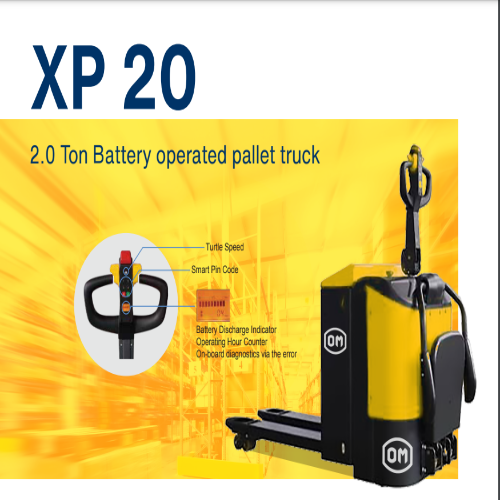

Battery Operated Pallet Truck

Brand-OM
Model Om XP 20
Capacity- 2000 Kg.
Power- Battery

Load Centre-600 mm

Fork Length-1150 mm

Fork Width-540 / 685 mm

Close Height- 85 mm

Lift Height-120 mm

Ground Clearance Centre of Wheel Base -25 mm
Operator Type- Pedestrian / Stand
Tyres- PU

Drive Motor Rating-1.5 KW

Lift Motor Rating-0.8 KW

Battery-24 V/160 Ah

Turning Radious- 1740 mm

Service Break-Electromagnetic

Service Weight-650 Kg

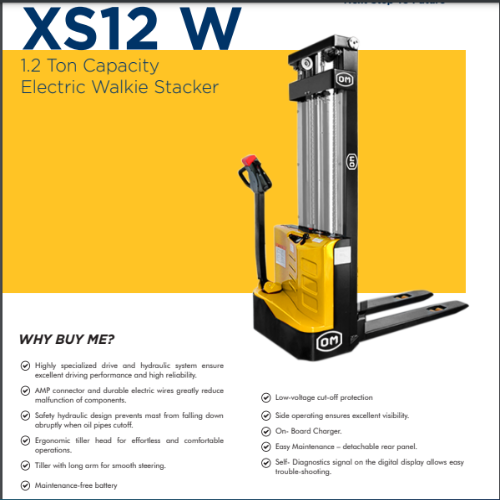

Electric Walkie Stacker
Brand- OM (KION)
Model- XS12 W
Capacity -1200Kg

Load Centre-600 mm

Close Height -88 mm
Lift Height 3600mm

Fork Length-1150 mm

Fork Width-570 mm

Ground Clearance, centre of wheel base -30 mm

Over all Length-1790 mm
Overall Width -590 mm
Turning Radius -1408 mm
Drive unit- Electrical Oprator Type -Pedastrian
Travel Speed -4/4.5 km/hr
Battery Type- GEL
Charger- Not Required (On Board)
Battery Capacity- V/AH 2*12/105-GEL

Tyre type Driving wheels/Loading wheels-PU

Tyre size, driving wheels diameter×width -210 mm x 70 mm

Tyre size, loading wheels diameter×width -80 mm x 60 mm

Service weight include battery -661 Kg

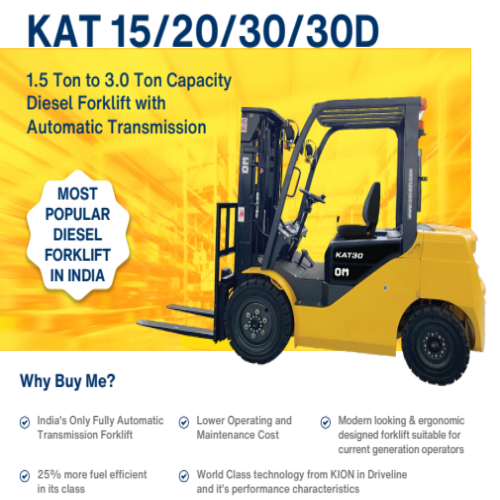

Diesel Forklift

Make- OM (KION)
Model- DVX30KATHVT2125/ DVX20KATHVT2125
Capacity - 3000 Kg / 2000 kg.
Lifting Height- 4500 mm
Load Centre- 500 mm
Power Unit- Diesel Operated

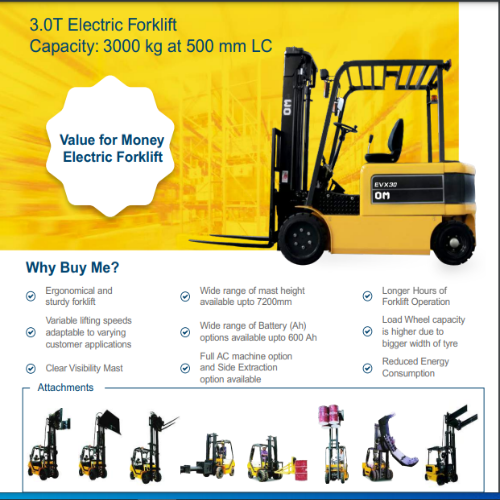

Battery Operated Fork Lift Truck (Electric)
Make-Om (KION)
Model-EVX30HVT 2350 (AC) / EVX20HVT 2125(AC)
Power Unit- Battery
Cap-3000 Kg / 2000 Kg
Load Centre-500 mm
Max Fork Height-3600 mm /4500 mm
Type of Mast-3 Stage
Battery: 72V,330AH

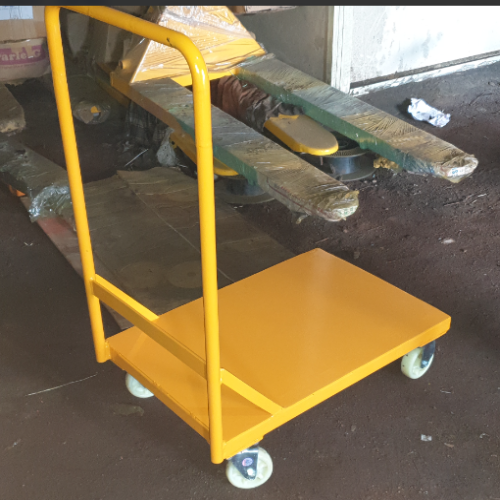

Vimal Platform Trolley
Capacity -500 kg,
Platform Size -900 x 600 mm.
Nylon Wheel dia 150 x 50 mm, 4 nos,
1) 2 nos swivel with brake.
2) 2 nos Fix Wheel.
Material- MS.
Surface yellow painted or powder coated.

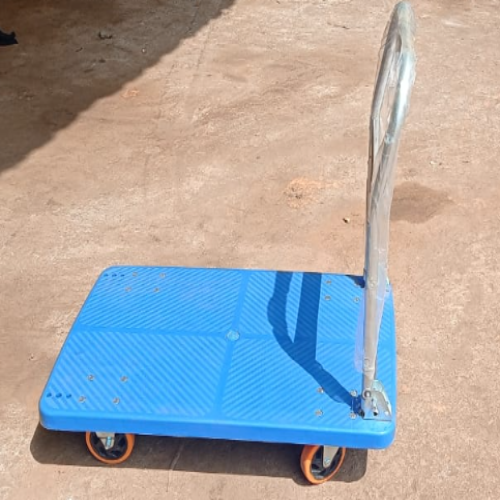

Foldable Plastic Platform Trolley

Make -Vimal
Cap150 kg
Size 880x600 mm

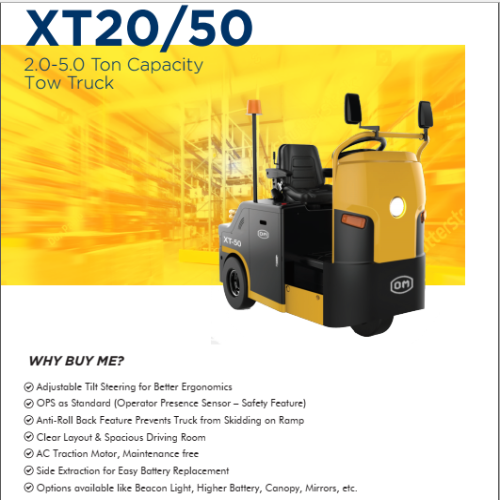

2T Cap Tow Truck

Brand -VIMAL

Make-OM (Kion)
Model-XT20
Cap-2000 Kg

Power Unit-Electric

Operator Type- Seat On

Wheel Base-1100 mm

Service Weight-955 Kg
Major Dimensions -
Overall Length: 1880 mm
Overall Width: 1005mm
Height of Seat: 975 mm
Coupling height: 245 mm to 345 mm
Ground Clearance centre of wheel base: 135 mm
Turning Radius: 1660 mm
Overhang: 468 mm
Performance-
Service Brake: Hydraulic
Rated Drawbar Pull: 5000 N
Max. Gradeability, laden/unladen S2 5min : 5% /10%
Travelling Speed: L/UNL:7 /10 KMPH
Battery 48V / 240 AH
Motor Type Drive: AC, 4.5 KW
Steering -Mechanical (Adjustable Tilt steering for better Ergonomics)
Tyres: Pneumatics Front – 1 No / Rear – 2Nos.

VIMALGas Cylinder Trolley -Single

Make-VIMAL
Model- VIGCTS30
Capacity -300kg,
Wheel Nylon/Teflon - Dia 250x 50mm - 2Nos,
Wheel Nylon - Dia 100x 50mm - 1 Nos,
Surface Yellow Powder Coated.

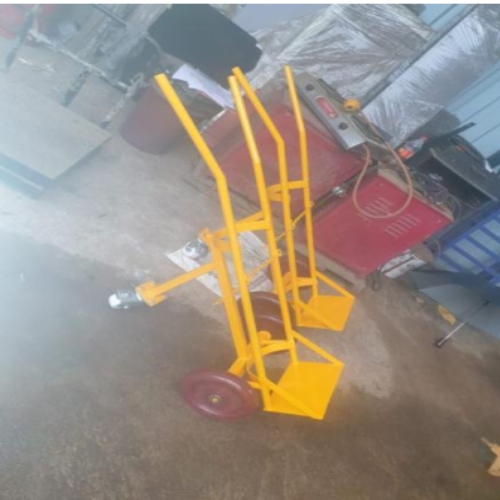

Gas Cylinder Trolley -Double
Capacity -500kg,
Wheel Nylon/ Teflon -Dia 250x 50mm - 2Nos,
Wheel Nylon Dia 100x 50mm - 1 Nos,
Surface Yellow Painted or Powder Coated

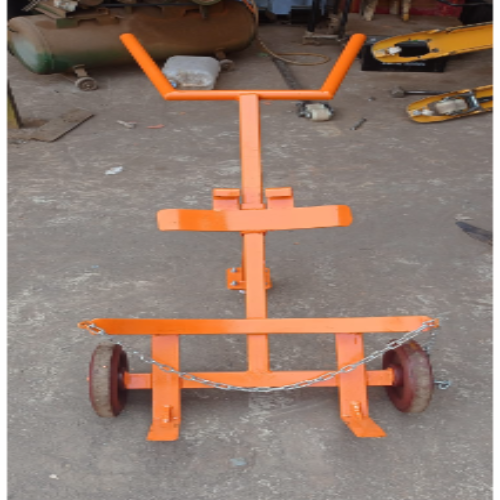

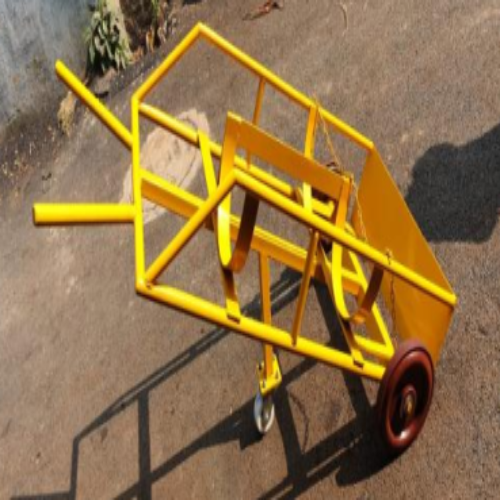

Drum Trolley -3 Wheels

Make -Vimal
Model-VIMSDT-500 (3-Wheels)
Capacity - 500 kg,
Wheel 200 X 50 mm Teflon Wheel- 2 Nos,
Wheel 100 x 50 mm Nylon Wheel -1 Nos,
Surface Yellow Powder Coated.

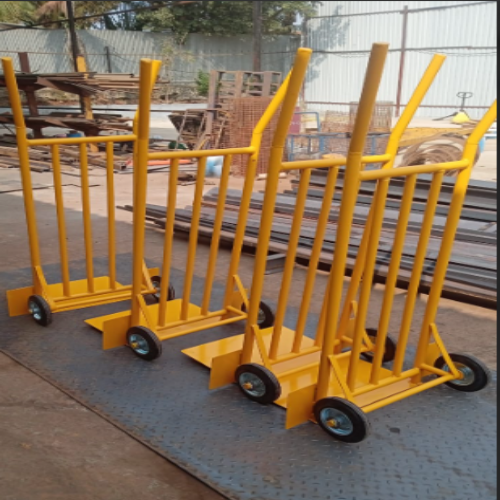

SAC Trolley,
Make-Vimal
Model-VIMSST10
Capacity -100 kg,
Platform -300 mm X 200 mm,
Material-MS
Wheel Teflon / Rubber -250 X 50 mm :2nos.
Surface Powder coating.

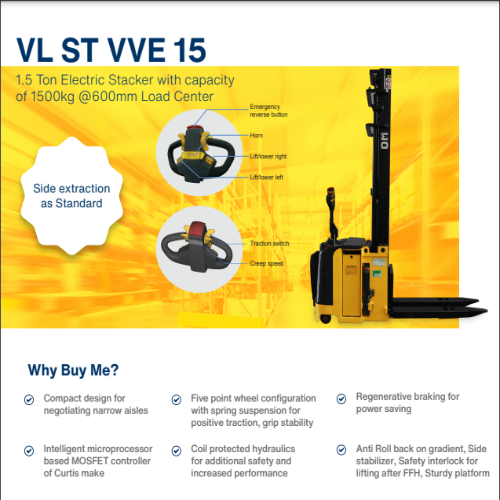

Brand-OM ( KION)
Model-VVEST-15-HVT6500
Capacity -1500 kg,
Power Unit-Battery Operated
Operator Type-Stand-on
Load Centre-600 mm
Lift Height : 6500 mm,
Capacity at 6500 mm (LC600mm) -500 Kg
Free Lift -1640 mm
Closed Mast Height (Lowered) -2800 mm
Extended Mast Height -6930mm
Width Across the Forks -570 mm
Height of Fork Lowered 85 mm
Ground Clearance 30 mm
Fork Dimension -75 x 176 x 1200mm
Minimum Turning Radius Platform Closed / Open)-1750 /2250 mm
Overall Length Platform Open/ Closed-2680 mm/ 2180 mm
Overall Width -850 mm
Drive Motor Ratings-1.5 Kw
Lifting Motor Ratings -3 Kw
Traction Battery -24 / 345 V/Ah
Service Weight including Battery-1600 Kg

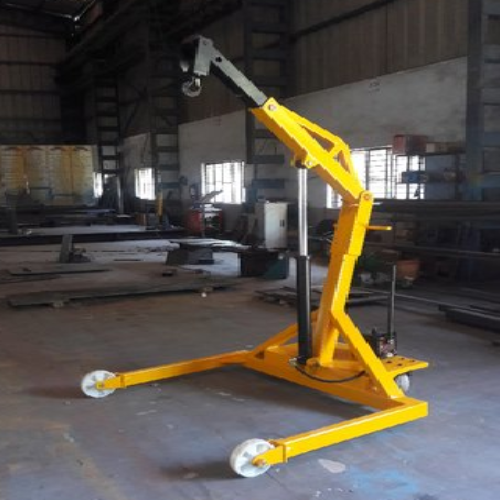

Manual Floor Crane
MAKE-VIMAL,
Model- VIFLC1025.
Capacity- 1000 kg.
Lift Height- 2500 mm,
Down Height -550 mm.
Operating -Manual Hand Pump Operated

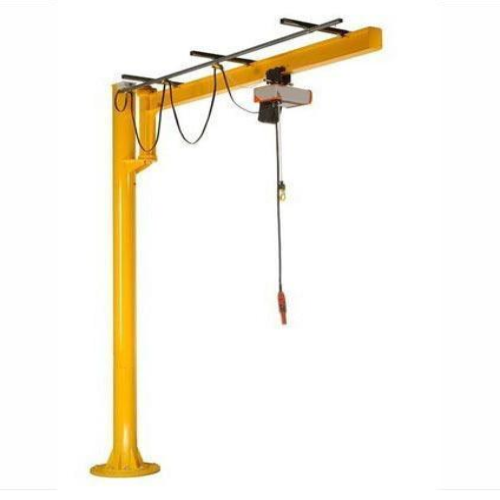

CUSTOMIZED JIB CRANE,
With Electric Chain Hoist
Make-VIMAL
Model-VICJC10
Capacity-1000 kg,
Clear Lift Height-2000 mm,
Arm Length-1600 mm.
With Imported -Make Chain Hoist with Trolley Cap 1 Ton
-(Up Down Forward Reverse Automatic)

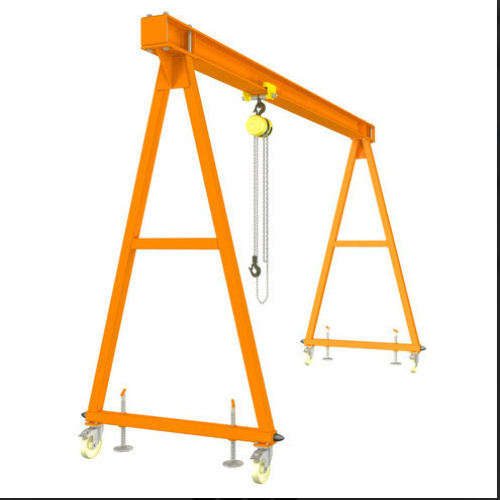

Customized Movable Gantry Crane
Make-VIMAL
Model-VICGC20
Capacity-2000 kg,
Clear Span -1500 mm,
Clear Lift Height -2700 mm,
A) Suitable Electrical Chain Pulley Block Cap-2T with Manual Operated Trolley:Imported Make.
( Up down Remote operated and Trolley Forward reverse manually)
B) Wheels :
Swell Wheel with Brake 200 x 50 PU 2 Nos,
Fix Wheel 200 x 50 PU 2 Nos,
C) Surface : Surface Pre-primer
and Yellow Painted

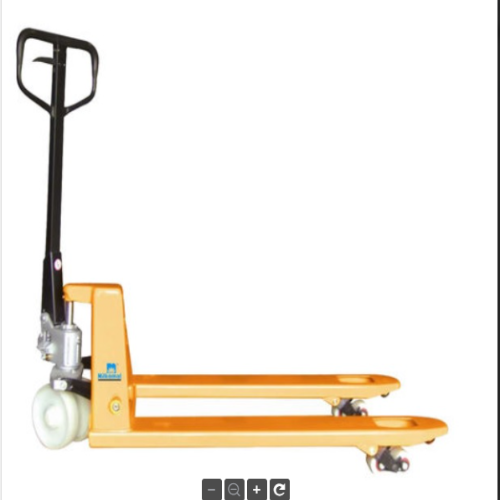

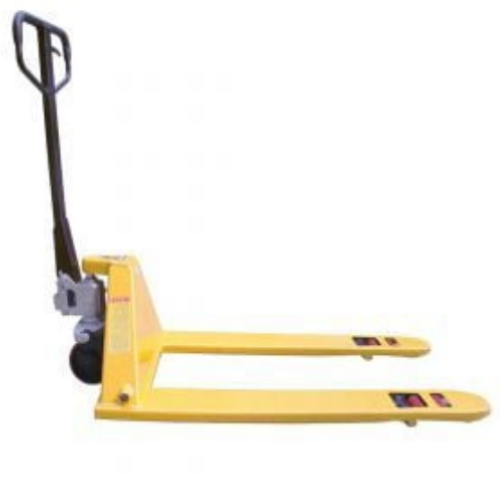

Hand Pallet Truck 2500 Kg Nilkamal,
Make -Nilkamal.
Capacity -2500 kg.
Close Height -90 mm.
Lift Height- 200 mm.
Fork Width -550 mm.
Fork Length -1150 mm.
Wheels Stearing Dia 180 X 50 mm Material Nylon.
Wheels Load Dia 80 X 70 mm Material Nylon

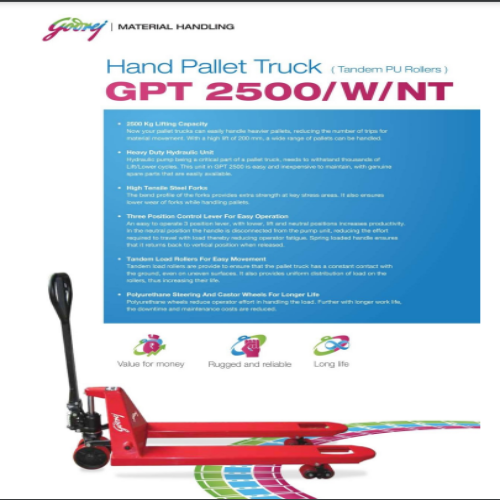

Hand Pallet Truck 2500 Kg Godrej,
Make -Godrej.

Model-GPT2500NT
Capacity -2500 kg.
Close Height -90 mm.
Lift Height -200 mm.
Fork Width -550 mm.
Fork Length -1150 mm.
Wheels Steering Dia- 180 X 50 mm Material Nylon.
Wheels Load Dia -80 X 70 mm Material Nylon.

Hydraulic Hand Pallet Truck
Make (OM) VOLTAS

Model-MHCBY25-II
Capacity-2500 kg.
Close Height -85 mm.
Lift Height -200 mm.
Fork Width- 520 mm / 685 mm.
Fork Length -1150 mm / 1220 mm
Wheels Steering Dia -200 X 50 mm Material Nylon.
Wheels Load Dia -80 X 70 mm Material Nylon.

Overall Length-1540 mm /1610 mm

Service Weight -65 Kg / 72 Kg

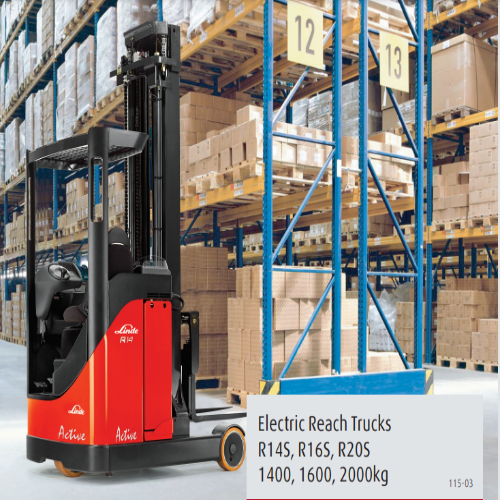

REACH TRUCK
Brand-Linde
Model- R14S/R16S/R20S
Cap-1400 Kg/1600 Kg/2000 Kg

Operation-Seated

Power unit-Battery

Load Centre-600 mm
Mast Height -4655 to 8655 mm
Free Lift Height -2527 mm
Extended Height -8295 mm
Height of Mast Lowered -3376 mm

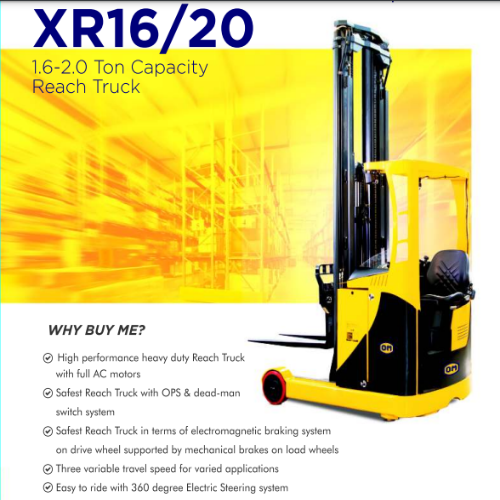

Reach Truck
Make- OM (KION)
Model- XR 16/ XR 20
Capacity- 1600 Kg / 2000 kg.

Centre of Gravity-600 mm
Oprator Type-Seated
Power Unit - Electric

Tyre Type-VULKOLLAN

Size of Traction Wheels-343 x136 mm

Size of Load Wheels-310 x 102 mm

Fork Length-1150 mm

Fork Spread (min/Max)-316/710 mm

Reach Leg Width-925 mm

Reach-628/598 mm

Ground clearance of Wheel Base Centre-76 mm

Length Including Reach Legs-1870/1942 mm

Travel Speed (Laden/Unladen)-12 Km/Hour

Traction Motor-6.5KW

Lifting Motor-14 KW

Battery Rating-48/620 V/Ah / 48/700 V/Ah

Type of Control-Electronic Tri Phase

Mast Configurations for XR16-7255/7955/8955/9955

Mast Configurations for XR20-7955/8955/9955/11455

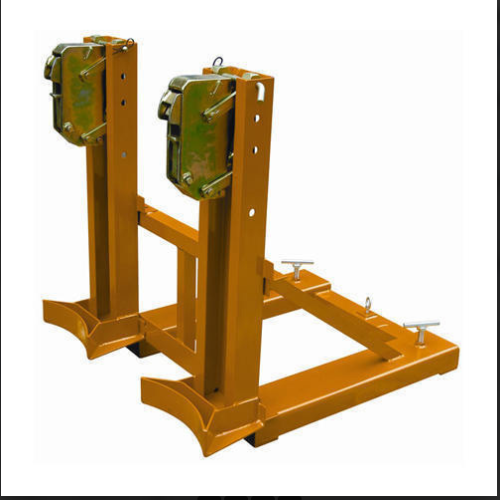

FORK LIFT DRUM ATTACHMENT DOUBLE
Make-VIMAL
Model-VIFLDDA80
CAPACITY-800 KG.
Break Type-Parrot Break
Material- MS
Drive Type- Mechanical
Surface - Yellow Powder Coated

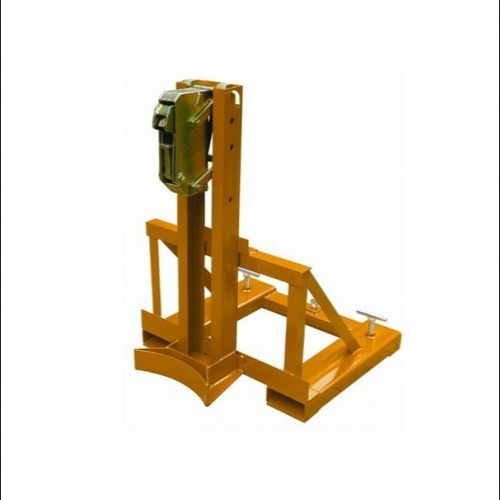

FORK LIFT DRUM ATTACHMENT SINGLE
Make-VIMAL
Model-VIFLSDA35
CAPACITY-350 KG.
Break Type-Parrot Break
Material- MS
Drive Type- Mechanical
Surface - Yellow Powder Coated.
