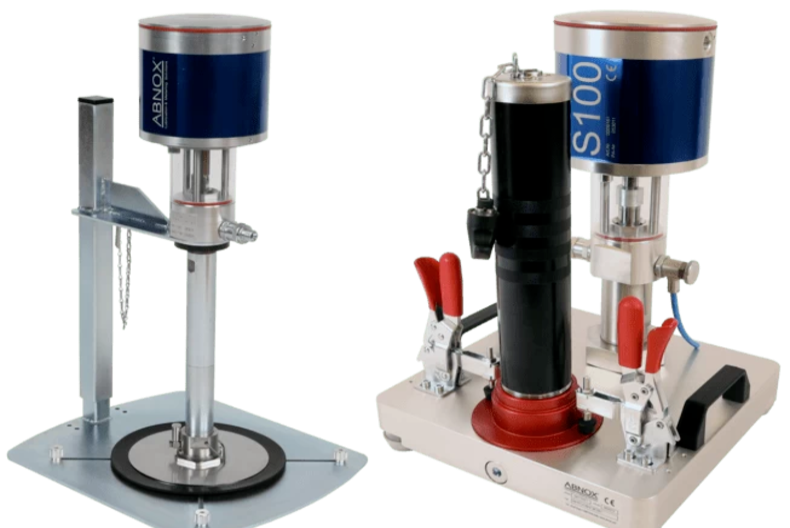

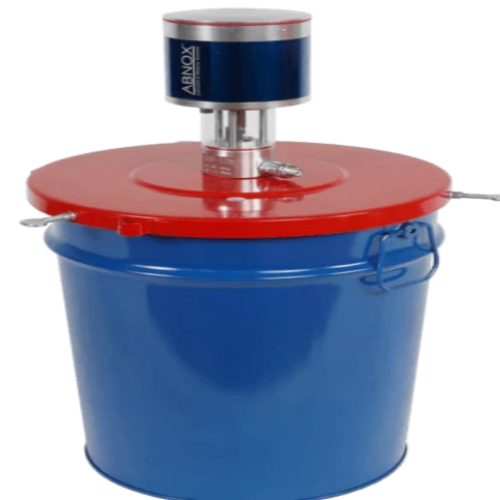

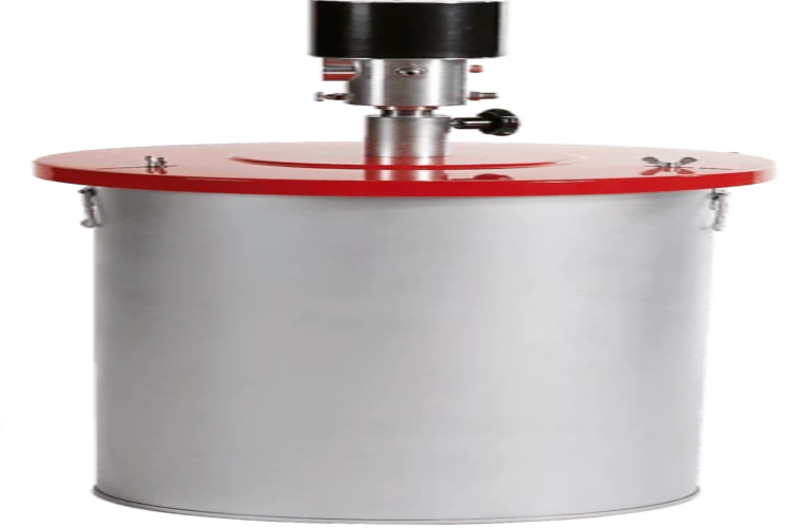

The Mass Grease Supply System mAXI is ideally suited to lubricate a large bearing with the correct amount of grease, for packing grease into smaller containers and for supplying a ABNOX dispensing valve of 30 to 500 cm³.

Air-operated Grease Supply System with a Grease Mass Pump and Pressure Reducing Valve for direct mounting to containers 50 kg.

Recommendation from ABNOX:

Use a maintenance unit when air supplying device contains humidity to prevent corrosion and fouling.
Use the original container and fit the right follower plate. This will avoid air pockets.
Never leave the pump system on the suction tube on the floor. Keep them away from dirt, you will avoid damage to the pump and expensive repairs.

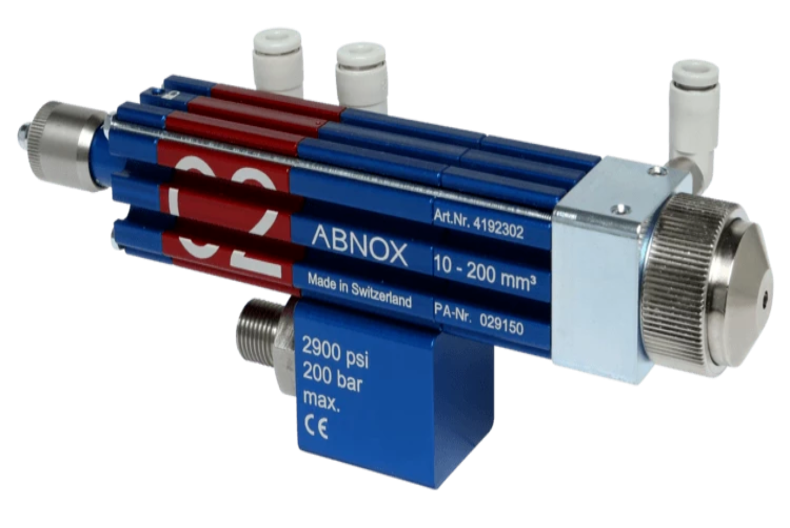

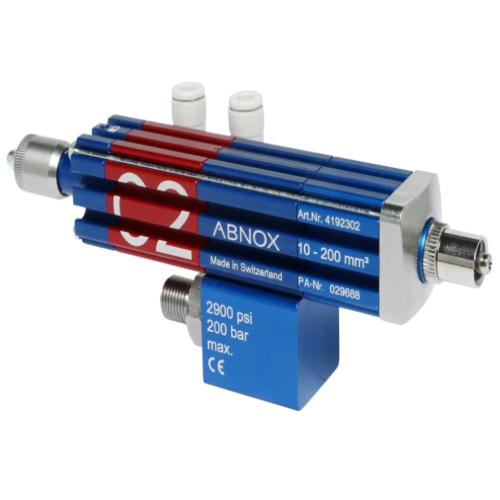

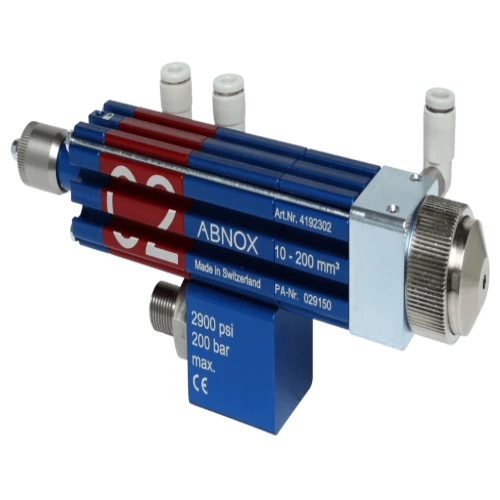

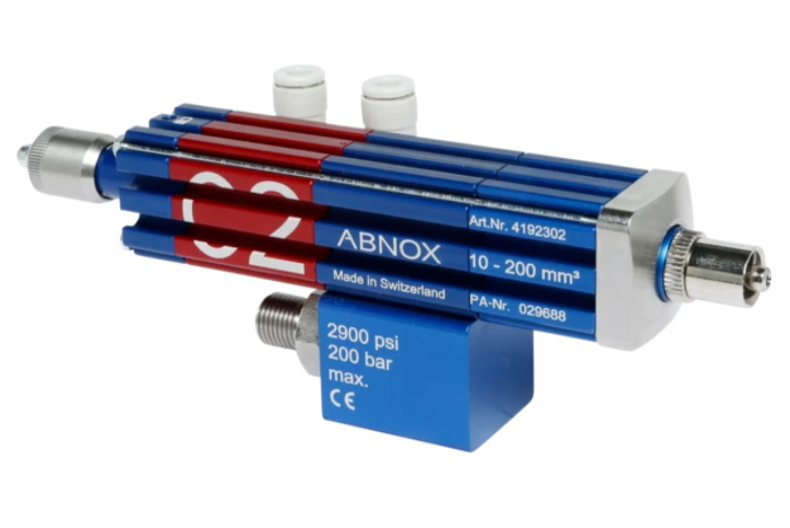

Ultimate process reliability at uniformly and clean application of lubricants – This Spray Metering Valve AXDV-C3-SPK2 allows for controlled spraying of the lubricant volume defined by the volumetric metering valve, independently from the viscosity, operating pressure and time. This allows accurate precisely placing of minute quantities of your complex lubricant on your device.
Thanks to every spray cycle with exactly the same amount of grease or oil (high repeatability), means permanent saving of your expensive lubricant!

There are no pre or dripping drops in this Spray Metering Valve. Due to ist special shape, the grease piston, triggers a retraction effect at the end oft he spraying process, which causes the lubricant to tear off cleanly. Nozzle and production area remain clean, the lubricant is optimally utilized. The downtime to clean the assembly line are thereby minimized.

The Spray Metering Valve AXDV-C3-SPK2 has a continuously screw-adjustable dosage chamber, as well as an integrated pneumatic cylinder to control the dosage pin. The hexagon key wrench with wrench size 1.27 mm (included in scope of supply) is for used to lock the adjustment screw. Accidental misadjustment of the dosage volume is therefore a matter of the past.

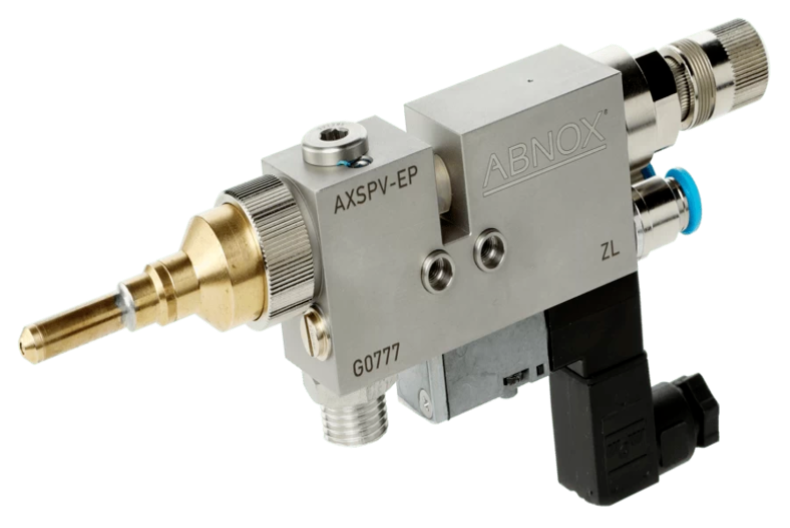

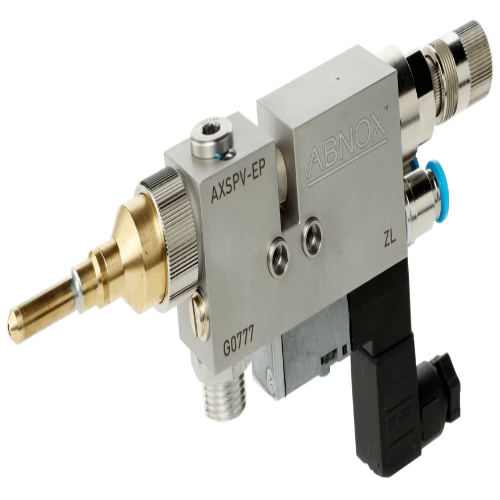

This electro-pneumatic spray valve AXSPV-EP (basic model) is equipped without nozzle and nozzle needle. It is suitable for mounting various nozzle extensions DVL, needle-sealing.

The electro-pneumatic spray valve AXSPV-EP is specially designed for the application of low-viscosity up to highly viscosity lubricants. This spray valve is suitable for both intermittent and continuous application.

The special feature of the spray valve is the adjustable post-blow time of the atomising air, which can also be used for nozzle cleaning. The needle function is: opening by air pressure / closing by air pressure and spring pressure.

Short airways in the body and the directly flanged 5/2-way solenoid valve allow very fast and exact cycles. Various air cap variants and nozzle extensions allow adaptation to the desired spray pattern.

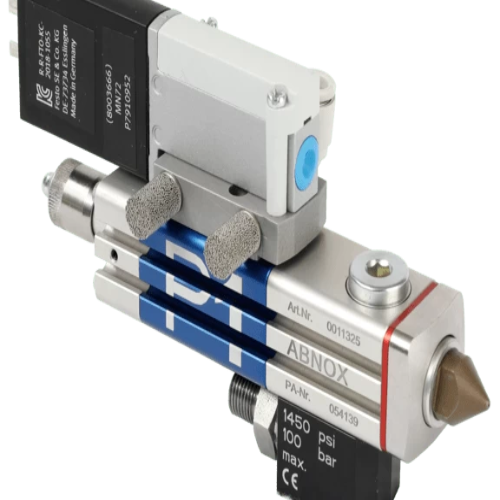

The new electro-pneumatic ABNOX pulse valve in the P1 series is an extremely fast switching high-performance needle valve for non-contact application of sprayable medium to high viscosity lubricants in continuous or intermittent operation.

This pulse valve is equipped with a full jet short nozzle Ø 0.5 mm. Nozzles with other inner diameters are available as an option. Depending on the nozzle size, materials of different viscosity can be processed.

The alternating control of the air piston via the integrated 5/2-way solenoid valve causes the nozzle needle to open and close directly at the nozzle outlet. The short distances within the entire air supply range and the fast-switching solenoid valve with up to 200 switching cycles per second, allow very high cycle rates of the entire pulse valve. When the control air is switched off or fails, a spring closes the valve.
Depending on the viscosity, the lubricant is fed to the valve from a pressure vessel or a pump.

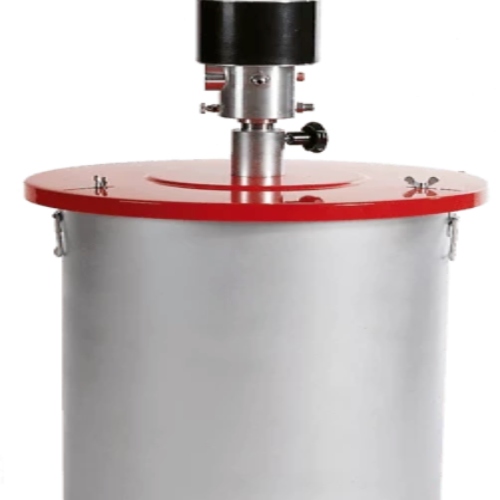

The Air-operated Grease Supply System 5:1 is designed to pump liquids lubricants, i.e. for the filling of gearboxes or in centralised lubricating systems.
This Pumpsystem is only suited to pumping and filling with fairly thin lubricants (max. NLGI Class 1).

This Grease Supply System has the right balance between pressure and capacity. This low-cost equipment is renowned for their high output as well as their low noise level.
All parts coming into contact with the air-supply are made of corrosion-resistant materials, offering long-life reliability.
The complete system is designed for simple and all-purpose maintenance.

The protection container to prevent damage to the container and to guarantee a perfect function of the follower plate.

Recommendation from ABNOX:

Use a dia. 3/8“ or 1/2“ high pressure hoses with a max. length of 2 up to 3 m.
Use a maintenance unit when air supplying device contains humidity to prevent corrosion and fouling.
Avoid transferring lubricants to protective container.
Use the original container and fit the right follower plate. This will avoid air pockets.
Never leave the pump system on the suction tube on the floor.

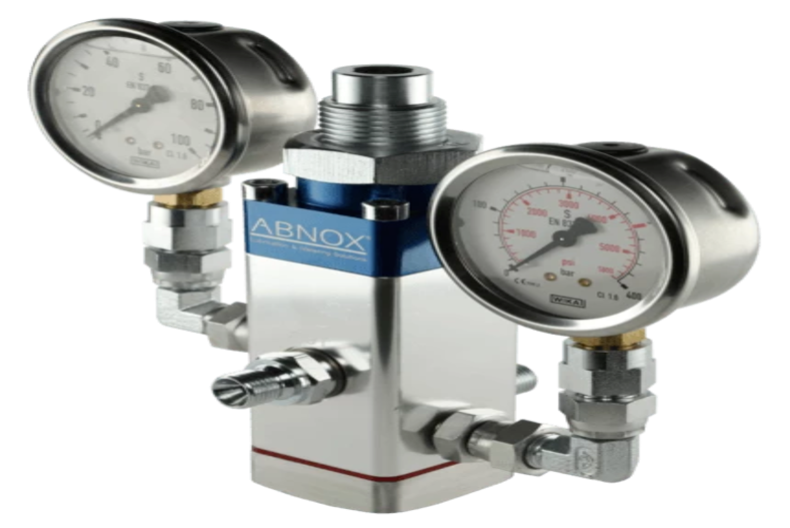

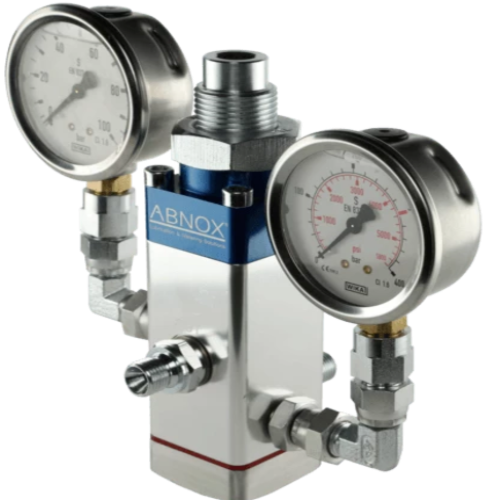

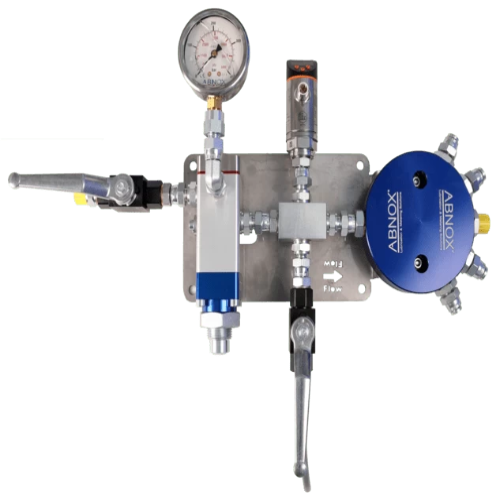

The new Material Pressure Regulator MDR-LW04 is used to reduce pressures and to minimise the pulsation which occurs when material is conveyed using piston pumps.

The working pressure can be adjusted continuously from 5-50 bar with the preload screw and fixed with the lock nut. The ratio between the inlet and outlet pressure should ideally not exceed 5:1.

The Material Pressure Regulators are designed for handling self-lubricating media such as grease and oil.

The regulator can be ordered with an outlet pressure gauge (1M) or with inlet and outlet pressure gauges (2M).

This Material Pressure Regulator is optionally also available with a Mounting Set for direct installation on ABNOX Grease Pumps (Z-Adapter) or at the individual systems (connecting plate).
