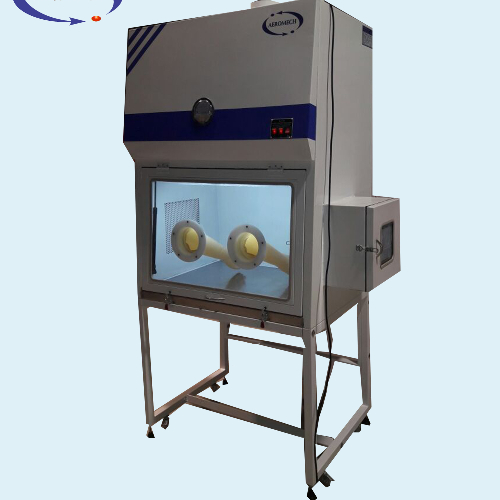

• Aeromech™ Class III biological safety cabinet provides an absolute level of safety, which cannot be attained with Class I and Class II cabinets. All Class III cabinets are usually of welded metal construction and are designed to be gas tight.
• Work is performed through glove ports in the front of the cabinet. During routine operation, negative pressure relative to the ambient environment is maintained within the cabinet. This provides an additional fail-safe mechanism in case physical containment is compromised. On all Class III cabinets, a supply of HEPA filtered air provides product protection and prevents cross contamination of samples. Exhaust air is usually HEPA filtered and incinerated.
• Alternatively, double HEPA filtration with two filters in series may be utilized. Materials are transferred into the cabinet using a pass-through unit installed at the side of the work area. Class III cabinets usually exhaust air back to the laboratory; however, air may also be exhausted via a dedicated ductwork system to the external environment. When a dedicated ductwork system is employed, they are also suitable for work employing toxic chemicals as an adjunct to microbiological processes. All Class III biological safety cabinets are suitable for work with microbiological agents assigned to biosafety levels 1, 2, 3 and 4. They are frequently specified for work involving the most lethal biological hazards.

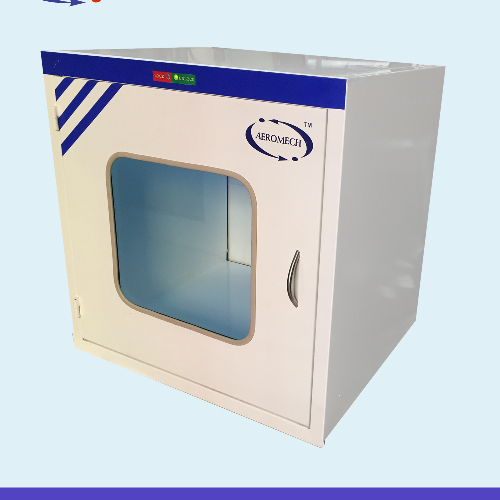

• Aeromech™ Pass box unit for easy access or passage of materials the between clean room and outer dust areas. It is Essential for maximum protection against outer contamination when objects are passed into or out of the clean room.
• Available in Mechanical Interlocking & Electrical Interlocking Arrangement Standard size available – 2’ x 2’ x 2’

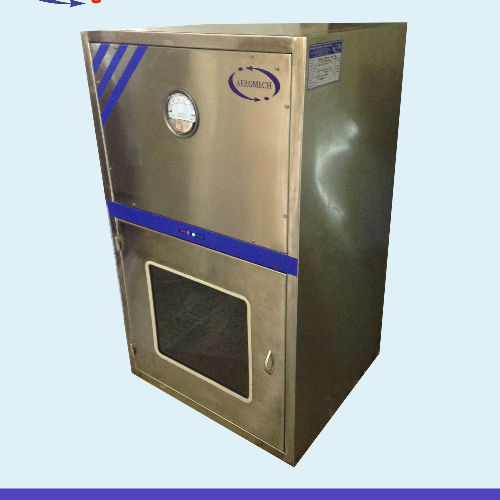

• Aeromech™ Class 100 dynamic passbox units provide Class 100 Cleanliness level inside the passbox provide critical environment material for easy access or passage of materials the between clean room and outer dust areas. Essential for maximum protection against outer contamination when objects are passed into or out of the clean room.
• Available in Re-Circulation Type and Non- recirculation type.
• Available in Mechanical Interlocking & Electrical Interlocking Arrangement.

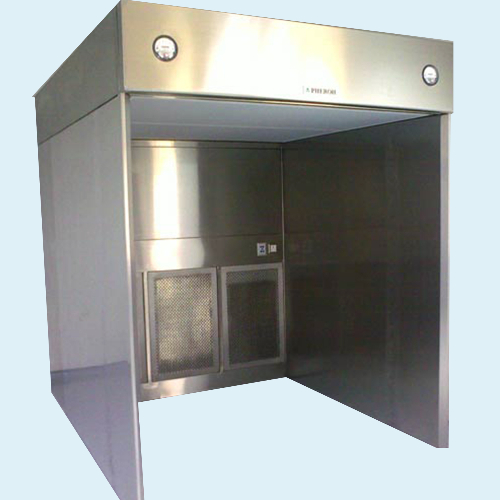

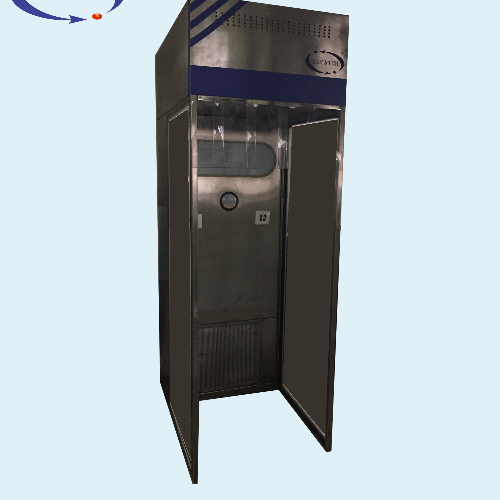

• Aeromech™ Powder Containment Dispensing/Sampling booths, which are ideal to control the hazardous emissions of powder dust during powder dispensing/Sampling processes. The booth controls the emission of powders without any risk to the operator and product. The downdraught of HEPA filtered air from the booth prevents airborne dusts caused by handling operation away from the operator’s breathing zone. The air is forced downwards and is extracted at low level into the booth's filtration system. These powder sampling booths are available in Stainless Steel, GI Powder coated with epoxy PU coated finish. They are of international quality and performance standard offering efficient services.

• Aeromech™ Powder Containment Dispensing/Sampling booths, which are ideal to control the hazardous emissions of powder dust during powder dispensing/Sampling processes. The booth controls the emission of powders without any risk to the operator and product. The downdraught of HEPA filtered air from the booth prevents airborne dusts caused by handling operation away from the operator’s breathing zone. The air is forced downwards and is extracted at low level into the booth's filtration system. These powder sampling booths are available in Stainless Steel, GI Powder coated with epoxy PU coated finish. They are of international quality and performance standard offering efficient services.

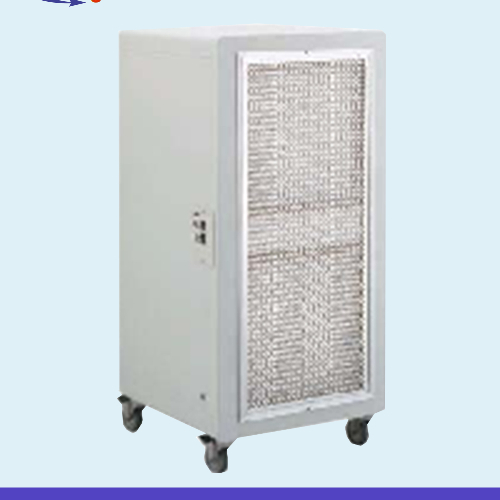

• Aeromech™ Designed for Ambient clean down these modules are available in a variety of versions, ceiling suspended, table top, wall mounted and floor standing Capacities range from 150 CFM to 1500 CFM. While the larger modules are intended for use in production areas, the smaller and more compact units are designed to reduce considerably the over all biologic and non biologic airborne particulate activity level. Especially in microbiological laboratories, intensive care area in hospitals, conference rooms and homes with convalescents

• Aeromech™ Designed for Ambient clean down these modules are available in a variety of versions, ceiling suspended, table top, wall mounted and floor standing Capacities range from 150 CFM to 1500 CFM. While the larger modules are intended for use in production areas, the smaller and more compact units are designed to reduce considerably the over all biologic and non biologic airborne particulate activity level. Especially in microbiological laboratories, intensive care area in hospitals, conference rooms and homes with convalescents

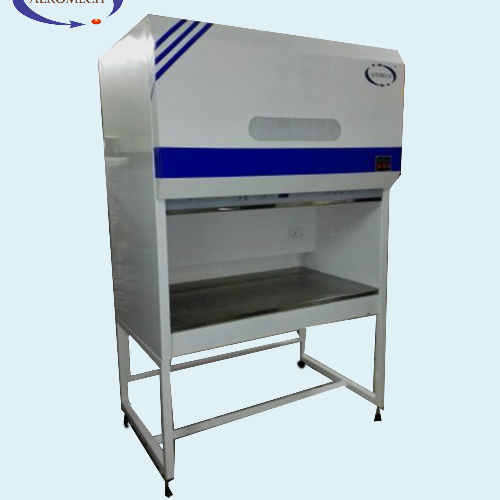

Aeromech™ Fume Hood ( Constant volume type) is fitted with a movable front sash and an interior baffle. The sash may be fully opened to accommodate apparatus within the fume hood, while baffle directs exhaust air along specific flow pattern within the enclosure. The constant volume type generally operates at constant exhaust volume with the total exhaust air entering the hood through the sash opening. Closing the sash increases the speed of the air through the sash opening, so that high velocities are to be expected with the sash in the near closed positions.

Aeromech make Wet Chemical Benches used for wet chemical handling of various applications, electropolishing and/or citric / nitric acid passivation as well as other chemical wet process applications. Typical construction materials include polypropylene, stainless steel, depending on the chemical handling properties required for the application. Our manufactured wet Chemical benches include simple polymer based tanks typically made from polypropylene (PP).

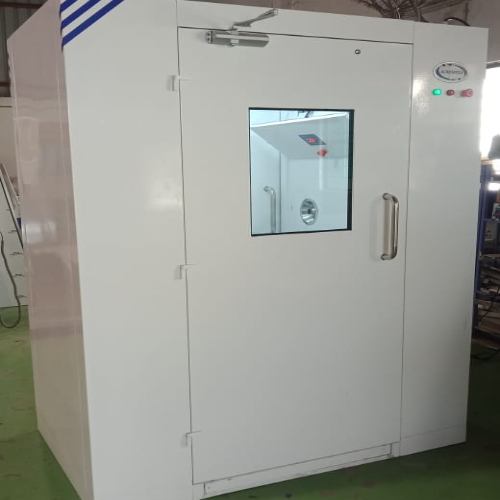

• Air shower works as partial clean equipment installed at the partition between the clean room and non-clean rooms to shower the personnel or matters before entering the clean area. This unit helps to remove dust effectively and maintains the normal working status. All our Air Showers are assembled and tested directly in the factory and supplied after hard quality testing. These units are completely microprocessor controlled self contained unit and equipped with air filtration systems, blowers, motors, controls, inter locking doors, lighting and electrical panel. Although we offer air showers in varies sizes and packages, we also provide customized designs meeting your special needs.

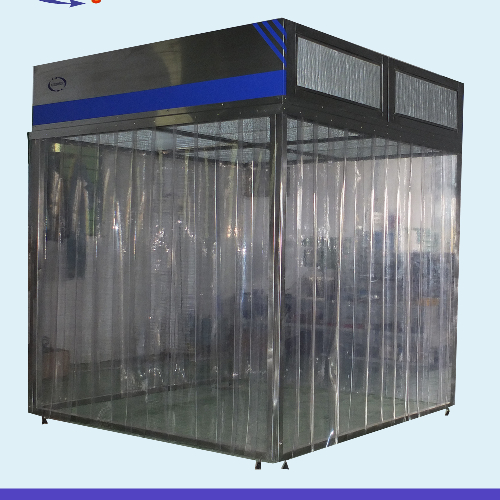

• Aeromech™ Modular Softwall Cleanrooms are designed to provide clean environments from Class 100,000 to Class 10 (ISO Standards Class 3 thru Class 8).
• This softwall cleanroom system consists of a Tubular Steel Frame Structure that supports the Ceiling Grid and Clear Vinyl Curtain Wall material. Filtered air is provided by Self Powered Filter Units mounted in-Ceiling that draw outside air thru a Prefilter and deliver filtered air through a Hepa filter into Cleanroom. Filtered air is exhausted from Cleanroom beneath the Curtain at Floor level. Clean levels will vary depending on quantity and configuration of Filters.
• All components for softwall cleanrooms are prefabricated and completely Modular in design and can be installed by End User or by our Factory Trained Technicians.

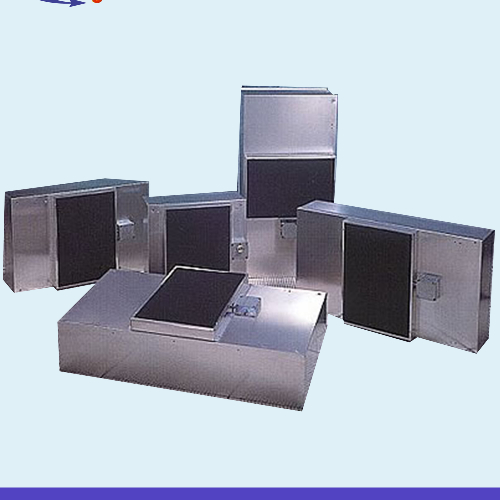

• Aeromech™ Fan Filter Units are self-contained, motorized Supply Air Modules equipped with either HEPA or ULPA filters. Our FFU's can be used in either horizontal or vertical flow positions, wherever clean air is needed. The clean air fan filter module includes a fan shroud, a fan/motor mount, a centrifugal fan, a fan motor, and a HEPA filter, the fan shroud having an air inlet and two inclined ends, the fan/motor mounted below the air inlet on the fan/motor mount, the centrifugal fan blowing air radially towards the fan shroud, the HEPA filter constituting the air outlet.
• Fan Filter unit is generally used to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundred to several thousands.

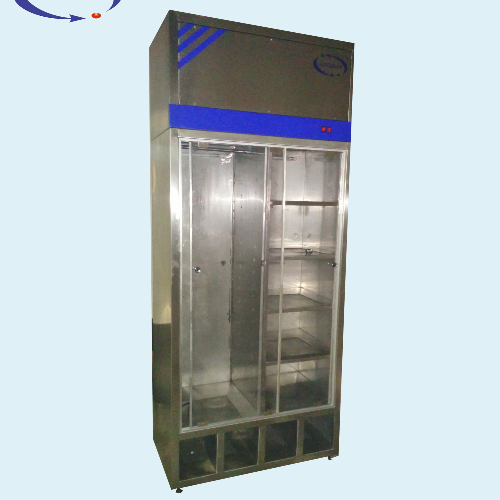

Aeromech™ make Cleanroom Garment storage cabinet made for a controlled environment chamber for optimal storage of clean room garments, tools, wipes, process equipment, and other materials

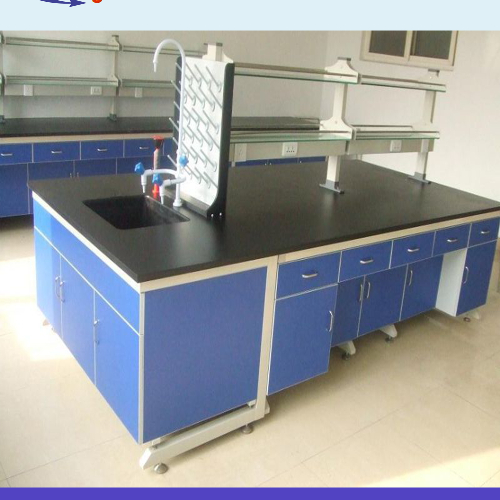

• Aeromech make Laboratory Work Benches are provided with epoxy powder coated finish, with half white and optional color in both interior and exterior, that has one drawer and one cupboard with one horizontal partition. Our clients can avail from us a quality range of work bench that are mostly used in laboratories. These are the perfect choice to be used in many instruments, chemicals and general labs. Our offer range is in several standard specifications, as these can also be customized as per the technical details provided by the customers.

• Aeromech make Anti Vibration Table have a Granite Surface Plate with Grade-1 accuracy for very precise measuring accuracies. We can select single or dual layer insulation plate depending upon the vibrations present in the Testing Laboratory. These Vibration Tables provide the most economical solution where high frequency vibrations need to be removed. The passive vibrations from nearby motors and other heavy machinery is reduced by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets.

• Aeromech make ESD Work Tables are Designed and built to high specifications, AntiStatic-ESD-Solutions®-worktables and other ESD furnishings are used in a wide variety of technical and manufacturing environments, Electronic Components or assemblies at risk from electrostatic discharges (ESD)are among those sensitive elements which can be destroyed or damaged if the permitted levels of current or impact energy are exceeded.
• Part of the overall solution is to have an ESD workbench designed with the proper grounding to dissipate any static-charge away from the user and product you’re producing or testing. Our custom ESD workbenches are designed to withstand the toughest of environments, allow total flexibility for future upgrades and meet your organization’s ESD Workbench needs.

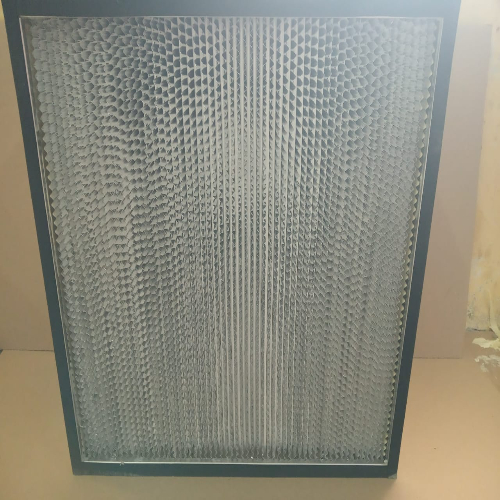

• Aeromech make HEPA Filters are designed to provide the highest level of filtration available for commercial and industrial applications. They are widely used in hospitals, clean rooms, pharmaceutical plants, and in hundreds of other systems where clean air is critical in the protection of people, processes, and equipment. HEPA stands for High-Efficiency Particulate Air.

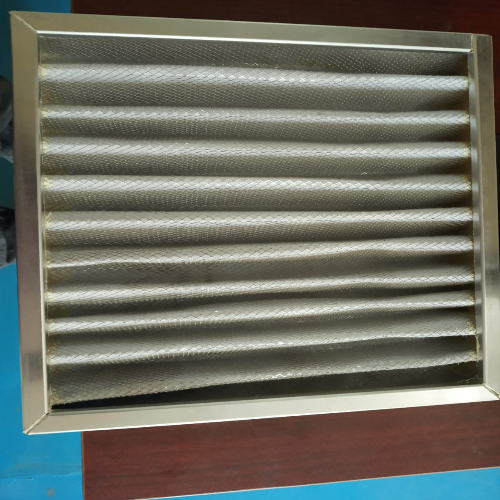

• Aeromech make Pre Filters are made from HDPE or non-woven symthetic media stitched with one layer of G.I. and crimped to required depth to provide larger filtration area, Crimps separated by aluminium or S.S. spacers for uniform distribution of flow, All these filters are washable and cleanable with very high service life.
