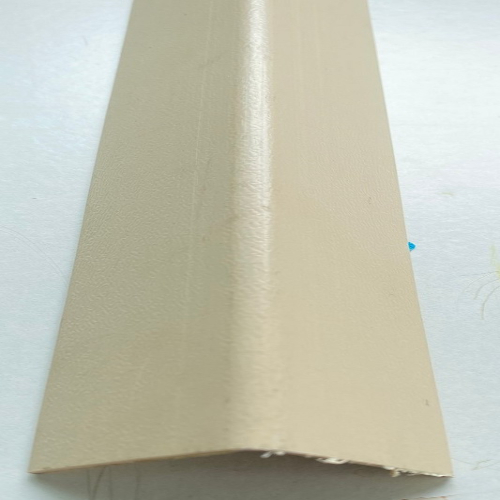

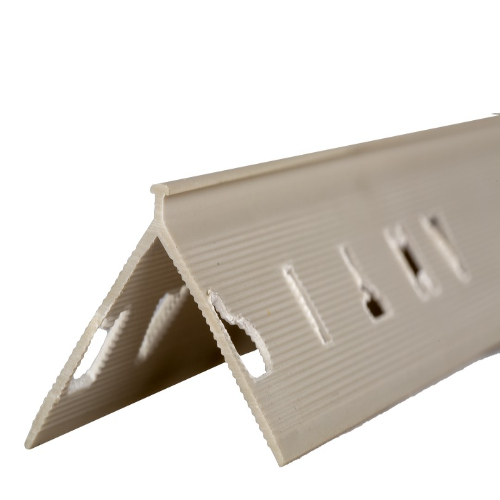

Arpitha UPVC CORNER BEAD

•       Fixing Arpitha UPVC Corner Bead for plastering, an UPVC profile of Thickness of 1.4 mm.

•       Wing size of 60 x 60 mm of Length 2.5 meters

•       Including fixing in position complete and as per manufacturer specification from M/s. Arpitha Exports.

METHODOLOGY

•       Fixing is quick and simple, by applying plaster dabs to the wall at both sides of the arias at  approximately   600mm intervals.

•       placing the Arpitha Corner bead against the arias and firmly pressing the mesh wings in to the dabs of plaster. ensuring that the beads is set plumb and square.

•       projecting sufficiently to allow for the required plaster thickness on both sides of the arias.

•       The fixing for the corners of bricks and blocks are to be done by using galvanized nails or wire tying.

•       The lengths are available in standard and as well as custom made lengths. A high quality Corner Bead is designed for plastering applications of plaster edges, etc.

•       On application it generates true and straight edges which provides resistance against everyday knocks.

SPECIFICATION

•       Available in Thickness of 1.4 mm and Wing size of 60 x 60 mm of Length 2.5 meters.

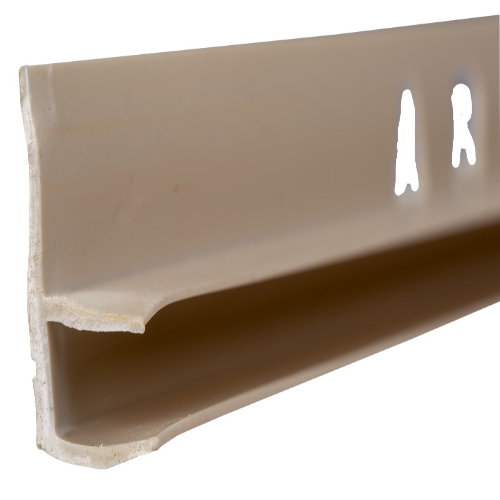

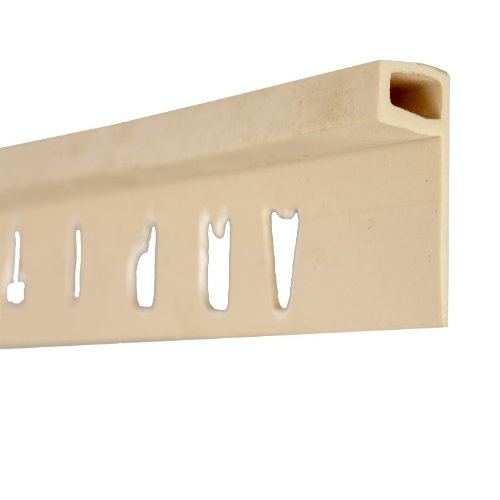

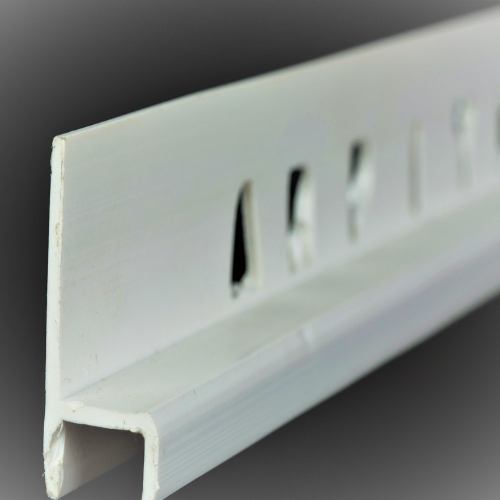

Arpitha PVC DRIP MOULD

•       Arpitha Drip Mold doesn’t allow the water to run back towards the structure from chejja.

•       A Chejja without drip mold may seem as a minor thing but it cannot  let rain water to enter home and can cause hassles.

•       PVC Drip Mold recommends to provide drip mold at lower surface of chejja near external edge.

·         Easy and quick installation process

METHODOLOGY

•       The Arpitha Drip Mould is fixed at the lower end of external part of chejja on all three sides .

•       Drip Mould is placed in-face of the chejja and the level are adjusted.

•       Complete the plastering.

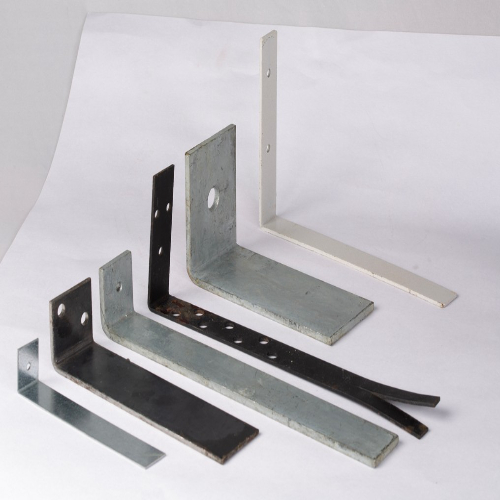

GI WALL TIES

Arpitha GI Wall Tie is made out of nominal thickness of 3 mm, Width 50 mm, Length 200 mm and height 100 mm, bent at 90 Degrees with 2 no's of 6 to 8 mm dia hole. Arpitha GI Wall Tie is made out of Hot Dip Galvanized iron with Zinc coating. Select suitable Arpitha Brick Reinforcement Mesh of sizes 75, 100, 125, 150, 175, 200 mm ) made out of0.35 mm thickand hot dip galvanized iron with a Zinc coating Method of Fixing : After 3 course of Brick / Block work, mark hole position provided in the Arpitha GI Wall Tie on column and drill to fix suitable 6 to 8 mm dia screw of length 50 mm screws. Fix Arpitha GI Wall Tie with Arpitha Brick Reinforcement mesh to the column with screws. Spread Arpitha Plaster mesh above 3rd course of Brick / Block work throughout the masonary work and apply mortar above the mesh and continue masonary work for another 3 course and repeat the above procedure till completion of the Brick / Block work complete as per manufacturer specification, from M/s. ARPITHA EXPORTS, Bangalore.

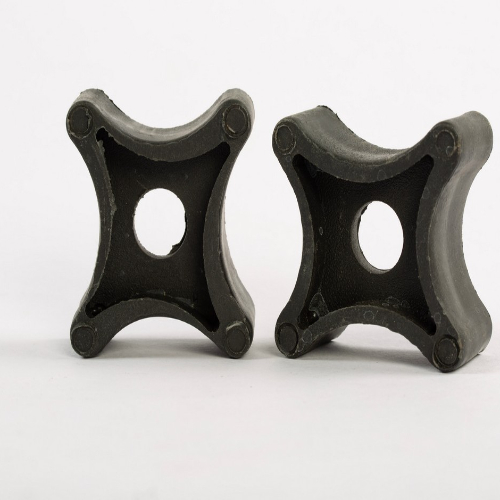

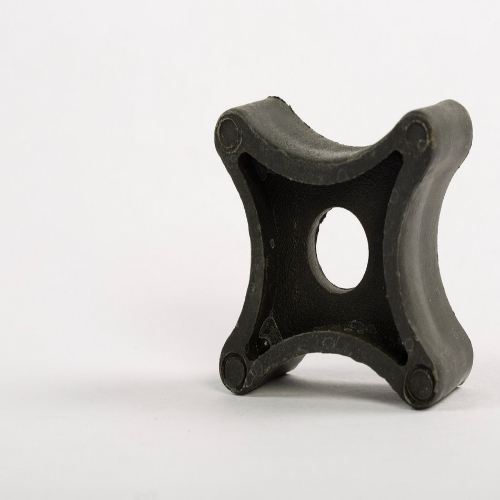

Heavy duty cover blocks for Slab

1. Arpitha Heavey duty Cover Blocks are used for slab or roof reinforecement.

2. Recomnded spacing is 1 no. for every  2 sqft.


·         Specifications and Price

Available in Standard Sizes.

1) Heavy Duty  PVC Cover Blocks

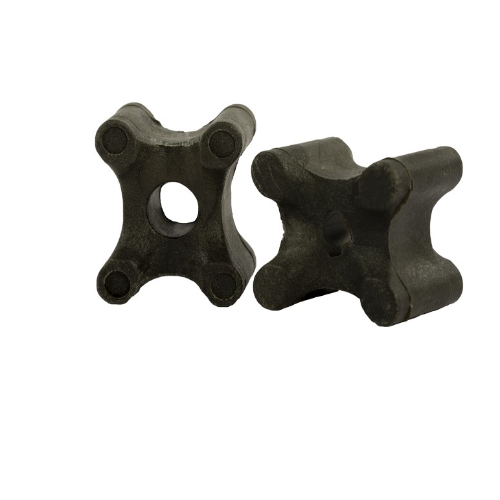

PVC HEAVY DUTY COVER BLOCKS FOR COLUMNS


• Heavy duty cover blocks are used to provide cover for column reinforcements.
• Increases life of reinforement. Provide Uniform cover throughtout the height of the column.
• Approximate 8 Nos of cover blocks required for every 600 mm height on column ring or stirrup.

ADVANTAGES

• Gives uniform cover
• Easy to handle and install.
• Better than conventional Cover block.
• Blends easily with concrete.
• Increases life of reinforcemen

·         Specifications

Available in Standard Sizes.

PVC HEAVY DUTY COVER BLOCKS FOR COLUMNS
      Heavy duty cover blocks are used to provide cover for column reinforcements.

• Increases life of reinforement. Provide Uniform cover throughtout the height of the column.
• Approximate 8 Nos of cover blocks required for every 600 mm height on column ring or stirrup.

ADVANTAGES

• Gives uniform cover
• Easy to handle and install.
• Better than conventional Cover block.
• Blends easily with concrete.
• Increases life of reinforcemen

·         Specifications and Price

Available in Standard Sizes.

ARPITHA PVC SQUARE COVER BLOCKS

PURPOSE

Used to provide the desired cover to the reinforcement , viz Slab, Beam, Footings etc. reinforcement.

ADVANTAGES

• Gives uniform cover
• Easy to handle and install.
• Better than conventional Cover block.
• Blends easily with concrete.
• Increases life of reinforcement.

  Specifications and Price

Available in Standard Sizes.
1)Heavy Duty  - PVC Cover Blocks

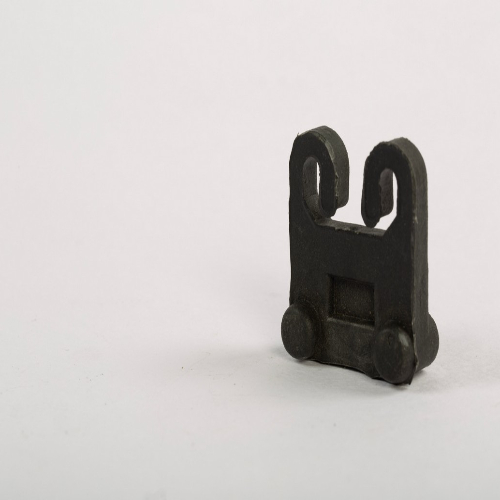

2) Self hooking cover blocks for Slab

      AS 3    20 MM      Rs.0.76/- Per No.
      As 5    25 mm      Rs.1.33/- Per No.


3) Circular Cover Blocks for Column

We are a most trusted name in between the topmost companies in this business offering supreme quality array of PVC Self Hooking Cover Block. Our product range is basically Arpitha PVC Self Hooking Cover Blocks For Slab. To get the total satisfaction of the customers, we provide this product at most affordable price.

Features:

• Self hooking type cover blocks for slab reinforcement supports. Generally, these need to support the load of reinforcement and would be very light
• Approximate numbers required is one number for every 600 mm distance
• We are the manufacturer and exporter of PVC Cover Blocks For Slabs
• We are instrumental in offering fine quality range of PVC Cover Blocks For Slabs
• These are manufactured by us using high quality materials

Specifications and Price

Available in Standard Sizes.

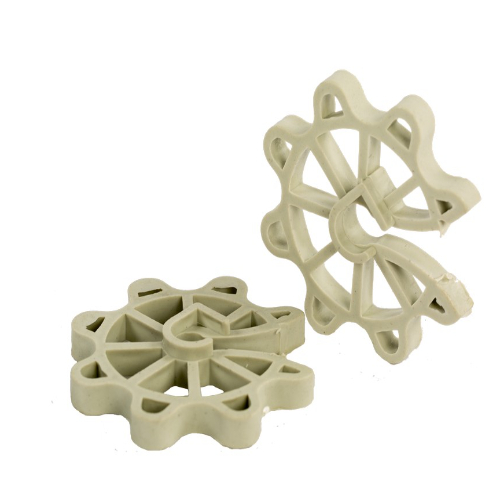

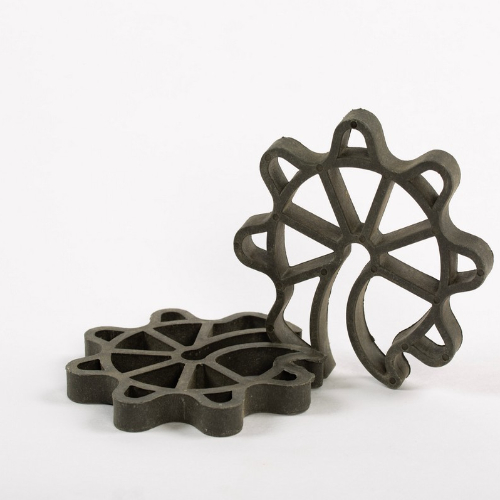

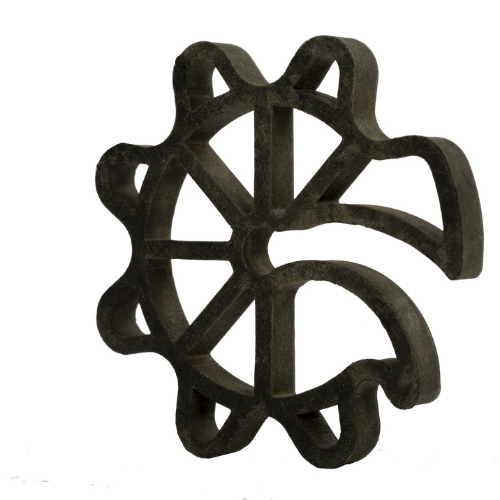

PVC CIRCULAR COVER BLOCK FOR COLUMNS

•       Circular cover blocks used to provide all types & size of cover for column reinforcements.

•       Easy to handle & install. No need to bind with GI wire because it is self hook type.

•       Increases life of reinforcement. Provide uniform cover through out the height of the column.

•       Approximate 8 no’s of cover blocks required for every 600 mm height for column ring or stirrups.


·         Specifications and Price

Available in Standard Sizes.

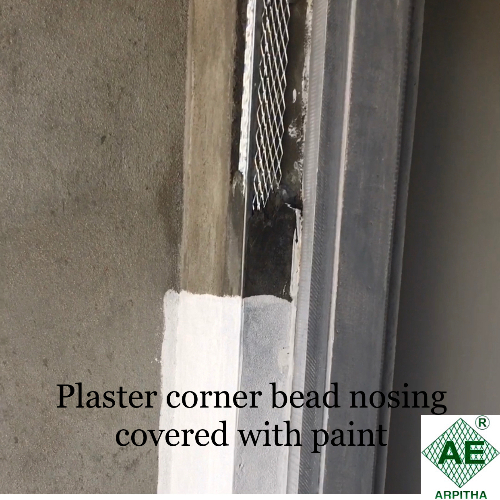

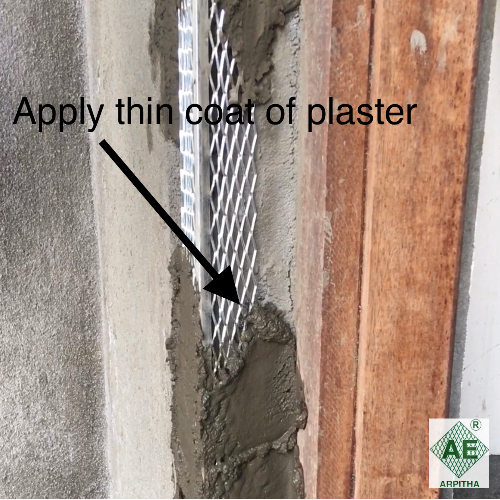

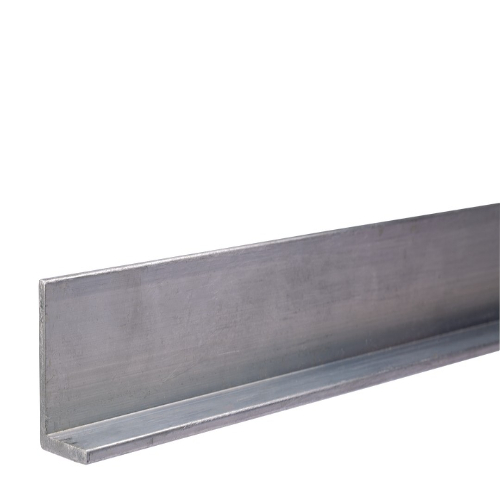

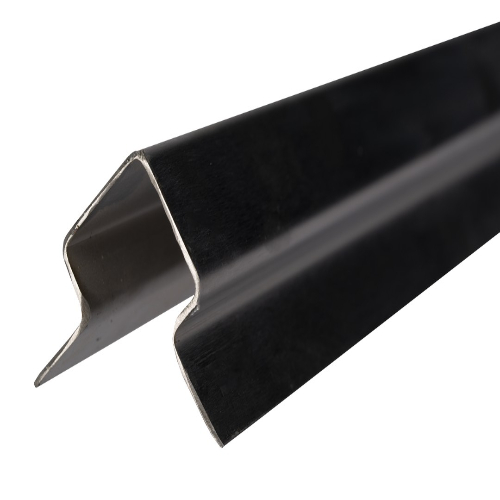

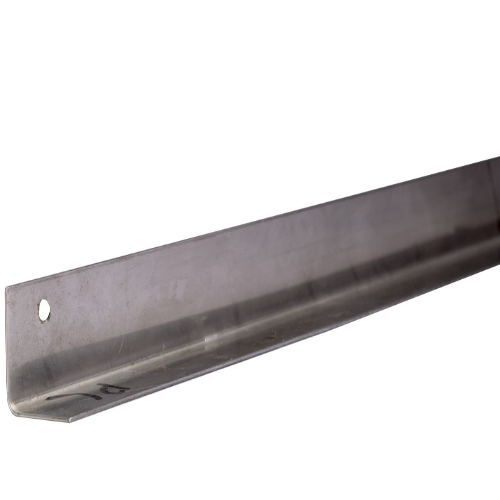

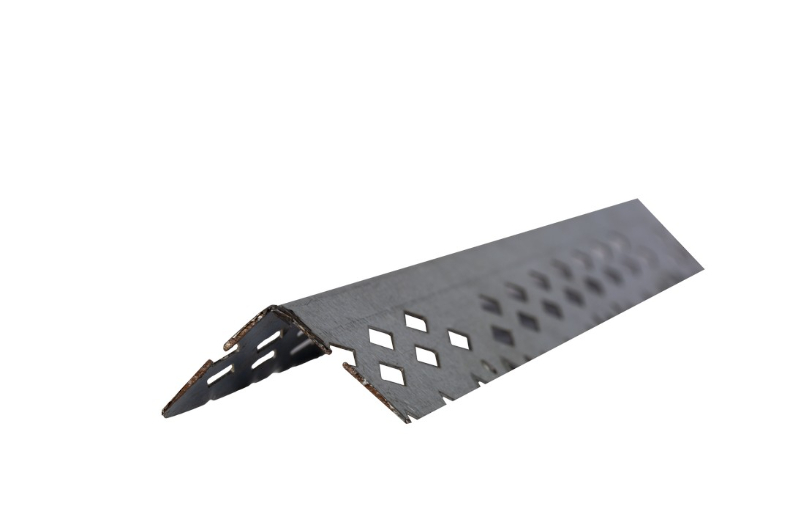

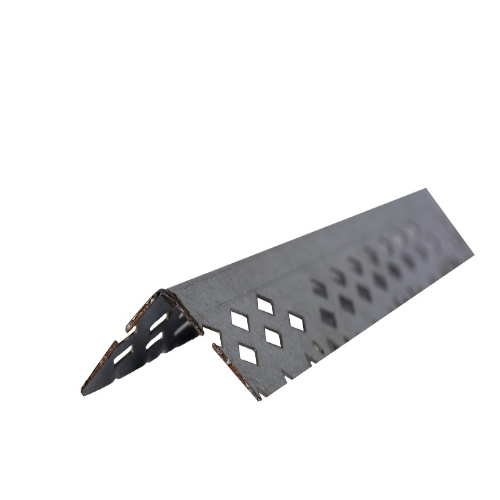

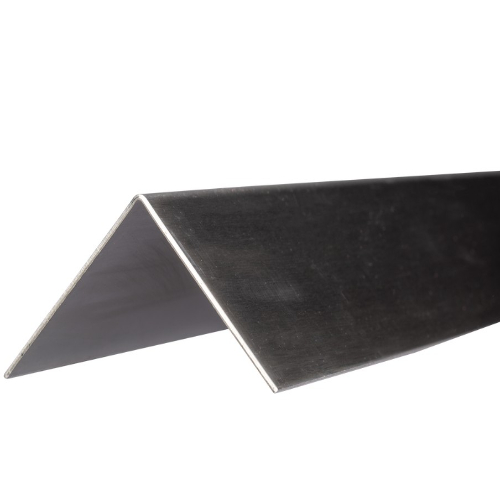

G.I. CONER BEAD

45 MM X 45 MM X2. 4MTS

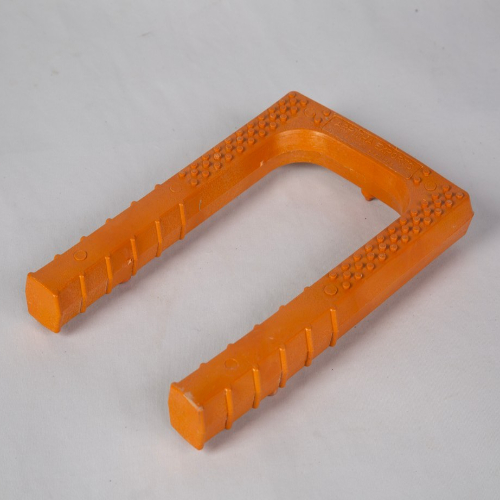

ARITHA RUNGS

Features:

• Arpitha PVC RUNGS suitable for under construction sites
• Arpitha PP Rungs is of size 25 mm Thick x 175 mm wide x 265 mm length reinforced inside with 10 mm steel rod
• Supposed to be used as footsteps in UG Sump tank, swimming pools, Over head tanks & Man Holes with necessary civil work in under construction sites
• Capable of withstanding 200 Kgs. load under properly fixed condition
• A tested and certified product by a competent authority in Civil Engineering

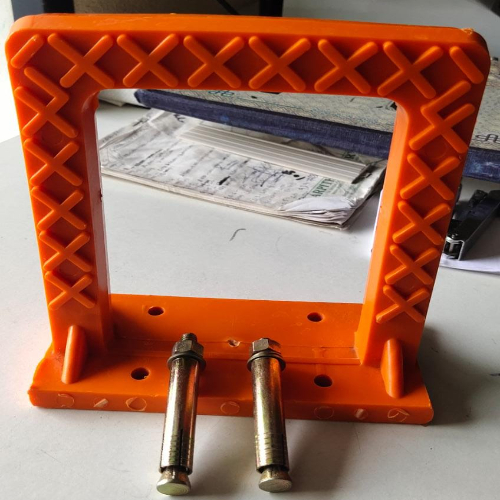

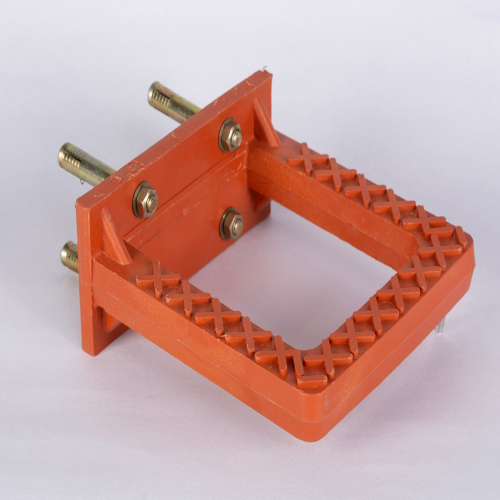

ARPITHA ANCHOR RUNGS

1.  For use as foot steps after the construction process in sump tank.

2.  Arpitha Anchor Rungs are Available in size 170 mm x 175 mm x 25 mm thick.

3.  Capable of withstanding 350 KG load under properly fixed conditions.

METHODOLOGY

1.Mark the position of the ‘Anchor Rungs at the location through the 4 holes provided on the rungs and drill approximately of the length of the 75 mm Anchor Bolt with 10 mm drill bit.

2.Push the ‘Bolt inserted sleeve’ into the drilled hole in such a way that, the sleeve should be housed compactly without any wobbling and the threaded portion of the bolt is protruded outside through the sleeve in the wall.

3.  Place the PP Rungs at the marked location on the four protruded bolts were, some portion of the protruded bolts (all four ) is seen on the upper portion of the Rungs through the holes after placing.

4. Tighten the bolts with the nut securely so that the anchoring is done to the maximum possible extent to ensure firm fixing of the PVC Rung.

5. Further the steps will have to fixed one foot apart in a zig zag manner to enable easy climbing up and down.

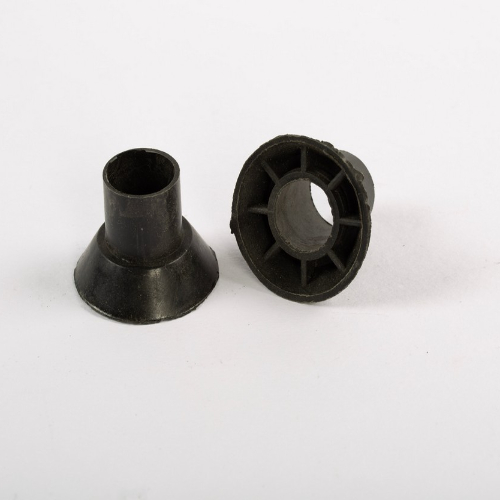

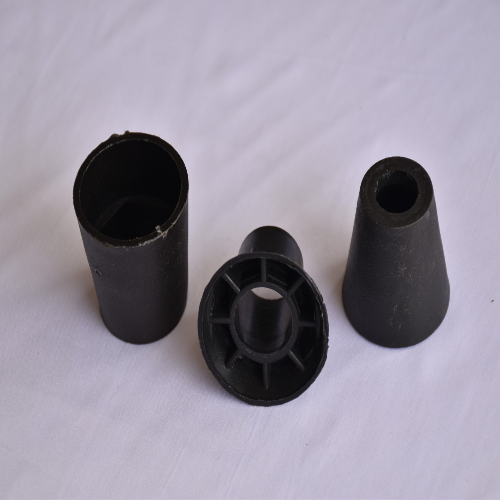

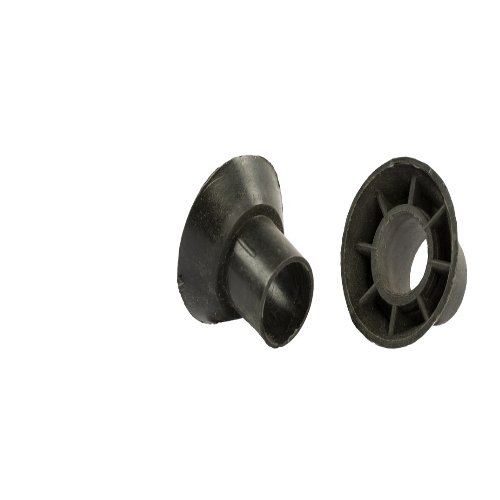

ARPITHA PVC CONES FOR WALL FORM TILE

•       Providing and fixing of PVC Umbrella / Thimble shape Cones FC 1,FC 2/ TC 1 as per specification.

•       Plastic cones in wall formwork are used to provide space for tie bars firmly linking the 2 sides of the formwork during concrete placing.

•       PVC cones are designed to be easily removable after formwork striking.

METHODOLOGY

• The Required Arpitha tie cones selected.
• PVC tube of suitable length and diameter is taken and cut respectively
• The tie rod which is used to tighten on either side is used and fixed
• The concrete is pored in the Mould.
• Once the de-shuttering has been completed the tie cones are removed from position.

The PVC pipe is left inside the member and covered with plaster.

Arpitha PP Rebar Cap


Height: 21 mm

Cap Top Dia: 28 mm

Cap Inner Dia: 18 mm

METHODOLOGY

•       The Arpitha shuttering Beading is placed in between the steel or wooden shuttering work.

•       Beading is placed inside the gap and the shuttering is leak proof shuttering is achieved.

•       While De-shuttering the beading will be easily removed and re-used again.

SPECIFICATIONS

•       Available in Standard Sizes of 2.50 meter.

METHODOLOGY :


• The Arpitha Shuttering Beading is plaaced in between the steel or wooden shuttering work.
•  Beading is palaced inside the gap and the shuttering is leak proof shuttering is achieved.
• While D- Shuttering the beading will be easy removed and re used again.

SPECIFICATION :
Available in Standard Sizes of 2.50 meter.

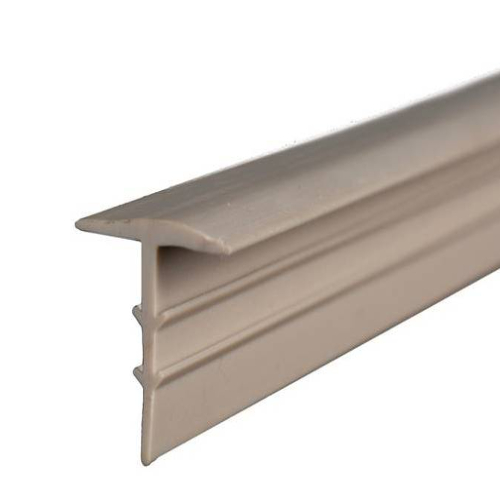

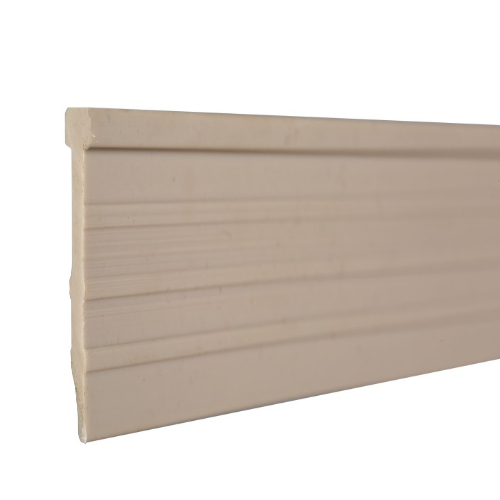

PVC SCREED CONCRETE STRIP

•       Providing and fixing Arpitha UPVC Screed Concrete Strip of the size 30 mm in width

•       4.5 mm thick at top edge

•       2.5 mm thick ribbed portion

•       2.5 metes in length during screed concreting

•       Can be used in Sidewalks, Walkways, Warehouse

METHODOLOGY

•       Level the ground surface and clean the surface of casting concrete

•       Place the Arpitha UPVC screed concrete strip in positions at required interval.

•       the concrete is poured on the slab with the screed concrete strip in place.

•        Please refer the photograph given below to get an idea of how it looks after fixing.

ARPITHA PVC WATER STOPPER

Arpitha Water stoppers extruded from specially compounded PVC and they are designed for use in water retaining and water excluding structures where a positive seal is required for poured in-situ concrete expansion, construction and contraction joints.

ADVANTAGES :

•       A full range of profiles and sizes to suit all types of construction requirements.

•       ARPTIHA WATER STOPPER conform to, and exceed all major international standards.

•       High quality compounded PVC for long term durability

•       Can be use in hot and cold climates.

•       Factory made intersections to simplify and minimize on-site fabrication.

•       Good chemical resistance and suitable to use in contact with potable water.

•       All profiles come with factory pre-punched reinforced eyelets for easy and secure wire tying to reinforcement.

•       Ability to withstand high hydrostatic head pressures.

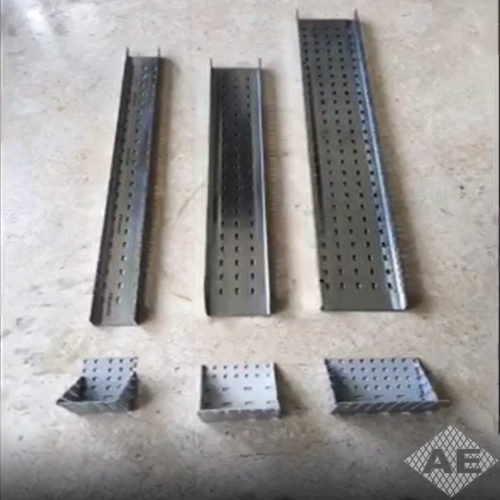

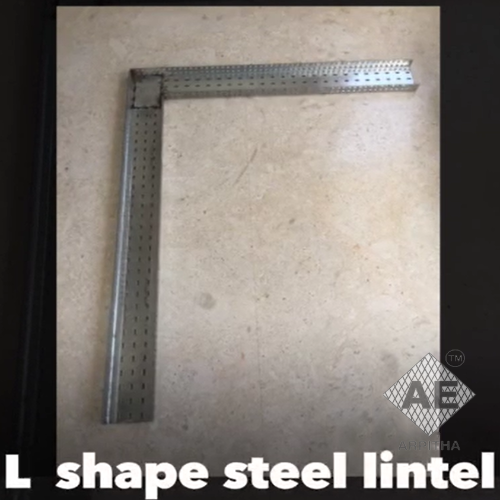

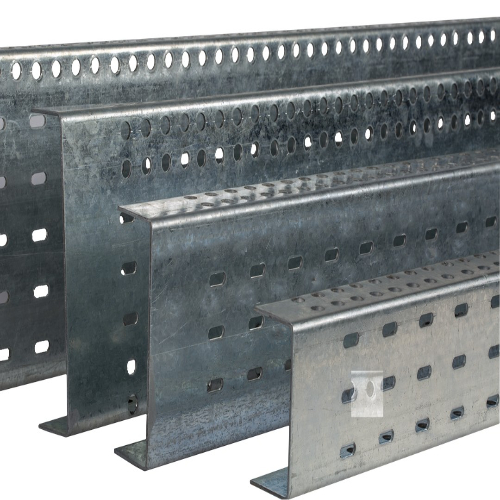

ARPITHA  G. I. Lintel

Purpose
Main purpose of the product is to replace conventional RCC lintels for ease of installation, time and cost saving during   construction.


ADVANTAGES :

•       Shuttering not required. Availability

•       Reinforcement not required.

•       Water curing not required.

•       Very simple installation requires few minutes for installation and brickwork  construction above the lintel can be started immediately.

•  Can be used for all types and kinds of door and window openings of various wall thicknesses.

 AVAILABILITY :

•       Available in various lengths and widths suitable for 100mm, 150mm and 200mm thick walls and also available in custom made width’.

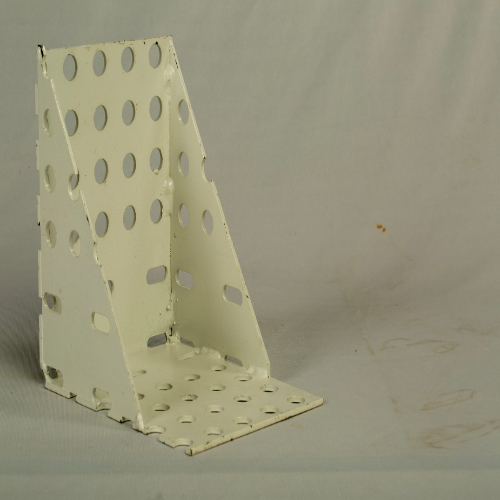

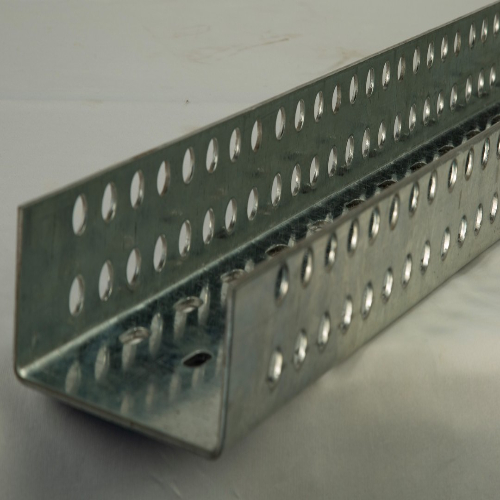

STEEL LINTEL BRACKETS

•       If there are columns on both sides, then we have to use both side lintel  brackets . No need to add bearing for the lintels length.

•       Fixing in position suitable size Steel Lintel Brackets of 3 mm thick ‘L' shape of the size 100mm height and 150 mm in length.

•       perforated and powder coated for 60mm to 80 mm  prevent corrosion at locations were one side is a column and the other side is a wall.

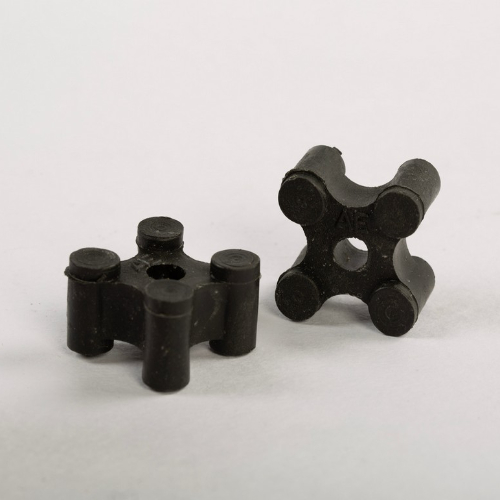

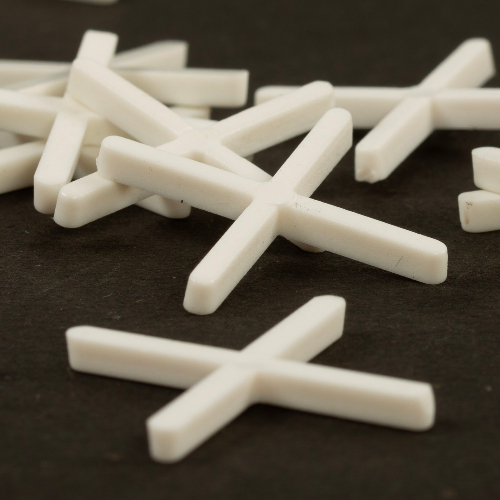

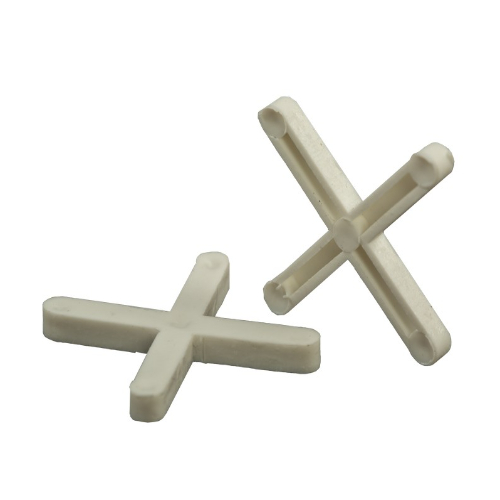

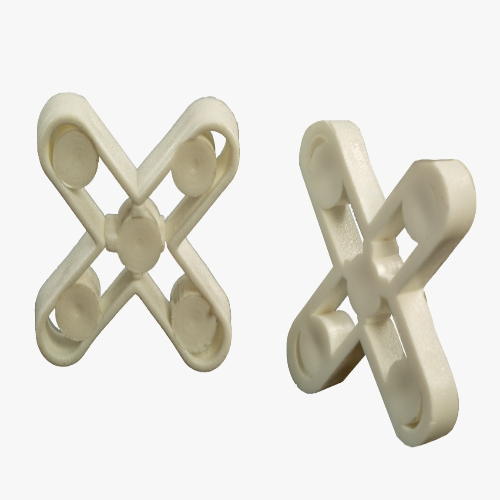

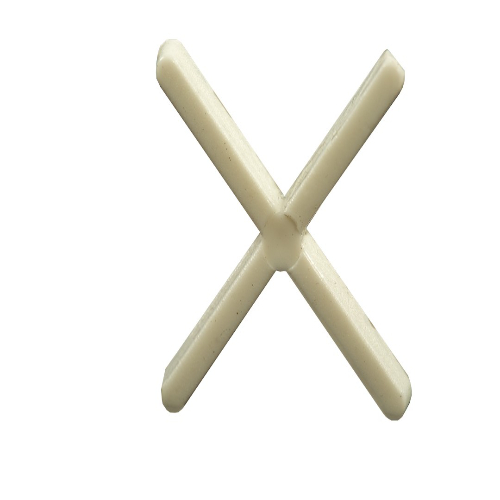

PVC TILE SPACERS.

This product is used while the tiles are laid. The main purpose of the product is to create uniform gaps and to have better bonding along the tile joints.

PURPOSE

Main purpose of the product is to create uniform joints between tiles and to have better bonding along the tile joints.

ADVANTAGES

• Uniform gaps between the tile edges.
• Better bonding of the tiles.
• Better bonding to the grout or the joint filler.
• If the need arises where a single tile has to be replaced, then only that tile can be removed and a new tile in its position can be fixed.

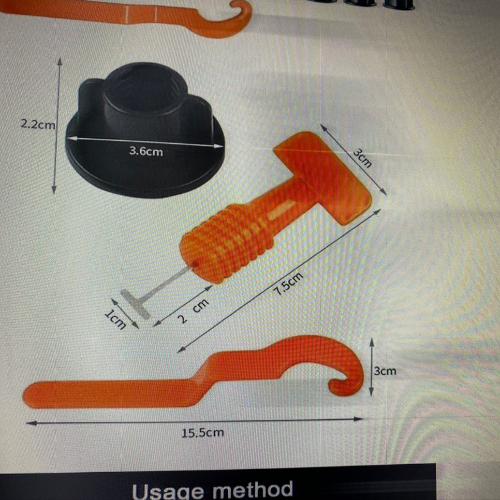

ARPITHA REUSABLE TILE LEVELLERS

Installing Tiles sounds like a daunting task, but not anymore!.'Arpitha reusable Tile Leveller' enables any layman can to do the job as good as a professional tile layer.

Purpose :
To achieve flush and even tiles with relative ease.

Availability :
Adjustable levelling wedges with stainless 'T' tile locatorsA wedge tightening spannerInstallation.


Methodology

1. Trowel on the tile bedding adhesive
2. Set the tiles in place using tile spacers
3. Insert the Arpitha reusable Tile Levellers and wind them up
4. That's it, you're done - perfectly flush and even tiles, every time!

Advantages

1. The 'Arpitha reusable Tile Leveller' will keep the tile balance on the same horizontal position.
2. Improves tile laying speed and also extends settling material coverage.3. Savings in cost and labour.
4. Allows for tight grout line spacing.
5. Reduces joint spacing.
6. Eliminates movement, slumping, shrinkage or warping.
7. Eliminates removing and realignment of already laid tiles.

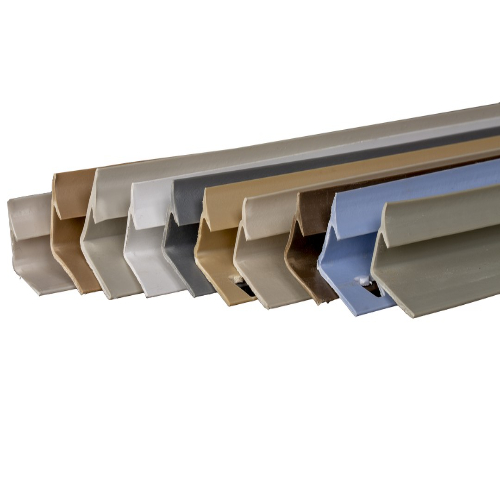

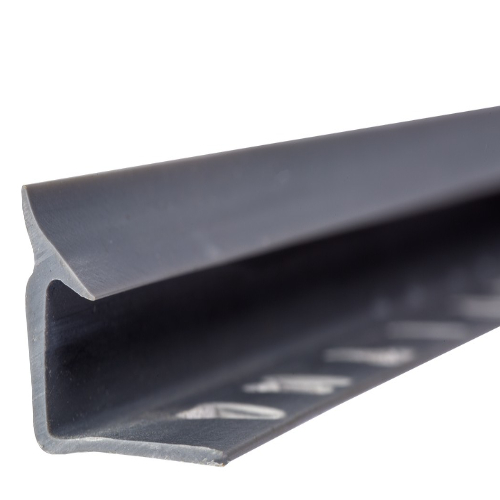

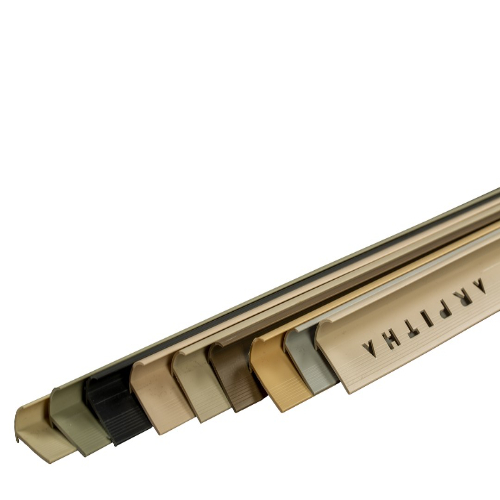

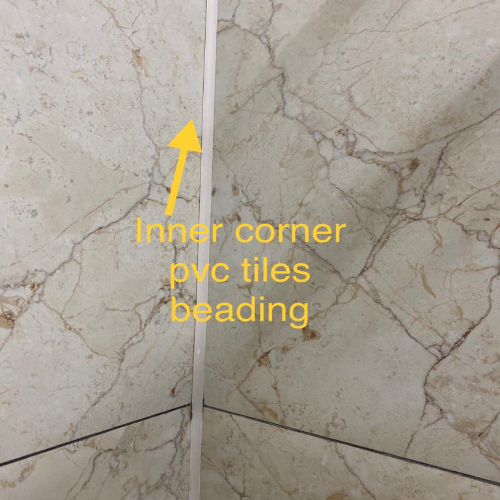

TILE PVC EDGE BEADING TILE “INNER EDGE BEADING”

•       Inner edge used wherever an inner edge is created like in between perpendicular walls & flooring.

•       provides mechanical strength to the edges, finishing.

•       Improves the finishes of the inner corners.

SPECIFICATIONS

•       Available in suit the tile thickness and tile color and in lengths of 2500mm.

•       Available sizes 6.5mm, 8.00mm, 9.50mm, 10.50mm, 11.50mm and 12.5 mm.

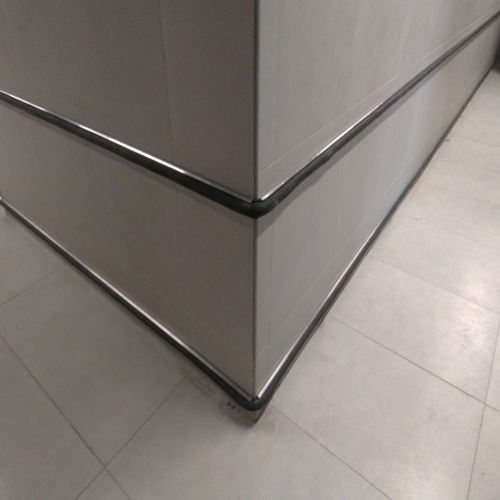

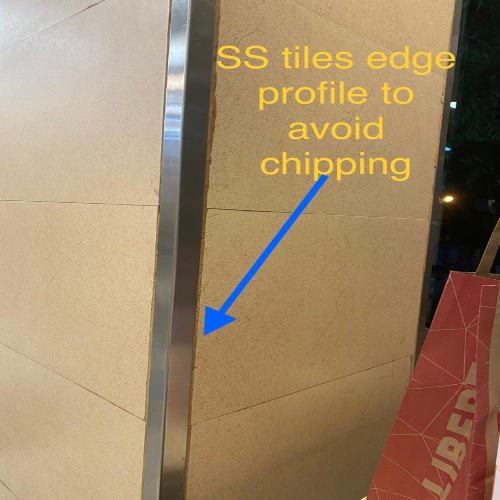

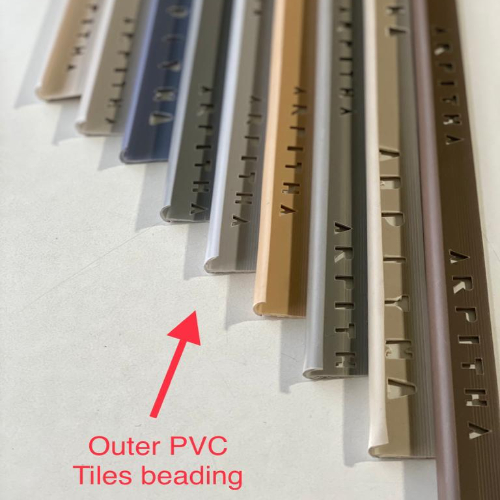

TILE OUTER EDGE BEADING

•       Outer edge beading is used perpendicular between walls and flooring.

•       provides mechanical strength to the edges, round finishing.

•       The outer edge tile beading is used wherever an external edge is created.

SPECIFICATIONS

1) Available in suit the tile thickness and tile color and in lengths of 2500mm

2) Available sizes 6.5mm, 8.00mm, 9.50mm, 10.50mm, 11.50mm and 12.5 mm

TILE PVC EDGE BEADING TILE “INNER EDGE BEADING”

•       Inner edge used wherever an inner edge is created like in between perpendicular walls & flooring.

•       provides mechanical strength to the edges, finishing.

•       Improves the finishes of the inner corners.

SPECIFICATIONS

•       Available in suit the tile thickness and tile color and in lengths of 2500mm.

•       Available sizes 6.5mm, 8.00mm, 9.50mm, 10.50mm, 11.50mm and 12.5 mm.

TILE OUTER EDGE BEADING

•       Outer edge beading is used perpendicular between walls and flooring.

•       provides mechanical strength to the edges, round finishing.

•       The outer edge tile beading is used wherever an external edge is created.

SPECIFICATIONS

1) Available in suit the tile thickness and tile color and in lengths of 2500mm

2) Available sizes 6.5mm, 8.00mm, 9.50mm, 10.50mm, 11.50mm and 12.5 mm

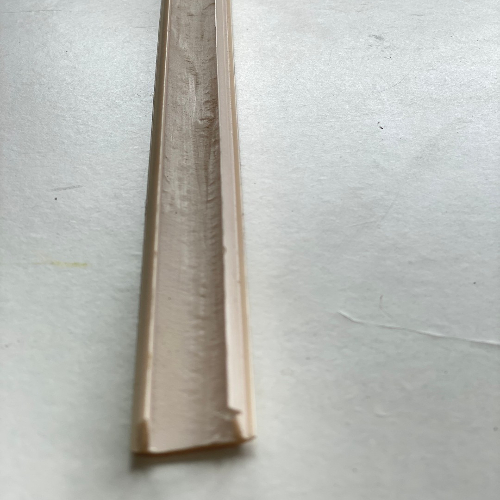

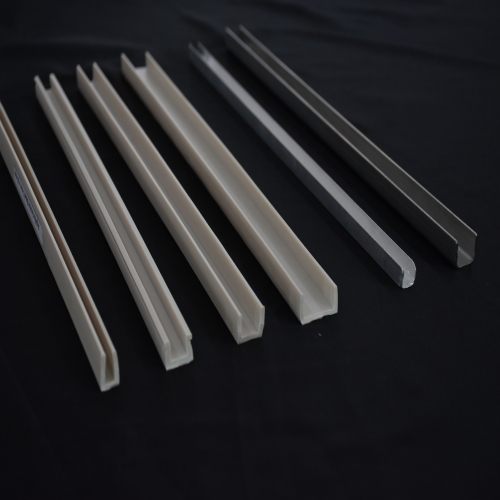

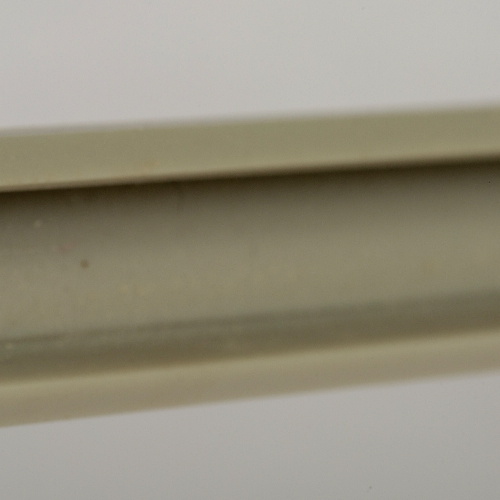

RPITHA PVC GROOVE BEADING “C” CHANNEL

•       “C” channel beading improve the finishing and the strength.

•       Provided  along the plastered wall surface.

•       Adding an aesthetic appeal as it creates uniform groove depth and opening.

SPECIFICATIONS

•       Width-15 mm

•       Height-10 mm

•       Length- 2.5 meters.

Available also in Stainless Steel and Alumnium

F type skirting groove beading :

Purpose

The product is used in the junction between tiles/marble/granite skirting and wall to create grooves.

Advantages

Improves the finishes and strength of the grooves.
Creates uniform Groove depth and opening.
Can be painted along with the plastered wall.
It can be cut using regular wood cutting tools, hence application is easier.

F Type skirting close beading :

Purpose

The product is used in the junction between tiles/marble/granite skirting and walls.

Advantages

Improves the finishes of the junction between tiles/marble/granite and wall.

Can be painted along with the plastered wall.

It can be cut using regular wood cutting tools, hence application is easier.

F type skirting groove beading :

Purpose

The product is used in the junction between tiles/marble/granite skirting and wall to create grooves.

Advantages

Improves the finishes and strength of the grooves.
Creates uniform Groove depth and opening.
Can be painted along with the plastered wall.
It can be cut using regular wood cutting tools, hence application is easier.

F Type skirting close beading :

Purpose

The product is used in the junction between tiles/marble/granite skirting and walls.

Advantages

Improves the finishes of the junction between tiles/marble/granite and wall.

Can be painted along with the plastered wall.

It can be cut using regular wood cutting tools, hence application is easier.

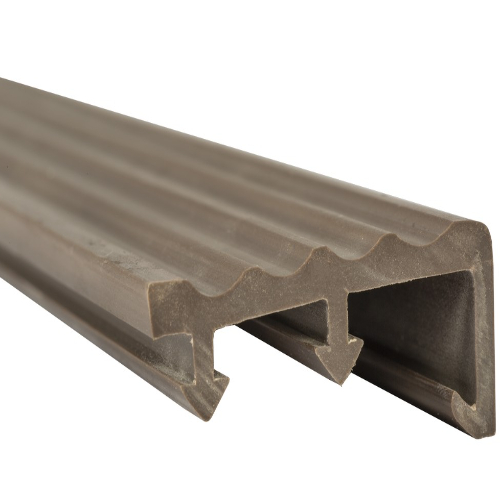

PVC STEP NOSING / STEP GRIP.

This product is designed keeping in my mind the safety of the people walking up//down the staircases and also protecting the edges from wear and tear. It not only offers non-slip protection but at the same time, it helps in enhancing the aesthetic appeal of the steps. There are two variants available
I) Step Nosing-Gripper Type: Flat type used as a “gripper” on the edges of the steps
II) Step Nosing - L Type: The design “L” can be used for grip as well as to cover the tile edges preventing the chipping and injuries to the users in the event of an accident.
III) Arpitha PVC Step Grip cum Step Nosing for staircase step, under construction. Avaliable sizes are: 40mm width with 3 grooves for grip and 20mm height. Available in a standard length of up to 2.5 meters in Grey, Black and dull purple colour.

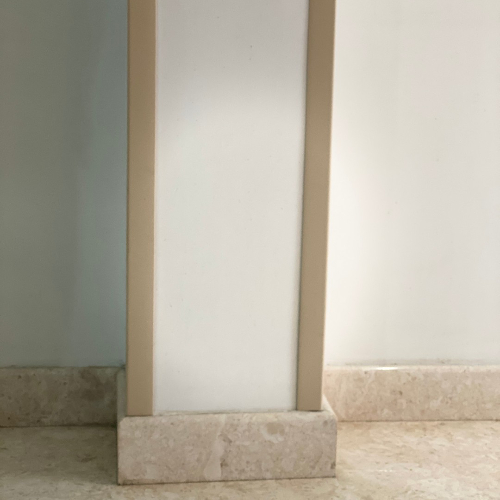

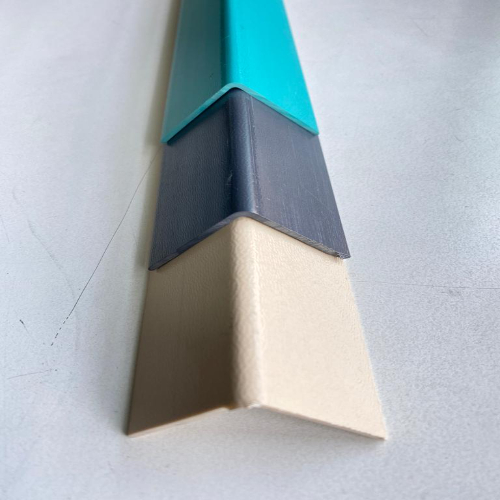

PVC CORNER GUARD FOR EDGE

 Available in Aluminium & Stainless Steel also

•       Corner guard which are made out of Polypropylene are factory made product and hence will have uniform size.

•       Helps protect against the corner of the wall edges.

•       Inexpensive material compare to other corner Guards.

STAINLESS STEEL CORNER PROTECTORSPURPOSE

The product could be used in all type of building construction activities for edge protection of various edges. Made out of 304 grade Stainless steel in 1 mm thickness.

ADVANTAGES

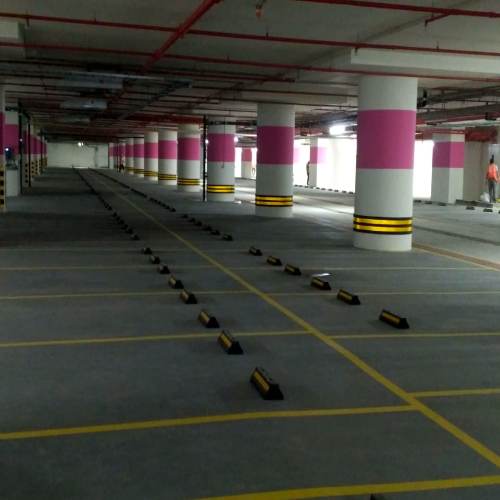

• The under ground parking places where there is vehicular movement.
• Inside buildings wherever loads of material movement is involved.
• Edge protection for Granite and Marble surface finishes.

Avalibility

Can also manufactured and supplied at customized lengths.

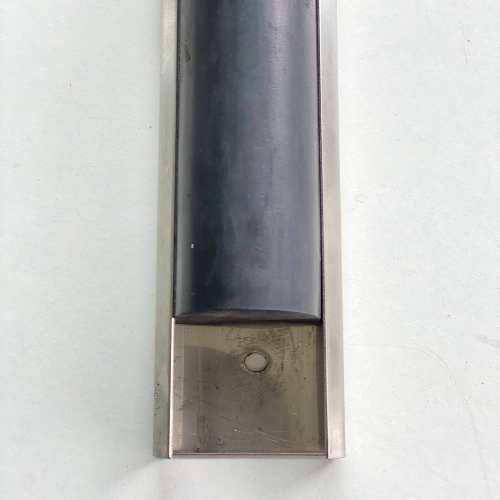

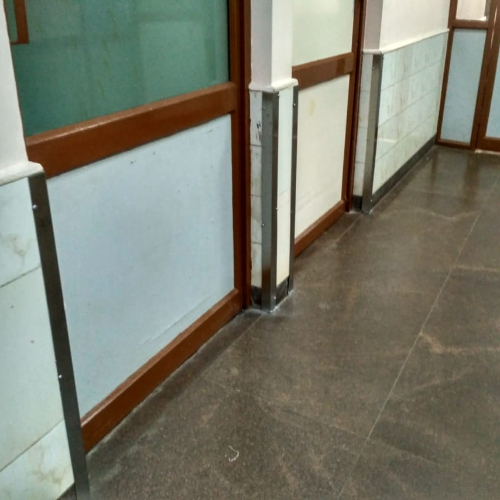

STAINLESS STEEL CORNER PROTECTOR.

PURPOSE

• This is used to protect the edges of the plastered corners, edges of tiles, marble and granite cladding in heavy traffic areas.
• It improves the finishes and protects the edges from damage due to high impacts, creates uniformity, and can be easily installed.
• The SS Box Type is available in SS304 grade in length of 2500mm to suit tile, marble, granite thicknesses.
•  The SS L type corner protector is available in SS304 grade and 25mm*25mm, 40mm*40mm and 50mm*50mm width and also customizable width. The length is 2500mm. Made out of 304 grade Stainless steel in 1 mm thickness.
