Model   Size mm              RPM      Head (Meters)   Discharge L P S  Engine Rating

SW-3     100X80 1500      11          24          6.5

SW-4     100X100             1500      10          25          6.5

SW-5     125X125             1500      9            28          6.5

SW-6     150X125             1500      9            30          6.5

SW-7     150X150             1500      9            32          6.5

TDSS-2  65X50   1500      27          17          12

TDSS-3  80X65   1500      30          24          15

TDSS-4  100X80 1500      30          13          9

HD-540 125X100             1500      20          40          20

HD-548 125X100             1500      17.5       48          20

HD-565 125X100             1500      17.5       65          25

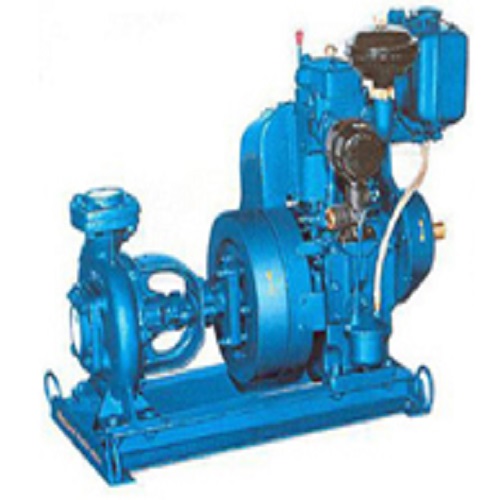

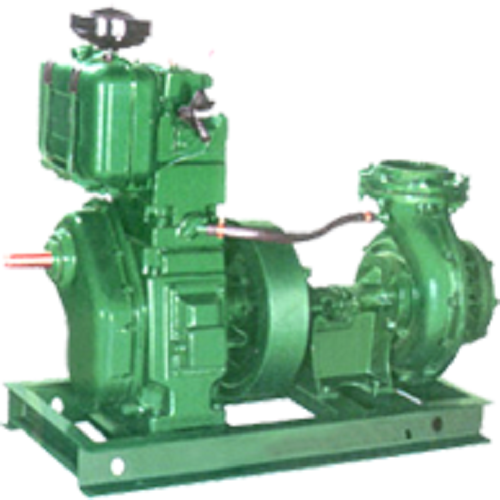

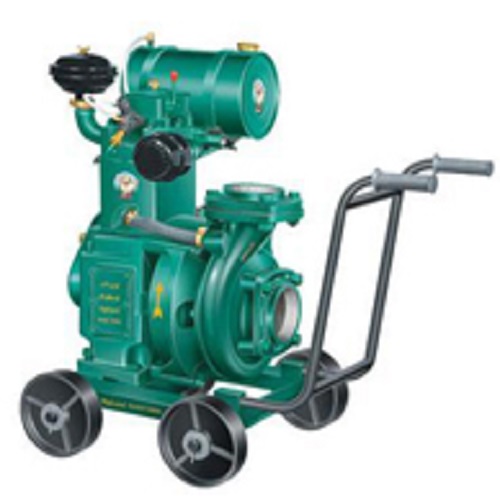

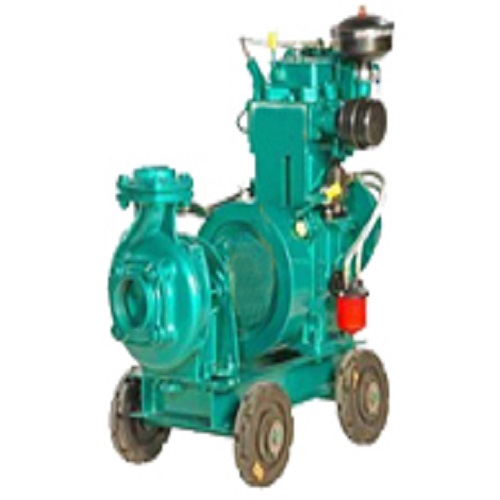

Manufactured under a highly controlled production process, the Air Cooled Pump Set that we provide is designed by expert engineers, keeping the clients’ requirements in view. Comprising various beneficial features that add to their performance, the equipment has made us a prominent Air Cooled Pump Set Manufacturer and Exporter from India.

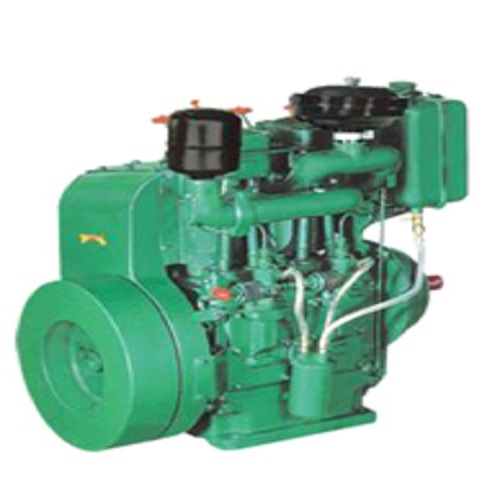

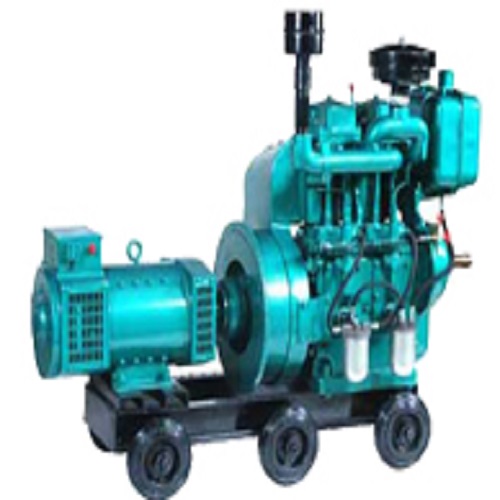

Air Cooled Double Cylinder Gensets, the most demanded of our company, which we are offering in worldwide countries. The huge client following of these Air Cooled Double Cylinder Gensets have supported us to establish ourselves as the most acknowledged manufacturer and exporter of Air Cooled Double Cylinder Genset.

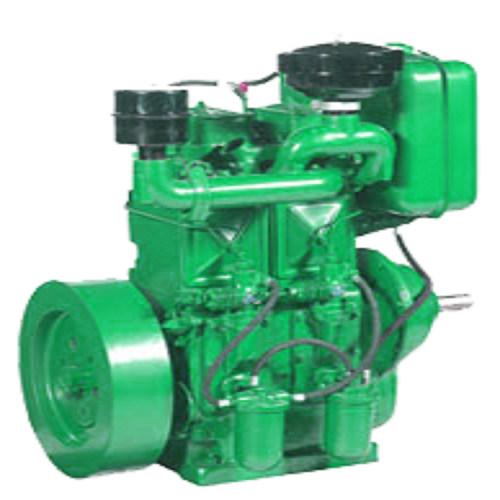

Type : Vertical, Double cylinder, water cooled, Totally Enclosed. Compression ignition ,Four Stroke Cycle, Cold Start, Diesel Engine. Lubricants : Engine moving parts are Lubricated Partly By Forced Feed And partly splash lubrication. A throwaway type ,paper element by-pass filter is provided for filtering the lubricating oil, which is Supplied under constant pressure by gear type Lub.oil pump. Fuel System : Fuel is supplied to the fuel pump by gravity feed through a ceramic filter provided in fuel Tank and efficient replaceable peper element type main filter. Combustion : open type combustion chamber in the Aluminium alloy piston. Bearing

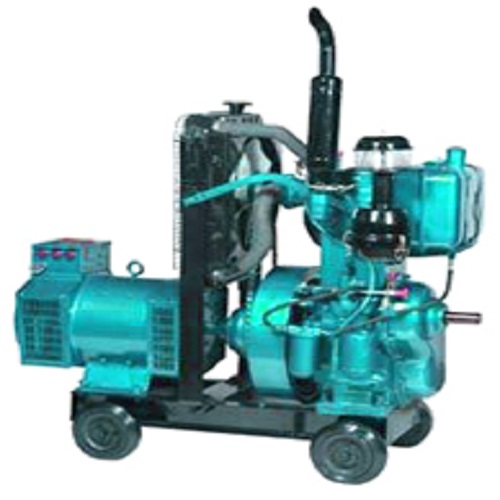

The most accomplished manufacturer and exporter of Water Cooled Single Cylinder Gensets, who are complying parallel demands of Water Cooled Single Cylinder Gensets in the global industries. We are trusted for the quality of our products by the clients and for that we have been practicing from decades to provide complete satisfaction to the clients.

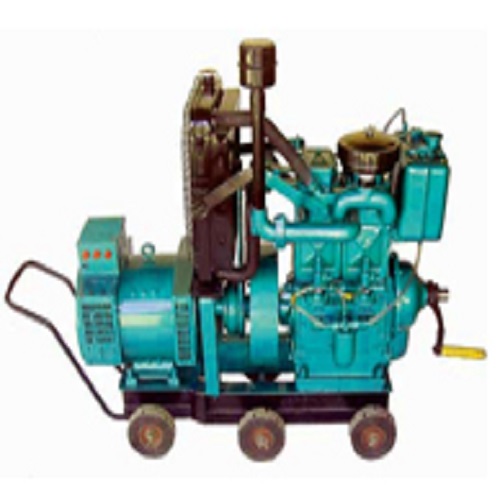

Water Cooled Double Cylinder Gensets, the first choice of every agriculture industry. We are offering a wide range of Water Cooled Double Cylinder Gensets, which are acknowledged for their quality and efficient functioning. The versatility of these Gensets with different applications have made us the leading manufacturer and supplier of Water Cooled Double Cylinder Gensets.

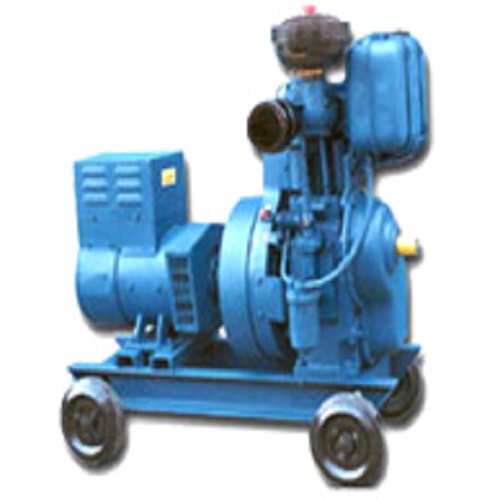

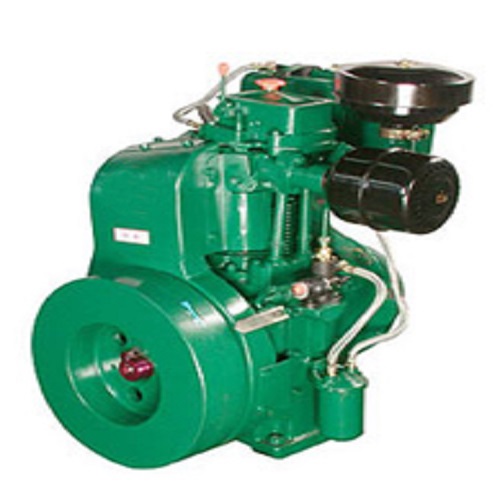

We are offering Air Cooled Single Cylinder Gensets in a wide range of sizes as per the different demands of clients. They do not require water to get cool but it get cool through the circulation of air in the fan attached to it. These Air Cooled Single Cylinder Gensets are generally suitable for areas with humid climate. For all, we have selected as the most prominent manufacturer of Air Cooled Single Cylinder Gensets.

Air Cooled Double Cylinder Gensets, the most demanded of our company, which we are offering in worldwide countries. The huge client following of these Air Cooled Double Cylinder Gensets have supported us to establish ourselves as the most acknowledged manufacturer and exporter of Air Cooled Double Cylinder Genset.

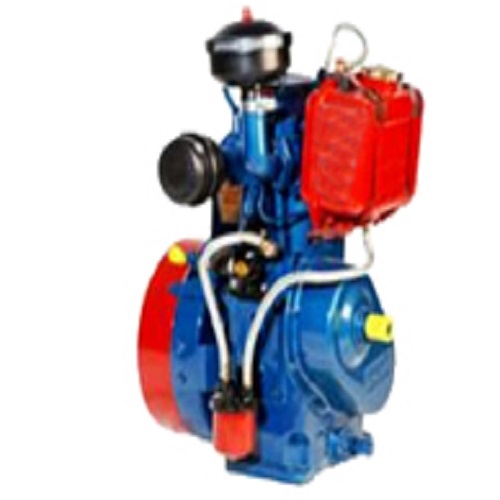

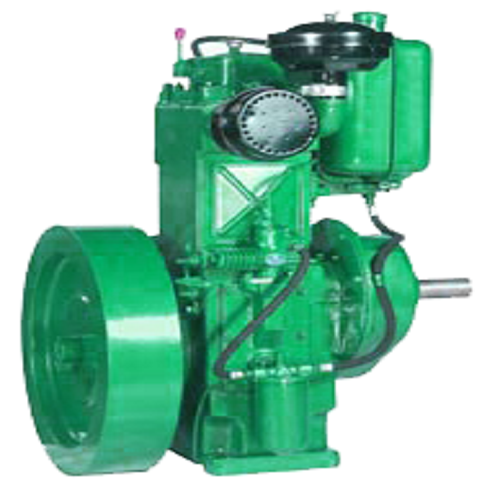

Type : Vertical Single cylinder, Water Cooled, Totally Enclosed, Compression ignition, Four Storke, Cold Start, Diesel Engine

Combustion chamber : Direct injection in open type combustion chamber provided in an aluminium alloy piston with long stem multihole nozzle results into low fuel consumption and easy starting

Fuel System : High speed diesel is supplied to the fuel; pump by gravity feed through an efficent replaceable paper element type main filter

Cooling : Engine cooling can be arranged by run through water supply or suitable radiator

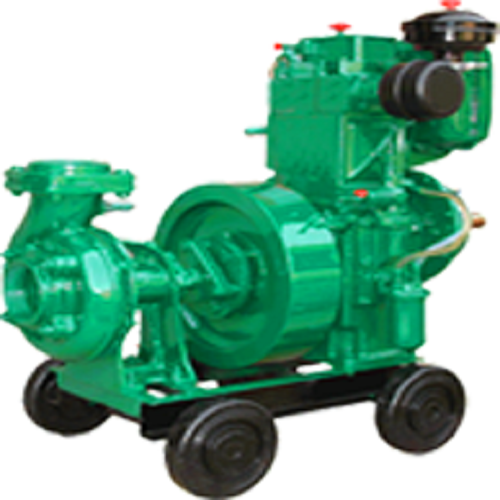

Sailent Features of pump

Casing : The vloute type casing is scientifically designed to produce a smooth flow, with gradual changes in velocity, ensuring the efficiency of the pump. The casing is made to high grade, close-grainedcast iron.

Impeller : The impeller is made of high grade, close-grained cast iron, accurately machined on the outside. The interior passages are cast using shell cores (Dynamically balanced)

• Rating   3.5 to 16.0 HP
• Cooling Water Cooled
• No. of cyl.           One
• Fuel       High speed Diesel
• Type      Vertical ,4-stroke, compression ignition
• Injection             Direct by multi-hole nozzel
• RPM      1500-1800
• Sp. Fuel Con.     169 to 172 grams/hp-hr
• Fuel tank            5 to10 liters
• Rotation             Clockwise looking at the flywheel
• Starting Handle start with cranking

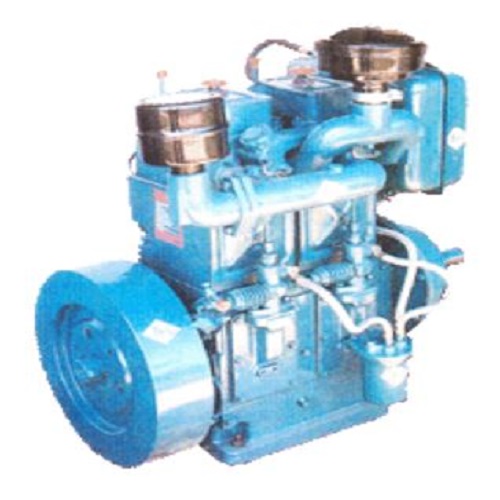

• Power   12.0 to 28.0 HP
• Cooling Water Cooled
• No. of cyl.           Two
• Fuel       High speed Diesel
• Type      Vertical, 4-stroke, compression ignition
• Injection             Direct by multi-hole nozzel
• RPM      1500-1800
• Sp. Fuel Con.     169 to 172 grams/hp-hr
• Fuel tank            10 to 20 liters
• Rotation             Clockwise looking at the flywheel
• Starting Handle start with cranking

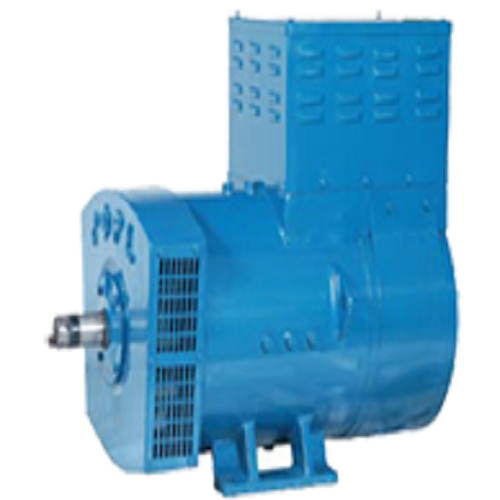

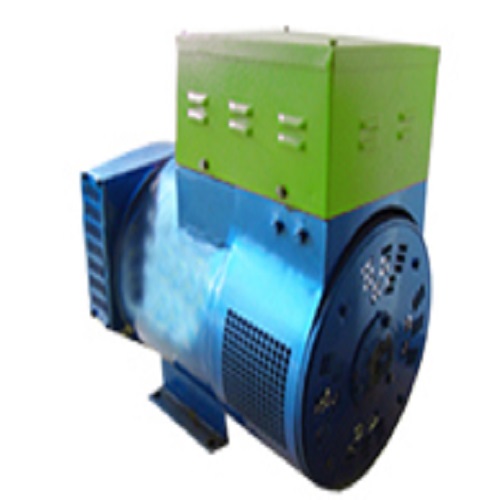

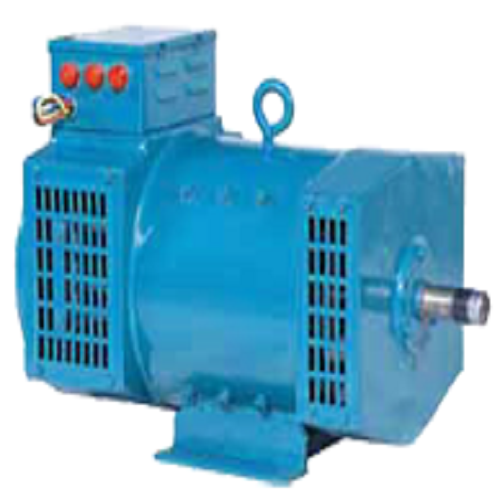

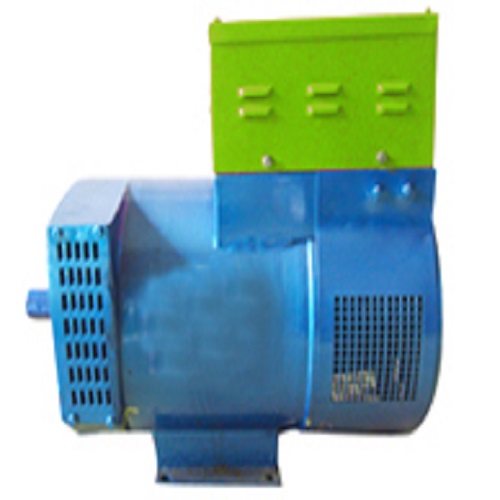

• Voltage 230/415 V
• Phase    Single/Three
• Frequency          50/60 Hz
• Regulation         ± 5 % Max.
• Insulation           F Class
• Mounting           Foot
• RPM      1500/1800

• Voltage 230/415 V
• Phase    Single/Three
• Frequency          50/60 Hz
• Regulation         ± 5 % Max.
• Insulation           F Class
• Mounting           Foot
• RPM      1500/1800

• Voltage 230/415 V
• Phase    Single/Three
• Frequency          50/60 Hz
• Regulation         ± 5 % Max.
• Insulation           F Class
• Mounting           Foot
• RPM      1500/1800

• Voltage 230/415 V
• Phase    Single/Three
• Frequency          50/60 Hz
• Regulation         ± 5 % Max.
• Insulation           F Class
• Mounting           Foot
• RPM      1500/1800
