Products & Services

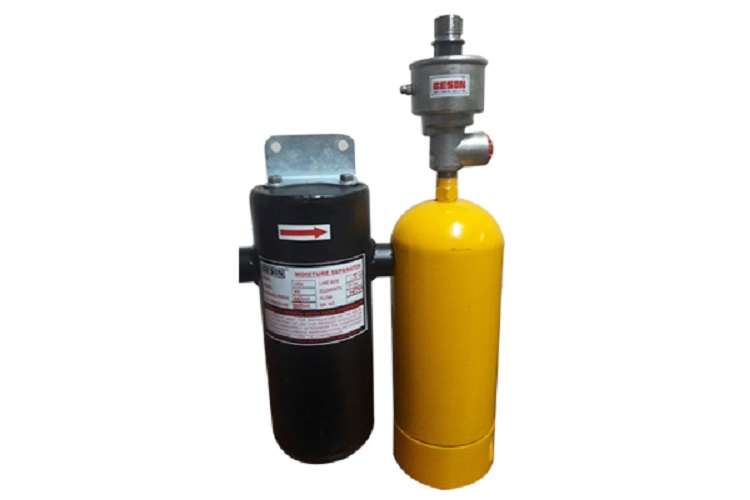

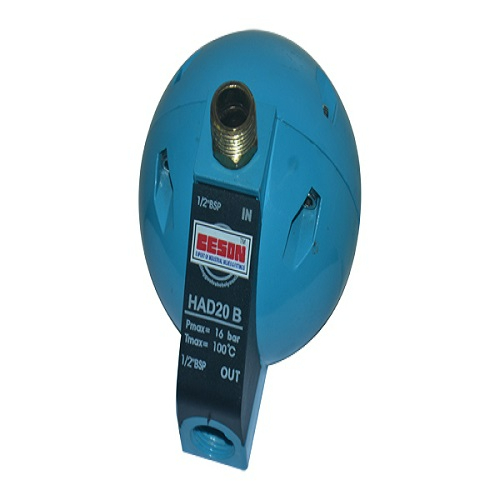

Moisture Separator And Auto Drain Valves
Product Detail

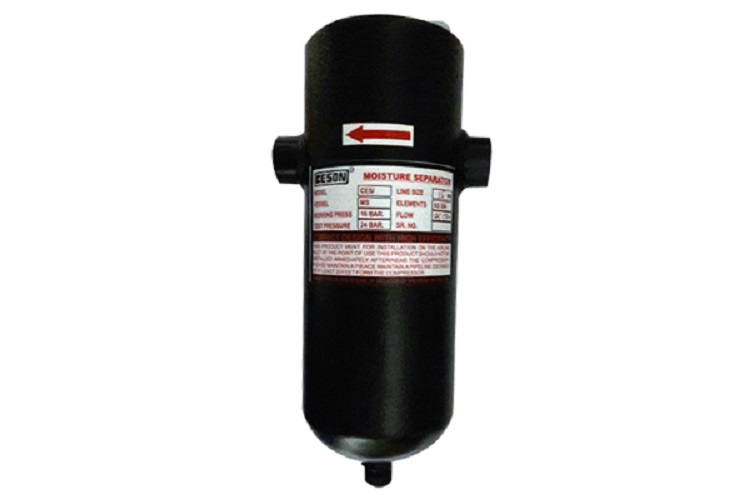

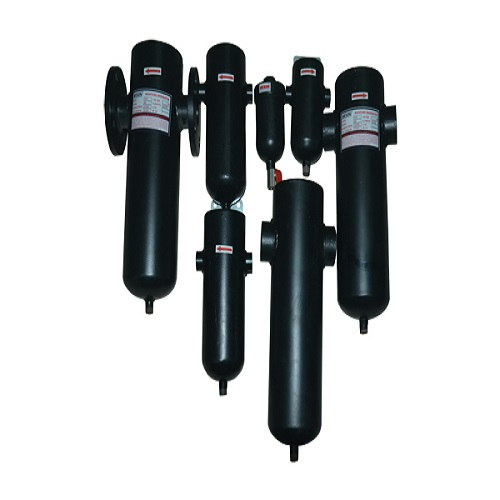

Moisture Separator And Auto Drain Valves
You have compressors to develop pneumatic pressure. The fresh atmospheric air sucked by the compressor gets partly converted into moisture. The compression of the air helps it to convert in moisture due to condensation.
Of course, you keep a dryer to get rid of it. But this dryer is near the compressor. As the fresh air travels further, the condensation occurs again and more moisture precipitates; which in turn harms your apparatus.
Just install our “CESON” Moisture Separator beside the different machines. It won’t allow m to enter your apparatus, thus protecting its internal parts, particularly rubber parts. The Moisture sometimes creates hazards to your machines. “CESON” Moisture Separator will enhance the life span of your machine. We suggest you to give a try to this Moisture Separator and judge the difference in the performance of your system.
One more important thing is that the “CESON” Moisture Separator has a Manual Drain Bowl beneath it. Time & again, you have to empty the water collected in the Bowl.The above mentioned items are our quality products. We have launched this exclusive website for these products, to create awareness among your customers. But, do not depend solely on this website; better approach personally to your clients and part the information with them.
+ Show more
- Show less
Specifications
Industrial Valves
Product Detail
Industrial Valves
- Ball Valves: We at process MOST ADVANCE & VIRGIN Fluoropolymer resin like FEP, PFA, TEFZEL etc. It stands for excellent corrosion resistance under the most reliable and world famous fluoropolymer resin suppliers’ E.I.DUPONT inc. U.S.A.
- Butter Fly Valve:
- Gate Valve:
- Globe Valve
- Wafer Type Cehck Valve
+ Show more
- Show less
Knife Edge Gate Valves
Product Detail

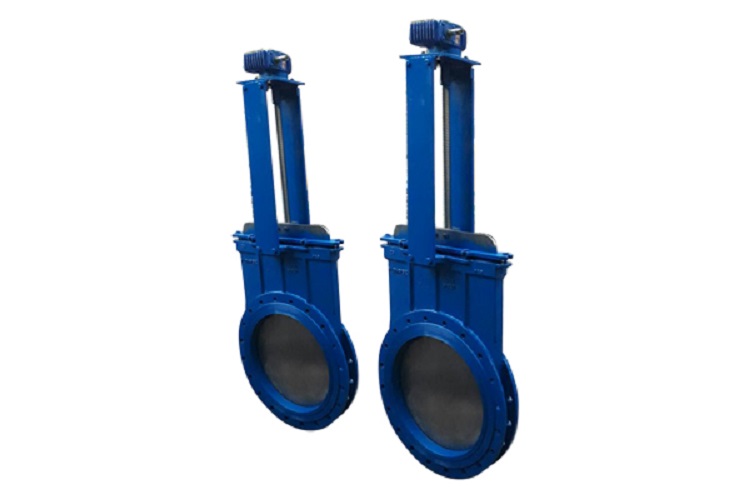

Knife Edge Gate Valves
IC Knife Edge Knife Edge Gate: Knife gate is an UN I-DIRECTIONAL / BI-DIRECTIONAL lug type valve designed according to MSS-SP-81 for industrial service applications. The design of the body and seat assures non-clogging shut off on suspended solids in industries such as:
- Pulp and Paper
- Power plants
- Mining Chemical plants
- Waste Water Treatment Plants
- Food and Beverage
Knife Edge Gate Valve Manuual Opreted
Knife Edge Gate Valve With Gear Opreted
Knife Edge Gate Valve With Pneumatick Oppreted
Knife Edge Gate Valve With SS Cladding
Knife Edge Valve For Chain Opreted
+ Show more
- Show less

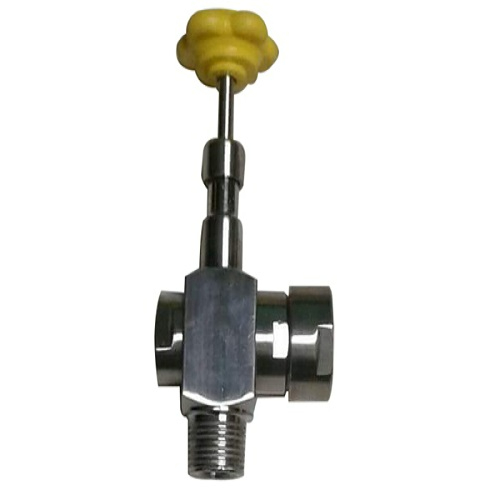

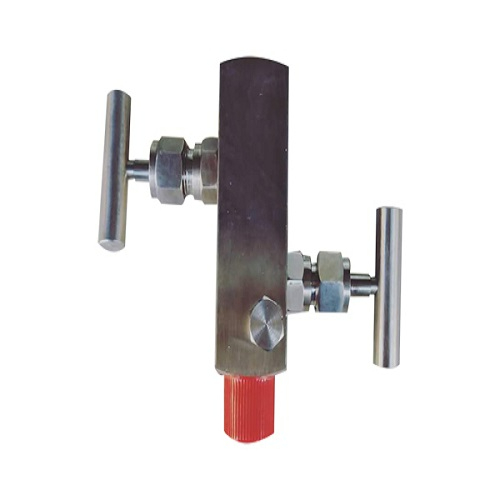

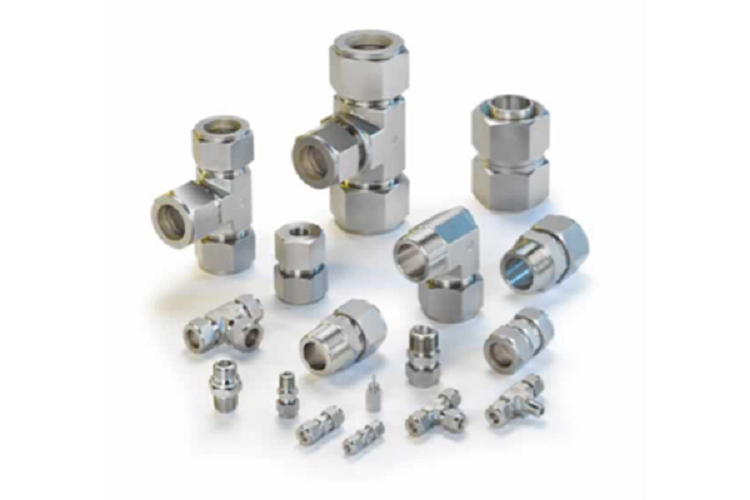

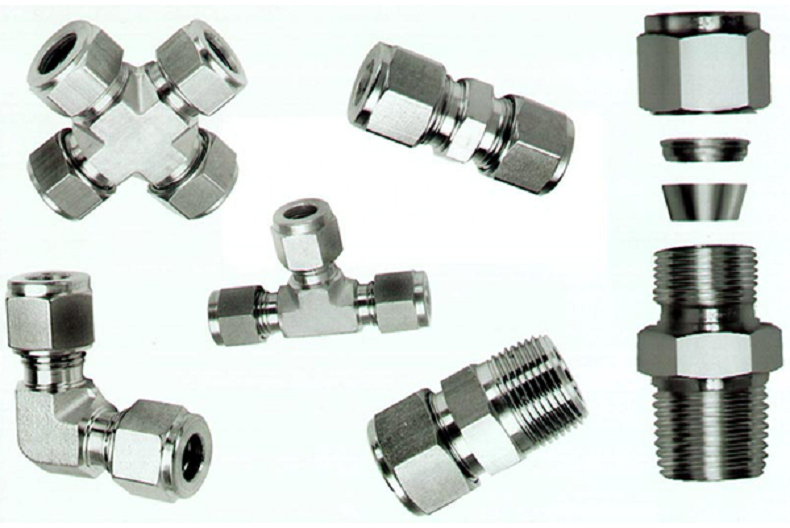

Instrument Fittings and Valves
Product Detail
Instrument Fittings and Valves

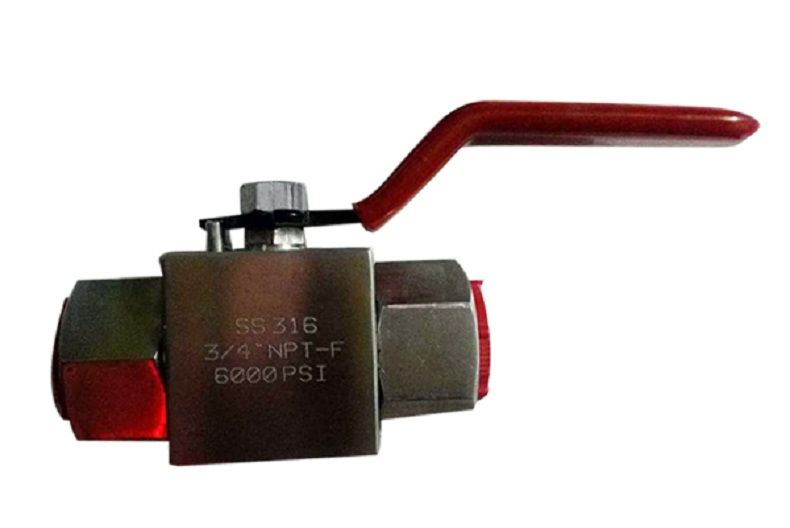

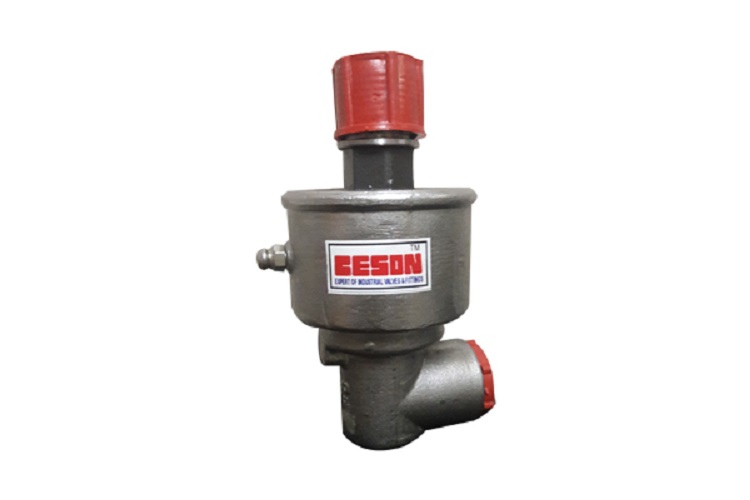

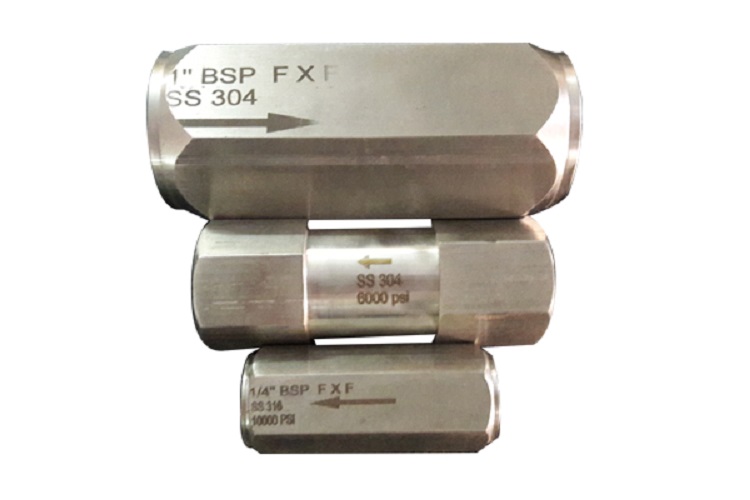

High Pressure Check Valve: Material Hndling Equipments, Earth Moving Machineries, Power Generating Plants, Steel Manufacturing Plants, Mining Industries, Forklifts, Trucks / Trailers, Chemical Processing Machines etc..

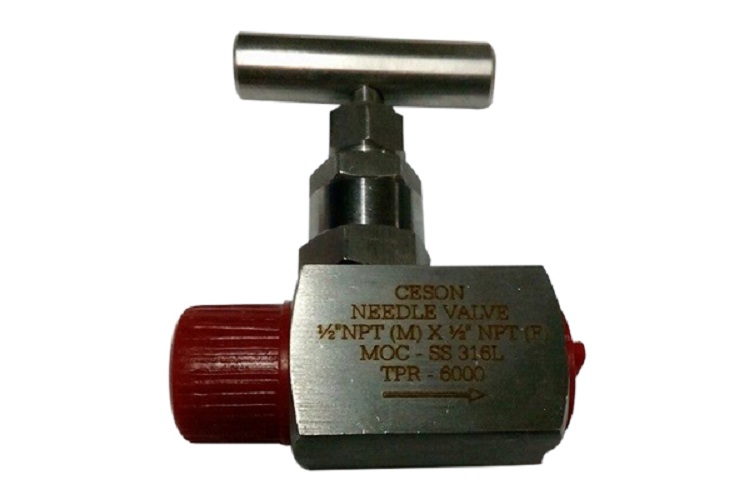

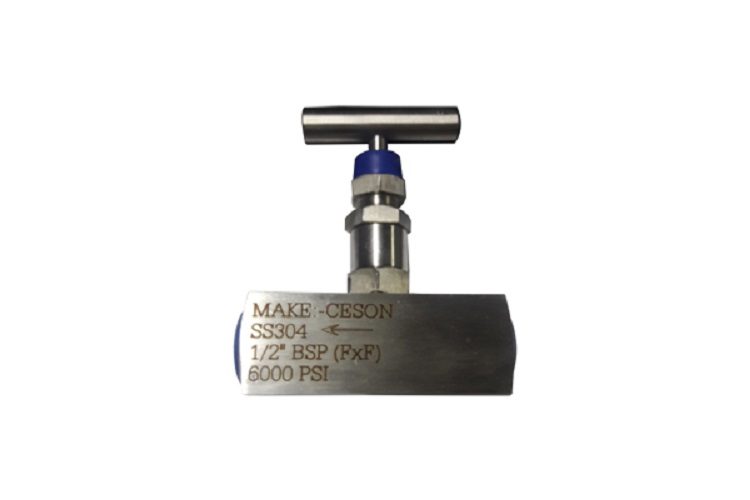

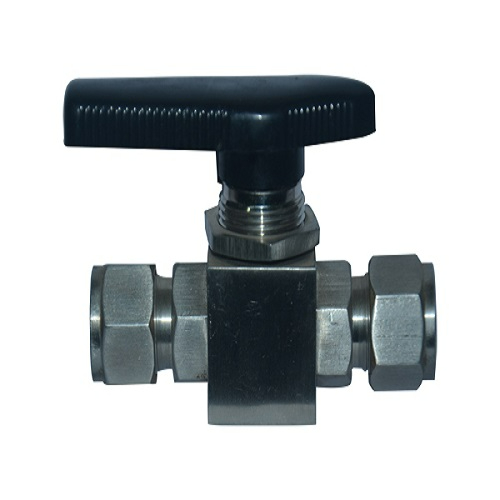

Needle Valve: Ceson most trusted manufacturer and suppliers of a wide range of High Pressure Needle Valve and Instrument High Pressure Needle Valves. All Ceson valves are manufactured using latest and updated technology and ideal quality raw materials for construction.

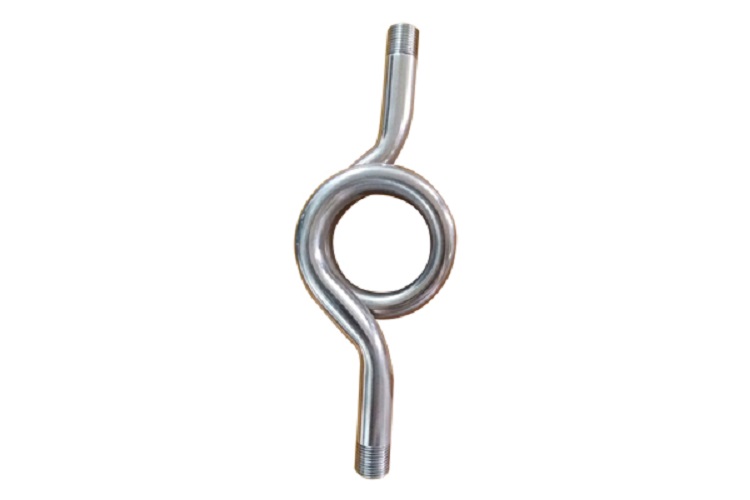

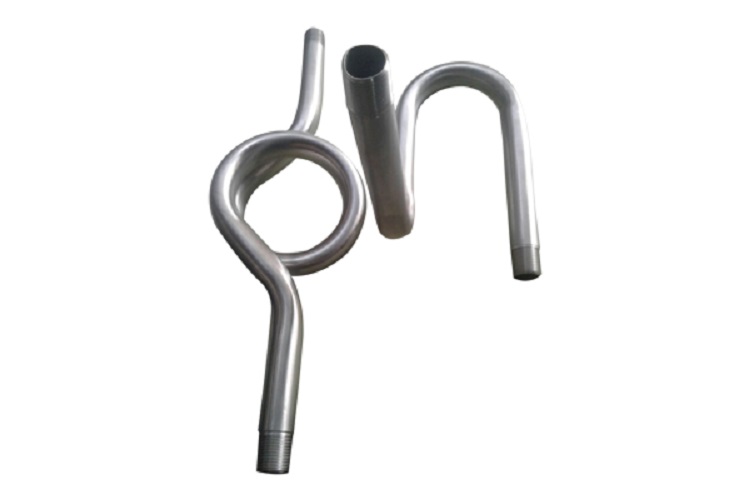

Syphon Pipe And Gauge Cock:
Instrument Fittings: General instruments offer variety of instrument & Tube fittings designed to meet various process requirements and process safety. Reliability, durability and high performance of General fittings have built the first class reputation in Indian and international markets. General fittings are easy to install and require no special tools in the process.
+ Show more
- Show less

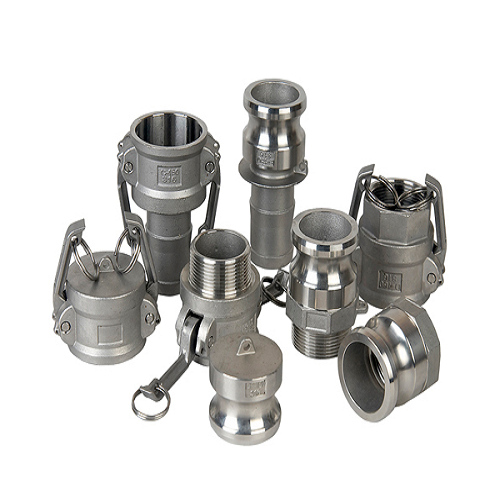

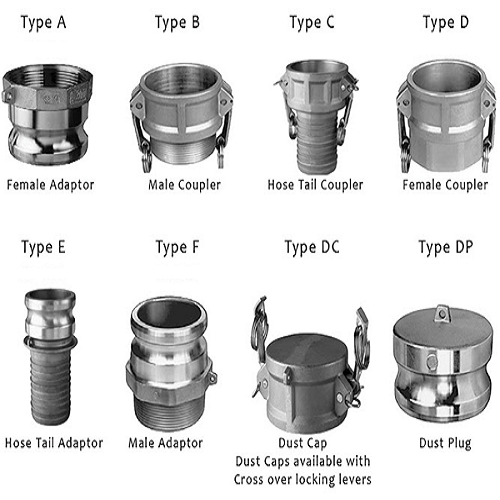

Camlock Couplings
Product Detail

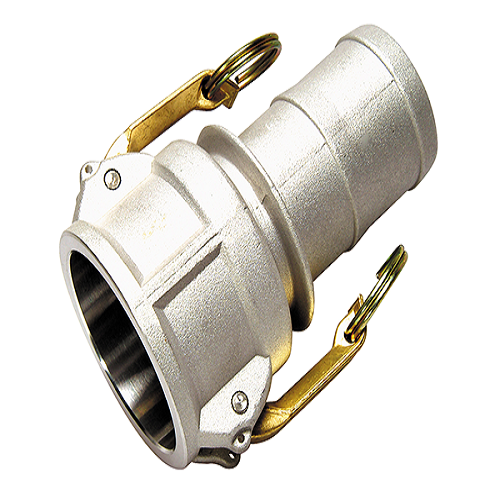

Camlock Couplings
Camlock Couplings are used for Quickly and Easily changing or interchanging connections of Hose pipes. These Camlock Couplings are widely used for mass transferring of Media i.e. Powder, Slurry, Oil, Water, Gas, Air, Cement, Chemicals, Petrochemicals, Granules etc. We manufacture Camlock Couplings from tested SS316 (CF8M), SS304 (CF8), Carbon Steel (WCB), Brass, Gun Metal, Aluminium etc in various types of End Connections as mentioned below :
- Female Adopter – A
- Male End Coupling – B
- Hose End Coupling – C
- Female End Coupling – D
- Hose End Adopter – E
- Male End Adopter – F
- Dust Cap – DC
- Dust Plug – DP
- Flanged Adopter – FA
- Flanged Coupling – FC
- Double Adopter – DA
+ Show more
- Show less

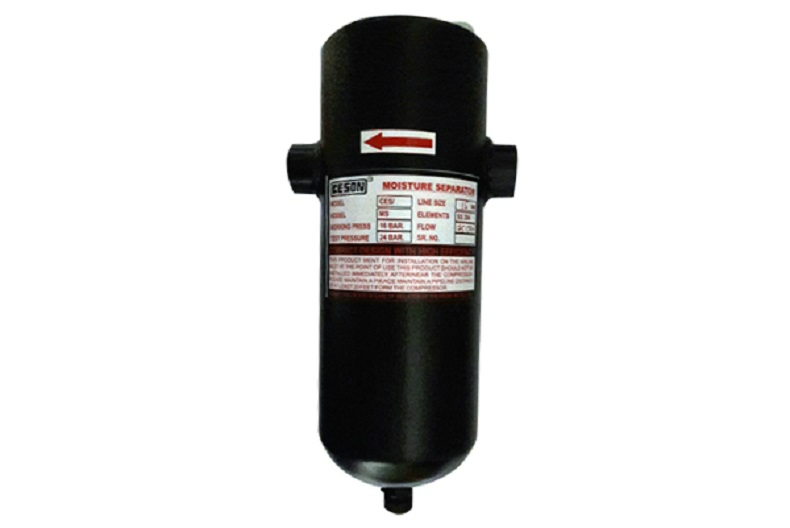

Threde Moisture
Product Detail
Threde Moisture
MATERIAL OF CONSTRUCTION
Body
I.C./ C.S. / CF8
Cartridge
Imported S.S.
Size
1\2” To 2”
Working Pressure
Upto 16 Bar
Efficiency
99.99%
Testing Pressure
24 Bar
Service Life
Min. Exp. 8 To 10 Yrs
Installation
Advisable At End Use Before Frl
+ Show more
- Show less
Alluminum Moisture
Product Detail
Alluminum Moisture
MATERIAL OF CONSTRUCTION
Body
Aluminium Die.cast
Cartridge
Imported S.S.
Bowl
Aluminium
Size
1\4” To 2”
Working Pressure
Upto 8 Bar
Efficiency
99.99%
Testing Pressure
12 Bar
Service Life
Min. Exp.3 Yrs
Installation
Advisable At End Use Before Frl
+ Show more
- Show less

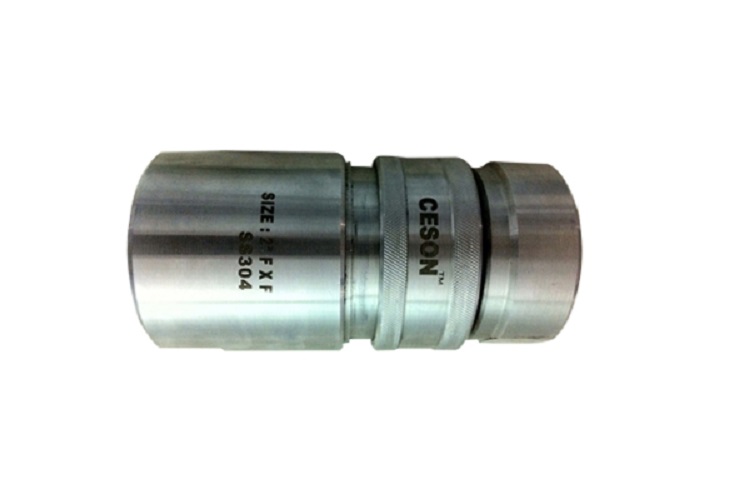

Roto Seal Coupling
Product Detail
Roto Seal Coupling
Specification
- S. S. 304 / S.S. 316 Investment Cast Body & Shaft
- Size : 1/4″ to 2″ BSP
- High Performance Seals with fine lapped
- In Line Repairable Design for easy maintenance
- Single & Double / Dual connection available
- Different types of model as per application Normal, High Temperature & ChilledWater
Techanical Specification
- Body : CF8 / CF8M
- Shaft : CF8 / CF8M
- Temperature Range: 50° C ( Chilled Water & high temperature available on request)
- Seals : High performance carbon filled PTFE
- RPM : 300 Maximum
- Media : Air, Water, Oil & Gas (Normal Application)
+ Show more
- Show less

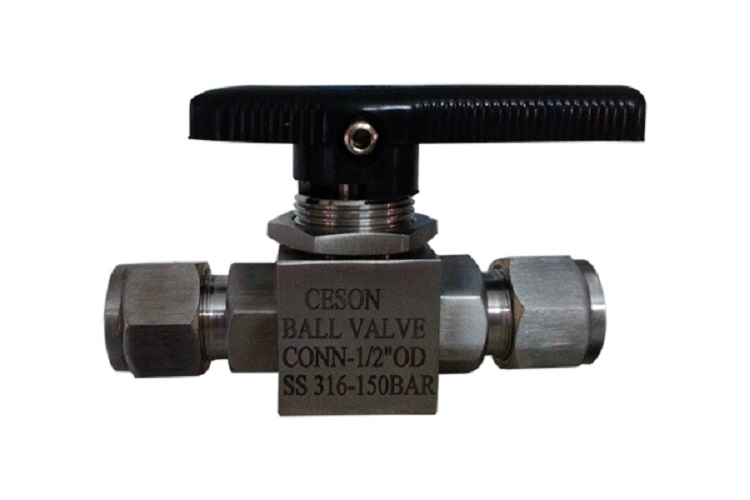

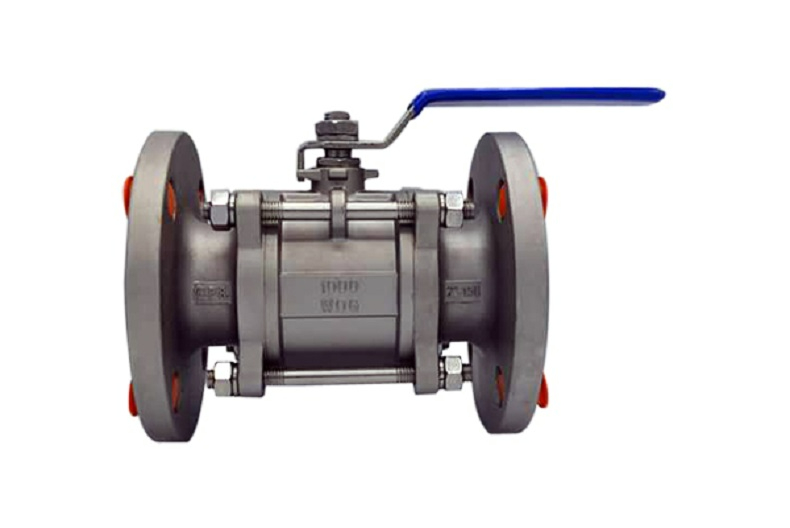

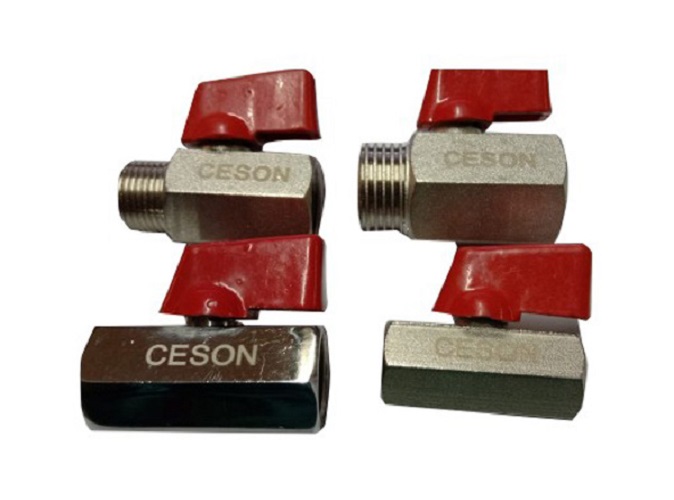

Ball Valve
Product Detail

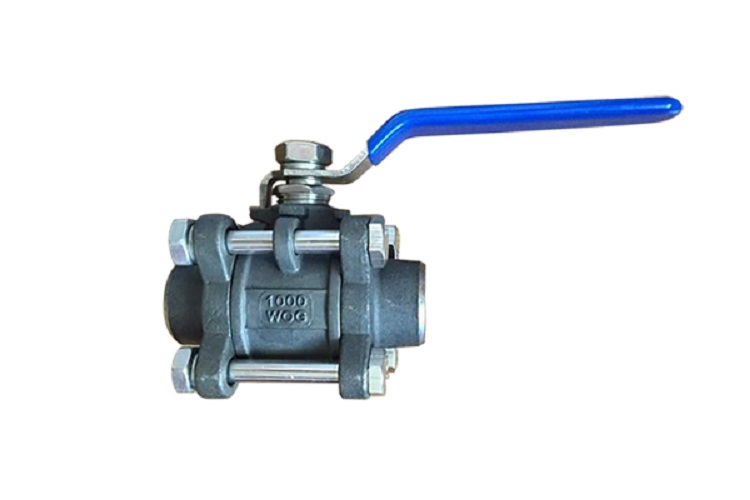

Ball Valve
Advance & Virgin Lining Material
We at process MOST ADVANCE & VIRGIN Fluoropolymer resin like FEP, PFA, TEFZEL etc. It stands for excellent corrosion resistance under the most reliable and world famous fluoropolymer resin suppliers’ E.I.DUPONT inc. U.S.A.
Quality Control Parameters
- High voltage electric spark test for all lined components.
- Standard Hydraulic Test of Body & Seat
- Pneumatic Test.
Features
- Superior quality with excellent performance.
- Economical & cheaper alternative to Glass Lining & Special alloy steel.
- Excellent corrosion resistance to the chemicals.
- Long service life cycle / maintenance free/easily installable, ensuring cost reduction, both in production and maintenance.
Use
- In the areas where highly corrosive material are used in the chemical process & plants b providing most reliable & high safety factor.
- For the critical applications mainly in the industries like food, pharma & fine chemicals.
- To control environmental pollution.
+ Show more
- Show less

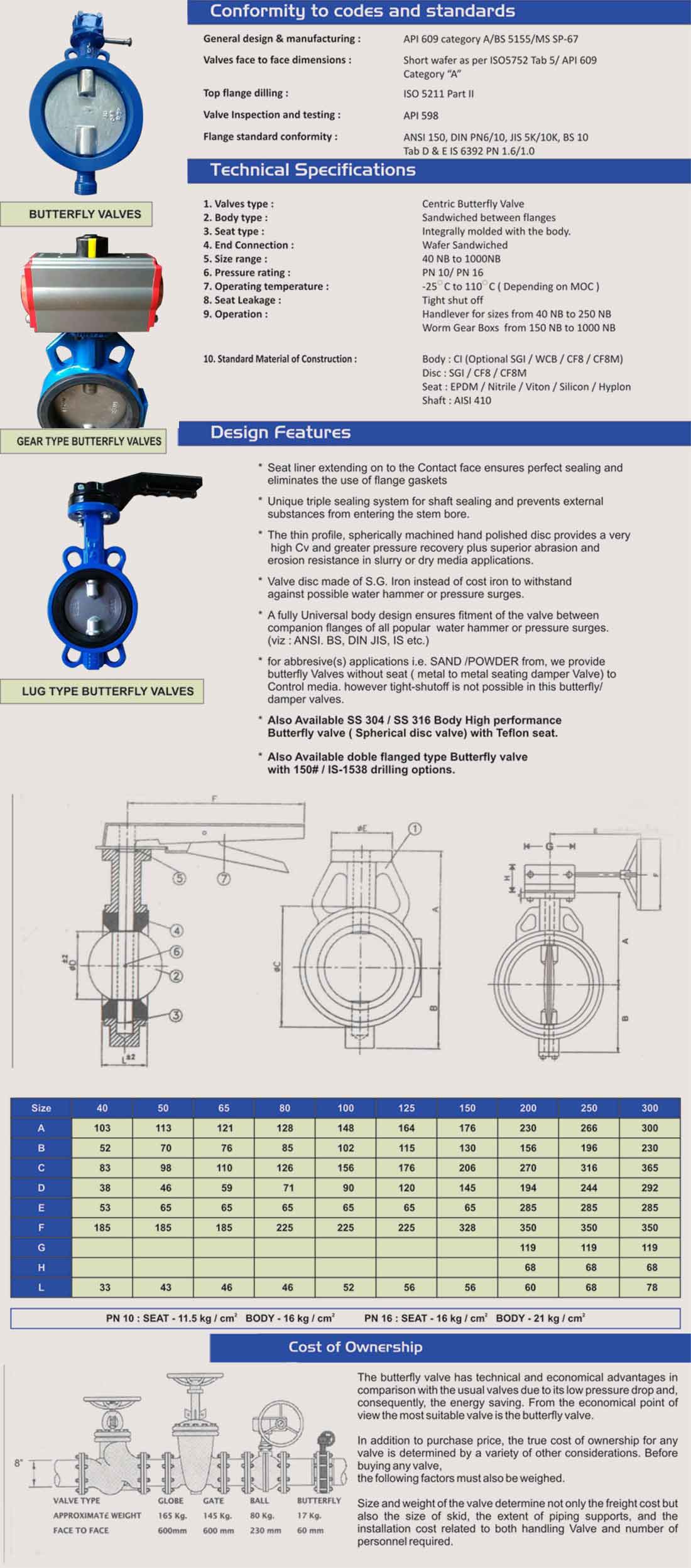

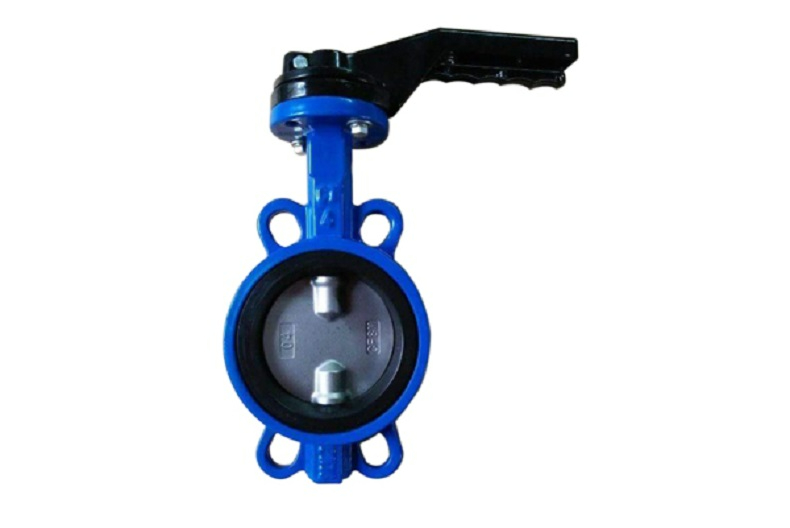

Butter Fly Valve
Product Detail
Butter Fly Valve
+ Show more
- Show less

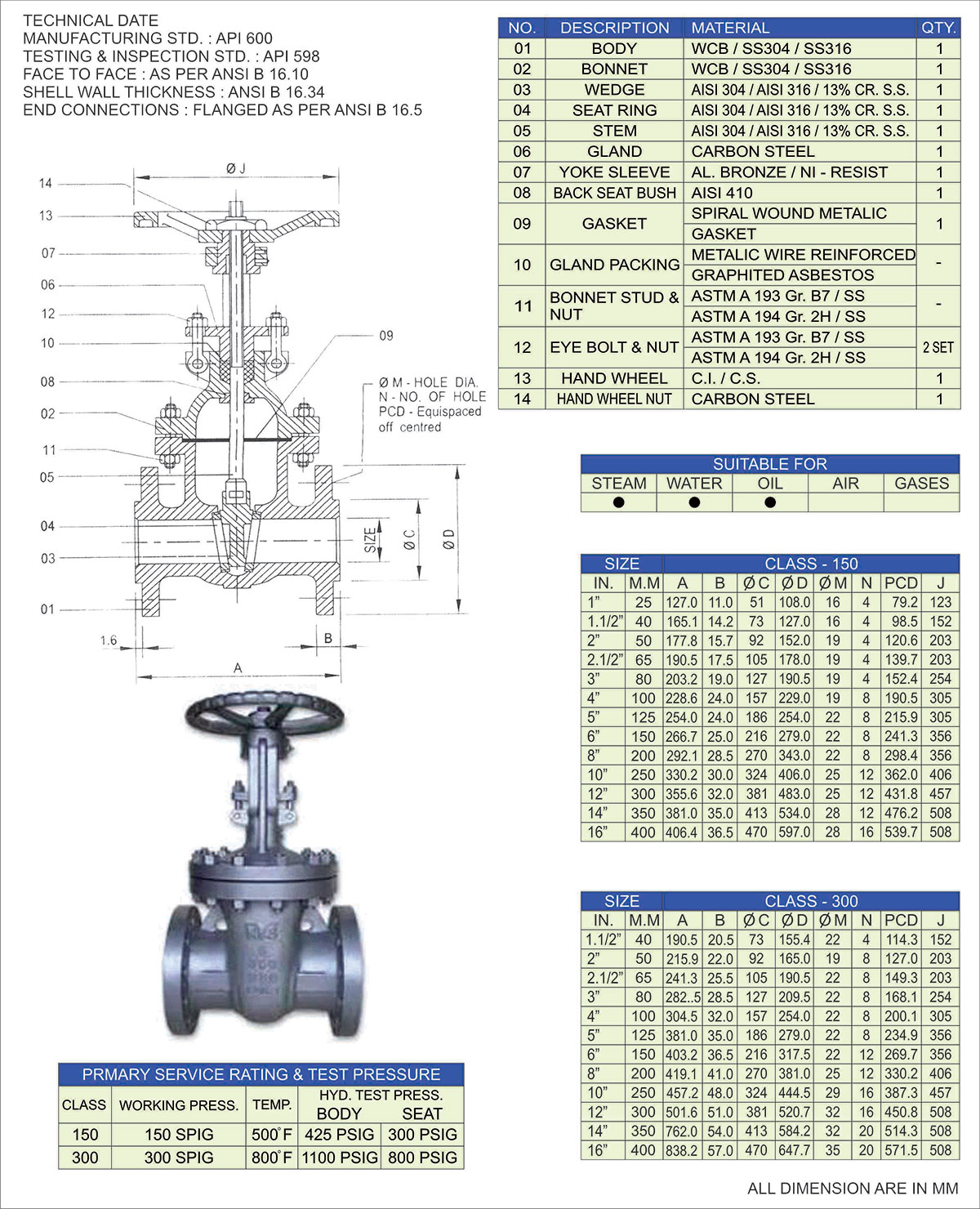

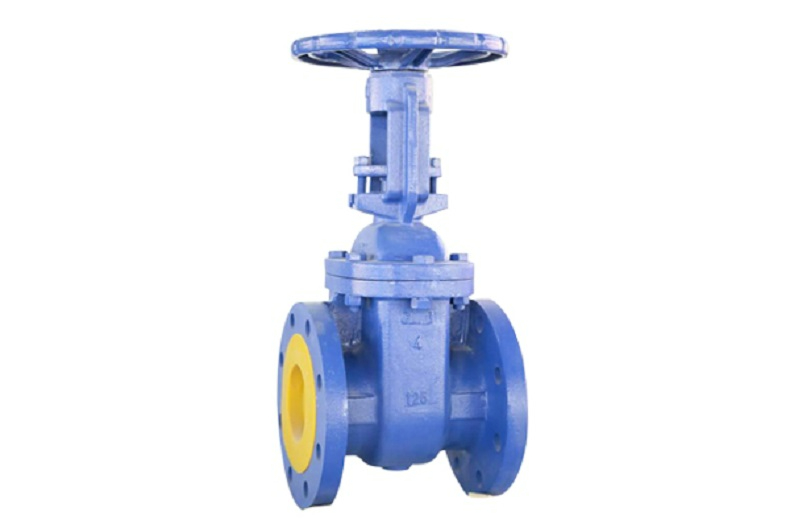

Gate Valve
Product Detail
Gate Valve
+ Show more
- Show less

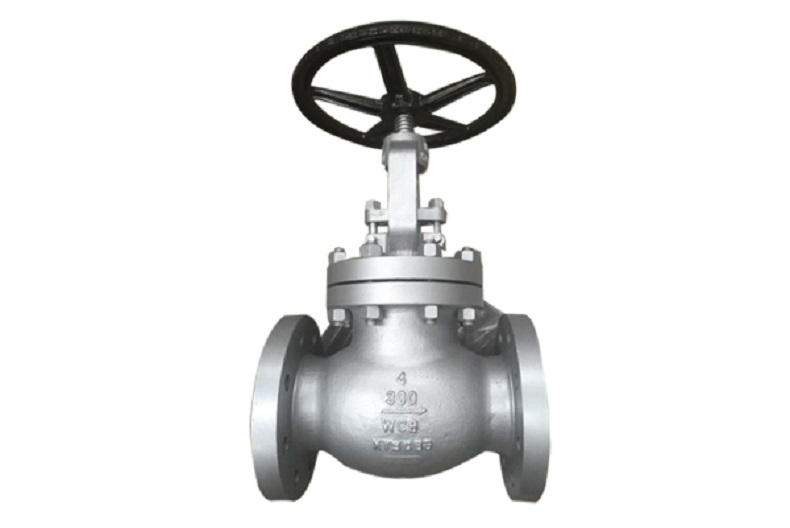

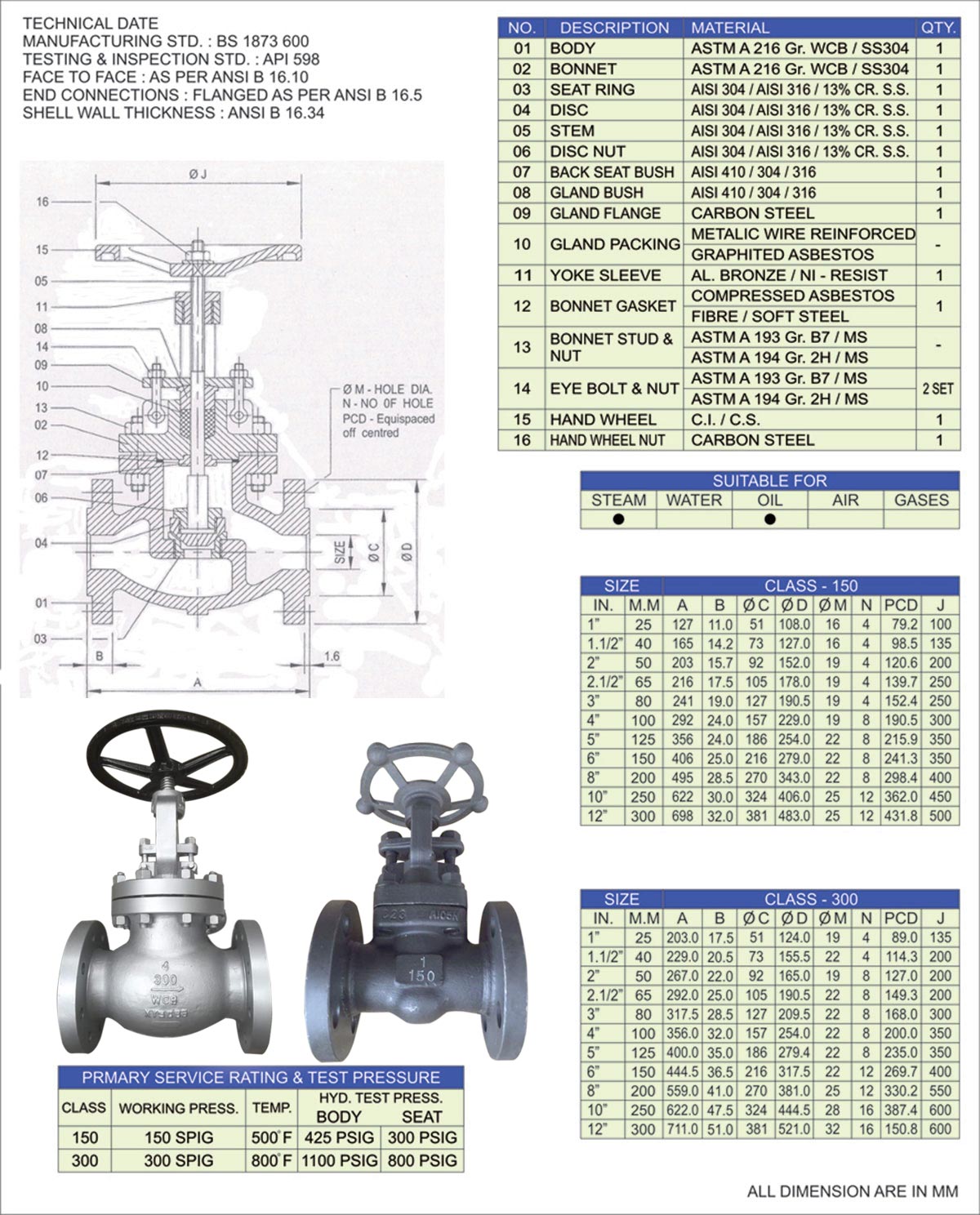

Globe Valve
Product Detail
Globe Valve
+ Show more
- Show less

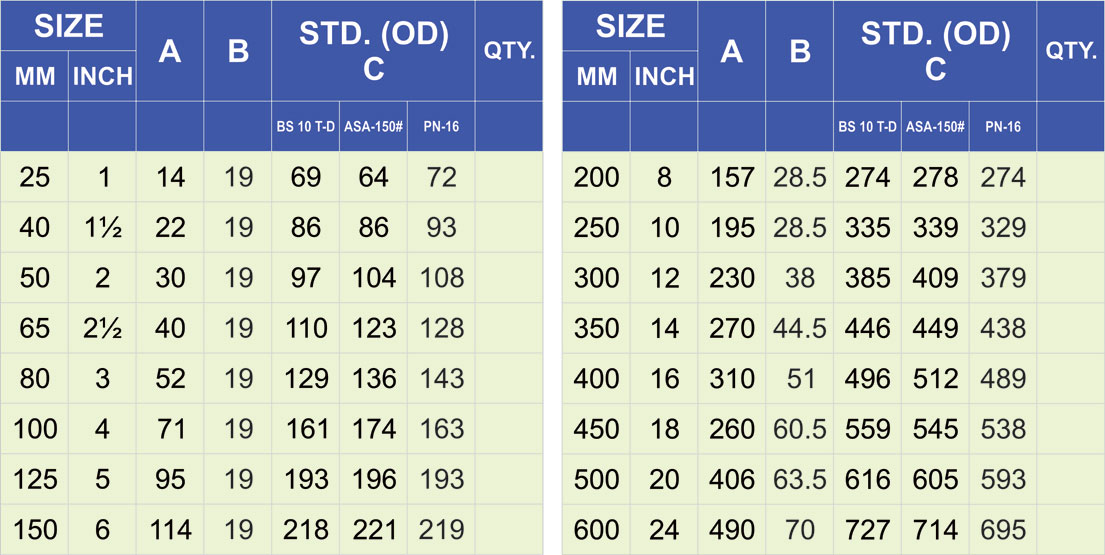

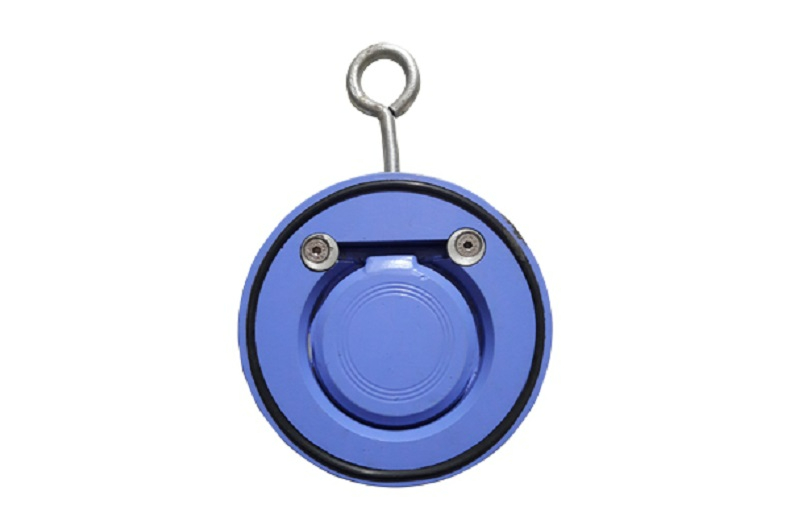

Wafer Type Cehck Valve
Product Detail
Wafer Type Cehck Valve
+ Show more
- Show less

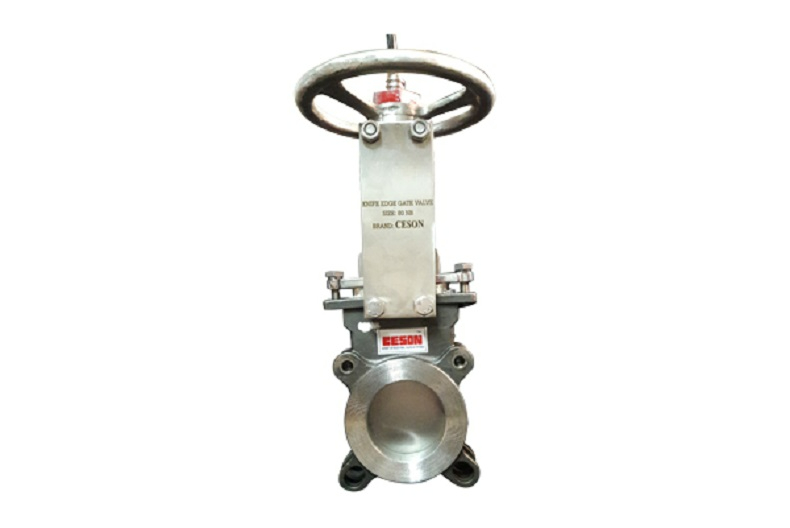

Ic Knife Edge Knife Edge Gate
Product Detail
Ic Knife Edge Knife Edge Gate
IC Knife Edge Knife Edge Gate
knife gate is an UN I-DIRECTIONAL / BI-DIRECTIONAL lug type valve designed according to MSS-SP-81 for industrial service applications. The design of the body and seat assures non-clogging shut off on suspended solids in industries such as:
- Pulp and Paper
- Power plants
- Mining Chemical plants
- Waste Water Treatment Plants
- Food and Beverage
Technical Specification
Part
Caast Iron & Stainless Steel List
Body
CA ,WCB Cf8, Cf8m, SGI
Gate
2 Aisi 304 Aisi 316
Seat
Metal To Metal (EPDM/V1ton/Ptfunitril)
Packing
Ptfe Impreg. Synth. Fibre
Gland Follower
Ductile Iron CF,8,CF8m,WCB
Stem
Aisi 304
Stem Nut
Gun Metal
Yoke
Carbon Steel
Seat Ring
Aisi 304 Aisi 316
Operated
Pneumatic / Mannul
Fastners
11 Zinc Plated Carbon Steel
Sizes
DN 50/2″ to DN1050/42″ (larger diameters on request)
Working Pressure
- DN 50/2″ to DN 400/16″: 10 kg/cm2 / 150 psi
- DN 450/18″ to DN 800/32″ : 4 kg/cm2 / 60 psi
- DN 850/34″ to DN 1050/42″ : 3 kg/cm2 / 45 psi
Standard Flange Connection
- DIN PN 10 and ANSI B16.5 (class 150)
- Others on request
+ Show more
- Show less

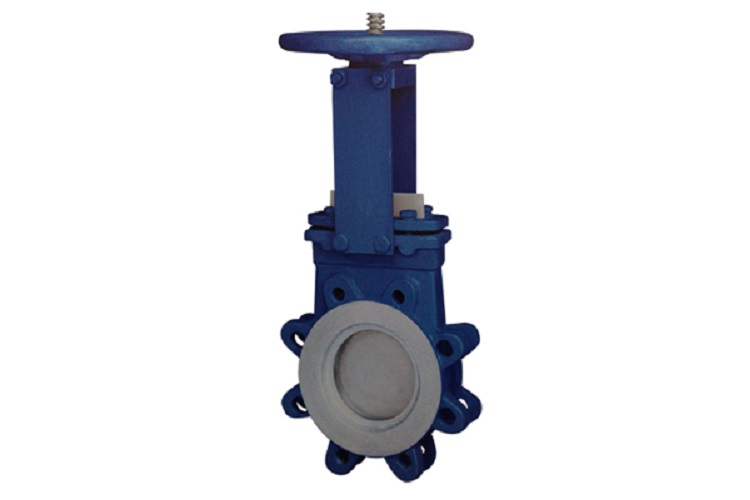

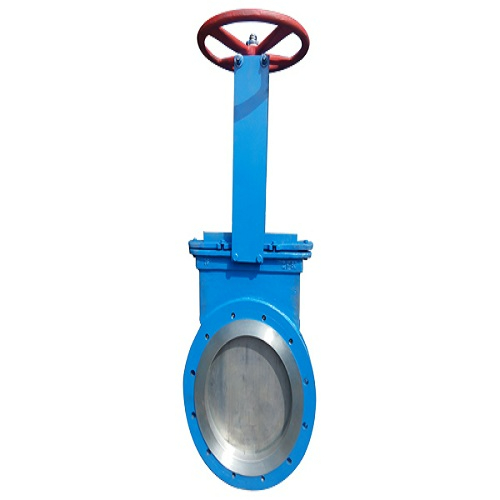

Knife Edge Gate Valve Manual Opreted
Product Detail
Knife Edge Gate Valve Manual Opreted
Knife Edge Gate Valve Manuual Opreted
Knife Edge Gate Valves Is An Uni-directional Lug Type Valve Designed According To MSS-SP-81 For Industrial Service Applications. The Design Of The Body And Seat Assures Non-clogging Shut Off On Suspended Solids In Industries Such As:
- Pulp And Paper
- Food And Beverage
- Wastewater Treatment Plants
- Bulk Handling
- Chemical Plants
- Mining
Technical Specification
PART
Cast Iron & Stainless Steel List
Body
C.I, WCB, CFB, CF8M, SGI
Gate
AISI 304 AISI 316
Seat
Metal To Metal (EPDM/VITON/PTFE/NITRIL)
Packing
PTFE Impreg. Synth. Fibre
Gland follower
Ductile Iron, CF,8,CF8M,WCB
Stem
AISI 304
Stem nut
Gun Metal
Yoke
Carbon Steel
Seat ring
AISI 304 AISI 316
Handwheel
310: Ductile Iron / > 410: Gjl 250 (gg25)
Fastners
Zinc Plated Carbon Steel
Sizes
DN 50 to DN 1050 (larger diameters on request)
Working Pressure
- DN 50 to DN 400: 10 kg/cm2 / 150 psi
- DN 450 TO 700: 4 kg/cm2 / 60 psi
- DN 700 TO 1050 3 kg/cm2 / 45 psi
Standard Flange Connection
- TABLE “D”, “E” DIN PN 10 and ANSI B16.5 (class 150)
- Others on request
+ Show more
- Show less

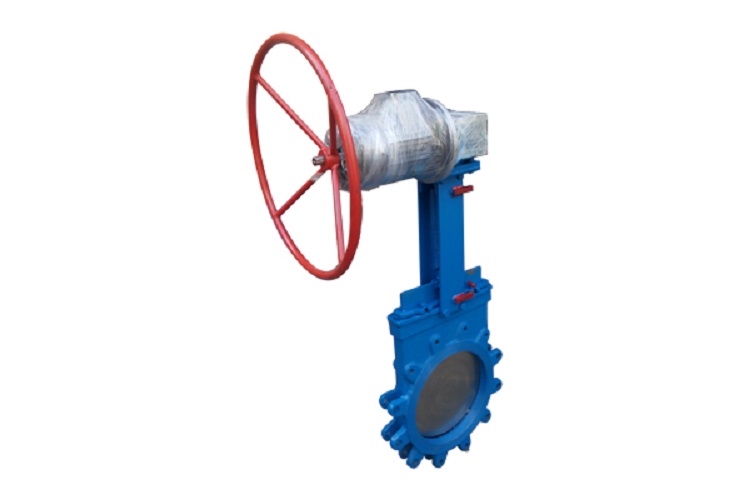

Knife Edge Gate Valve With Gear Opreted
Product Detail
Knife Edge Gate Valve With Gear Opreted
Knife Edge Gate Valve With Gear Opreted
Knife Gate Valves With Gear Operated Is An Uni-directional Lug Type Valve Designed According To MSS-SP-81 For Industrial Service Applications.the Design Of The Body And Seat Assures Non-clogging Shut Off On Suspended Solids In Industries Such As:
- Pulp And Paper
- Food And Beverage
- Wastewater Treatment Plants
- Bulk Handling
- Chemical Plants
- Mining
Technical Specification
Part
Cast Iron & Stainless Steel List
Body
C.I ,WCB CF8, CF8m
Gate
Aisi 304 Aisi 316
Seat
Metal To Metal(Epdm/Viton/Ptfe/Nitrila)
Packing
PTFE Impreg. Synth. Fibre
Gland Follower
Ductile Iron CF,8,CF8m,WCB
Stem
Aisi 304
Stem Nut
Gun Metal
Yoke
Carbon Steel
Seat Ring
Aisi 304 Aisi 316
Operated
Beval Gear
Fastners
Zinc Plated Carbon Steel
Sizes
DN 50 to DN 1050 (larger diameters on request)
Working Pressure
- DN 50 to DN 400: 10 kg/cm2 / 150 psi
- DN 450 TO 700: 4 kg/cm2 / 60 psi
- DN 700 TO 1050 3 kg/cm2 / 45 psi
Standard Flange Connection
- TABLE “D”, “E” DIN PN 10 and ANSI B16.5 (class 150)
- Others on request
+ Show more
- Show less

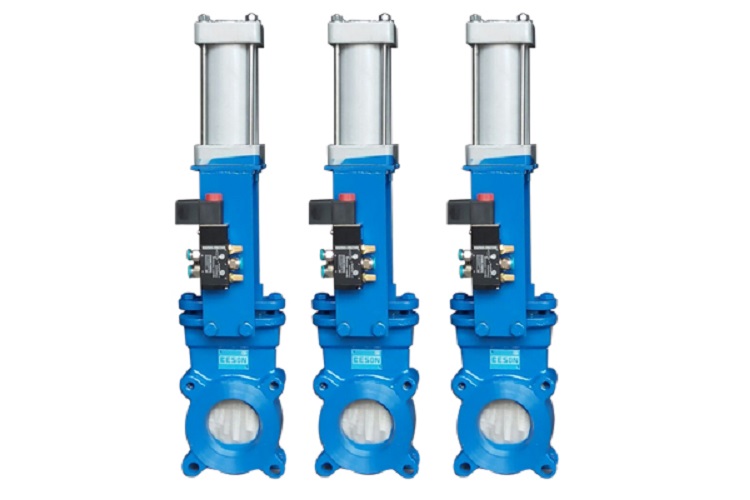

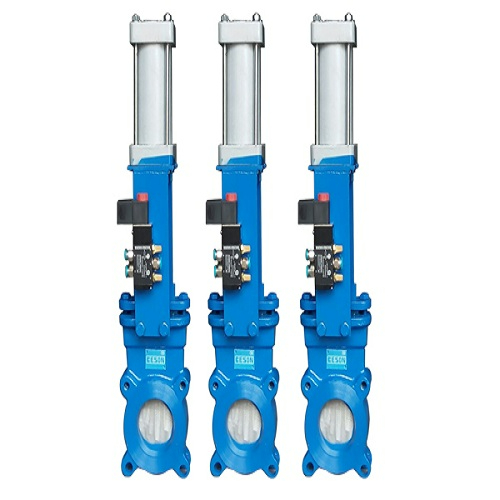

Knife Edge Gate Valve With Pneumatick Oppreted
Product Detail
Knife Edge Gate Valve With Pneumatick Oppreted
Knife Edge Gate Valve With Pneumatick Oppreted
Pneumatic Knife Gate Valves Is An Uni-directional Lug Type Valve Designed According To MSS-SP-81 For Industrial Service Applications.the Design Of The BodyAnd Seat Assu res Non-clogging Shut Off On Suspended Solids In Industries Such As:
- Pulp And Paper
- Food And Beverage
- Wastewater Treatment Plants
- Bulk Handling
- Chemical Plants
- Mining
Technical Specification
PART
Cast iron : Stainless steel list
Body
C.I ,WCB CF8, CF8M, SGI
Gate
AISI 304 AISI 316
Seat
Metal to Metal (EPDM/VITON/PTFE/NITRILA)
Packing
Ptfe impreg. SYNTH. FIBRE
Gland follower
Ductile iron CF,8,CF8M,WCB
Solinoid valve
5/2 WAY (240VAC) (24VDC)
Limit switch
Push button, Proximity
Yoke
Carbon steel
Seat ring
AISI 304 AISI 316
Pneumatic
Cylinder operated
Fastners
Zinc plated carbon steel
Sizes
DN 50 to DN 1050 (larger diameters on request)
Working Pressure
- DN 50 to DN 400: 10 kg/cm2 / 150 psi
- DN 450 TO 700:4 kg/cm2 / 60 psi
- DN 700 TO 1050 3 kg/cm2 / 45 psi
Standard Flange Connection
- TABLE “D”, “E” DIN PN 10 and ANSI B16.5 (class 150)
- Others on request
+ Show more
- Show less

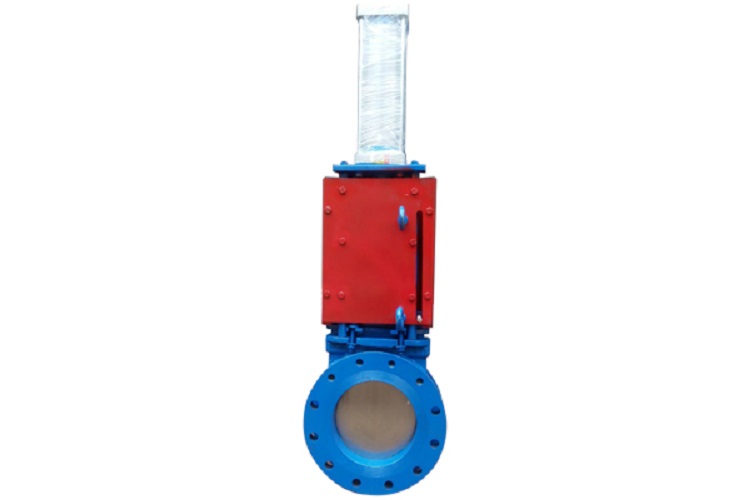

Knife Edge Gate Valve With SS Cladding
Product Detail
Knife Edge Gate Valve With SS Cladding
Knife Edge Gate Valve With SS Cladding
Stainless Steel Cladding Knife Gate Valve Is An Uni-directional For Industrial Service Applications This Body And Seat Assures Non-clogging Shut Off On Suspended Solids In Industries Such As :
- Pulp And Paper
- Food And Beverage
- Wastewater Treatment Plants
- Bulk Handling
- Chemical Plants
- Mining
Technical Specification
Part
CAST IRON : STAINLESS STEEL LIST
Body
WCB,C.I, SG.I
Gate
AISI 304 AISI 316
Seat
Metal To Metal
Packing
PTFE Impreg. Synth. Fibre
Gland Follower
Ductile Iron CF,8,CF8M,WCB
Stem
AISI 304
Stem Nut
Gun Metal
Yoke
Carbon Steel
Seat Ring
AISI 304 AISI 316
Handwheel
310: Ductile Iron / > 410: Gjl 250 (gg25)
Fastners
Zinc Plated Carbon Steel
Sizes
DN 50 To DN 700
Valves Operation
Hand Weeel Operation, Pneumatic Operation, Hydraulic Operation, chain Wheel Operation Electric Motor Operation, Bevel Gear Operation, lever Operation
Standard Flange Connection
E-table DIN PN 10 And Ansi B16.5 (class 150)
Note : Other Flange Connections Are Available On Request.
+ Show more
- Show less

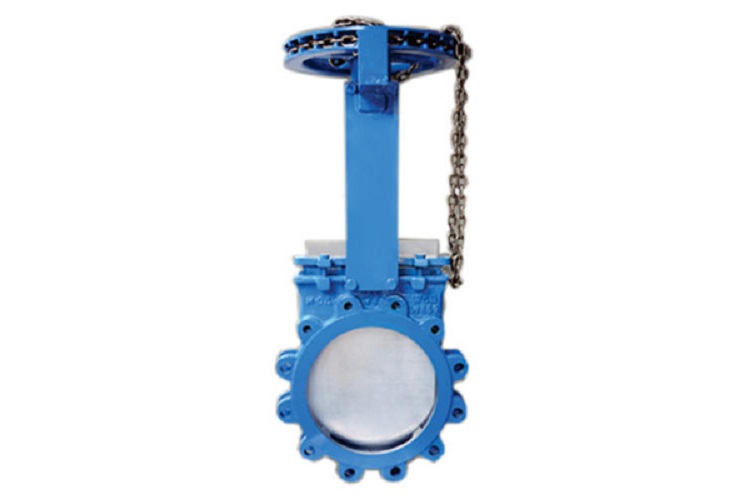

Knife Edge Valve For Chain Opreted
Product Detail
Knife Edge Valve For Chain Opreted
Knife Edge Valve For Chain Opreted
Knife Gate Valves Chain Operated Is An Uni-directional Lug Type Valve Designed According To MSS-SP-81 For Industrial Service Applications.the Design Of The Body And Seat Assures Non-clogging Shut Off On Suspended Solids In Industries Such As:
- Pulp And Paper
- Food And Beverage
- Wastewater Treatment Plants
- Bulk Handling
- Chemical Plants
- Mining
Technical Specification
Part
Cast Iron & Stainless Steel List
Body
C.I ,WCB CF8, CF8M
Gate
Aisi 304 Aisi 316
Seat
Metal To Metal(EPDM/Viton/PTE/Nitrila)
Packing
PTFE Impreg. Synth. Fibre
Gland Follower
Ductile Iron CF,8,CF8m,WCB
Stem
Aisi 304
Stem Nut
Gun Metal
Yoke
Carbon Steel
Seat Ring
Aisi 304 Aisi 316
Operated
Chain Wheel
Fastners
Zinc Plated Carbon Steel
Sizes
DN 50 to DN 1050 (larger diameters on request)
Working Pressure
- DN 50 to DN 400: 10 kg/cm2 / 150 psi
- DN 450 TO 700: 4 kg/cm2 / 60 psi
- DN 700 TO 1050 3 kg/cm2 / 45 psi
Standard Flange Connection
- TABLE “D”, “E” DIN PN 10 and ANSI B16.5 (class 150)
- Others on request
+ Show more
- Show less
High Pressure Check Valve
Product Detail
High Pressure Check Valve
Specifications :
Size
1/4″ to 2″
End ports
BSP, NPT, BSPT, ODT
Max. Std. Pressure
6000 Psi (413 Bar)
Temperature Rating
PTFE 450° F (232°C)
Grafoil 700° F (371° C)
Material
SS 316, SS 304, C.S., Hastelloy, Monel
Ball Seat
PTFE, Delrin
Panel mount option
All valves are 100%
Factory tested prior to shipment.
- Pressure Rating Up to 100 bar (Standard Range 500 bar/7000 PSI)
- Temperature Rating : -20°C to250°C
- Size Range : 1/4 to 3″ Thread End / Socket Weld / Butt Weld / Flanged End
- Material Of Construction : Carbon Steel / Stainless Steel (SS 304/ SS 316)
- End Connection : Screwed End (BSP, BSPT, NPT)
- Flow Media : Hydraulic Oil, Water Gas, Air, Cold Water, Hot Water, Stem, Chemicals Etc..
Application
Material Hndling Equipments, Earth Moving Machineries, Power Generating Plants, Steel Manufacturing Plants, Mining Industries, Forklifts, Trucks / Trailers, Chemical Processing Machines etc..
+ Show more
- Show less
High Pressure Ball Valve
Product Detail
High Pressure Ball Valve
Specifications :
Size
1/4″ to 2″
End ports
BSP, NPT, BSPT, ODT
Max. Std. Pressure
6000 Psi (413 Bar)
Temperature Rating
PTFE 450° F (232°C)
Grafoil 700° F (371° C)
Material
SS 316, SS 304, C.S., Hastelloy, Monel
Ball Seat
PTFE, Delrin
Panel mount option
All valves are 100%
Factory tested prior to shipment.
Features :
- 2way & 3way 3PC High pressure Ball Valves, Full Port.
- End Connection: Thread End / Socket Weld / Butt Weld / Flanged End.
- High Pressure Ball Valve with a superior Shutoff
- Simple to Maintain
- High Pressure Ball Valve is easy to turn on
- All Seats are Preloaded
- Self-adjusting stem seals automatically
- High Pressure Ball Valve with a High surface Finish
- High Pressure Ball Valve Materials: SS304 /SS316/CS.
- Seat: Delrin, Peek ,PTFE
- Working Pressure (CWP) :3000 /6000 PSI
+ Show more
- Show less
Needle Valve
Product Detail
Needle Valve
Salient Features:
- Size :1/8 to 1”
- End connection: NPT, BSPT, Socket weld, Butt weld, Tube fitting.
- Working Pressure:6000psig
- Temperature Rating:PTFE 450F,(232C)/Grafoil 700 F(371C)
- Material: SS 316, SS 304.C.S,F11 ,Hastelloy, Monel.
- Packing: PTFE, Grafoil
- Panel mounting on request.
- All Vales are 100% factory tested.
Model: Ceson-1402
Product Details:
Ceson most trusted manufacturer and suppliers of a wide range of High Pressure Needle Valve and Instrument High Pressure Needle Valves. All Ceson valves are manufactured using latest and updated technology and ideal quality raw materials for construction. This product is tested on different types of safety and quality parameters to make sure that it is in complete compliance with set international industry benchmark. Moreover, We invite our reputed clients to visit factory for inspection and business relation purpose with prior appointment.
Minimum Order Quantity
20 Piece
Brand
CESON
Model
CESON-1402
Size
1/4”TO 2”
Details:
Size
1/4″(M/F) to 1/2″(M/F)
Body
304, 316, Monel, hastelloy, Carbon Steel- CS
Spindle
304
Handle
304
Gland packing
P.T.F.E
Testing
6000 PSI / 420 KG
Thread
BSP & NPT for requirement
Features:
- High strength Instrument High Pressure Needle Valve
- Enduring and Robust type of final product with international quality standards
- Full-bodied Material of construction – Stainless Steel
+ Show more
- Show less
Syphon Pipe And Gauge Cock
Product Detail
Syphon Pipe And Gauge Cock
Salient Features:
- Size :1/8 to 1”
- End connection: NPT, BSPT, Socket weld, Butt weld, Tube fitting.
- Working Pressure:6000psig
- Temperature Rating:PTFE 450F,(232C)/Grafoil 700 F(371C)
- Material: SS 316, SS 304.C.S,F11 ,Hastelloy, Monel.
- Packing: PTFE, Grafoil
- Panel mounting on request.
- All Vales are 100% factory tested.
Details:
Size
1/4″(M/F) to 1/2″(M/F)
Body
304, 316, Monel, hastelloy, Carbon Steel- CS
Spindle
304
Handle
304
Gland packing
P.T.F.E
Testing
6000 PSI / 420 KG
Thread
BSP & NPT for requirement
Features:
- High strength Instrument High Pressure Needle Valve
- Enduring and Robust type of final product with international quality standards
- Full-bodied Material of construction – Stainless Steel
Gauge Cock
- Construction : SS 304, SS 316, Brass, Carbon steel and other material on request
- Thread Connection : M20 ¼”, 3/8″, A1/2″ BSP and NPT and other thread on request
- Pressure Range : 1.6 to 210 kg/cm2 and other ranges on request.
- Options : 2 Way3 Way, Both Male and Female, with Vent Hole
+ Show more
- Show less
Instrument Fittings
Product Detail
Instrument Fittings
General instruments offer variety of instrument & Tube fittings designed to meet various process requirements and process safety. Reliability, durability and high performance of General fittings have built the first class reputation in Indian and international markets. General fittings are easy to install and require no special tools in the process. Also, they are re-usable and can withstand heavy impulse and vibration both in vacuum and pressure systems. General fittings are available in variety of designs and materials. General can design and manufacture special fittings to the specific customer requirements and process conditions.
+ Show more
- Show less

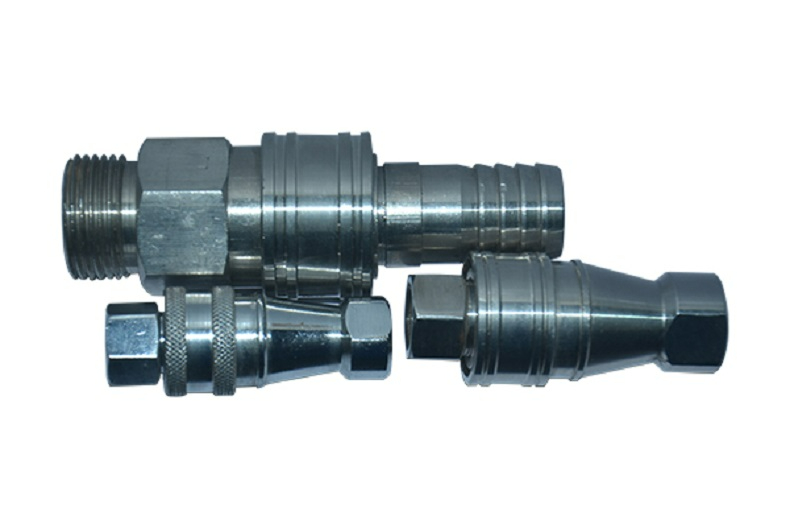

Quick Release Couplings
Product Detail
Quick Release Couplings
Specification :
- Size : 1/8” to 1” NB End
- Connection : NPT / BSP
- Material : SS 316 / SS 304 /CS/BRASS
- Pressure Rating : Up to 10000 PSIG
+ Show more
- Show less
Brass Mini Ball Valve
Product Detail
Brass Mini Ball Valve
Specification :
- Avalebal Size : 1/8″ to 1/2″
- Connection : MXF & FXF
- Material : Chrome Plated & Nickel Plated
+ Show more
- Show less
View more
Gallery(10)
