About Us
ELASTOMER INDUSTRIES PRIVATE LIMITED are one of the well-known manufacturers, suppliers of Elastomeric Bridge Bearing Pads, Bridge Expansion Joint, Waterstops, Rubber Gate Seals (For Dam Gate), Rubber Sheets & Strips, Rubber Conveyor Belt, Nylon Washer, Dome Valve Seal, HPTM Socket Seal, HPTM Spigot Seal, Pneumatic Cylinder Seals, U Channel, Anti Vibration Bush, Rubber Oil Seal, O- Rings, Hydraulic Seal Kits, Electrical Chequered Rubber Sheet, EPDM Tyton Gasket, Industrial Rubber Bellows, Industrial Air Filter etc and any molded items of Natural Rubber, Neoprene Rubber, EPDM, Silicon, Nylon, Viton, NBR.
View more
Our Leadership Team
Mr. Chinmoy Adak
Business Head
Products & Services
Elastomeric Bridge Bearing
Product Detail

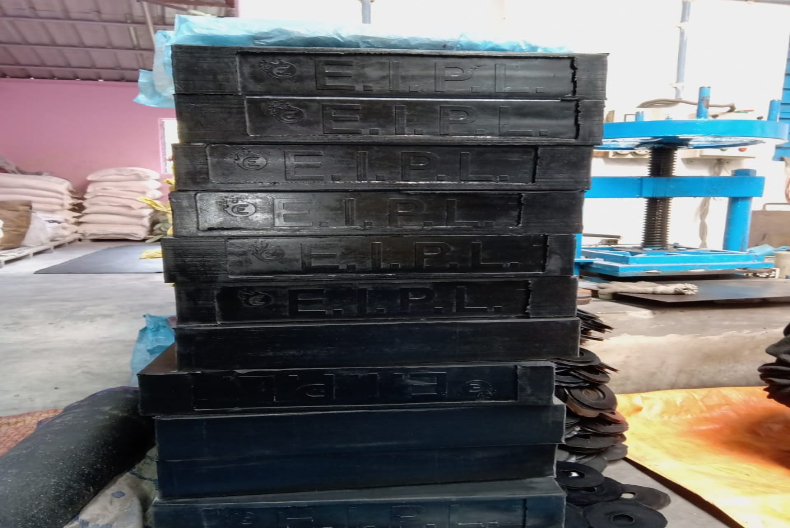

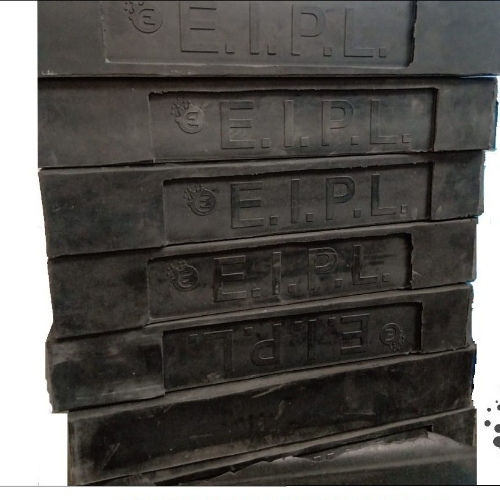

Elastomeric Bridge Bearing
EIPL Elastomeric Bridge Bearings are designed and manufactured as per IRC 83 Part II-2015,with its latest amendment to meet the requirements of MORT & H specification for road and bridge works to Section no: 2000 to clause no 2005 (Elastomeric Bearings) and to international specification Union of Railways Code No. UIC 772 – 2R (use of Rubber Bearings for Railway Bridges) and BSEN 1337 – 3/2005 (structural Bearing – Part 3: Elastomeric Bearing).
EIPL Elastomeric Bridge bearing consists one or more internal layers of elastomer bonded to internal steel laminates shall be cast in single unit mould and vulcanized under heat and pressure to cater for translation or rotation of the superstructure by elastic deformation.
The raw elastomer used in bearings in polychloroprene of make : Neoprene W & WRT, Bayprene 110 and 210, Skyprene B5 and B30,Denka S 40 and M 40 of low crystallization rate and adequate shelf life.
The content of the poly chloroprene of the bearings shall not be lower than 60% and the ash content shall be less than 5%. The steel laminates used in bearings shall meet the specification of IS:2062/IS:1079.
+ Show more
- Show less
Strip Seal Expansion Joint
Product Detail

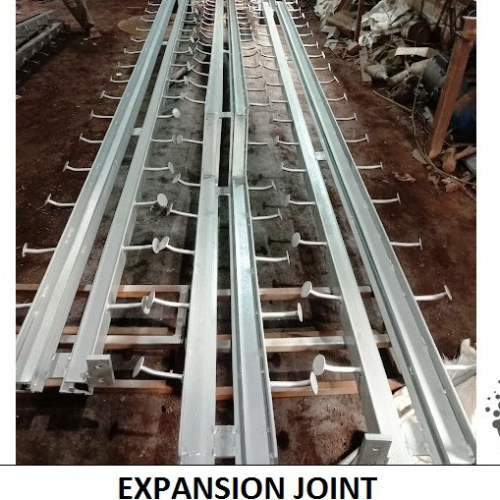

Strip Seal Expansion Joint
Strip Seal Expansion Joint system consists of an elastomeric gland mechanically locked between two steel edge members providing a superior watertight sealing system. The rugged design of the Strip Seal Expansion Joint can easily accommodate the high loads of vehicular traffic while effectively sealing expansion joints in bridges and structures with movements. Machined Steel shapes maximize seal install ability and minimize manufacturing tolerance associated with overall Steel shape manufacture.
+ Show more
- Show less
Drainage Spout
Product Detail

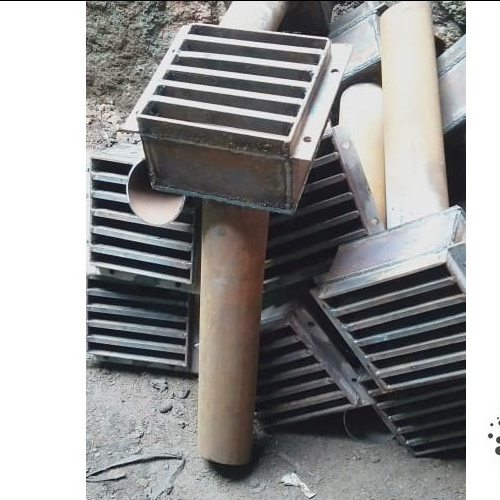

Drainage Spout
Drainage Spouts are used for carrying rainwater and wastes down from platform. These spouts are manufactured by our experienced professionals using premium quality raw materials to meet the varied need of the clients.
+ Show more
- Show less
PVC Waterstops
Product Detail

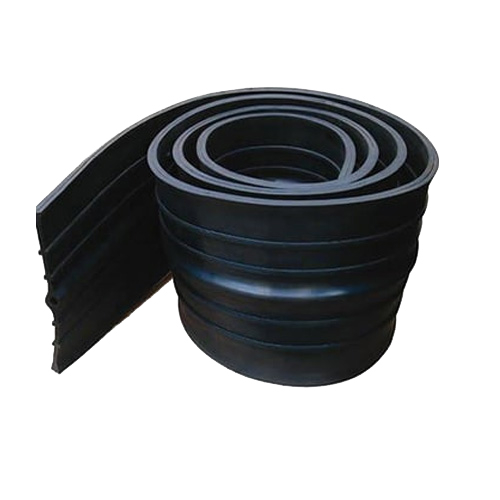

PVC Waterstops
EIPL PVC Waterstops are made by high-grade Polyvinyl Chloride (PVC) resin extrusion compound that are plasticized and stabilized to offer long life, performance, corrosion, waterborne chemicals and aging.
The cross section configuration features multi-rib design for an effective anchor to the concrete a flexible, and a hollow center bulb to accommodate moderate expansion and contraction.
EIPL PVC Waterstops are flexible, resilient, and chemically inert, is not affected by weathering, low temperatures, or constant immersion in water, unaffected by concrete additives and most water solutions of organic chemicals. It has abilities to accept joint movements and the same time prevents water passage through the joints.
EIPL PVC Waterstops are manufactured to meet the most stringent performance specifications. This is achieved by offering excellent inherent technical characteristics within the product.
+ Show more
- Show less
Rubber Gate Seal
Product Detail

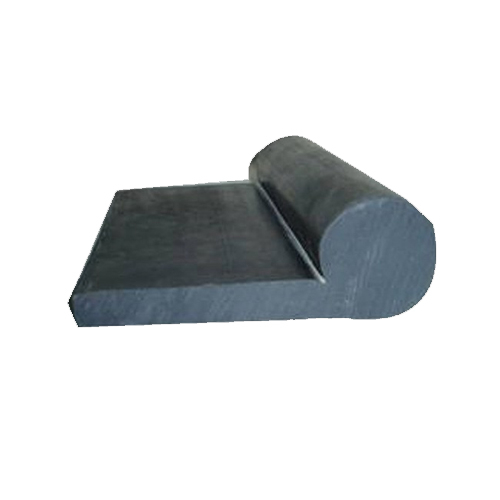

Rubber Gate Seal
Rubber Gate Seals are available in the widest range of shapes. Since every Irrigation / Hydroelectric Project has its own design requirements if the shape required does not fall in the Existing Range Gate Seals of special sections as per the customer specifications are also manufactured.
+ Show more
- Show less
Brochures
Gallery(2)
