EMST Marketing Pvt.Ltd., is established in 2007 to Focus purely on Sales & Service of PCB Assembly Equipment and Wire Processing Equipment. As part of Electronica Group, the background for the company is two decades of experience into various activities like Manufacturing, Trading, Marketing and Exporting of machinery for PCB Assembly and Trading of Machinery for Wire Harness preparation. The backbone of EMST Marketing is this Rich Experience of Twenty years, associated with very strong customer base which includes giants in the industry as well as start-up companies located all over India.
In PCB Assembly our product range covers both Thru-Hole assembly and SMT assembly. To cover the entire market segment of start-up to Multinational companies , our product mix includes entry level production machines to high thruput machines. A combination of high quality locally manufactured machinery and machines from reputed trading partners abroad, enables us to offer cost effective but total solutions.
Our wire processing range covers machinery for almost every process in Wire Harness preparation. Our association with world leader 'Schleuniger' for last two decades has given us vast experience in not just sales & service but also selection of right machine for the application. With wide range of machines at our Demo Centre in our pune headquarters, we are able to offer quick trials on samples and also offer in-depth product and maintenance training to our customers.
Our wide product range is ably supported by our Support Team who are located strategically covering entire India – Pune, Ahmedabad, Delhi, Haridwar, Bangalore, Hyderabad and Chennai.
View more
Our Leadership Team
Mr. Aditya Ratnaparkhi
Business Head
Products & Services

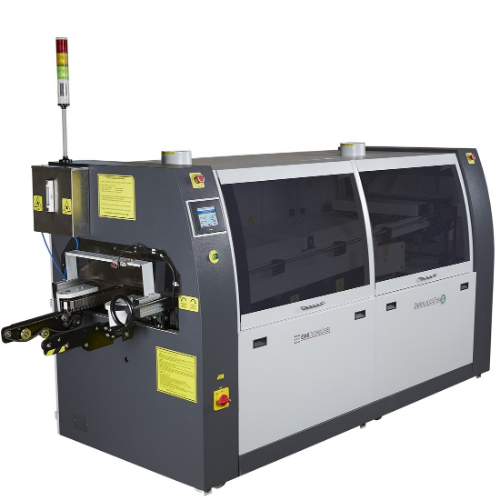

Wave soldering machine - Finger conveyor
Product Detail
Wave soldering machine - Finger conveyor
Wave soldering machine range offered by EMS Technologies comes in two combinations with Finger type conveyor for high productivity and Carrier Conveyer type suitable for batch production. With over 20+ years of experience EMS Technologies has been well known brand in the SMT field.
The field proven Stallion Wave Soldering Machine is now introduced in PLC version with many more enhanced features.
Fluxer Options
Foam Fluxer
- Stainless steel tank of 5 ltrs capacity with porous candle
- External compressed air driven
- Air knife to blow off excess flux back to the tank
Spray Fluxer
- Modular design - Spray, Control & Infeed Modules
- Auto spray as per length & width of board
Preheater Options
IR & Convection (for Carrier Models)
- One IR and one Hot Air Convection Preheater
- Total Length of 1000 mm & each 5KW
- Intelligent power saving circuit between IR heater & Solder Pot
Solder Pot Options
150 Kg Lead Free / 170 Kg Leaded Pot
- Available in SS, Nitrided SS or Titanium
- Three Cartridge internal heaters for better efficiency
- AC pump motor with speed control for uniform & stable wave height
Orbital 'O-Wave' SMD Option
- Patented Italian Technology and field proven over years
- Fin Assembly moving in narrow elliptical orbit inside nozzle area to
create orbital wave - O-Wave speed and amplitude controlled by AC Motor
- Orbital turbulence of O-wave eliminates shadow areas around SMD components
+ Show more
- Show less

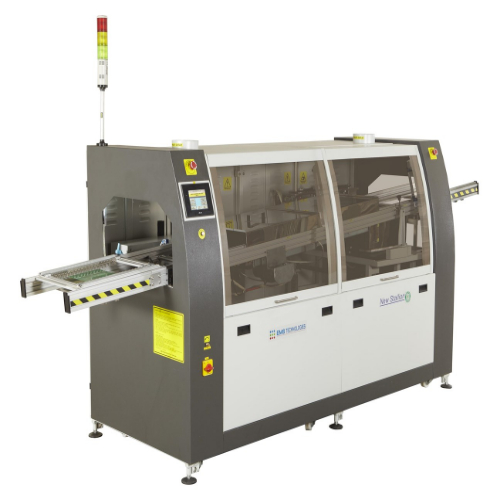

Wave soldering machine - Carrier Conveyor
Product Detail
Wave soldering machine - Carrier Conveyor
Wave soldering machine range offered by EMS Technologies comes in two combinations with Finger type conveyor for high productivity and Carrier Conveyer type suitable for batch production. With over 20+ years of experience EMS Technologies has been well known brand in the SMT field.
The field proven Stallion Wave Soldering Machine is now introduced in PLC version with many more enhanced features.
Fluxer Options
Foam Fluxer
- Stainless steel tank of 5 ltrs capacity with porous candle
- External compressed air driven
- Air knife to blow off excess flux back to the tank
Spray Fluxer
- Modular design - Spray, Control & Infeed Modules
- Auto spray as per length & width of board
Preheater Options
IR & Convection (for Carrier Models)
- One IR and one Hot Air Convection Preheater
- Total Length of 1000 mm & each 5KW
- Intelligent power saving circuit between IR heater & Solder Pot
Solder Pot Options
150 Kg Lead Free / 170 Kg Leaded Pot
- Available in SS, Nitrided SS or Titanium
- Three Cartridge internal heaters for better efficiency
- AC pump motor with speed control for uniform & stable wave height
Orbital 'O-Wave' SMD Option
- Patented Italian Technology and field proven over years
- Fin Assembly moving in narrow elliptical orbit inside nozzle area to
create orbital wave - O-Wave speed and amplitude controlled by AC Motor
- Orbital turbulence of O-wave eliminates shadow areas around SMD components
+ Show more
- Show less

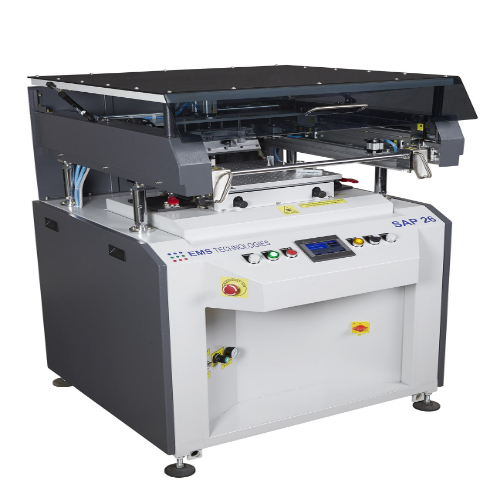

Semi-Automatic Printers
Product Detail
Semi-Automatic Printers
SAP26 series are semi-automatic printers developed by EMS Technologies, Pune. With various configuration available such as Camera attachment, settleable squeegee motor speed SAP26 printer range is suitable for wide variety of applications
Features:
• PLC controlled with touch screen monitor.
• Universal jig for double side PCB printing.
• X, Y, θ manual control.
• Z Axis Servo Control.
• AC servo controlled PCB - Stencil snap off.
• Snap off distance & speed programmable.
• Settable squeegee motor speed from 10-72.5 mm / sec.
• Dual squeegee head with controllable squeegee pressure.
• Dual camera option with monitor for PCB - Stencil alignment.
• PCB Table up-down AC Servo Controller.
+ Show more
- Show less

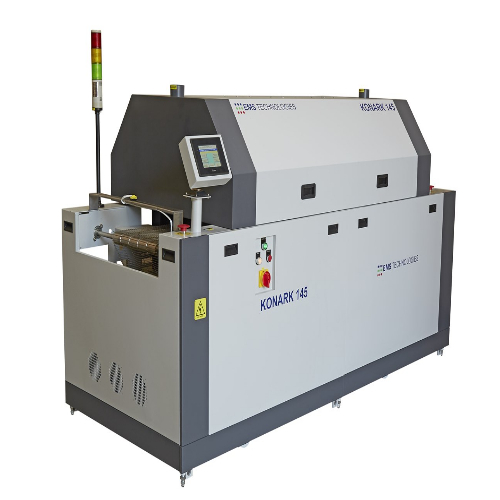

Five zone Conveyorised reflow oven
Product Detail
Five zone Conveyorised reflow oven
• 5 Heating Zones.
• Manual Hood Opening with Jack arrangement.
• Max Temperature of 300˚C, Lead Free compatible.
• Mesh (or) Chain (or) Chain above Mesh Conveyer options.
• 10 independent PID controlled heating zones (5 Top & 5 Bottom).
• Heating Length - 1550 mm.
• Max PCB Width - 300 mm.
• Touch Screen Operation.
• 3 Channel Profiler Option.
• Manual Width Adjustment.
+ Show more
- Show less

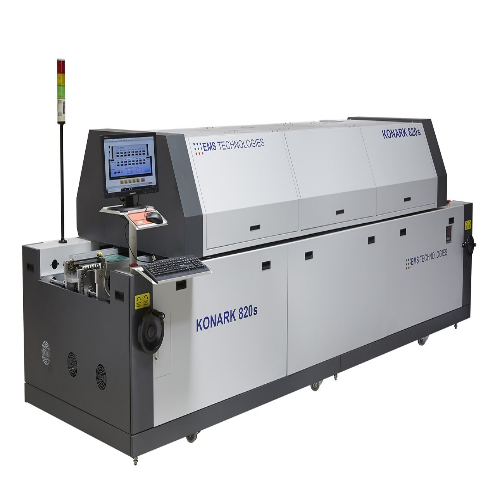

8 zone Lead Free Reflow oven
Product Detail
8 zone Lead Free Reflow oven
Konark 820 is the new 8 zone Lead Free Reflow oven from EMS Technologies, Pune India.
After successfully launching Konark 257 the 7 zone reflow and Konark 145 the 5 zone reflow with many machines working in the field (India as well as outside), this 8 zone is launched with two cooling zones as well. The reflow comes with same quality and reliability in terms of Mechanical as well as Electrical/Electronic parts, which is now proven in the field.
EMS Technologies has now emerged as a leading Indian suplier of all SMT machines including Stencil Printers, Wave Soldering Machines and also low cost entry level Pick and Place machine.
We need to change this to features title to Features list since application range will be pretty much same across product line.
+ Show more
- Show less
