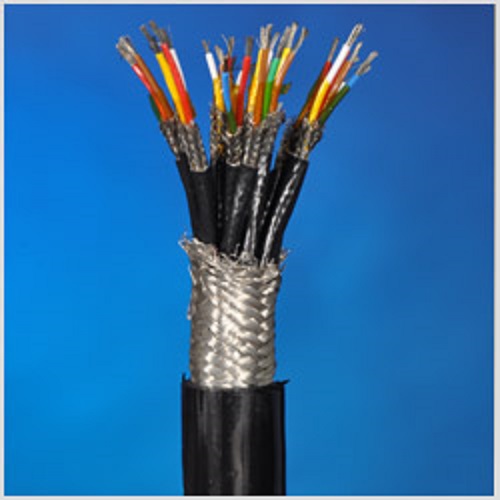

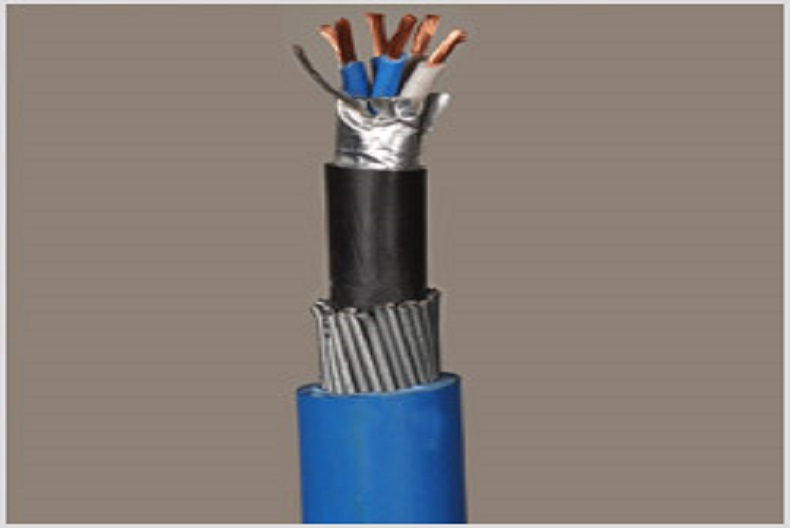

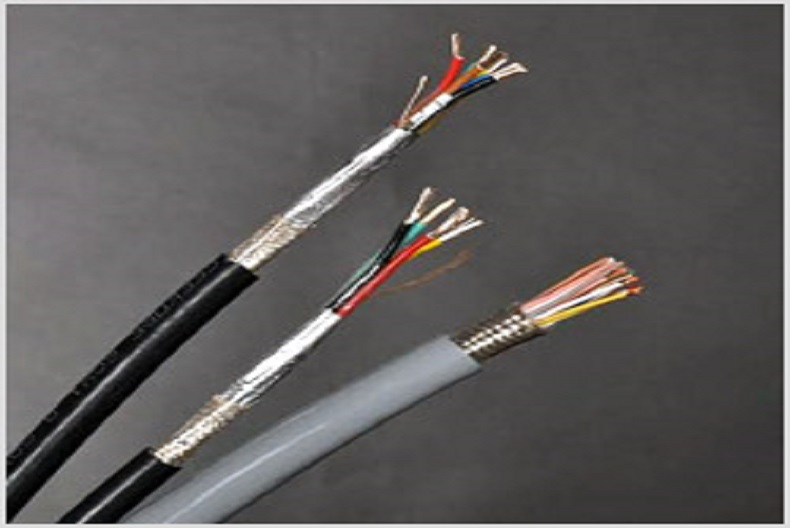

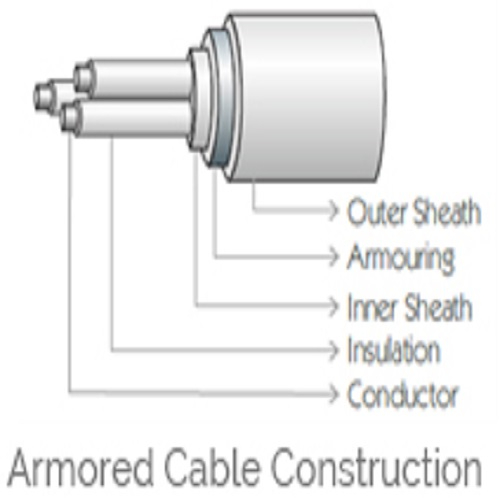

GEEKORE make Instrumentation cables facilitate their users by its robust construction, minimum EMC/ EMI, ease of interconnection and suitable for adverse ambient conditions. GEEKORE is known for supporting their customers in providing customized solution meeting their requirement. These cables comply with BS 5308 (part I & II) and Indian standards for respective elements. Cables widely being used in many applications mentioned below:

• Thermal Power plants,
• Steel Plants
• Cement Plants
• Nuclear Power Plants
• Sugar Mills

GEEKORE offers Equipment / Hookup wires with customized specification or as per IS 694 for various general industrial applications like.

• Panel Wiring
• Power Drives
• Automobiles
• Solar panels
• Lighting Applications

Wires are offered for rated voltage as 300/500V or 600/1100 Volts.

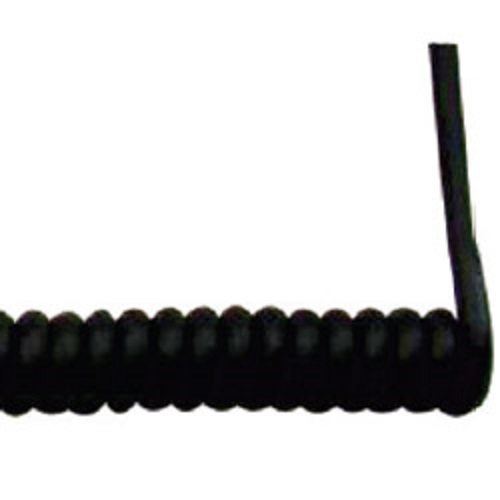

GEEKORE make Cord Card/cables have a retractable property and rugged abrasion resistance. It has chemical resistance and extension capability around 3 time the compressed length.

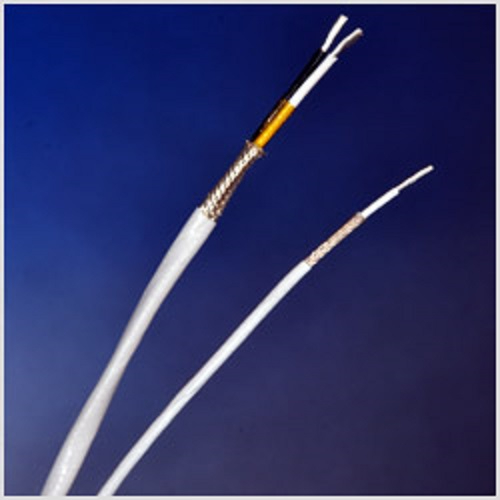

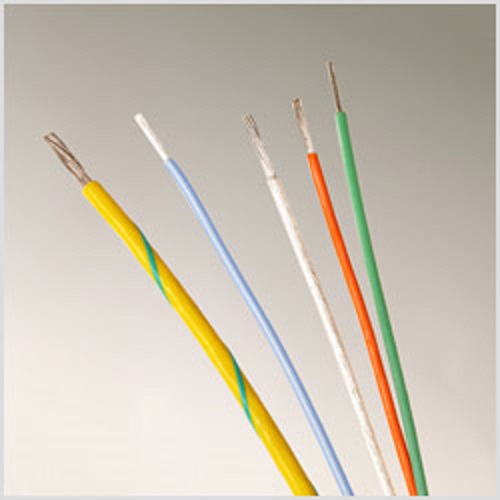

GEEKORE manufactures premium quality of wires and cables insulated by tape wrapped PTFE qualifying JSS 51034 and JSS 51038 with excellent performance within the specified diameter and weight. In various applications of wires and cables, high temperature wires like wrapped PTFE insulated are into existence due their un- beatable properties described below:

• Extremely higher insulation resistance, more than 2000 MΩxkm
• Covers wide temperature range, -200 deg C to +250 deg C continuous
• Resistant to UV radiations and stress cracking.
• Inert to most chemicals and fluids even at high temperature and pressure.
• Immune to ageing, fungus and water absorption (<0.01%)
• Excellent dielectric withstanding capabilities and superior current rating.

Above unique properties of wrapped PTFE insulated wires, make it suitable for below applications:

• Radar and Airborne applications.
• Electronic test equipments

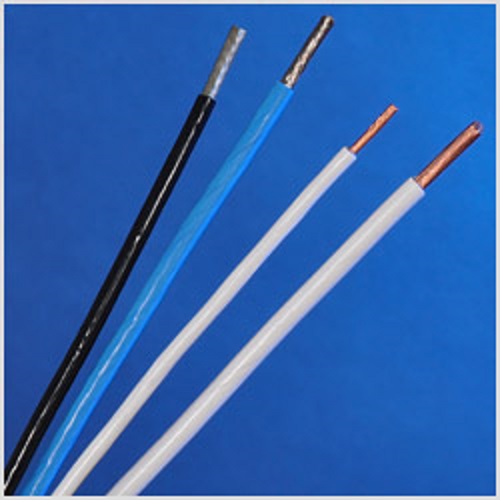

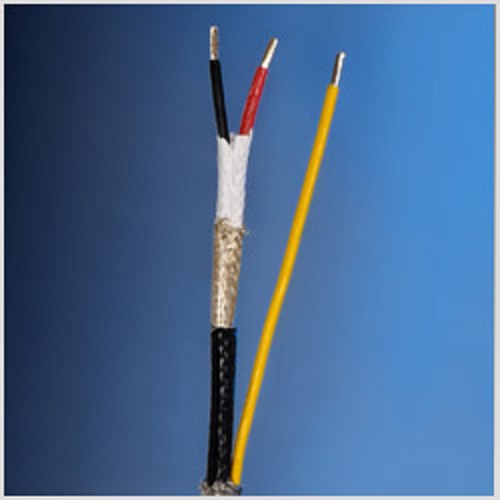

GEEKORE® is one of very few manufacturers of extruded fluoropolymer wires and cables in India who provides all range of fluoropolymer insulated wire and cables included extruded wires. Major reasons behind introducing extrusion technology are:

• Longer life; wrapped material is having poor abrasion resistance at wrapping edges. Hence it is less popular in outbox applications than extruded wires.
• Extruded fluoropolymer provides higher breakdown voltage because of lesser air voids in comparison to wrapped material.
• Extruded fluoropolymers gives superior appearance and finishing.
• Extruded fluoropolymer is having higher mechanical strength.
• Wrapped material being sintered at 380 Deg C and at this temperature tin get blacken. Hence, tinned copper is not recommended with wrapped PTFE insulation. Extruded fluoropolymer can be used with tinned copper conductor also.

Application

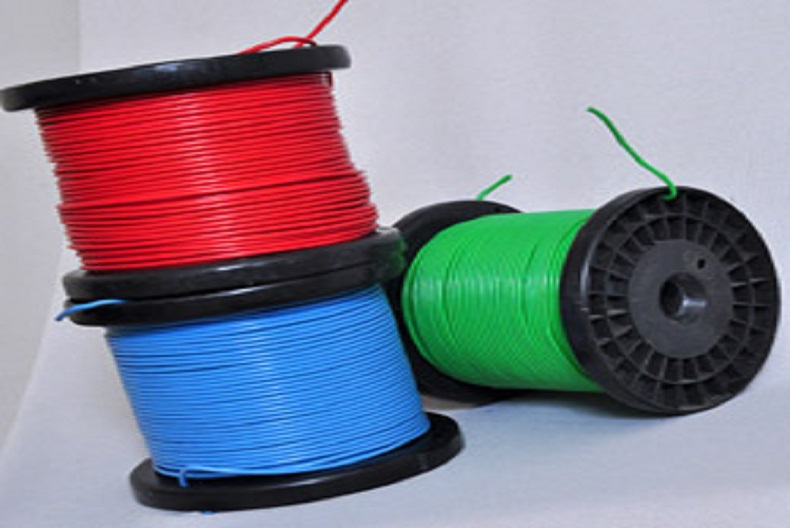

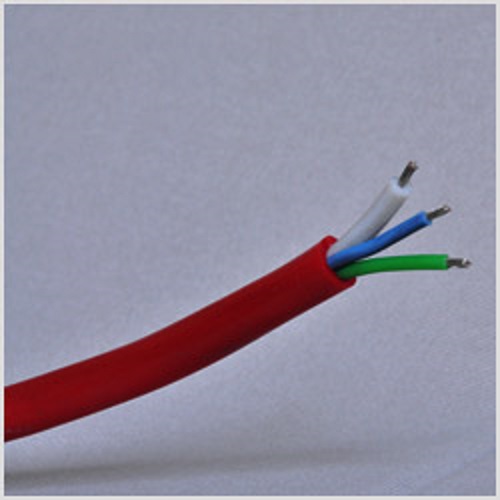

GEEKORE Make SILICON RUBBER insulated cables having excellent abrasion and cut through resistant. Its maximum continuous temperature is 180 deg C. It provides highest flexibility at high temperatures.

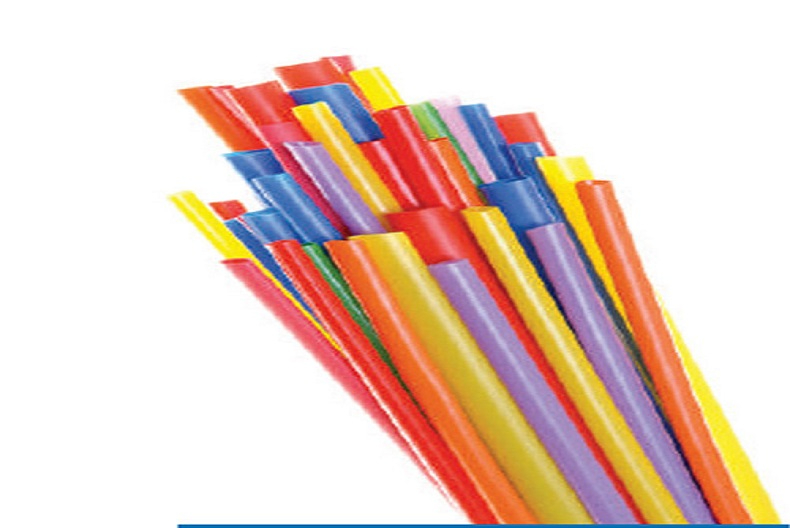

GEEKORE manufactures premium quality FEP Sleeves with laest technology process controls and fastest delivery time. Salient feature of FEP sleeves given below:

• Wide temperature range of -40 deg C to 200 deg C
• Miniature in size
• Controlled diameter & wall thickness upto 50 micron
• Inert with most of chemicals, alkali, acids, gas, vapors and ultra violet rays
• Excellent high voltage properties
• Superior coefficient of friction
• Non flammable
• Can withstand approx 5 times pressure than rated
• Are non toxic

For snow melting

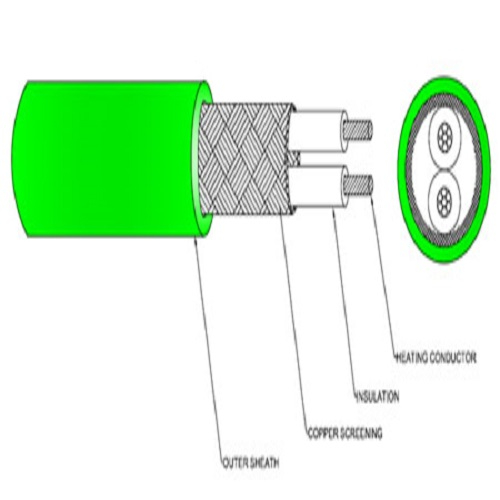

GEEKORE® make In-concrete heating (ICH) cables are designed and manufacturer to facilitate the customer for long term reliability and performance, ease in connection and wide range of temperature. Cables being categorized as per customer budget or required performance as Classic or Premium.

Features of cables are:

• Mechanically tough and abrasion resistance.
• Uniform heating.
• Optimum flexibility for ease in connection.
• Wide temperature range.
• Flame retardant and low smoke.
• Protection category IPx7.

PVC insulated winding wire offered by us can withstand voltage fluctuation and has very high insulation resistance even at elevated temperatures. Conductor size ranges between 0.8 mm to 3.5 mm
