About Us
M/s. Ganpati Engineering Industries is a small scale Industry registered with the Industries Department as SSI unit.
Ganpati Engineering Industries established in the year 1977 (having its own land & building of around 5,000 sq.ft.). The products manufactured are Bare Bunched Copper Wire, Bare Copper Wire, Any Size Copper Wire, Copper Braided Wire, Tinned Coated Braided Copper Wire, Tinsel Lead Copper Wire, Lead Wire , Tinned Wire, Tin Coated Copper Wire, Glass Wire, Television & Speaker Wire, Television Earthing Shield, Braided Copper Wires/Tinsel (Atc)/Silver Plated, Silver Braided Wire, Silver Tinsel Lead Wire, Braided Copper Wire Connectors / Jumpers , Braided Copper / Tin Coated Copper Wire With Lugs / Connectors.
We purchase EC Grade Copper of highest purity (99.99%) from prime producers like Hindustan Copper Ltd. Sterlite Industries (India) Ltd, Birla Copper (Indogulf) and also importing the material under Open General Licensing Policy as per competitive prices being offered by the suppliers, but in any case the quality of input is maintained at highest purity as stated above.
We have an experts team comprising Managers as well as workers and the product comes out is strictly conforming to the customers specifications.
Our Bankers are HSBC Bank and Kotak Mahindra BANK and OTHER BANKS where we enjoy credit facility. We also negotiate our supply documents through them in the country as well as abroad.
We manufacture our products from EC Grade Continuous Cast copper rod of 8.0 mm dia. Which is of 99.99% purity and manufacture the products as per customer specifications as also ISS/BSS standards. The measuring/testing equipments used for inspections are of good quality and regularly calibrated.
View more
Our Leadership Team
Mr. Anup Gupta
Business Head
Products & Services

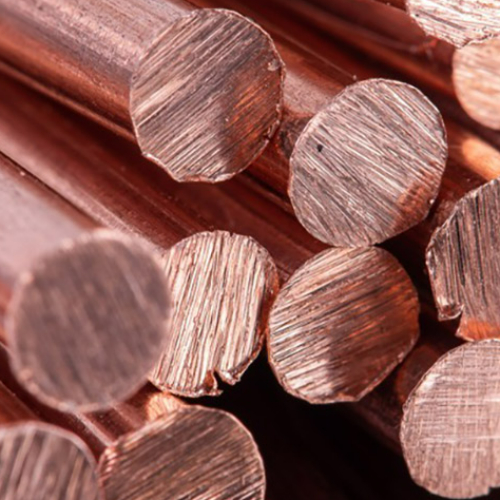

Copper
Product Detail
Copper
+ Show more
- Show less

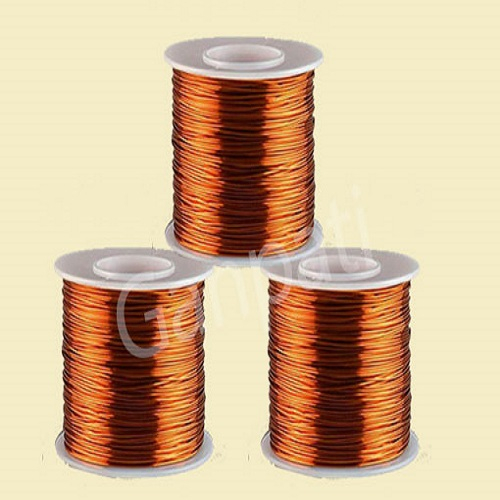

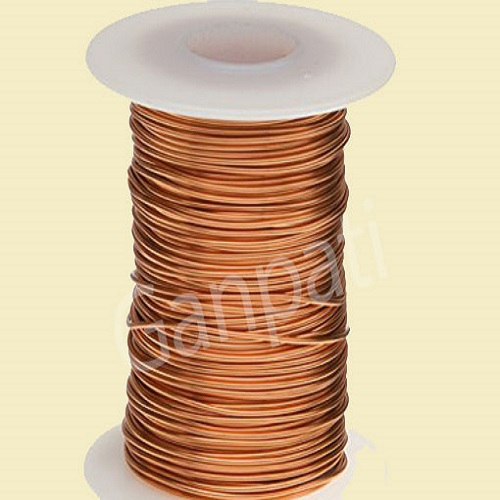

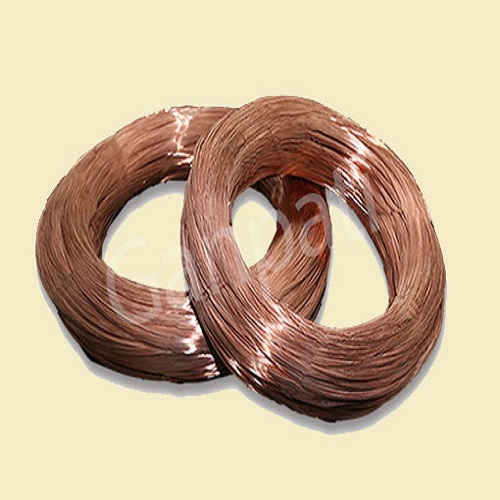

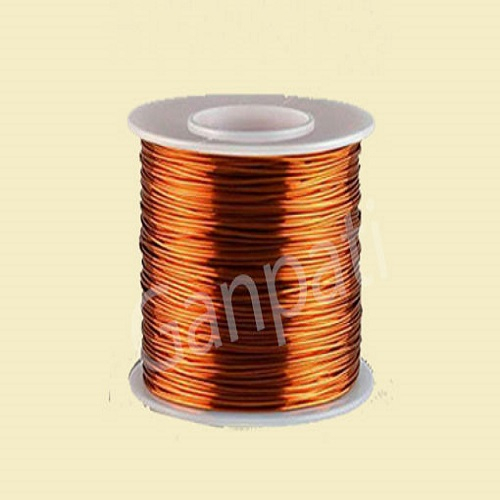

Bare Copper Wire
Product Detail
Bare Copper Wire
Bare Copper Wire is used as a high quality electricity conductor in electronics & electrical appliances. Copper is considered as one of the best conductors of electricity. Hence, copper wires are used as the most preferred conductors in electrical devices. Uncoated Copper Wire is durable & can last for years. Copper Wire is Cadmium free i.e. it is 100% pure & is also known as “Electrolyte Copper”.
The use of Bare Copper Wire is also taken in overhead power sources, light poles, heavy appliances, machinery, cranes & other industrial purposes. That's why the demand of Uncoated Copper Wire is very high, always.
Ganpati Engineering Industries is one of the leading Bare Copper Wire Manufacturers in India. We supply high quality uncoated copper wire for industrial purposes.
Advantages
Copper is one of the most popular metals used in electrical and Manufacturing industry. Due to several inherent advantages related to electrical conductivity and thermal conductivity, copper is the first choice for electrical equipment manufacturers. Copper wires have a glorious history of over 100 years. Initially, Bare Copper Wires found their usage during the installation of telegraph and telephones all over the US. At that time, copper wires were extensively used for transmitting the information and data across cities and were implanted as they were the best electrical conductor. Electrical conductivity is one of the strongest properties of Copper wire.
+ Show more
- Show less
Thermocouple Cables
Product Detail
Thermocouple Cables
Control Cable is a flexible instrumentation cable designed for measuring, control or regulation in the field of process automation. Multicore Control Cables are specially designed for communication & panel controls for transmission of DC or Low Frequency AC signals. Ganpati Engineering offer a wide range of Control Cable up to 1.1 KV Voltage Grades. These control cables are manufactured as per IS 1554: 88 (Part 1), JSS 51034, IS 9968 standards with latest amendment.
- PTFE TWISTED PAIR - 260ºC
- TEFLON - TEFLON INSULATED - 260°C
- T-401 THERMOCOUPLE WIRE
- TEFLON - SILICON INSULATED - 200°C
- TEFLON - FIBER GLASS - FIBER GLASS INSULATED - 400°C
- TEFLON - TEFLON - ASBESTOS BRAIDING INSULATED - 400°C
- TEFLON - FIBER GLASS - SS BRAIDING INSULATED - 400°C
- TEFLON - KAPTON - COPPER SCREENING - SILICON INSULATED - 200°C
- TEFLON - KAPTON - COPPER SCREENING - TEFLON - ASBESTOS INSULATED - 400°C
- TEFLON - KAPTON - BC SCREENING - TEFLON INSULATED - 260°C and many more...
+ Show more
- Show less

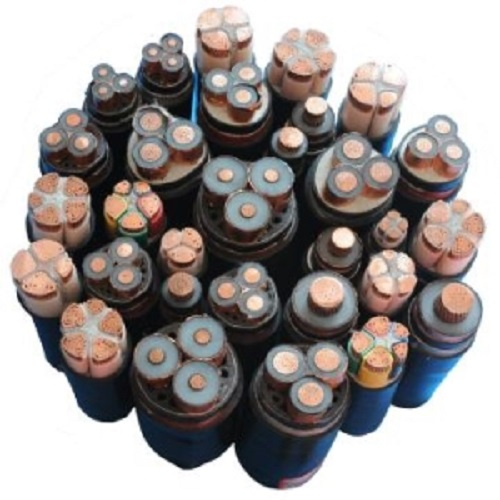

AL PVC Wire Armoured P
Product Detail
AL PVC Wire Armoured P
- Category: Rigid Cables
- Sub Category: Armoured Cables 1.1 kV
- Type Ref.: AYFY
- Standards: IS:1554/Pt. 1/1988
- Construction:
- Class: 2 Stranded Aluminium Wire as per IS:8130
- Insulation: PVC (Polyvinyl Chloride) as per IS:5831
- Core Identification:
- 1 Core: Black/Red/White
- 2 Core: Red, Black
- 3 Core: Red, Yellow, Blue
- 4 Core: Red, Yellow, Blue & Black
- Inner Sheath: PVC (Polyvinyl Chloride) ST2 Grade as per IS:5831
- Armouring: H.D. Aluminium/G.I. Strip as per IS:3975
- Outer Sheath: PVC ST2 Grade as per IS:5831
- Product Features:
- Light Weight
- Better Fire Properties than XLPE Variant
- Better UV Properties than XLPE Variant
- Variants:
- FR
- FRLS
- 85 Degree
- Technical Data:
- Insulation Resistance: 1X10 Ohm-CM
- Bending Radius: 12XOD (OD=Overall Diameter of Cable)
- Voltage Rated: 650/1100 Volts
- Test Voltage: a.c.3 kV (rms)
- Temperature Range: -15 C to +70 C
- Short Circuit Temp.: 160 C
+ Show more
- Show less

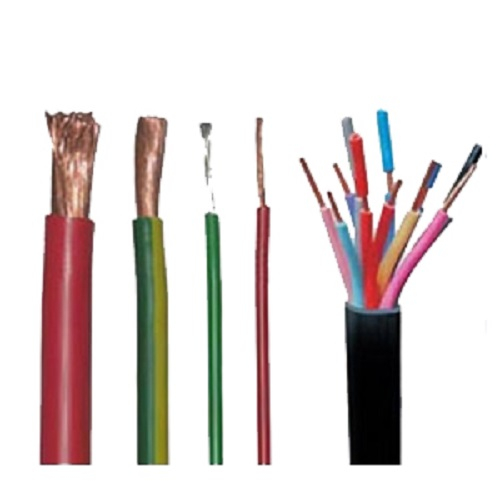

AL PVC Flexible Cables
Product Detail
AL PVC Flexible Cables
- Category: Rigid Cables
- Sub Category: Aluminium Cables 1.1 kV
- Type Ref.: H07RN-F
- Standards: IS 694
- Construction:
- Class: 2 Stranded Aluminium Wire as per IS:8130
- Insulation: PVC (Polyvinyl Chloride) Type A as per IS:5831
- Core Identification:
- 1 Core: Black, Red, White, Yellow, Blue, Grey or Black
- 2 Core: Red, Black
- 3 Core: Red, Yellow, Blue
- 4 Core: Red, Yellow, Blue & Black
- Inner Sheath: HOFR as per IS 6380/1984
- Armouring: HOFR as per IS 6380/1984
- Outer Sheath: PVC ST2 Grade as per IS:5831
- Product Features:
- Easy to Handle
- Very Good Insulation Properties
- Variants:
- FR
- FRLS
- HR-90 Degree
- Technical Data:
- Insulation Resistance: 1X10 Ohm-CM
- Bending Radius: 8XOD (OD=Overall Diameter of Cable)
- Voltage Rated: 0.6/1.0 (1.2 kV)
- Test Voltage: a.c.3 kV (rms)
- Temperature Range: -15 C to +70 C
- Short Circuit Temp.: 160 C
+ Show more
- Show less
AL PVC PVC Unarmoured Cables
Product Detail
AL PVC PVC Unarmoured Cables
- Category: Rigid Cables
- Sub Category: Un-armoured Cables 1.1 kV
- Type Ref.: AYY
- Standards: IS: 1554/Pt-1/1988
- Construction:
- Class: 2 Stranded Aluminium Wire as per IS:8130
- Insulation: PVC (Polyvinyl Chloride) Type A or C as per IS:5831
- Core Identification:
- 1 Core: Black/Red/White
- 2 Core: Red, Black
- 3 Core: Red, Yellow, Blue
- 4 Core: Red, Yellow, Blue & Black
- Inner Sheath: PVC St1 or ST2 Grade as per IS 5831
- Outer Sheath: PVC St1 or ST2 Grade as per IS 5831
- Product Features:
- Easy to Handle
- Better Fire Properties than XLPE Variant
- Better UV Properties than XLPE Variant
- Better Flexibility than XLPE Variant
- Variants:
- FR
- FRLS
- HR-90 Degree
- Technical Data:
- Insulation Resistance: 1X10 Ohm-CM
- Bending Radius: 8XOD (OD=Overall Diameter of Cable)
- Voltage Rated: 650/1100 Volts
- Test Voltage: a.c.3 kV (rms)
- Temperature Range: -15 C to +90 C
- Short Circuit Temp.: 160 C
