Pop Channel Roll Forming Machine
Product Detail

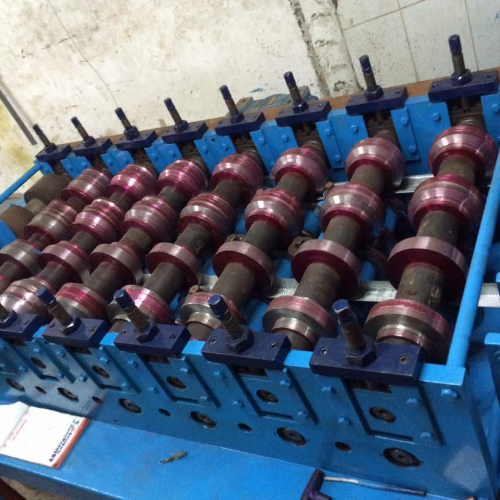

Pop Channel Roll Forming Machine
Manufacturer of Pop Channel Roll Forming Machine, Pop Section Making Machine, Pop Channel Machine, Pop Bottom Patti Machine, Pop Ultra Section Roll Forming Machine, Gypsum Channel Roll Forming Machine, Gypsum Perimeter Roll Forming Machine, Gypsum Ultra Channel Roll Forming Machine, Gypsum Ceiling Section Making Machine, False Ceiling Roll Forming Machine, Ceiling Channel Roll Forming Machine, Ceiling Channel Making Machine, False Ceiling Machine, Furring Channel Making Machine, Pop Cross Section Roll Forming Machine, Pop Inter section Roll Forming Machine.
- D coiler 200 Kg cap.
- Entry Gate with
- C) Roll Forming Machine with 8 stations, 1 Gear Boxes & 5 H.P. electrical
- Control Panel semi auto
- Cutting Unit (Hydro.)
Technical Specifications
- Maximum sheet width that can be formed : 500 mm
- Maximum sheet thickness in CRCA Strips that can be formed : 0.5 mm
- Horizontal distance between shafts : 165mm
- Number of forming stations : 8 nos.
- Total HP for Line : 7
- Speed of the machine : 10 -14 mt / mint
- Size of machine : 1600 x 1200 x 1100 mm
Mandrel Uncoiler
- Coil weight : 200 KG Max
- Coil width : 200 MM
- Coil bore : 450 MM min, 510 MM max dia.
- Mandrel movement : Manually adjusted
- Back Tension : Manually adjusted
+ Show more
- Show less
Specifications
False Ceiling Channel Roll Forming Machine
Product Detail

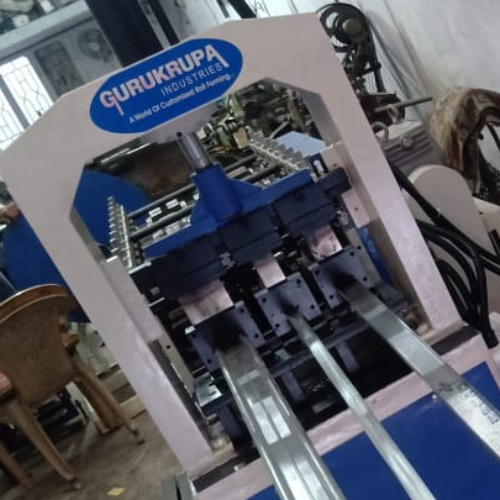

False Ceiling Channel Roll Forming Machine
+ Show more
- Show less
Specifications
False Ceiling Channel Roll Forming Machine
Product Detail
False Ceiling Channel Roll Forming Machine
False Ceiling Machine, Furring Channel Making Machine, Pop Cross Section Roll Forming Machine, Pop Inter section Roll Forming Machine, Pop Channel Roll Forming line, Gypsum Channel Roll Forming Machine, Gypsum Perimeter Roll Forming Machine, Gypsum Ultra Channel Roll Forming Machine, Gypsum Ceiling Section Making Machine, False Ceiling Roll Forming Machine, Ceiling Channel Roll Forming Machine, Ceiling Channel Making Machine, Light Keel Roll Forming Machine.
- D coiler 200 Kg cap.
- Entry Gate with
- C) Roll Forming Machine with 8 stations, 1 Gear Boxes & 5 H.P. electrical
- Control Panel semi auto
- Cutting Unit (Hydro.)
Technical Specifications
- Maximum sheet width that can be formed : 500 mm
- Maximum sheet thickness in CRCA Strips that can be formed : 0.5 mm
- Horizontal distance between shafts : 165mm
- Number of forming stations : 8 nos.
- Total HP for Line : 7
- Speed of the machine : 10 -14 mt / mint
- Size of machine : 1600 x 1200 x 1100 mm
Mandrel Uncoiler
- Coil weight : 200 KG Max
- Coil width : 200 MM
- Coil bore : 450 MM min, 510 MM max dia.
- Mandrel movement : Manually adjusted
- Back Tension : Manually adjusted
+ Show more
- Show less
