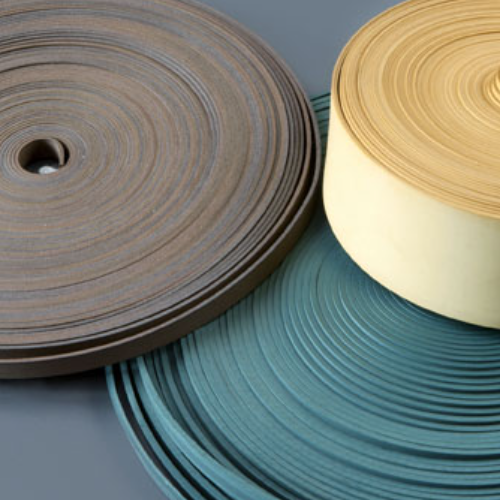

PTFE makes excellent heat sealing bands and wire strips which are useful in a number of applications. Hindustan Nylons has been making these products for a long time. It has been meeting the industry demand for these products in various niches.

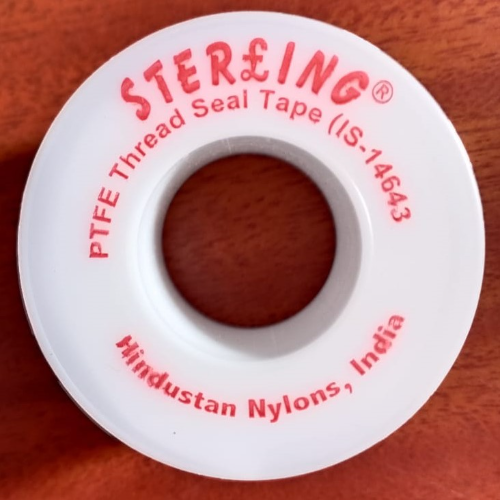

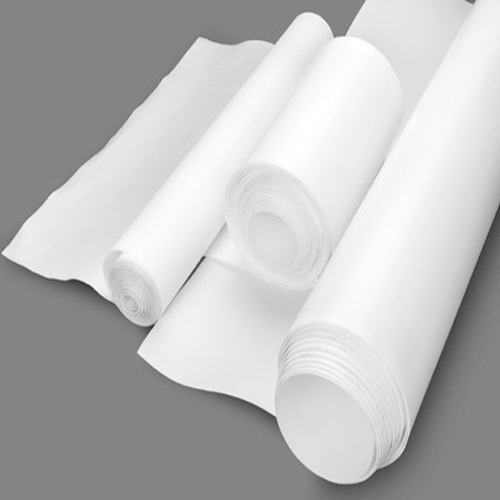

Sterling Un-sintered PTFE Thread Seal Tape are manufactured & available as per variety of grades in specifications within BS-4375 replaced by BS-7786, ASTM-D-6585, MIL-T-27730 replaced by MIL-A-A58092, AS-1272 & IS-14635 based on customers' instructions

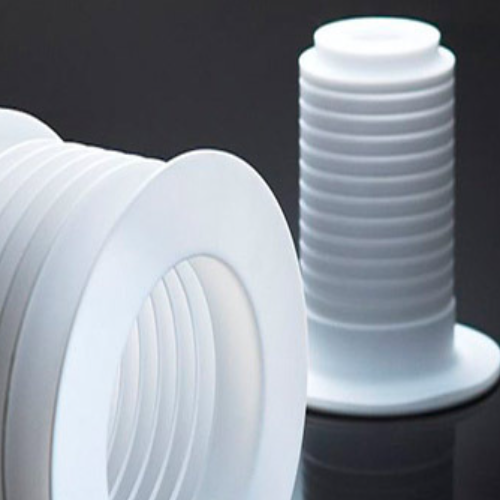

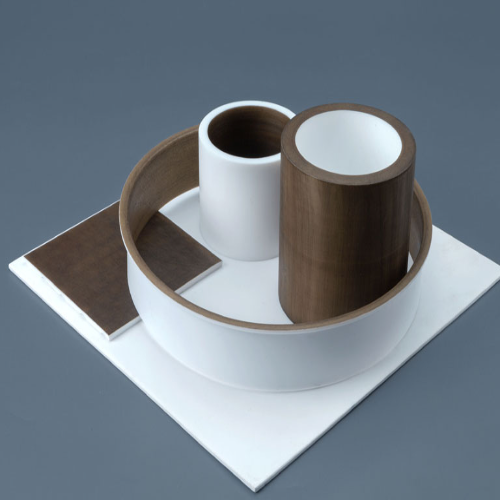

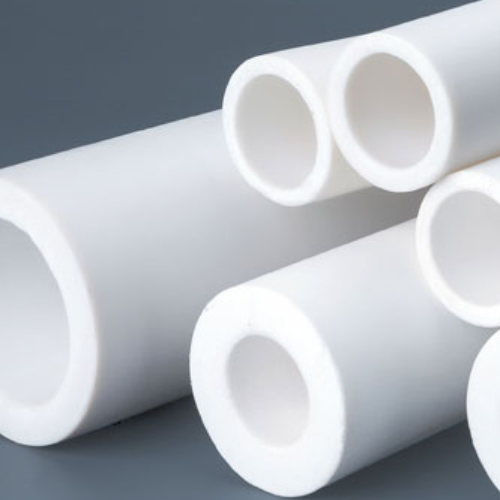

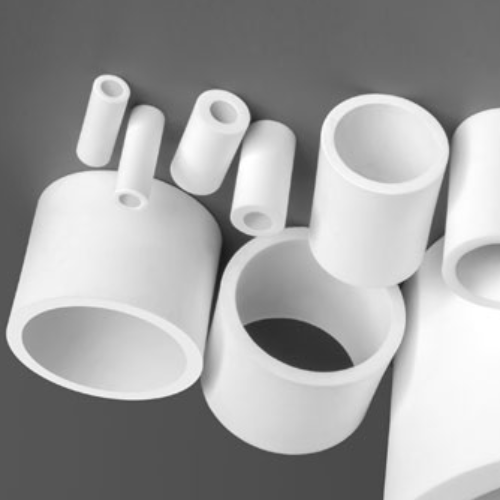

Hindustan Nylons is India's premium quality manufacturer and major exporter of PTFE and filled PTFE products such as PTFE Rods, PTFE Bushes, PTFE Skived sheets, PTFE Molded Sheets, PTFE Pipes, PTFE Tubes and PTFE Machined Components such as PTFE Gaskets, PTFE Valve Components, PTFE Bellows in variety of grades such as Virgin PTFE, Glass Filled PTFE, Carbon Filled PTFE, Graphite Filled PTFE, Bronze Filled PTFE, PEEK Filled PTFE and Chemically Modified PTFE.

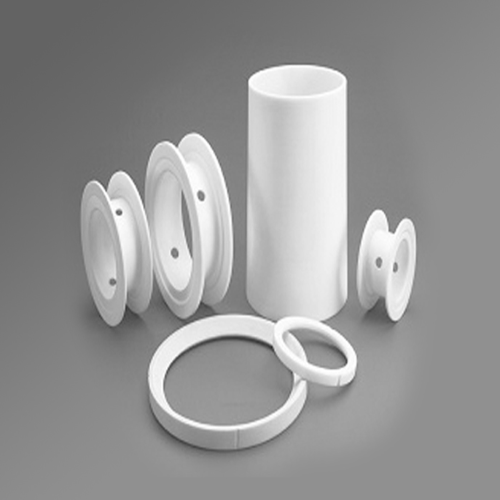

PTFE valves are pretty useful in different industrial scenarios such as in Chemical, Pharmaceuticals, Fertilizers, Atomic Power Station, Thermal Power Stations etc. Hindustan Nylons can make PTFE valve components for different industries including Petroleum, Aviation & Aeronautical engineering, Petrochemicals, Paper & Pulp, manufacturing adhesives, Railways, Electrical, Computer Hardware, Electronics, Pump Manufacturing Companies etc. In fact, you can find these valve components in as far as space stations.

Polytetrafluoroethylene or PTFE, commercially known as Teflon has numerous applications due to its unique properties. The density of the compound is very high, does not contain any water or water content element, and has a high melting point. Carbon and Fluorines strong bond furnished the material non-reactive and inert to almost all chemicals

HINDUSTAN NYLONS, one of the leading exporters of PTFE Products, is an Indian private company which manufactures premium quality and markets PTFE products. The company offers a wide range of PTFE products to their most valued clients. The products are widely used in various industrial applications including chemicals, aeronautical, food, beverages etc.

Style No: HN-222 Ideal For: Low cost, Universal packing for Water, Gas, Mild Chemicals Properties: Good chemical resistance, inert to most media Good Dimensional Stability Soft & Resilient Self Lubrication / Low coefficient of friction High Temperature Resistance Service Conditions: Temp (C): -200~260 Pressure (kg/cm): 20P, 100R, 250V PH Range: 0-14 Speed (M/s): 10P, 1R Not Recommended For: Fluorine, Fluorine complexes & Alkali Metals Service Medium: Drinking Water Non Drinking Water Chilled Water Warm Water Hot Water Steam Water, Steam & Vapous Mild Chemicals Gaseons Environment Paints & Dyes Adhesives Petroleum Liquor & Alcohol Paper Pulp Oils & Greases Mineral Oil Forms: Square Section, Ring & Rope form Sizes Available: 3mm ~ 25mm Packing Size: 1kg ~ 10kg depending upon size P=Pump, R=Reciprocating, V=Valves

Style No: HN-1011 Ideal For: Static Seal as Gasket Properties: Good chemical resistance, inert to most media Soft & Resilient Self Lubrication/Low coefficient of friction High Temperature Resistance Service Conditions: Temp (C): -240 to +260 Pressure (kg/cm): 200 PH Range: 0~14 Not Recommended For: Fluorine complexes & Alkali Metals Service Medium: Non Drinking Water Chilled Water Warm Water Hot Water Mild Acids & Alkalies Paints & Dyes Adhesives Petroleum Paper Pulp Oils & Greases Mineral Oil Forms: Rectangular Rope Sizes Available / Standard Size Width (mm) Thickness (mm) Length (mtrs) 5 2 30 5 3 30 7 2.5 30 10 3 20 12 4 10 14 3 10 14 5 10 17 6 10 19 5 5 20 3 5 20 5 5 20 7 5 25 1 10 25 5 5 25 7 5 25 10 5 30 3 5 30 5 5 40 3 5 40 5 5 45 3 5 50 3 5 55 3 5 70 3 5

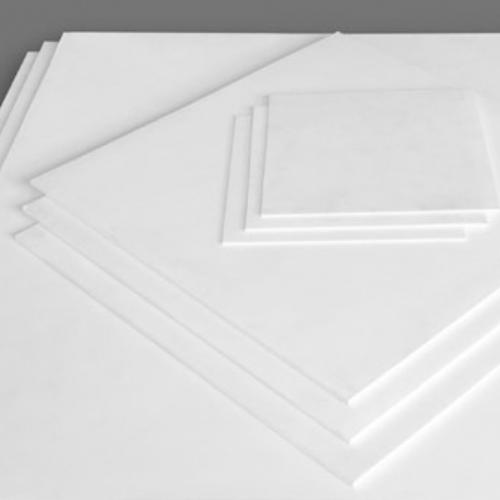

Hindustan Nylons manufactures Molded PTFE Sheet in variety of standard sizes. Dimension: Up to 1200mm X 1200mm. Thickness: Up to 100mm. PTFE Sheet - Molded - are manufactured in Virgin & Filled Grades of PTFE. End Use: Gasketing, Sealing & support Pads in Chemical, Pharmaceutical plants. Filled Grades:Standard Filled Compositions: 15 / 25% Glass Filled PTFE. 25 / 35% Carbon Filled PTFE. 15% Graphite Filled PTFE. 40 / 60% Bronze Filled PTFE. 55% Bronze + 5% MoS2 Filled PTFE. 15% Glass + 5% MoS2 Filled PTFE. PTFE Components can be available in Non standard - customer specific composition, subject to minimum order quantity. PTFE Component can be available with Sodium Itching / Chemical Treatment, subject to minimum order quantity.

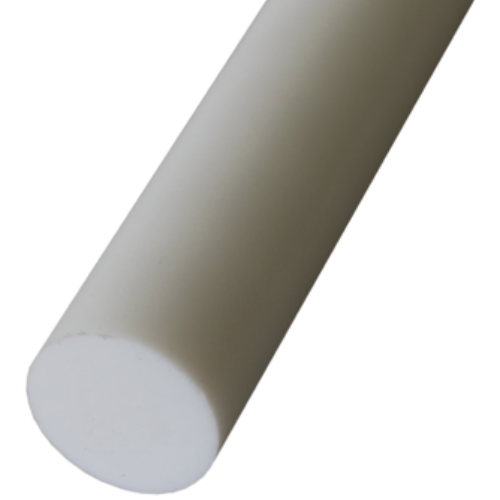

Hindustan Nylons manufactures Molded PTFE Rods in variety of standard sizes. Diameter : 25mm - 500mm. Length: 300mm. PTFE Rods - Molded are manufactured in Virgin & Filled Grades of PTFE. 15 / 25% Glass Filled PTFE. 25 / 35% Carbon Filled PTFE. 15% Graphite Filled PTFE. 40 / 60% Bronze Filled PTFE. 55% Bronze + 5% MoS2 Filled PTFE. 15% Glass + 5% MoS2 Filled PTFE. PTFE Components can be available in Non standard - customer specific composition, subject to minimum order quantity. PTFE Component can be available with Sodium Itching / Chemical Treatment, subject to minimum order quantity.

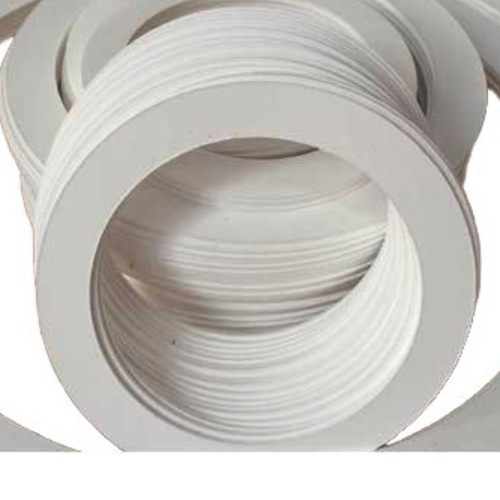

Hindustan Nylons manufactures PTFE Gaskets as per variety of standards such as ASA, DIN, BS etc for raised face & full face flanged joints. PTFE Gaskets are produced in various types such as Slit type Envelop Gaskets, Milled type Envelop Gaskets & Ready Cut / Solid Gaskets. Diameter : Upto 1000 NB. Thickness: 0.5+0.5, 0.5 + Gap + 0.5, 1.5, 2, 3mm. PTFE Gaskets can be manufactured as per Customer specific sizes subject to minimum order quantity.
