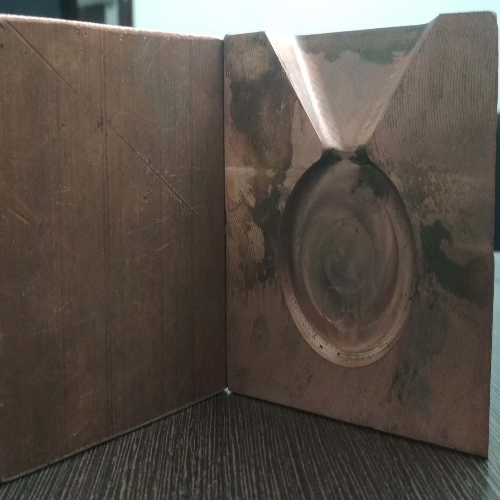

Spectrometer Copper Die as per Indian Standard ISO 14284:1996 for coin sample preparation for spectrometer analysis to be used only for cast iron and ductile iron samples.

Features:

• Mould form from steel, casting on copper block ensures unidirectional chill solidification on the analytical side of the sample only.
• Copper block designed as flat surface block, enabling easy resurfacing and thus giving extended life time of mould.
• Standard Size of Coin Sample : 39 - 40 mm Diameter, 4 -5 mm Depth

Instructions to use:

• The die should be fixed with a C-Clamp prior to pouring metal in it.
• A bucket full of water needs to be kept next to the die before pouring metal in it.
• Pouring of metal needs to be done till only 50-60% of the neck that is visible on the top of the die when clamped.
• After pouring metal in die, it needs to be placed immediately in the bucket of water along with the C-clamp.
• Once the die cools down for 4-5 minutes inside the bucket, then first remove C-clamp and then open the die.
• The coin sample will be loose enough to come out on its own.
• If the coin sample is stuck then apply very light force on the neck side of the die to remove the sample.
• Once sample is removed break the neck and then use the Sample holder to polish the sample on the Spectrometer Polishing Grinder.

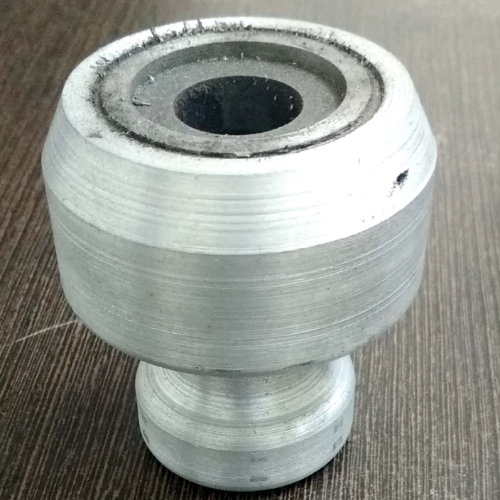

Sample holder for spectrometer used for safe grinding of the chill samples.

Features:

• Holder is designed as per Chill size
• Magnetic Sample holder
• Mould as per spectrometer chill

Technical Specifications for Standard Sample Holder (Round Chill):

• Chill Size Diameter – 40 mm
• Chill Depth – 4 mm

It is a remote digital display unit specially designed for melting platform people to see the online results obtained by spectrometer in lab. This display can be connected to any make and model of spectrometer. Thus considerable time, electrical power can be saved and it also reduces chances of change in bath chemistry/nucleation properties due to holding of metal till results of spectrometer are conveyed to melting platform.

It is a microprocessor based carbon silicon analyzer series designed for molten cast iron analysis. It is specially engineered to suit the foundry environment. It consists of special electronic hardware & software which automatically correct errors introduced due to de-rating/ageing effect of electronic components, ensuring long term accuracy of measurements.

Immersion type portable battery operated temperature measuring system for molten metal with wireless communication for auxiliary display, computer and printer. It measures the molten metal temperature by dipping thermocouple tip in it.
