Electric Winch 15000 lbs
Product Detail

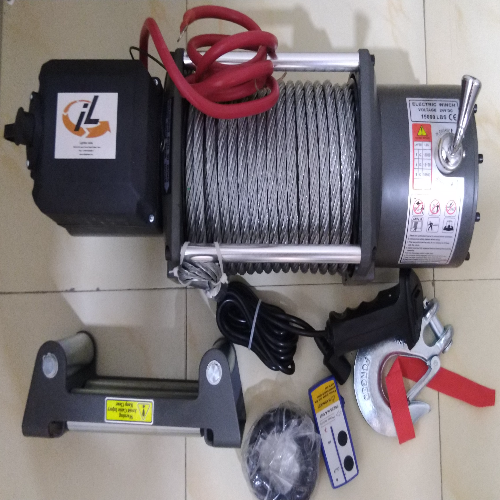

Electric Winch 15000 lbs
Specification: Our electrically operated cable winch of 6.8 tons (15000 lbs) pulling capacity (Single line). The winch unit has 4.0 kw, 5.5 hp, 12/24V DC series wound electric reversible motor. The motor and solenoids grounded to battery. It shall have an automatic load holding braking system. For free spooling the clutch design with spring loaded pull and rotate system. The gear system should be 3 stage planetary types for fast line speed. Gear reduction ratio is 300:1. The rope drum size is 7.5” X 8.7” Dia (88 X 221.5mm) with automatic in drum breaking system and supplied with 28m (Dia 11 mm) heavy duty galvanized wire rope with replaceable self locking hook. Winch also supplied with 4 way roller fairlead. Weight of the winch is 54 kgs. The instrument has both wired and wireless remote control.
