About Us
Since our foundation in 1997, we have consistently built recognized expertise, helping customers to adopt laser based manufacturing processes & applications for numerous industries.
Magod Laser, leader in Laser Based Manufacturing in India with facilities at Seven (7) locations - Bengaluru (Jigani, Peenya, Dabaspet), Dharwad, Chennai (Sriperumpudur), Hosur (TN) and a subsidiary unit Magod Fusion at Pune. We provide Jobwork Services in Laser Cutting of Sheets & Plates, Laser Cutting of Tubes & Pipes, 5-Axis Laser Cutting of 3D formed Parts, Laser Welding (NADCAP Certified), Laser Cladding, Laser Hardening, Laser Drilling, Metal 3D Printing, Die & Mould repair, as well as Design & Product Development Support to Industries.
The Company was started in 1997 with a vision of making available the latest manufacturing processes to Indian Industries. Since then the company has grown and are the biggest Laser Cutting & Laser Welding service providers, and has the best NADCAP Certified Laser Welding facility in India as on date. We bring added value to our customers by sharing our experiences and giving feedback on the optimum utilisation of our services in terms of design and material planning.
MAGOD LASER is synonymous with application of the Laser Power in manufacturing.
We invite you to test our services. Completed 25 Years of Service to Industry in 2022.
View more
Our Leadership Team
Mr. Halaswamy Magod
Business Head
Mr. Girish Vijaur
Business Head
Products & Services

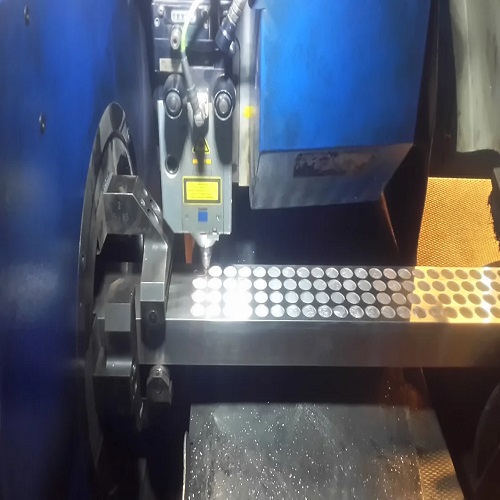

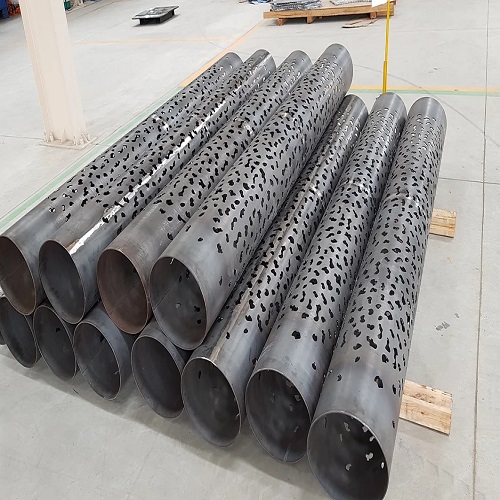

Laser Cutting Tube
Product Detail

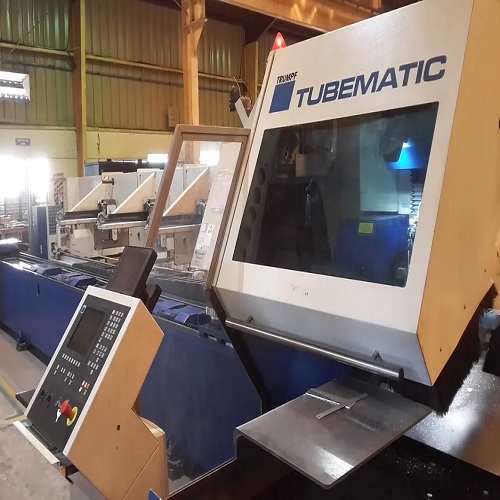

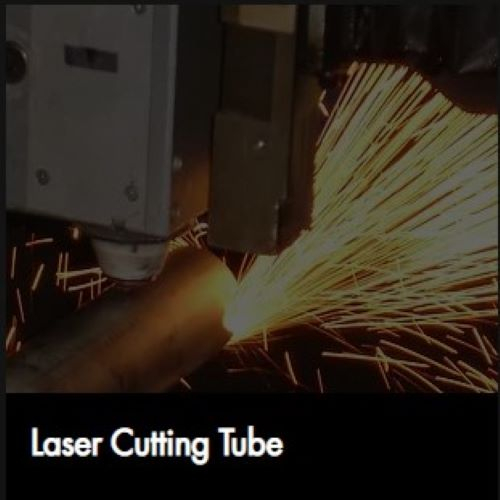

Laser Cutting Tube
Laser Tube Cutting is used to cut Profiles and Shapes on Tubular parts of all types, like Round, Square , Rectangle and Special Profiles. This process eliminates multiple operations that are typically involved in Tube Processing. It opens up for Creative Designing thus saving material & cost. Tubes as long as 6m can be processed at Magod Laser.
Shapes: Round/ Square/ Rectangle and Special Profiles
Material: Most Metals including MS, Stainless Steel, Aluminum, Brass
Fine Tube Cutting:
- Dia 1 to 15 mm and
- Wall Thickness of 0.1 mm to 1.5 mm,
- Length up to 500 mm
Regular Tube Cutting: Dia 15 mm to 150 mm, Wall Thickness from 0.5 mm to 8 mm, Length upto 6000 mm
Heavy Tube Cutting: 150 to 300 mm, Wall Thickness upto 12 mm, Max length 2500 mm
+ Show more
- Show less

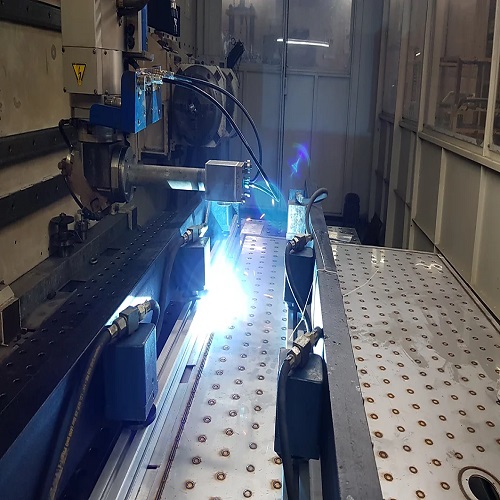

Laser Welding Macro
Product Detail

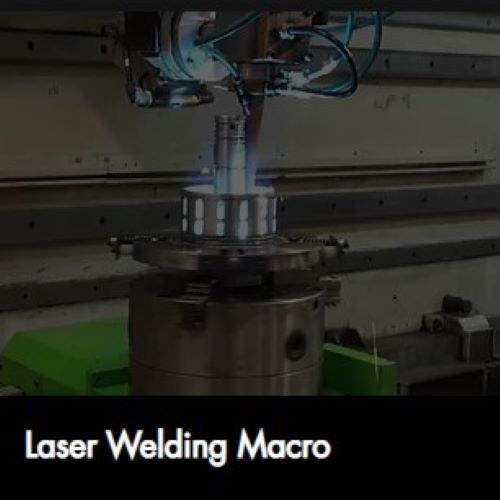

Laser Welding Macro

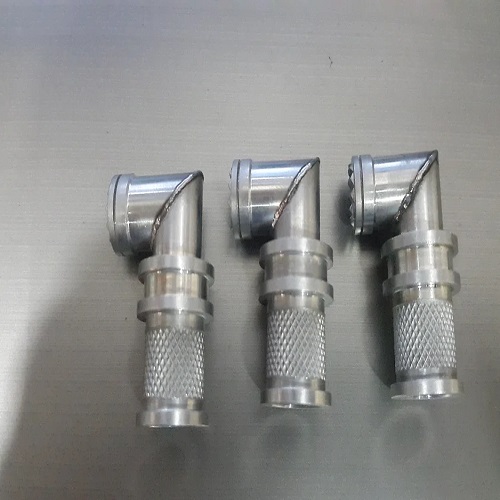

Laser Welding is joining of Metals/Plastic with the help of Laser Heat. Macro Welding refers to Welding with Laser Powers above 500 Watts.
The advantages are: Less Distortion, Narrow Beads, Low HAZ, No Filler Material Used ( most cases), High Speeds & Possibility of Welding Dissimilar Materials.
Magod Laser has a wide variety of Laser Sources and Systems to handle any kind of Laser Welding. Magod Laser uses CO2, Disk, Fiber & Diode Laser Sources ( upto 8 KW) with 5/6 axis CNC Stations & Robots.
Magod Laser has the best Laser Welding Facility in the Country. Magod Laser's in-house Testing Facility includes, Full Fledged Metallurgical Lab, Helium Leak Detector & Dye Penetration Setup.
Magod Laser is a NADCAP Certified Laser Welding Facility.
Applications: Transmission Parts, Aerospace Parts, Sensors, Solenoid Valves, Sheet Metal Fabrication, Auto Components etc.
+ Show more
- Show less

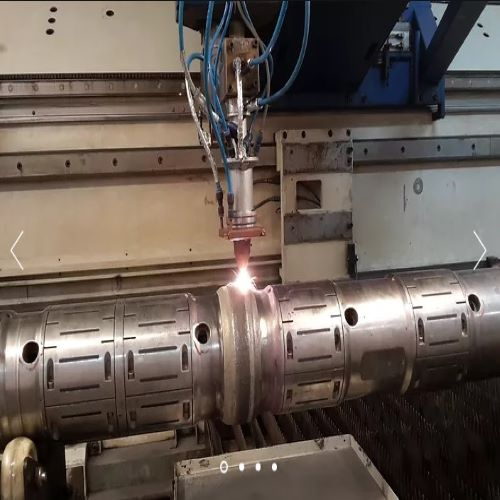

Laser Cladding
Product Detail

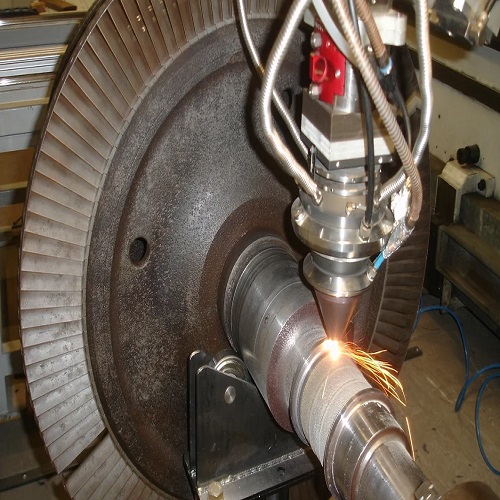

Laser Cladding

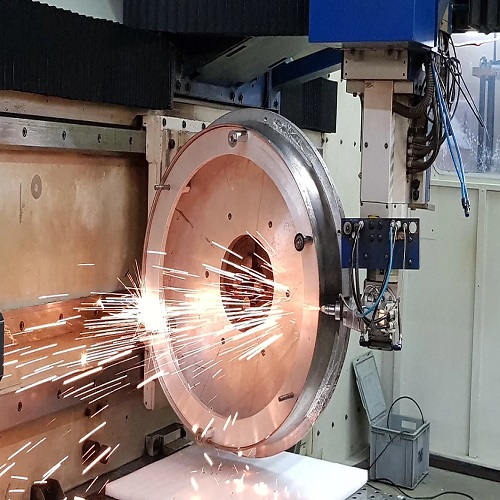

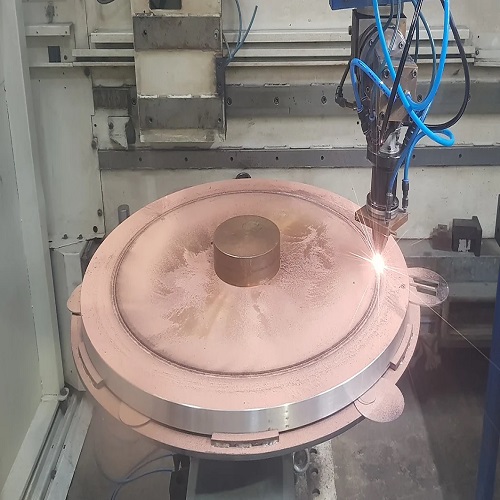

Laser Cladding also known as Laser Metal Deposition ( LMD) is a form of Additive Manufacturing process wherein the Metal Powder is melted by Laser and deposited on to the Substrate Metal.
Characteristics:
- True Metallurgical Bond
- Low & Directed Heat Input by Lasers
- Less Distortion and Smaller HAZ
- Automated Process Control
- Minimum Post Processing
- Same or Superior Material Properties
Applications:
- Optimal Part Designs by Dissimilar Metal Deposition
- Ideal for Product Development
- Value Added Repair & Restoration
- Material Research & Development
- Used on Wide Range of Metals & Alloys
+ Show more
- Show less

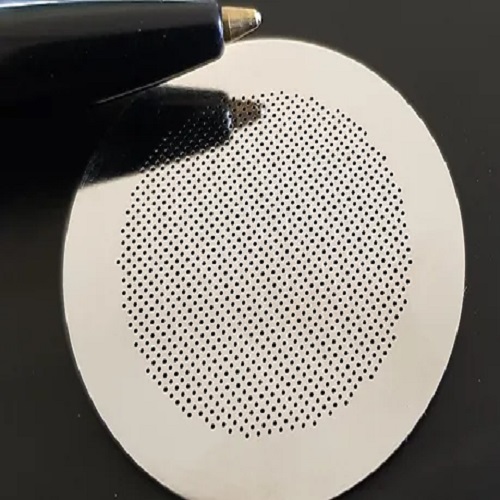

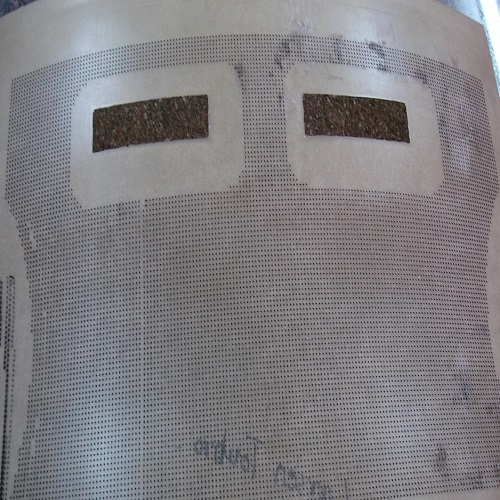

Laser Drilling
Product Detail

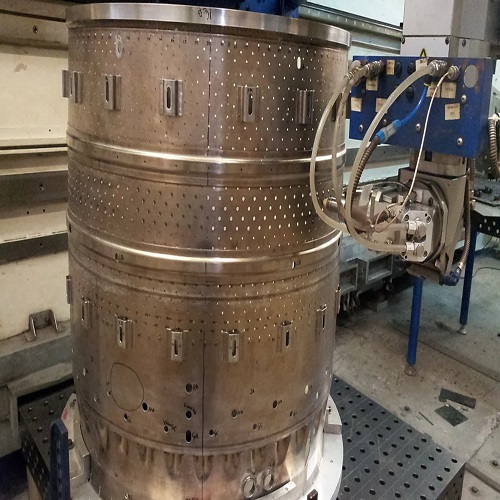

Laser Drilling

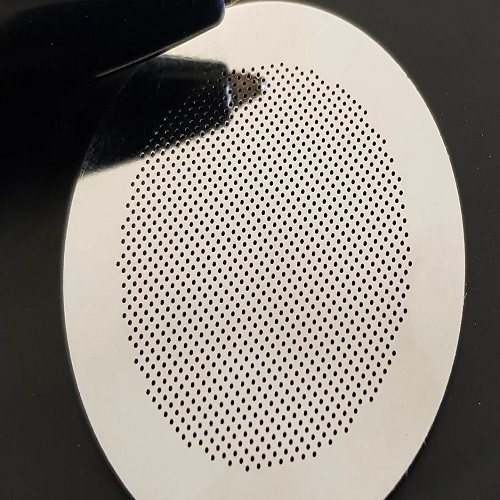

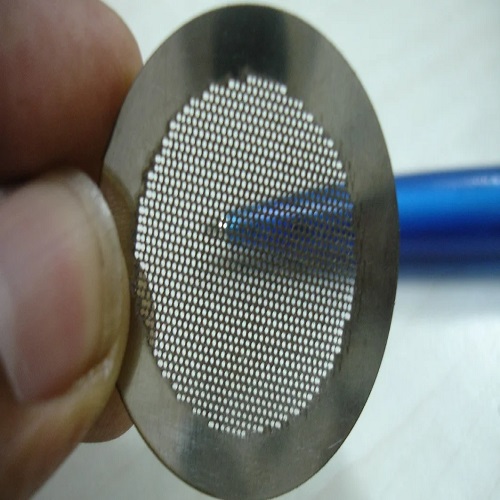

Laser Drilling is the process of making very small holes with high aspect ratio. Magod Laser can drill holes as small as 100 microns and aspect ratios up to 1:5 depending on the Material and Thickness.
+ Show more
- Show less

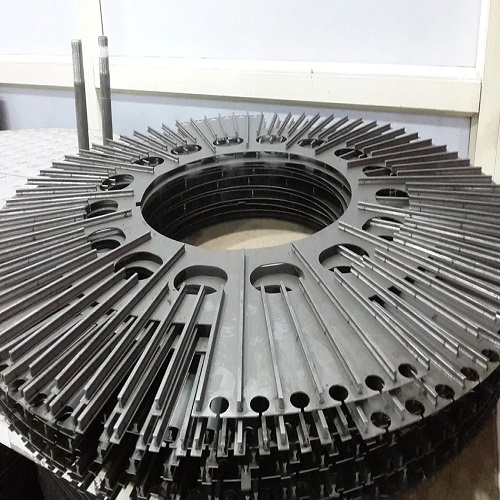

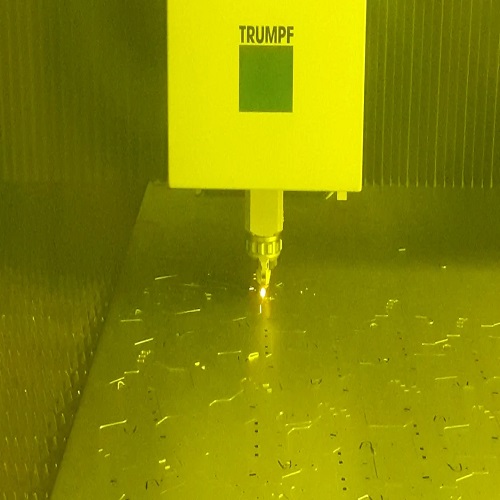

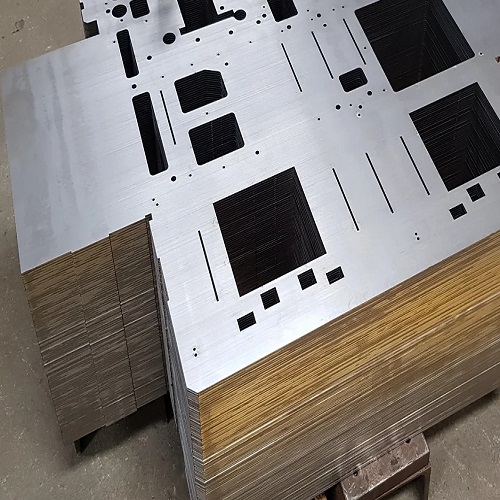

Laser Cutting 2D
Product Detail

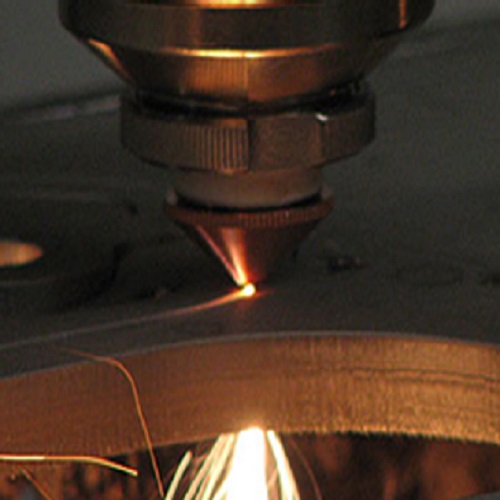

Laser Cutting 2D
Laser Cutting of profiles on Sheets and Plates has become a popular process used across all types of industries. The advantages of Laser Cutting are Burr Free Edges, better Perpendicularity, Small Kerf, Low Head affected Zone, Complex Profile , Tight Tolerances and High speed Cutting.
Magod Laser has a wide variety of machines ( 18 Machines) to handle these requirements. The biggest bed size is 6m X 2.5m, and can cut up to 35mm in Mild Steel, 30 mm in Stainless Steel & Aluminum. Magod Laser can take bulk orders with minimum lead time.
+ Show more
- Show less

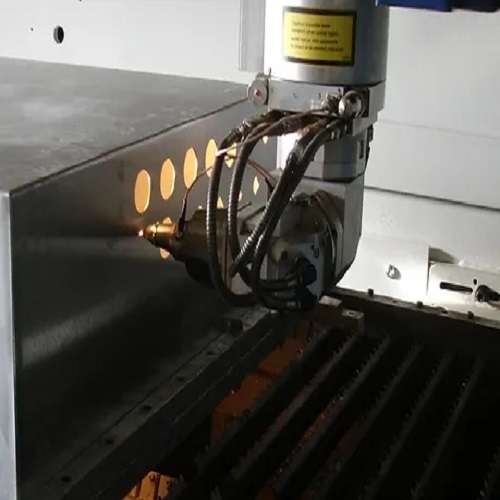

Laser Cutting 3D/5-Axis
Product Detail
Laser Cutting 3D/5-Axis
This is a special Laser Cutting process mainly used for Formed and 3D Parts, which is widely used in Automotive & Aerospace Industries. Magod Laser has done some innovative works in these areas. Magod Laser has the capability to handle Small to Big Parts and Prototypes to Production Volumes.
+ Show more
- Show less

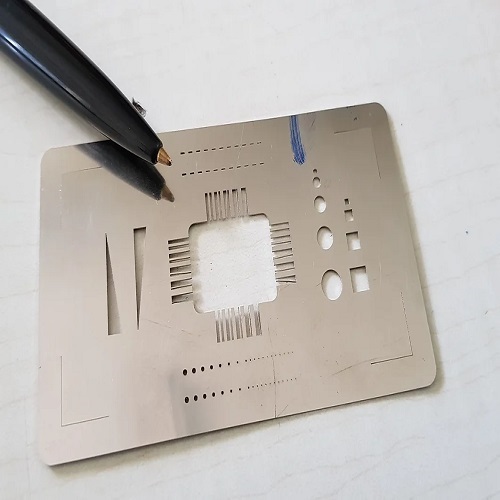

Laser Cutting Fine
Product Detail

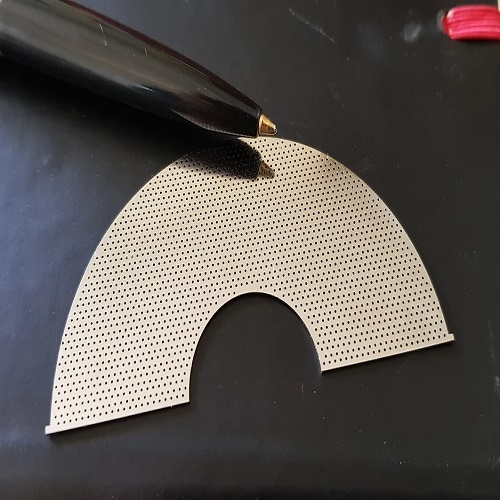

Laser Cutting Fine

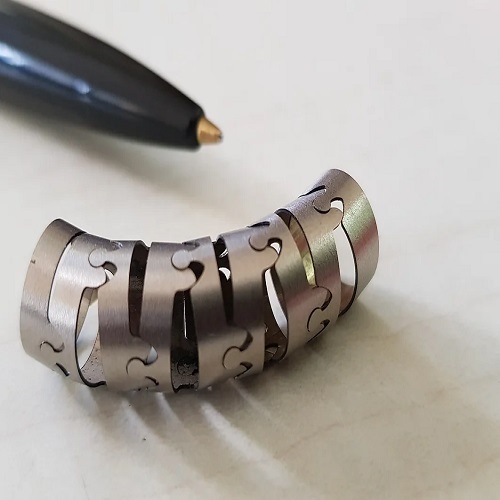

Laser Fine Cutting is laser cutting of thins parts with High Accuracy. Parts with Metals less than 1 mm Thick and Tolerances of less than +/- 50 microns come under Fine Cutting. Parts can either be Flat, Tubular or Formed 3D. We are equipped with 5 axis machines with fine Fiber Laser to do these type of Jobs. Main applications are Small Motor Stampings, Medical Implants and Tools, Sensor Parts, Fine Hole Filters etc.
+ Show more
- Show less

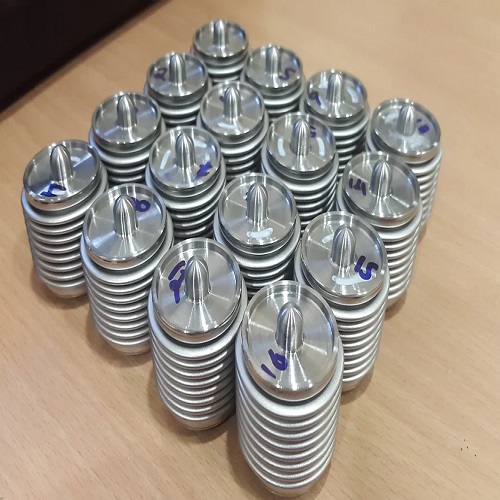

Laser Welding Micro
Product Detail
Laser Welding Micro

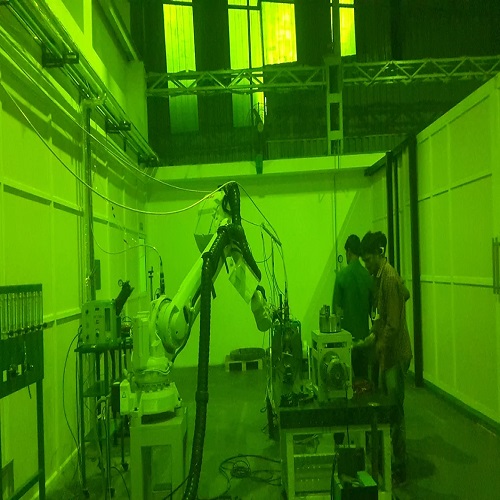

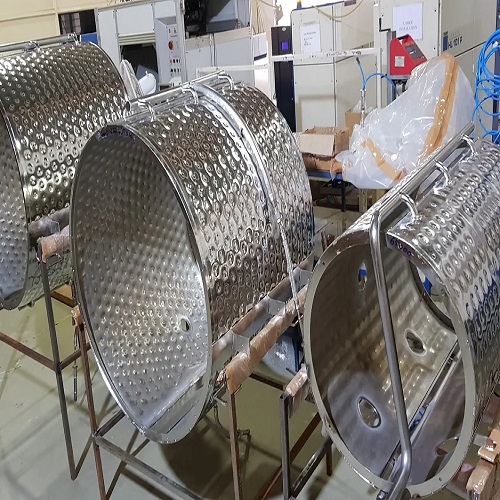

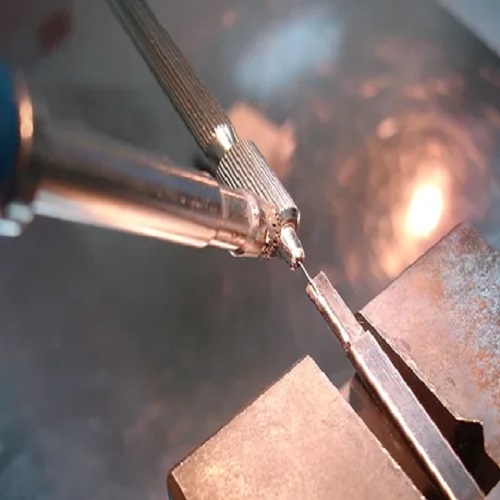

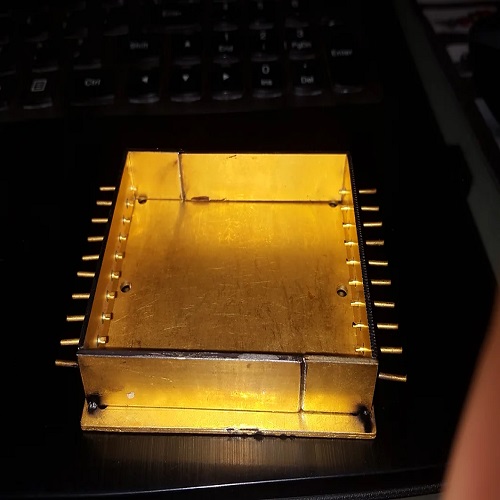

Micro Laser Welding refers to Welding with Laser Powers less than 500 Watts. Well suited for Small and Heat Sensitive Parts where Leak Tightness, Distortion Free and Low Heat Inputs are required.
Magod Laser has a wide variety of Laser Sources and Systems to Handle any type of job. Magod Laser's in- house Testing Facilities includes, Metallurgical Lab, Helium Leak Detector & Dye Penetration Setup. Typical applications are Sensors, Tool & Mould Repair, Electronic Assemblies & Connectors, Filters, Medical Parts, Bellows, Dissimilar Metal Welding etc.
+ Show more
- Show less

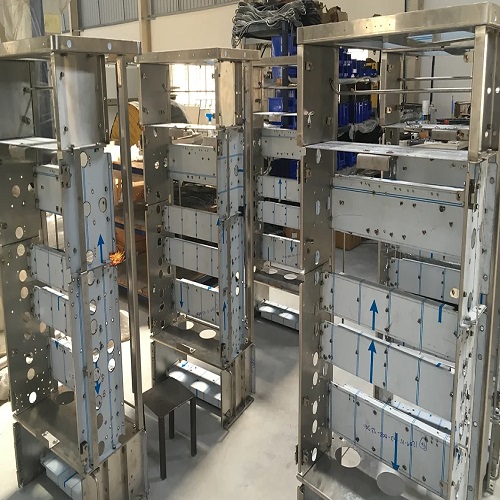

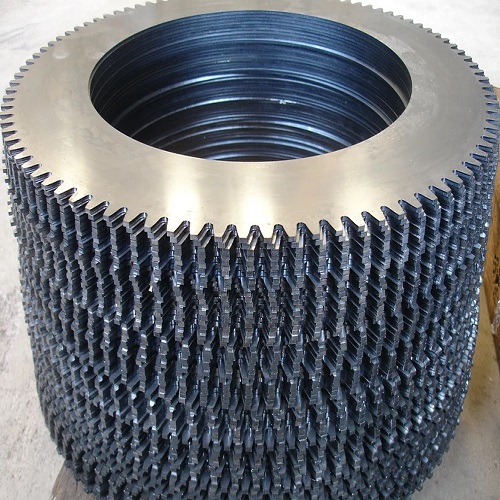

Fabrication
Product Detail
Fabrication
Magod Laser undertakes Sheet Metal Fabrication Work and has a complete shop with CNC Press Brakes ( upto 4 m/ 320 Tons), TIG & MIG Welding Stations and Other Finishing Equipments.
+ Show more
- Show less

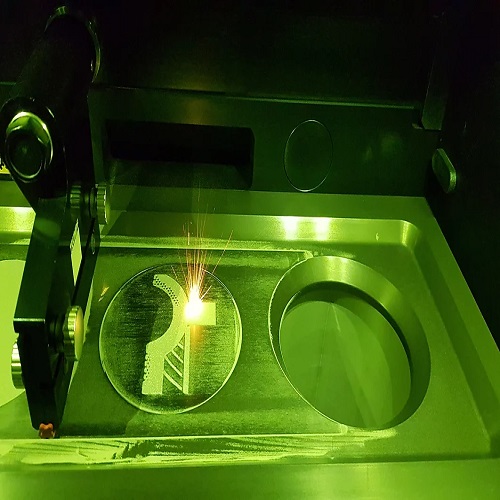

Metal 3D Printing
Product Detail

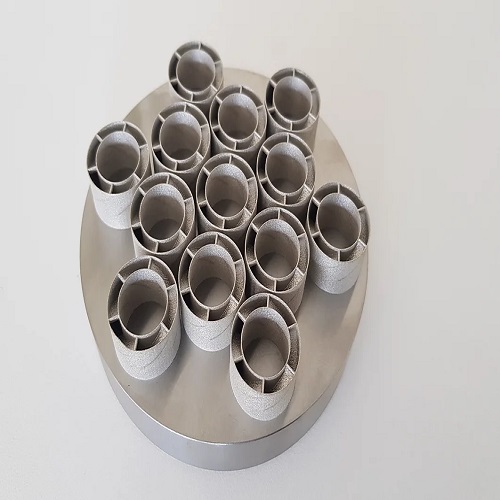

Metal 3D Printing

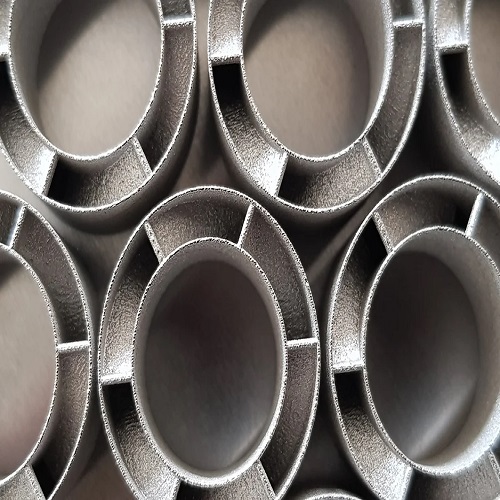

Magod Laser offers 3D metal printing services and can directly print parts from your CAD Data with our Powder-Bed based Laser 3D Printer. Magod Laser also has the capability to join 3D Printed Parts to other Parts by Laser Welding.
- Process: SLM
- Part Size: Ø 100 mm x 100 mm L
- Metals: SS 316/ Aluminum/ Tool Steel & More
- Layer Thickness: 10 to 50µ
+ Show more
- Show less

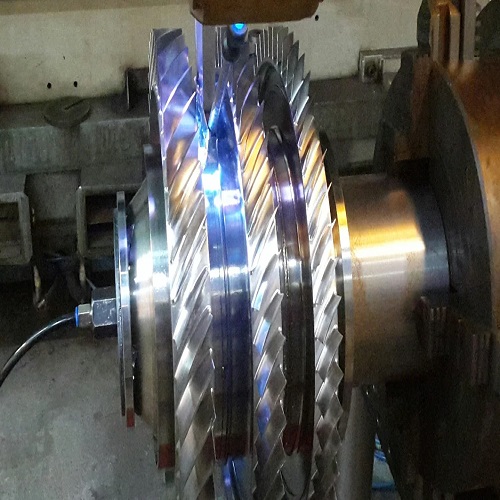

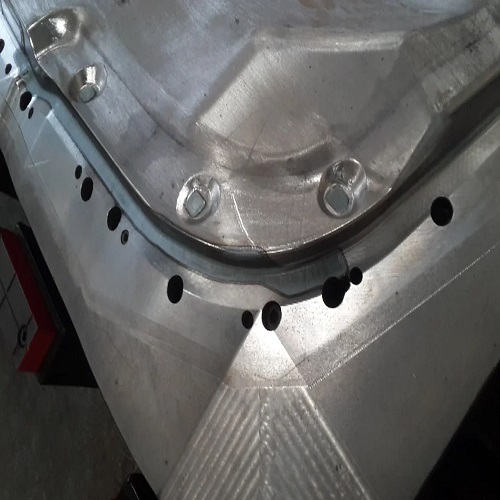

Laser Hardening
Product Detail
Laser Hardening

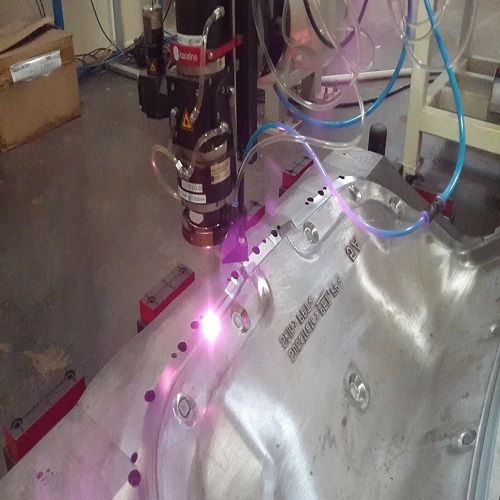

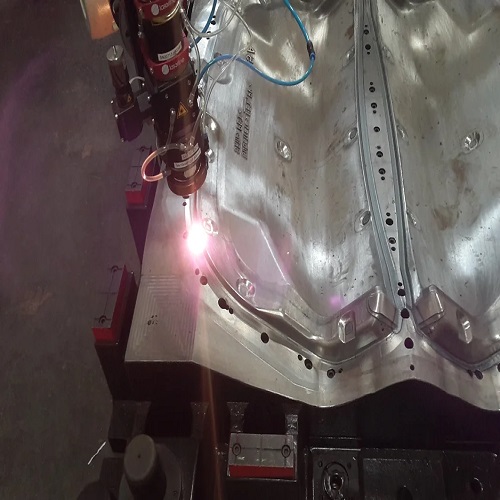

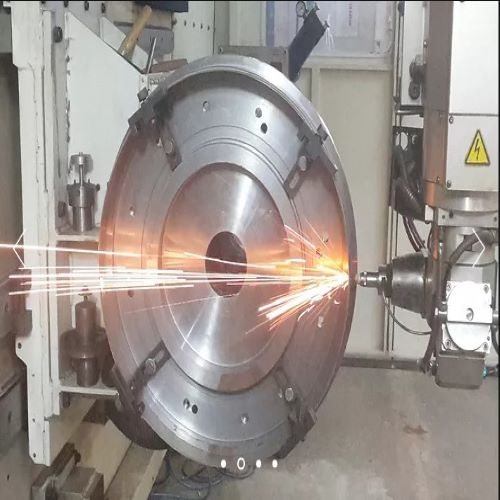

Laser Hardening is a Heat Treatment Process or Surface Hardening Process in which a Laser Beam is used to heat the surface of a Metal Part and then let it quickly cool down in surrounding air. The temperature is monitored by a Pyrometer. Laser Hardening requires less Refinishing work and has the ability to process Irregular, Three-Dimensional work pieces. Laser Hardening increases Hardness and Wear Resistance, which leads to reduction of Abrasive Wear.
+ Show more
- Show less
