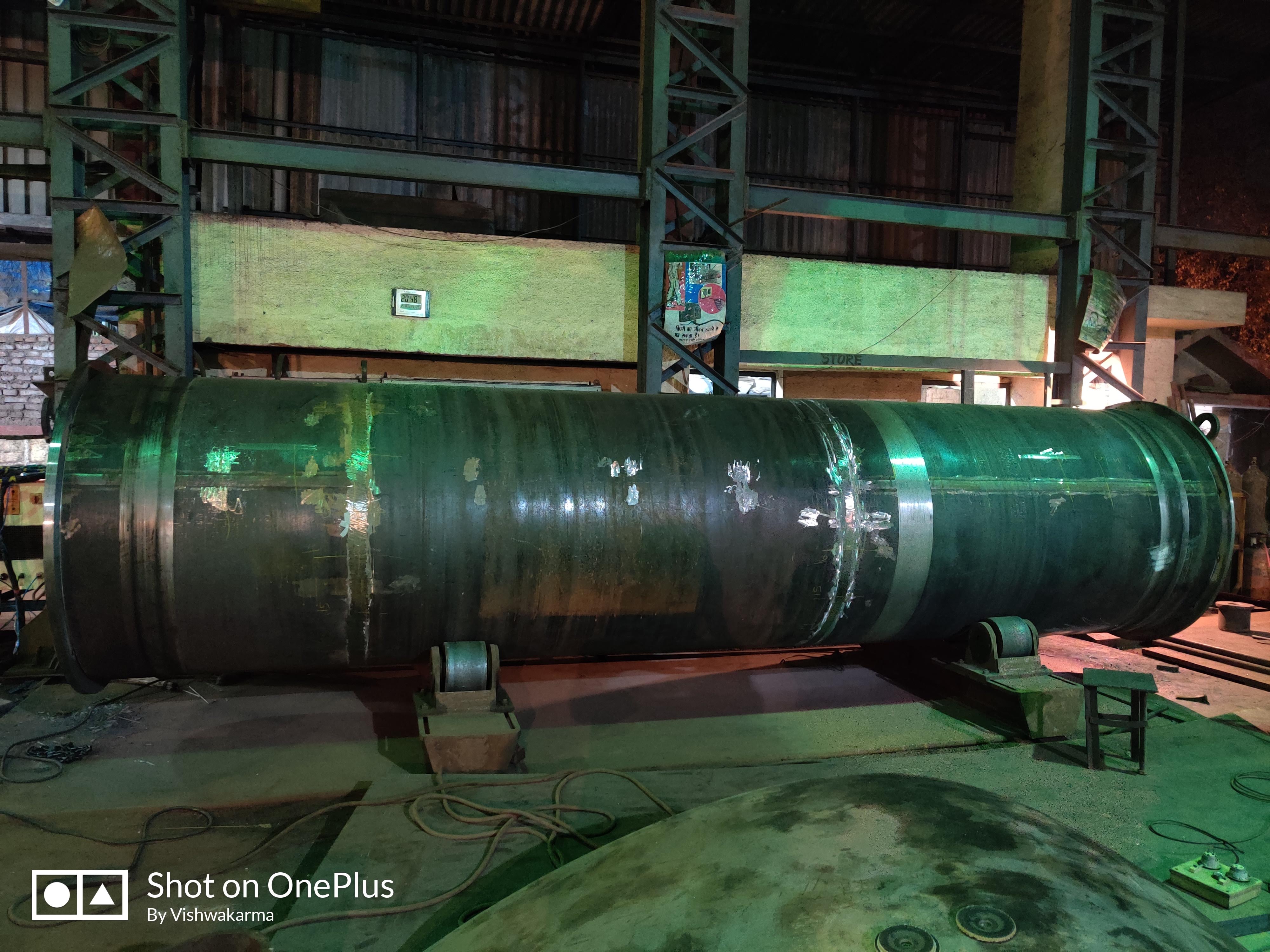

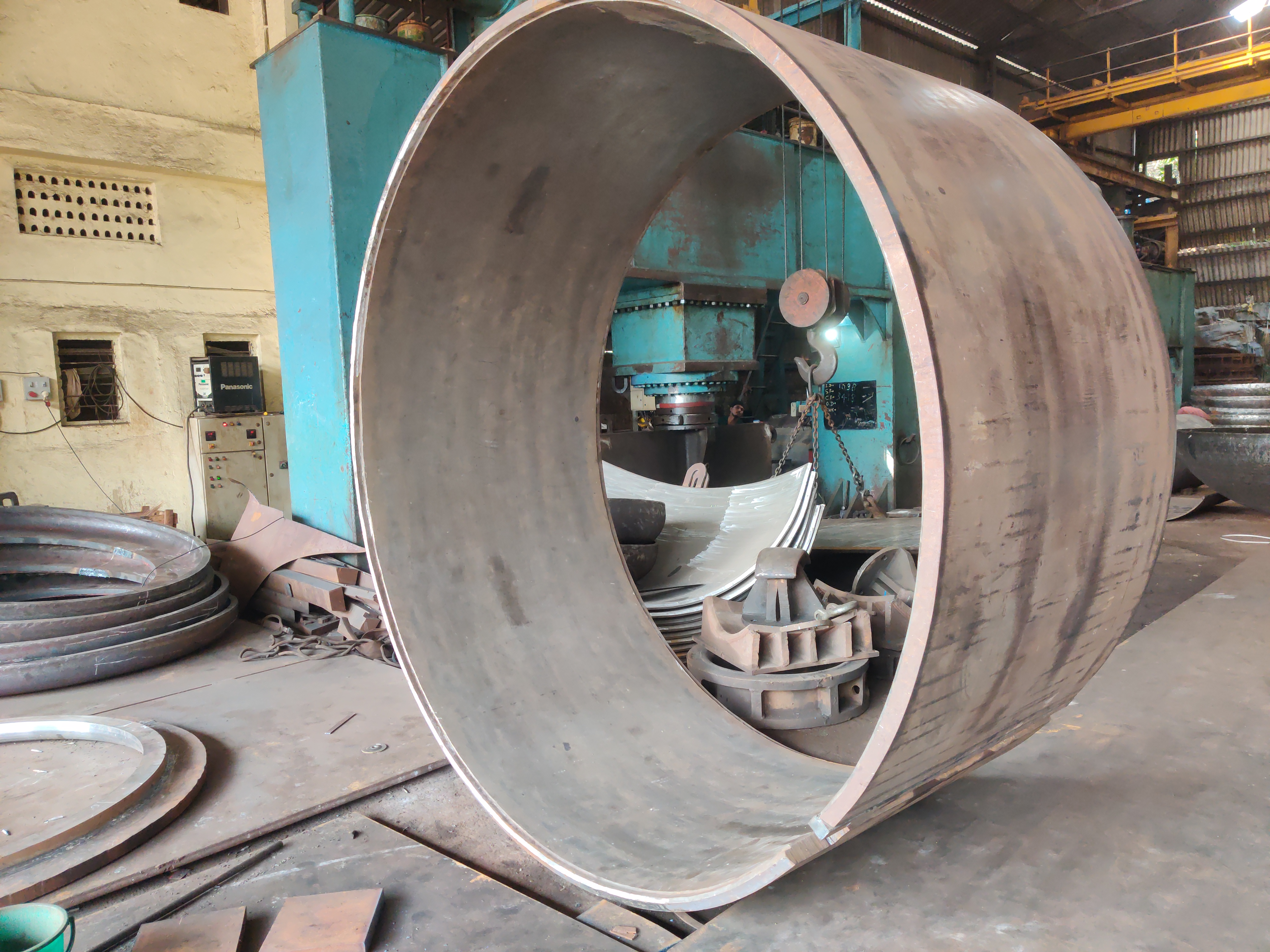

Plate is rolled with a thickness from 6 mm to 80mm &sizes ranging from 320mm 1Dto 5000mm ID upto3 meters wide.

Some of the special shells rolled are enlisted below:

• 84 T x 1665 ID x 2500 length-Material 516 Gr.70

• 50 T x1200 ID x 2500 Length- Material SA 516 Gr.70

• 70 T x 6400 ID x 3000 length-Material SA 516 Gr.70

• 68 T x 1836 ID x 2200 length - Material SA 516 Gr.70 + SS316L

If the Inside diameter is above 2000mm with a maximum thickness of 75 mm, shell can be rolled with a width to be 3mtrs.

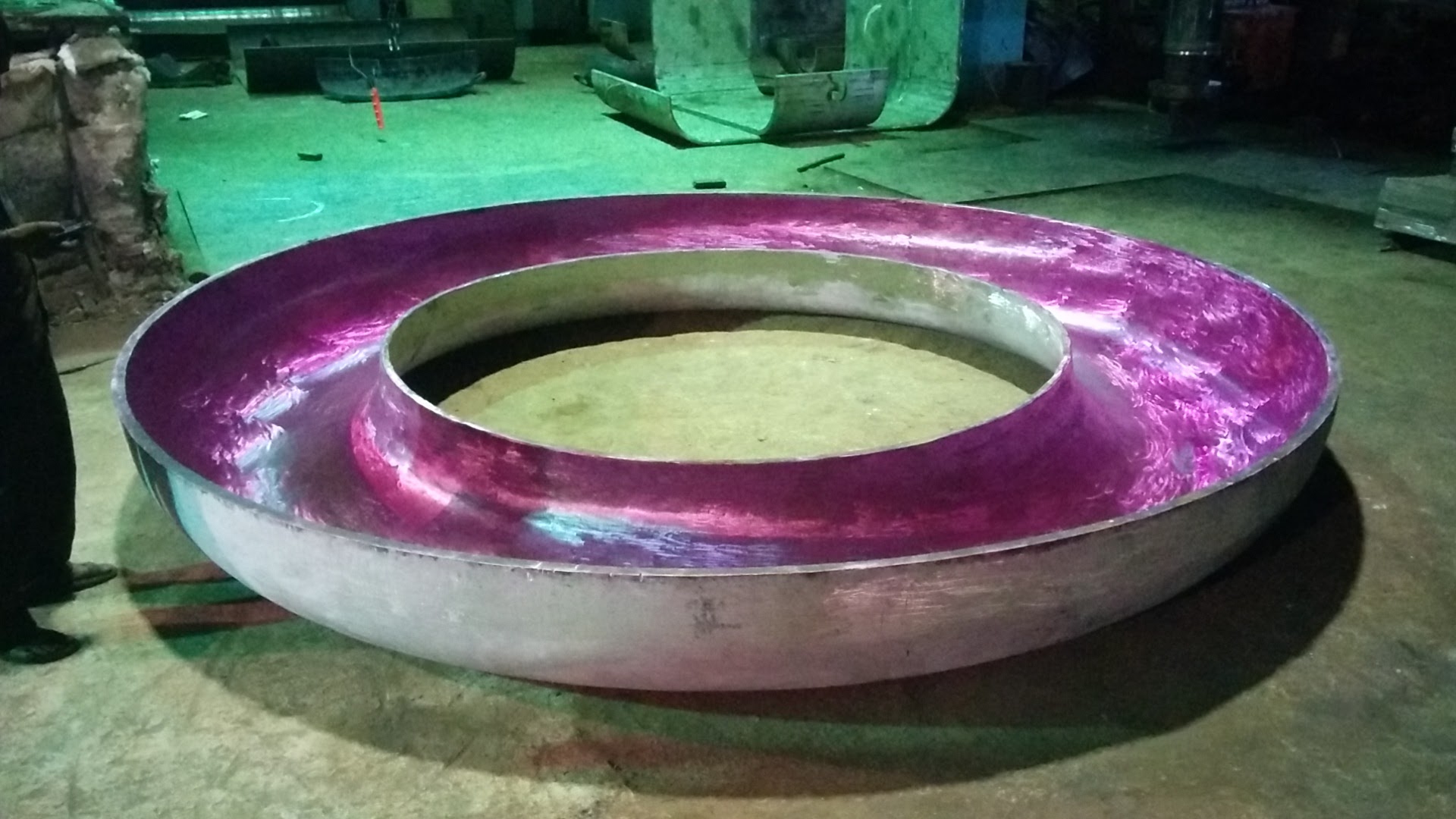

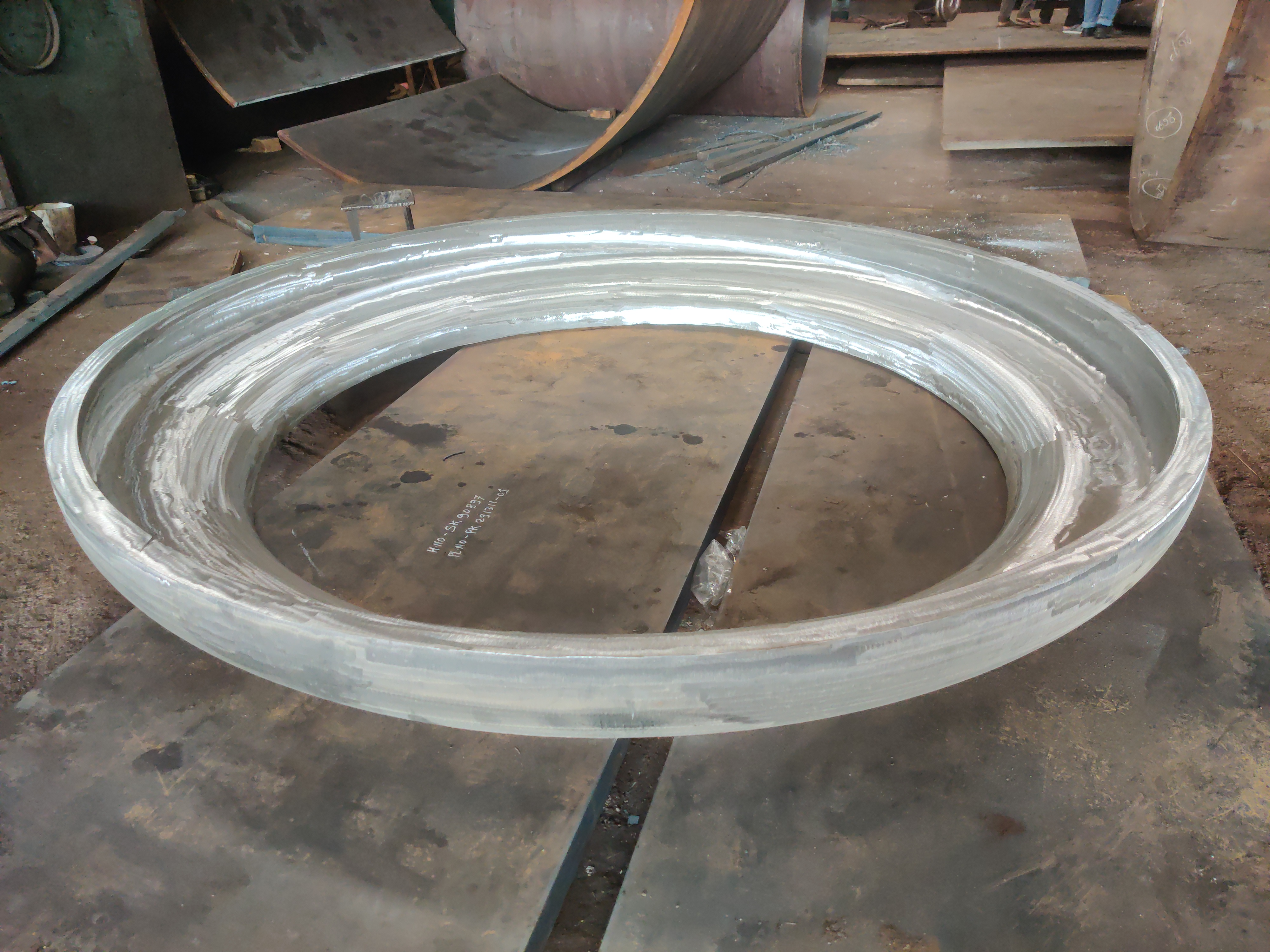

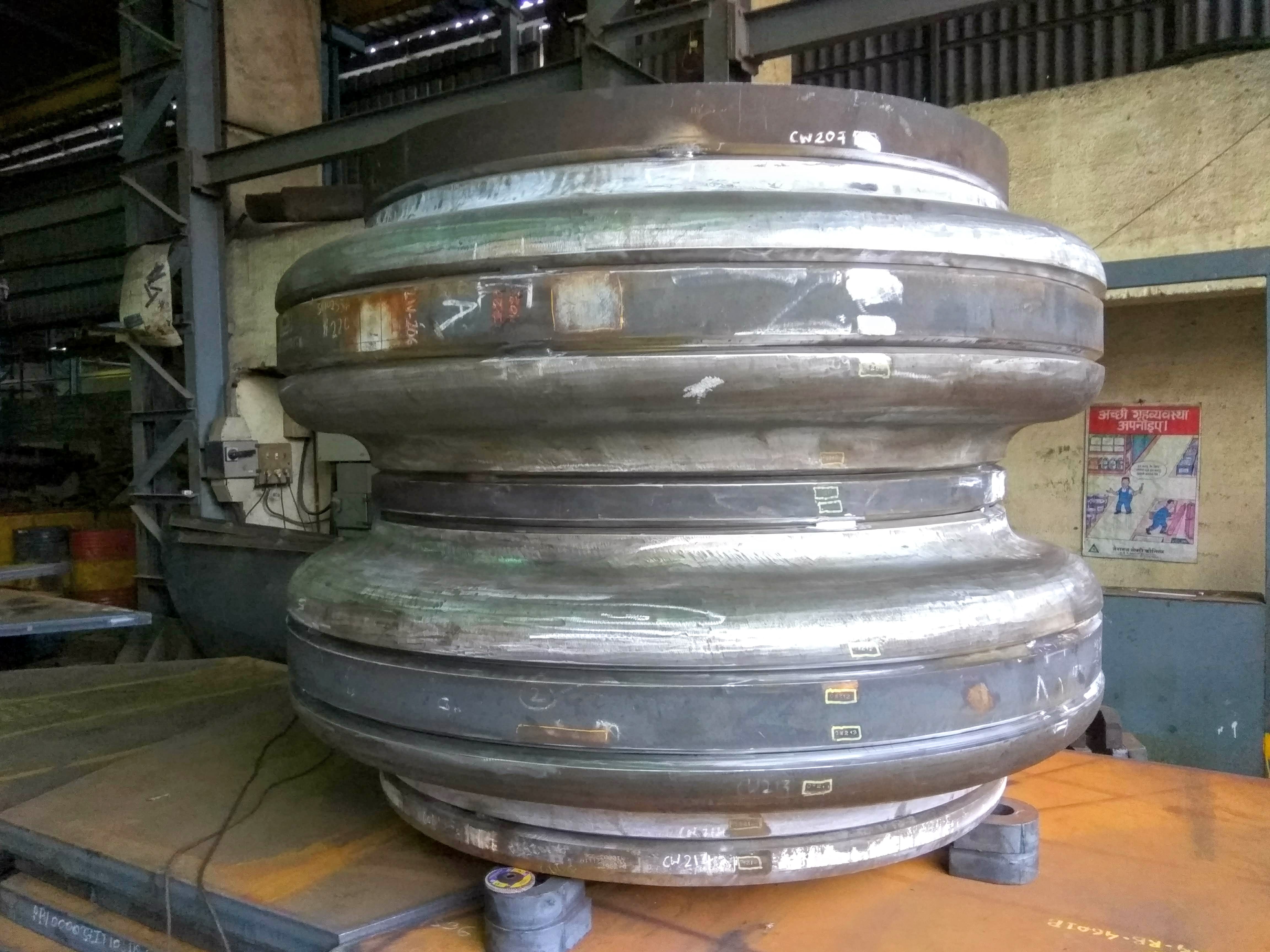

We manufacture all types of M.S, S.S material Heat Exchanger Expansion bellows of sizes ranging from 300 mm ID to 5200 mm ID of thickness up to 80 mm.

Some of the manufacturedjob sizes are enlisted below:-

• 2130mm ID x 1640mm ID x 50 T (Hot Formed)

• 1442mm lD x 1940mm OD x 32 T

• 616mm ID x 1136mm OD x 32 T

• 886mm lD x 1306mm OD x 28 T

• 2084mm ID x 1655mm ID x 32 T

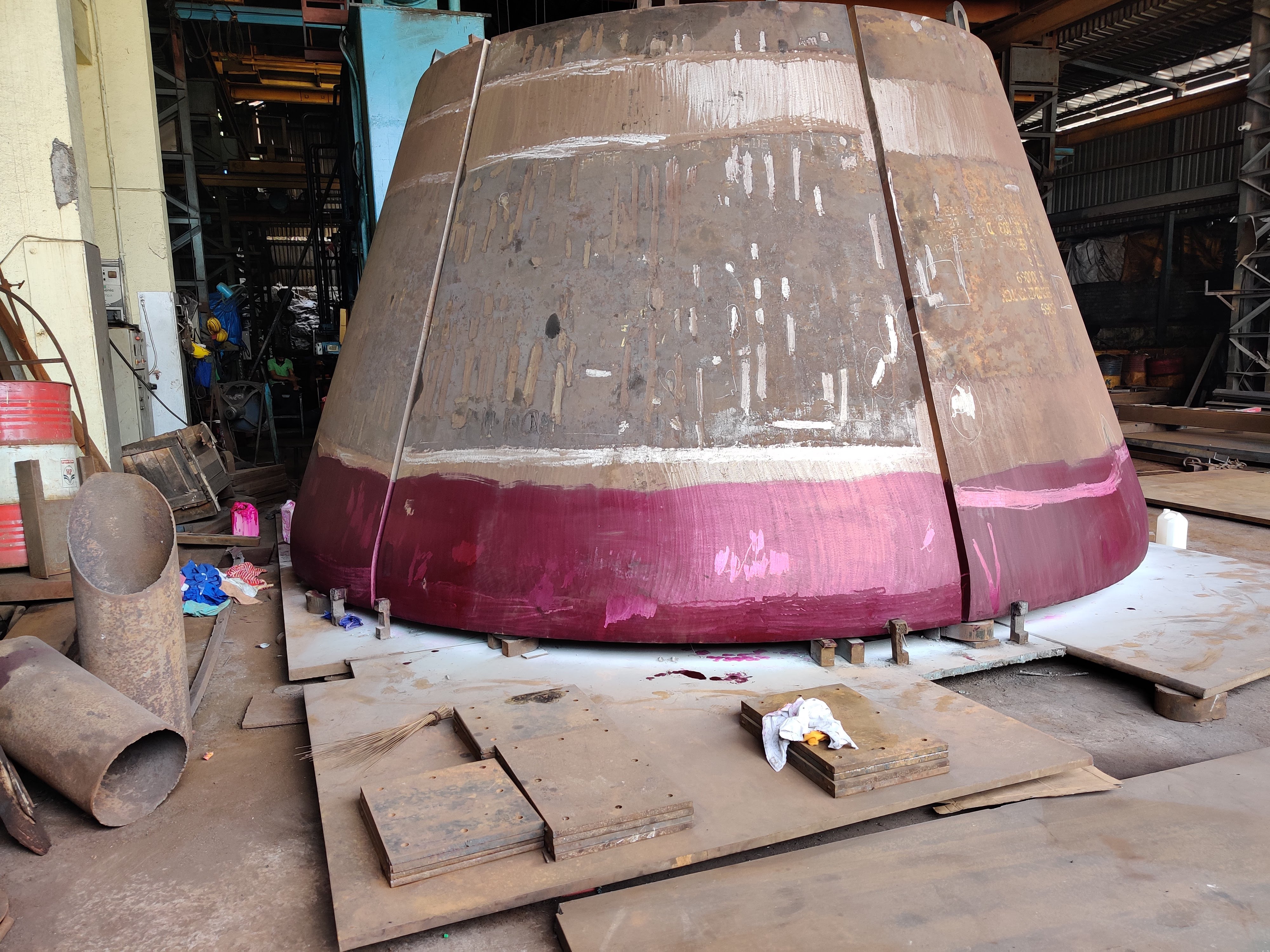

We manufacture Stainless Steel, Mild Steel, Carbon Steel, Low Alloy Steel material of 10mm Thk to 140mm Thk & sizes ranging from 600mm ID to 5000mm ID.

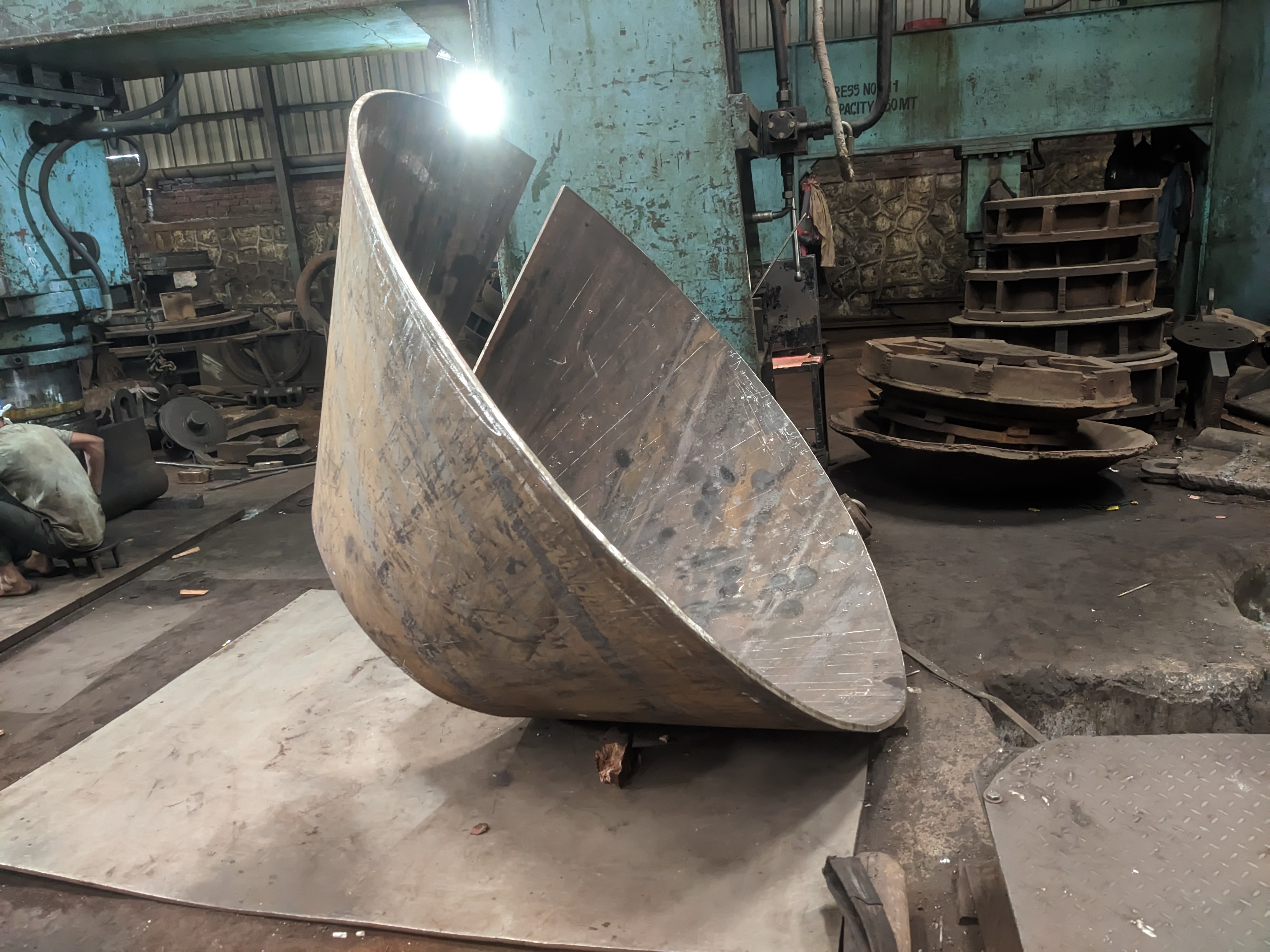

Following are the various types of cones manufactured:

• Concentric cone - 3382.1 ID x 1409.5 ID x 2709.8 Ht x 84 T (SA 516 Gr.70)

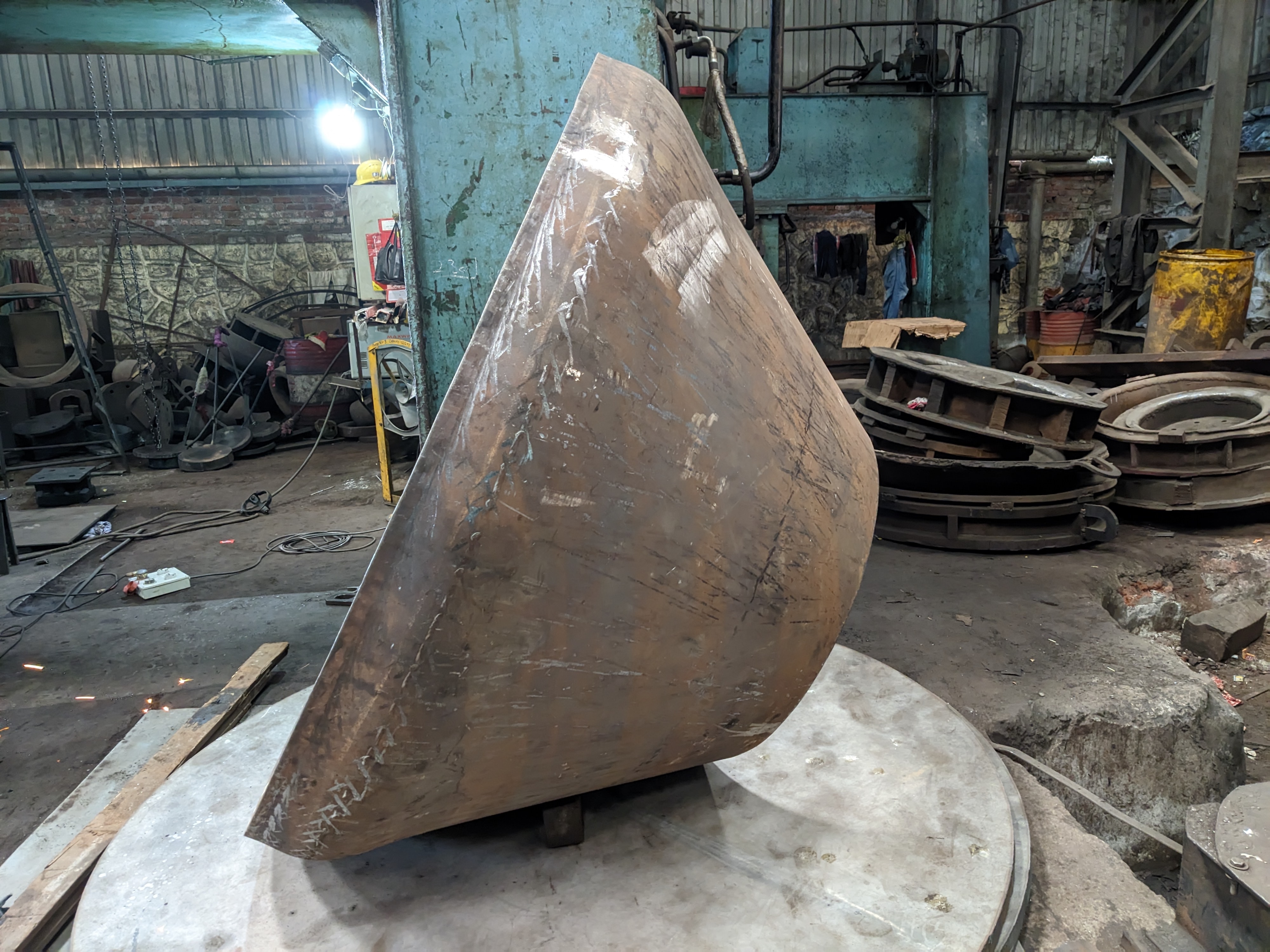

• Scalene cone (Eccentric cone) - 1952 ID x 1350 ID x 1050 Ht x 20 T (SA 240 Gr.304L)

• Tori cone (Knuckle Cone) - 4600 ID x 3361.2 ID x 1840 Ht x 90 T (SA 516 Gr.70)

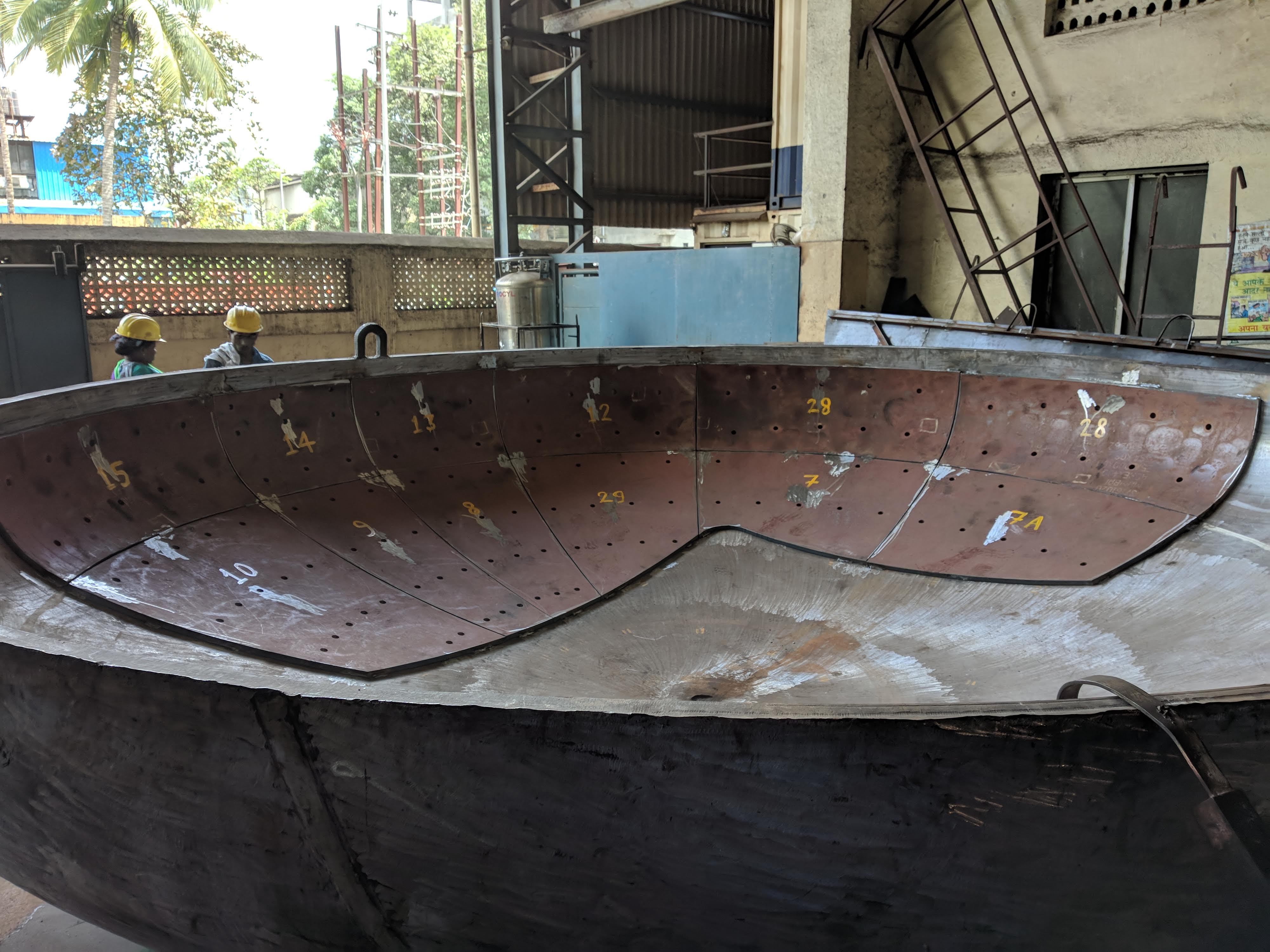

• Petal Construction Tori cones - 5050 ID x 3280 ID x 2570 Ht x 106 T (SA 516 Gr. 70)

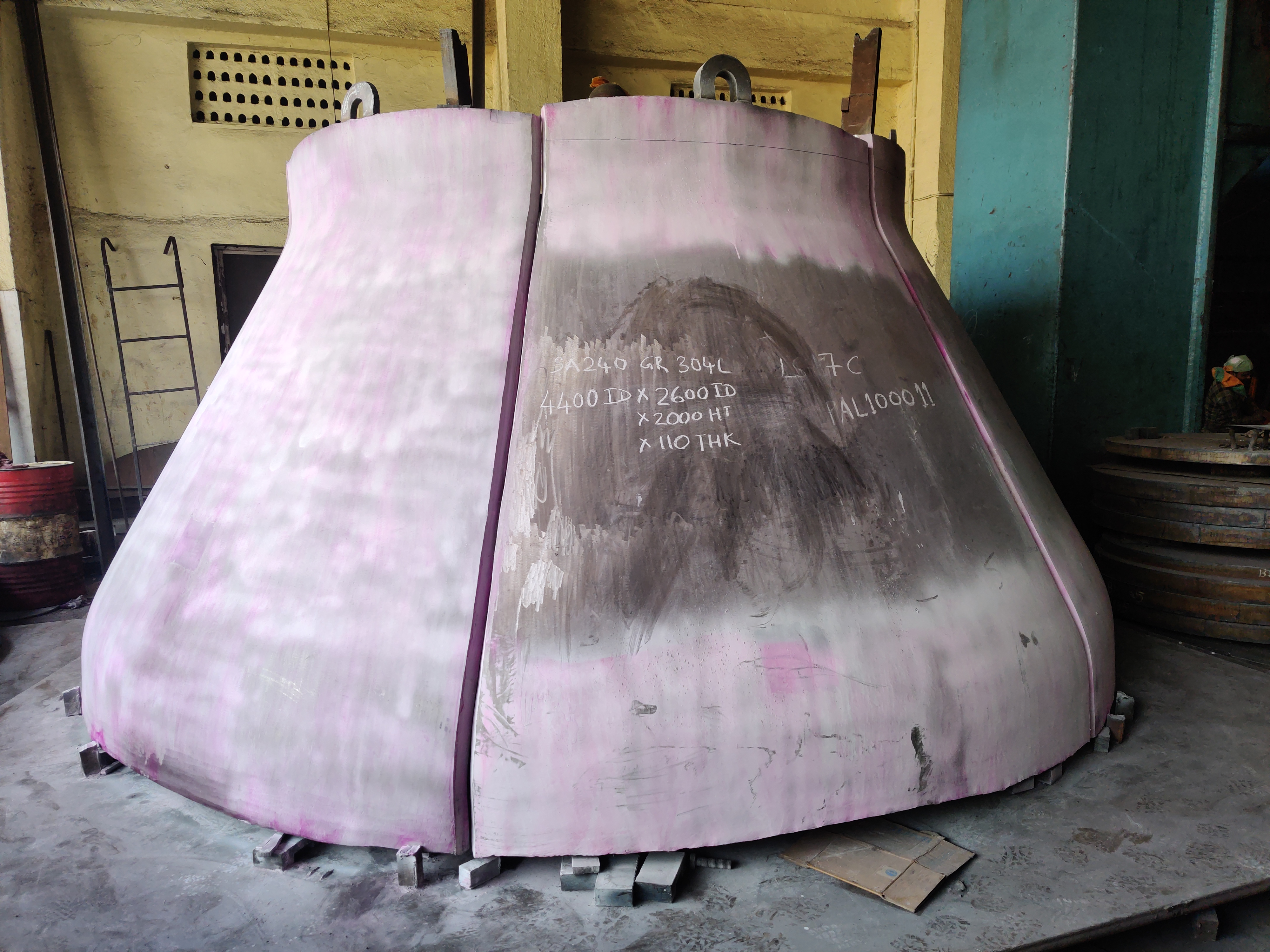

    (Knuckle Cone)                     - 4400 ID x 2600 ID x 2000 Ht x 110 T (SA 240 Gr.304L)

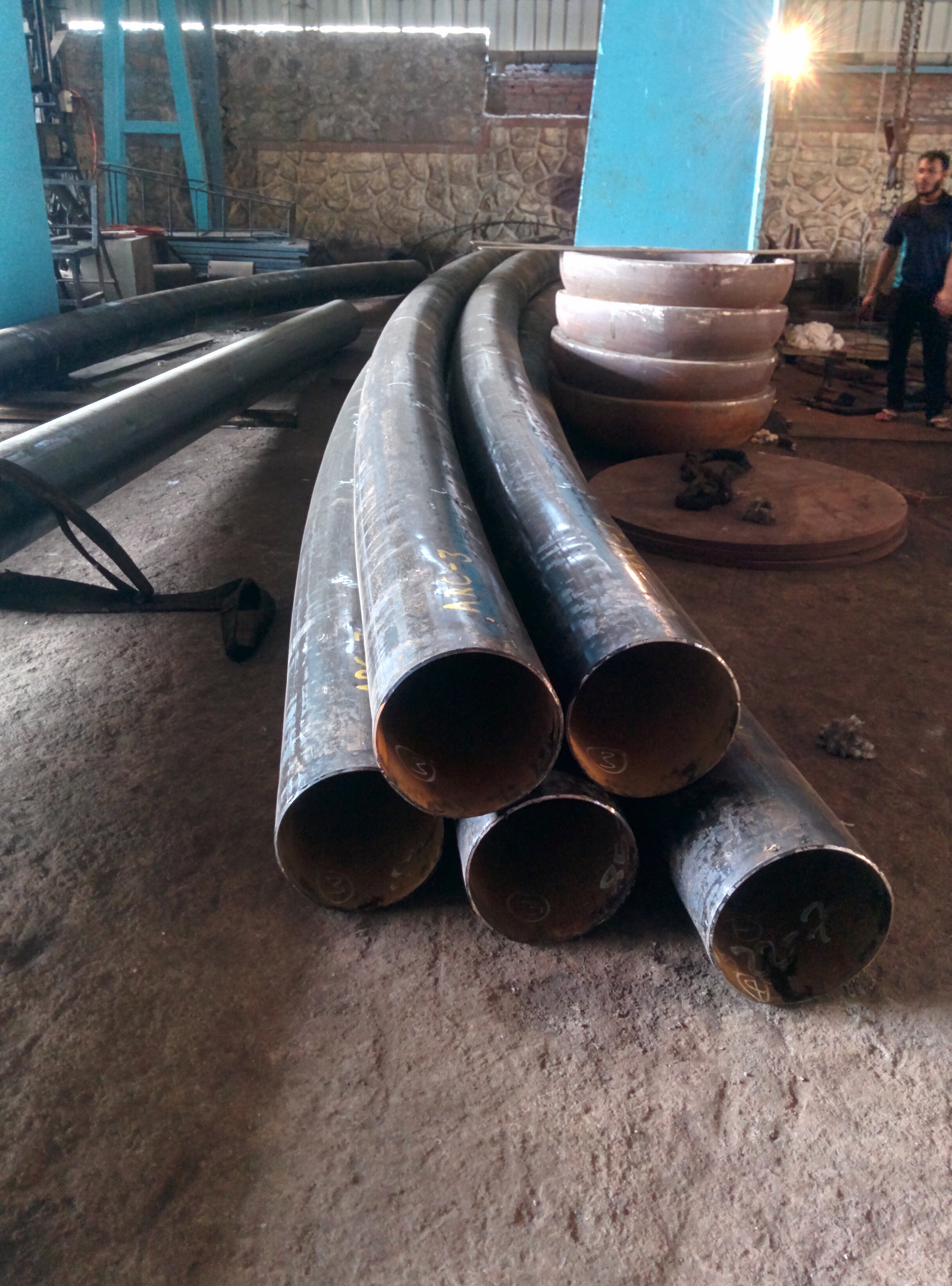

We undertake CS, SS, ASTM pipe bending of 1 /2" NB to 16" NB. Various types of bends possible are enlisted below:

• Long andShort radius bend -1/2"NB to 16"NB.

• U-bends- 1/2"NBto 16"NB.

• 90 degree bends -1/2"NB to 16"NB.

• Elbow bends -1/2"NB to 16"NB.

Pipe from 1/2"NB to 4"NB can be formed into helical coil with dimensions maintained within the tolerance limit as per ASME & IS Standards.
