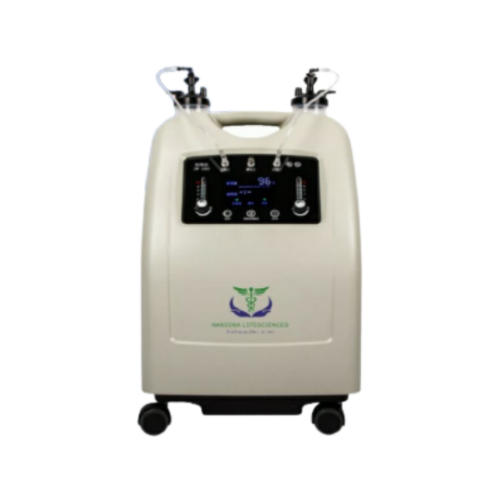

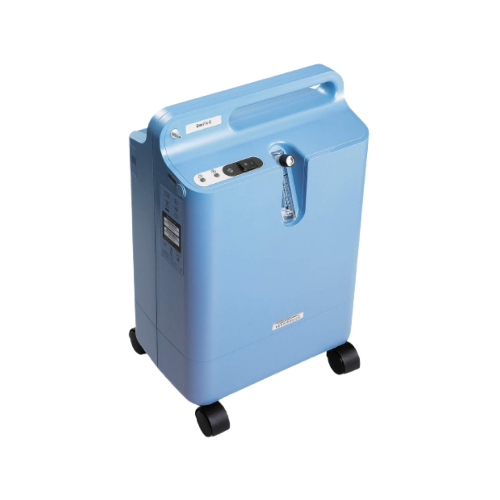

•    Working Voltage - 240V +/- 10% / 50 Hz +/- 1Hz
•    Rated Power (VA) - 770
•    Operating Pressure - 100 -190 KPa
•    Outlet Pressure - 70-80 KPa
•    Output Pressure = 0, the purity value (within 10 min, up to the standard)  Oxygen flow = 1~10 L/min, Purity >= 90%
•    Highest Flow - 10 L/min
•    Highest Flow, purity (within 10 min, up to the standard) - >=90%
•    Range of adjusting flow - 0~10 L/min adjusted continuously
•    Net weight (kg) - 20.5
•    Noise dB(A) - <=55
•    Dimension (mm) - L400 X W300 X H540
•    Oxygen output pressure - 60kPa - 80kPa

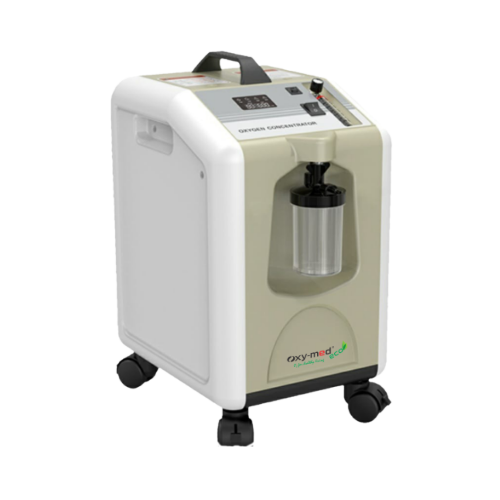

Main features

•    0-10 litre/min adjustable flow
•    93% ±3% oxygen purity at all flow levels
•    Dual flow with nebulizer
•    Low oxygen alarm, low noise, takes up less space, 29kg weight
•    Hepa filter
•    24x7 continuous flow

Product features

•    Output pressure 58.6± kpa
•    Power supply ac220v±22v, 50hz; 110v±10v’60hz
•    Input power 720va
•    Oxygen concentration 1-10 lpm 93% ±3%
•    Operation environment temperatures 5°c-40°c
•    Inbuilt nebulizer
•    Atmospheric pressure 86 kpa-106 kpa
•    Operation regular time cycle/pressure rotation
•    Transportation/storage condition temperature 20°c-55°c
•    Humidity ≤90%

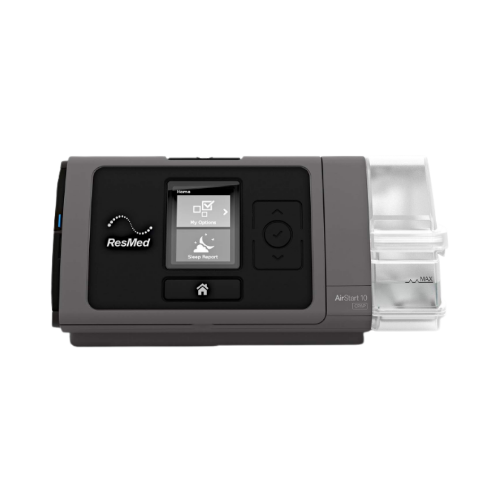

AirStart 10 Auto CPAP machine with humidifier delivers the best therapy for OSA.
Heated humidification may assist to reduce the common side effects of therapy, like nasal congestion or dry nose or throat, to deliver even more comfort during the night.

•    90W power supply unit: AC input range: 100-240V, 50-60Hz 1.0-1.5A, Class II (nominal for aircraft use) DC output: 24V; 3.75 A
•    Typical power consumption: 53W (57VA)
•    Peak power consumption: 104W (108VA)
•    Operating temperature: +5°C to +35°C
•    Operating humidity: 10 to 95% relative humidity
•    Housing construction: Flame retardant engineering thermoplastic non-condensing
•    Operating altitude: Sea level to 2,591 m;
•    Temperature: Maximum heater plate: 68°C, Cut-out: 74°C,
•    Maximum gas temperature: 41°C
•    Air pressure range 1013 hPa to 738 hPa

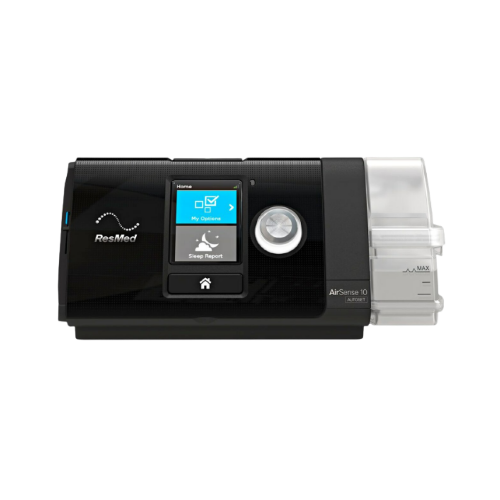

The AirSense™ 10 AutoSet CPAP Machine with HumidAir™ Heated Humidifier builds on the reliable and advanced features of the S9 line of machines by ResMed adding a built-in HumidAir™ humidifier in a sleek design that is 23% lighter.

It combines the proven technology of the AutoSet algorithm with the integrated comfort of the Optional ClimateLineAir Heated Tube. This is an auto-titrating CPAP machine that adjusts the pressure on a breath-by-breath basis to deliver the minimal pressure needed to maintain the airway.

PRODUCT SPECIFICATIONS
•    Dimensions: H-150mm B-255mm L-116mm
•    Weight - 1248 gm
•    Sound pressure level - 25 dBA with uncertainty of 2 dBA Sound power level 33 dBA with uncertainty of 2 dBA
•    Peak power consumption - 104W (108VA) Power supply unit 90W
•    Power supply unit Storage and transport humidity - 5 to 95% relative humidity, non-condensing
•    Storage and transport temperature - - 20°C to +60°C
•    Operating humidity - 10 to 95% relative humidity, non-condensing Housing construction Flame retardant engineering thermoplastic
•    Air outlet - 22 mm
•    Typical power consumption - 53W (57VA)
•    Operating altitude - Sea level to 8,500' (2,591 m);
•    Air pressure range - 1013 hPa to 738 hPa
•    Operating temperature - +5°C to +35°C

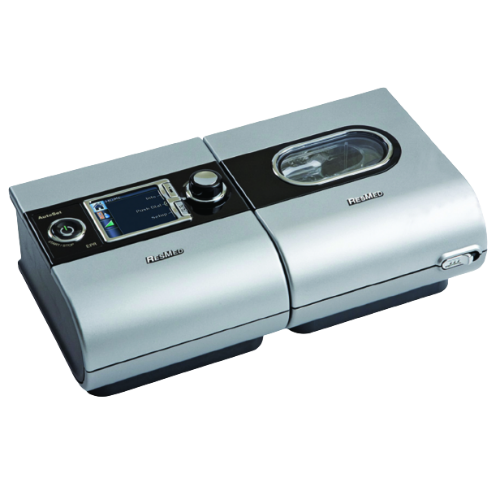

The S9 AutoSet is ResMed’s premium AutoSet device designed to help you comfortably transition to CPAP therapy. Using ResMed’s enhanced AutoSet technology, the S9 AutoSet automatically adjusts breath by breath, even as your needs change – hourly, nightly and from season to season – to deliver the lowest pressure necessary.

As a result, you’re able sleep comfortably through the night and receive the benefits of restful sleep. And with its sleek contours and compact size, the S9 AutoSet looks as natural at your bedside as a clock radio.

Product Specifications:
•    Modes of Operation: CPAP, CPAP w/EPR, Auto-CPAP, Auto-CPAP w/EPR
•    Pressure: 4 to 20 cm H2O
•    Ramp Time: 0 to 45 min. (5-min. increments)
•    Starting Ramp Pressure 4 up to CPAP pressure; user adjustable
•    Dimensions (with Hum) 11.25™ L x 6.5™ W x 4™ H
•    Dimensions in Travel Case 14™ L x 12™ W x 5™ H
•    Weight (with Hum) 3.4 lbs
•    Weight (in Case w/ hum, tubing, etc.) 6.14 lbs
•    Filters Disposable Pollen or Hypoallergenic
•    Sound Level 24 dBa
•    Device Set-Up LCD/Push Dial
•    Data Storage Capacity 365 days summary data (up to 500 events per session.)
•    Data Storage Content SD Card: 365 days summary data and 30 Days and 7 nights detailed data
•    Electrical Requirements 100 ™ 240 VAC, 50/60 Hz
•    Humidification Integrated Heated Humidifier with Climate Control
•    DC Power Use ResMed DC Power Converter cord only (sold separately), 12 VDC
•    Special User Features Auto on/off, mask off alert

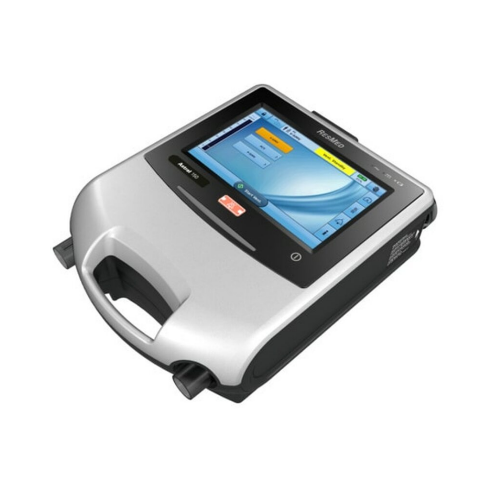

ResMed's Astral 150 life support ventilator offers excellence in invasive and non-invasive ventilation without compromise. From initial setup to everyday use, Astral offers greater freedom, confident care and designed efficiency to enrich life for you and your patients. Astral's discreet and lightweight design coupled with 24 hour run time (with combination of internal and external batteries) provides greater freedom and makes patient transfers easier. It delivers excellence in leak and valve ventilation for invasive and non-invasive applications as well as providing a full suite of therapy modes to suit adult and paediatric applications. With easy setup, simple servicing and an intuitive interface, Astral is designed to make ventilation support straightforward and efficient

Key Features -
•    Invasive and non-invasive, adult to paediatric usage
•    In built battery backup of Upto 8 hours, which can be extended Upto 24 hours with external battery pack
•    4 customizable pre-set programs
•    Single limb circuit with leak and valve ventilation
•    Dual limb circuit
•    Apnoea Ventilation
•    Manual breath
•    Sigh Breath
•    Optional SpO2 monitoring
•    FiO2 monitoring
•    7 days of high-resolution data with 25Hz pressure and flow
•    365 days of summary data
•    Wide range of settable alarms, including SpO2 and FiO2, when connected

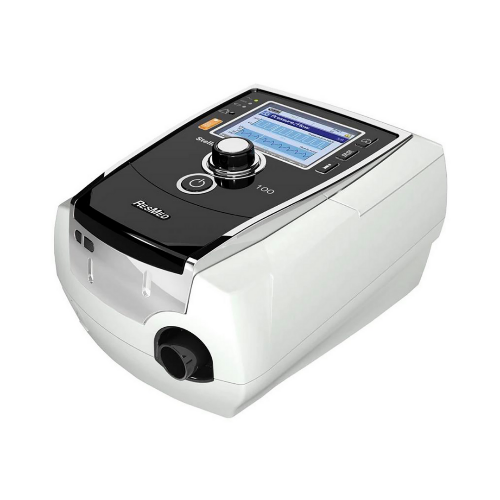

ResMed Ventilator Stellar 100 With FiO2 Specification: -

•    Efficacy and comfort characteristics can be fine-tuned to help with mask leakage and help Stellar 100 keep your breathing in sync. Ramp and Down with Ramp. The Ramp function gradually and comfortably ramps up the pressure to your recommended level to maintain you on the go, an inner battery offers two hours of constant energy. Other choices for mobility include extinguishing.
•    Optional integration of oxygen up to 30 L / minute and comprehensive alarms to provide additional safety and care assurance.
•    Optional integration of oxygen up to 30 L / minute and comprehensive alarms to provide additional safety and careRamp and Ramp Down assurance. The Ramp function gradually and comfortably ramps the pressure up to your recommended level to assist you in a treatment session.

Feature of ResMed Ventilator Stellar 100: -

Modes:
•    ST (Spontaneous–Timed)
•    PAC (Pressure Assisted Control)
•    CPAP (Continuous Positive Airway Pressure)
•    S (Spontaneous)
•    T (Timed)

Pressure range:
•    IPAP: 2–40 cm H2O
•    EPAP: 2–25 cm H2O

TiControl:
•    Ti Max 0.3–4 sec
•    Ti Min 0.1–Ti Max

Respiratory Rate:    5–60 bpm

Rise Time:  Min, 150–900 msec (approx.)

Trigger and Cycle: Five sensitivity settings

Adjustable alarms:
•    High Leak
•    Low Minute Ventilation
•    Low and High Pressure
•    Low and High Respiratory Rate
•    Apnoea
•    Low and High FiO2
•    Low SpO2
•    Non-vented mask

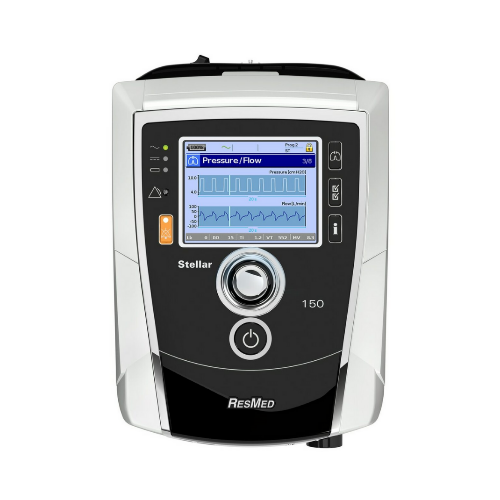

Designed for versatility, the Stellar 150 is a noninvasive ventilator with invasive capabilities. Offering a comprehensive range of therapy modes, Stellar treats a wide range of adult and paediatric patient types with changing respiratory needs. From those who need NIV during their hospital stay to chronic patients at home with conditions, such as COPD, NMD and OHS, Stellar is a versatile system designed with its end-users in mind.
Modes:
•    iVAPS (intelligent Volume-Assured Pressure Support) with AutoEPAP
•    ST (Spontaneous–Timed)
•    PAC (Pressure Assisted Control)
•    CPAP (Continuous Positive Airway Pressure)
•    S (Spontaneous)
•    T (Timed)

Pressure range:
•    IPAP: 2–40 cm H2O
•    EPAP: 2–25 cm H2O

TiControl:
•    Ti Max 0.3–4 sec
•    Ti Min 0.1–Ti Max

Respiratory Rate: 5–60 bpm

Rise Time: Min, 150–900 msec (approx.)

Trigger and Cycle: Five sensitivity settings

Adjustable alarms:
•    High Leak
•    Low Minute Ventilation
•    Low and High Pressure
•    Low and High Respiratory Rate
•    Apnoea
•    Low and High FiO2
•    Low SpO2
•    Non-vented mask

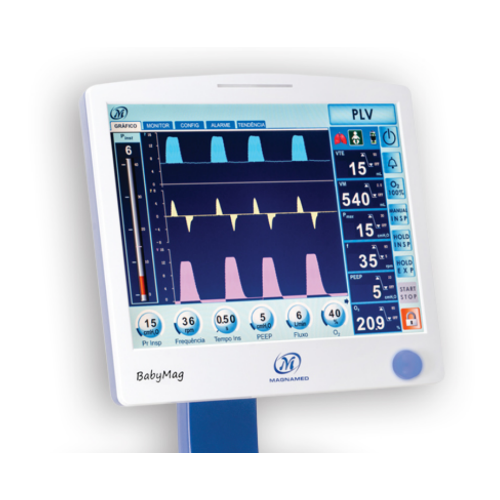

BABYMAG has safety and accuracy as the basic features, in addition to the simple and intuitive interface that facilitates the complex routine of the Neonatal ICU.
It supports the development of neonatal and paediatric patients with advanced technology and has Non-invasive Ventilation for all the ventilator modes and the use of CPAP with respiratory rate adjustment.

Product Features
•    Dedicated Ventilator for Neonatal & Paediatric Application.
•    Can manage a neonate with minimum body weight of 500gms with minimum delivered Tidal Volume of 2ml.
•    Available Modes: VCV/VCV-AC, PCV/PCV-AC, PRVC, PLV/PLV with VG, V-SIMV+PS, P-SIMV+PS, Dual PAP/APRV, CPAP/PSV, MMV, NIV.
•    Touch Screen 15inch Display.
•    Proximal Flow Sensing for quick response and accurate results.
•    Measurement of Capnography & Oximetry with MASIMO technology.
•    Specialized modes with reduced risk of Barotrauma.
•    Complete set of Graphics (Curves & Loops) with features that facilitate weaning.
•    No False Alarms.
•    Compact Design & User-Friendly Interface.
•    Upgradable with Paramagnetic Oxygen Sensor. (Optional)
•    Battery Backup for 4 Hours & Quick Charging batteries.
•    Remote Assistance in Troubleshooting.
•    Colour Coded display for better understanding of data.
•    Low cost of usage & ownership.

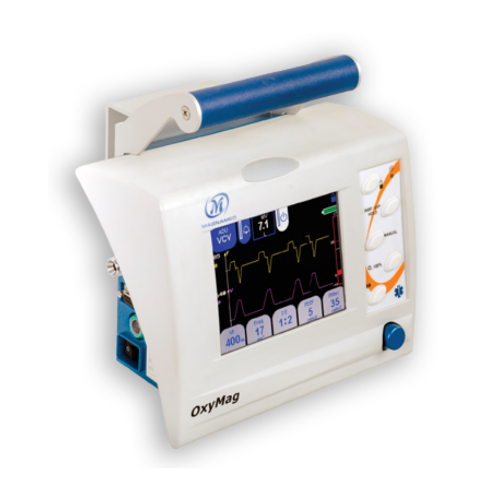

OXYMAG is the pulmonary ventilator that thinks as fast as an emergency team. It is lightweight, flexible and simple, compact and durable, which makes it ideal for emergency transportation.
One Ventilator for all your needs: Can be used for ICU & Transport application for Neonatal, Paediatric and Adult patients.

Product Features
•    Suitable for Neonatal, Pediatric and Adults.
•    Application in Emergency, ICU as well as Transport.
•    Works on Venturi Technology.
•    Modes: VCV/VCV-AC, PCV/PCV-AC, PLV-AC, V¬SIMV+PS, P-SIMV +PS, Dual PAP/APRV, CPAP/PSV: NIV
•    Light Weight: 3 Kg
•    Proximal Sensing for faster response.
•    6 Hours of battery back-up.
•    Measurement of Capnography (EtCO2) or Oximetry (Sp02) with Masimo Sensor. (Optional).
•    Ventilation with only single gas, Oxygen.
•    No Bleed of Oxygen. Reduced Oxygen Wastage.
•    5.7-inch Touch Screen Display with a user-friendly interface.
•    Graphs and Loops for better monitoring.
•    Can be connected to an external blender.
•    Invasive & Non-Invasive Ventilation.
•    Can be easily mounted in Air or Road Ambulance or Trolley.
•    Low Cost of Operation and Ownership.
•    Can also be used for low flow Oxygen Therapy.
•    Intelligent Alarm System.

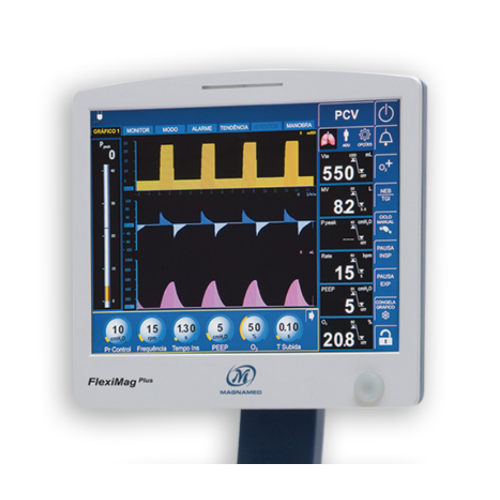

FLEXIMAG PLUS goes beyond the details, by being a complete equipment, meeting all types of services within an Intensive Care Unit. It offers high-performance invasive and non-invasive ventilation, ideal for your adult, paediatric or neonatal ICUs.

It offers high-performance invasive and non-invasive ventilation, ideal for your adult, paediatric or neonatal ICUs.

Compact design that only the high-technology can offer.

Product Features
•    Guarantees a better assessment of the patient’s pulmonary function, as well as weaning assistance.
•    Quick adjustment of the ventilator parameters, according to the ideal weight for the patient.
•    Complete set of graphics and resources that facilities weaning and monitors data converted into graphs.
•    Capnography and Oximetry, to ensure excellent monitoring.
•    Non-invasive ventilation Interfaces and nebulizer that are synchronized with the Inspirator/ phase.
•    With the PO 1, Tobin Index, Plmax, Trapped Volume and PV Flex procedures, the Fleximag Plus guarantees a better assessment of the patient’s pulmonary function, as well as weaning assistance.
