About Us
We Are India's Leading Supplier Of Instrumentation, Automation & Communication Products & Solutions. MICON involves in the business of – Measurement, Instrumentation and Control. MICON AUTOMATION SYSTEMS PVT. LTD. established in the year 2000 with the aim of providing complete solution of Automation, Control and instrumentation with latest-state-of-art Technologies. ACTIVITY Micon can provide best instrumentation, technical assistance and services in any Automation requirements after studying the application carefully. We can also implement, install and commission all supplied equipment on the site. Its after sales support is believed as one of the best in the segment. We have an experienced team of technocrats and engineers to perform tasks. In tune with its philosophy of total customer satisfaction, MICON has tied up with world renowned instrumentation companies to serve best technologies to Indian Industries. The technology changes in the control & automation field are very fast and heading towards product modularity, multifunction smart instruments and PC-interfaced devices, which calls for an association with a partner, competitive enough to move along with the world. You can either Automate or Emigrate or Evaporate !
View more
Our Leadership Team
Mr. Kalpesh Rathod
Business Head
Products & Services

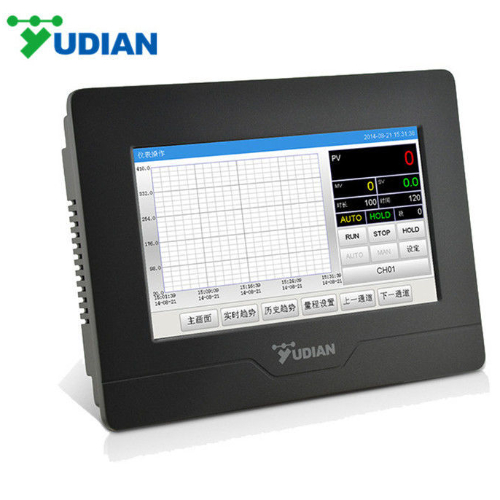

Yudian make Touch Screen Controller with Data-Logging-functi
Product Detail
Yudian make Touch Screen Controller with Data-Logging-functi
Program : 30 Steps (Total)
Display : 7 inch
Input : Universal All Type of Thermocouple
K,S,R,E,J,N,T,B, PT-100, 4-20mA, 0-5V, 0-10VDC
No. of Channel : One
Output : 4-20mA
Alarm : 1-Relay
Power Supply : 230V AC
Accuracy : 0.3%FS±1C
Display Resolution : 0.1C (Selectable)
+ Show more
- Show less
USB To RS 232 RS 485RS 422 Converters
Product Detail
USB To RS 232 RS 485RS 422 Converters
Computer interface : USB 1.1 2.0 Plug and Play. Operational system virtual serial port driver. Supports Windows 98/ME/XP/2000/CE/Vista, MAC & Linux 2.4.20 or superior. Field Interfaces : RS-232,RS-422,RS-485 Half Duplex , Automatic flow control for RS485 Half Duplex. Transmission rate : RS232 from 300 bps to 460.8Kbps. RS485 from 300 bps to 921.6Kbps. Maximum RS-485 cable length : 1200 m Maximum number of devices in the RS485 network: Half Duplex to 32 devices Power: from the USB port. Consumption : <200 mA. Isolation : Isolation voltage 3500VRMS 500VDC sequence USB port RS-232/422/485 bus protection: 600W. USB connection : USB -B female connector. 1m USB-A to USB-B cable. RS-232 connector : DB9 male RS-422/485 connector : 6-bit terminal socket Metal case size : 10585 x27 mm Operating environment : -25 to 70C, 10 to 90% relative humidity, non-condensing. Model no. ATC-810, ATC-820, ATC-830, ATC-840, ATC-850, ATC-804
+ Show more
- Show less
Industrial Ethernet Switch
Product Detail
Industrial Ethernet Switch
nterface Type 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection Connector 8-pin RJ-45 * 5 Isolation Protection Built-in 1.5KV Network Protocols ICMP,IP,TCP,UDP,DHCP,BOOTP,Telnet,DNS,HTTP,ARP Flow Control 802.3X flow control frames on both transmit and receive sides Configure Options Web Page,Windows Utility OS support Windows Serial / Linux real / TTY / UNIX Priority Queues 4-level per port Max. Number of Available VLANs 16 VLAN ID Range VID 1 to 4094 IGMP Table Up to 1K MAC Table Size 2K Rate Control Range 0-100Mbps PWR Power Indicator F/H.x Indicate full duplex or half duplex LINK Indicate network connections status LED Indicators 10/100M Speed Indicator input Voltage 12VDC (12 to 24VDC),redundant dual inputs Protection Over-current and overvoltage protection Connector Removable 4-contact terminal blocksDimensions 106 54 136 mm(4.17 2.13 5.35 in Model No. ATC-405
+ Show more
- Show less
SCR Trigger Circuit
Product Detail
SCR Trigger Circuit
Load : Resistive / Resistance and inductance load Wiring : three-phase four-wire, two-phase and single-phase / three-phase three- wire Trigger mode : ON: zero-crossing trigger Failure check and alarm : Power phase failure, over-shoot, thyristor shoot through and load open circuit / power phase failure and over-shoot Control Input : 0-20mA and 4-20mA Signal Inputs are Selectable Trigger Output : Linear phase Angle Fired output (Designed up to 300A) Alarm : Phase failure and over shoot checking and alarming Power Supply : 220 VAC Size : 80 150 35mm Model AIJK30, AIJK33
+ Show more
- Show less
HMI Programming
Product Detail
HMI Programming
HMI is a graphical representation of any process or machine with a human interface with the control hardware. We can develop HMI program as per your requirements with modern graphics, mimics, layouts of plant/machine/process with live animations for a better user experience.
+ Show more
- Show less
PLC Programming
Product Detail
PLC Programming
PLC is the brain of every kind of automation work. After deeply understanding your machine/process application we provide you automation solution with PLC programming.
+ Show more
- Show less
