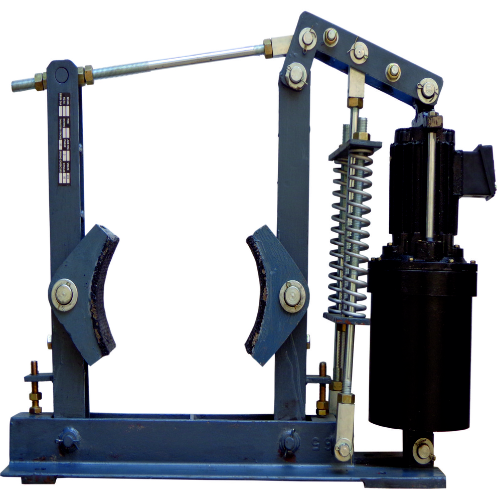

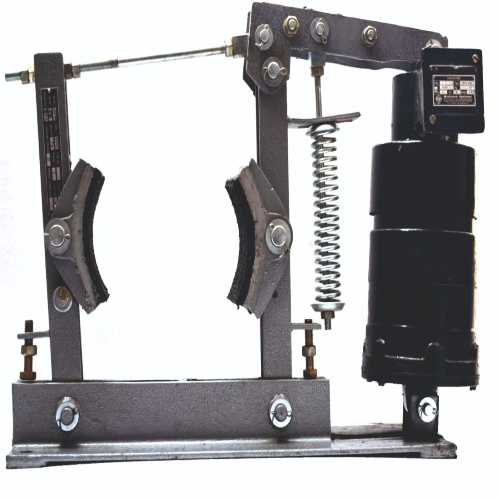

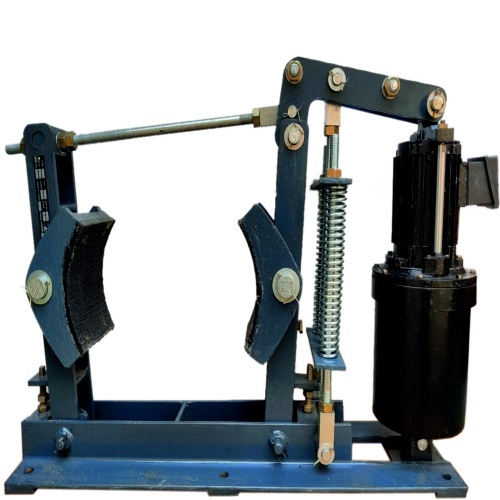

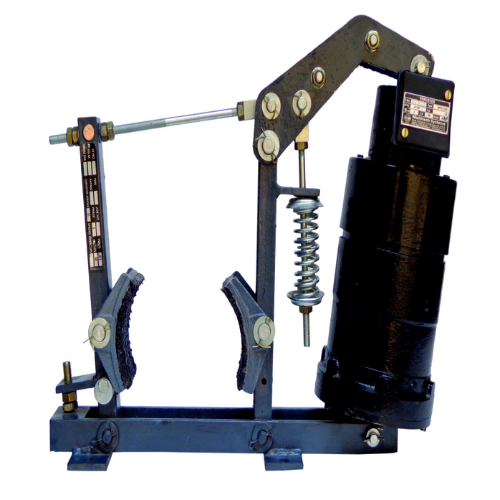

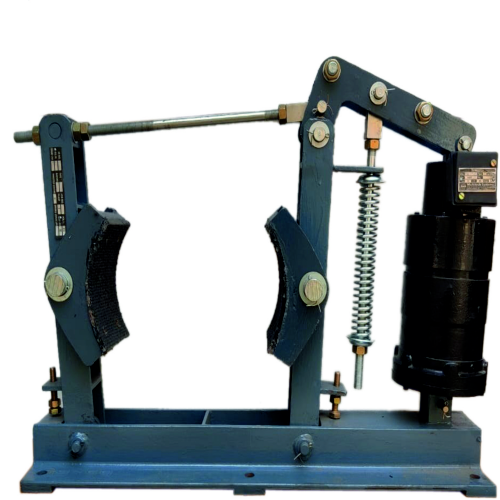

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 250-34
Drum Dia=250mm
Brake shoe=asbetos free/BA
Braking torque=42kg-m
Thrust=34kg
Stroke=51mm
Oil+capacity=transformer oil 2 litres
Weight=29kg

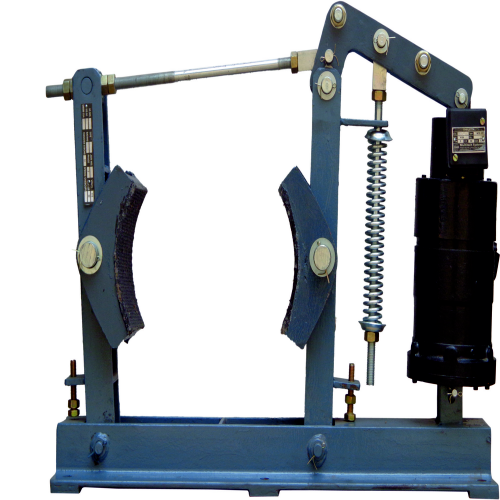

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 300-18
Drum Dia=300mm
Brake shoe=asbetos free/BA
Braking torque=42kg-m
Thrust=18kg
Stroke=51mm
Oil+capacity=transformer oil 2 litres
Weight=26kg

We are actively engaged in manufacturing and supplying splendid quality Electro Hydraulic Thruster Brake that is made utilizing splendid quality raw material & modern machines in complete compliance with the set industry parameters. The offered array can be custom-made in assorted shapes & sizes that are suitable for various industries. In addition to this, offered array can be availed by our precious customers at market leading rates.

Features:

• Low maintenance
• Sturdy construction
• Fine finish

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 300-46
Drum Dia=300mm
Brake shoe=asbetos free/BA
Braking torque=72kg-m
Thrust=46kg
Stroke=51mm
Oil+capacity=transformer oil 2 litres
Weight=34kg

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 300-68
Drum Dia=300mm
Brake shoe=asbetos free/BA
Braking torque=90kg-m
Thrust=68kg
Stroke=76mm
Oil+capacity=transformer oil 2 litres
Weight=34kg

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 400-34
Drum Dia=400mm
Brake shoe=asbetos free/BA
Braking torque=90kg-m
Thrust=34kg
Stroke=51mm
Oil+capacity=transformer oil 2.5 litres
Weight=54kg

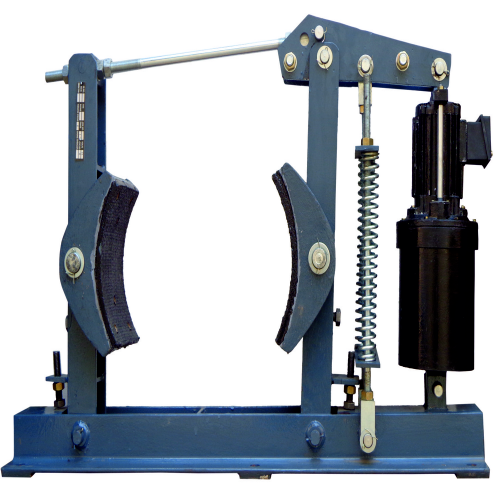

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 400-46
Drum Dia=400mm
Brake shoe=asbetos free/BA
Braking torque=110kg-m
Thrust=46kg
Stroke=51mm
Oil+capacity=transformer oil 2.5 litres
Weight=56kg

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 400-68
Drum Dia=400mm
Brake shoe=asbetos free/BA
Braking torque=170kg-m
Thrust=68kg
Stroke=76mm
Oil+capacity=transformer oil 4.5 litres
Weight=43kg

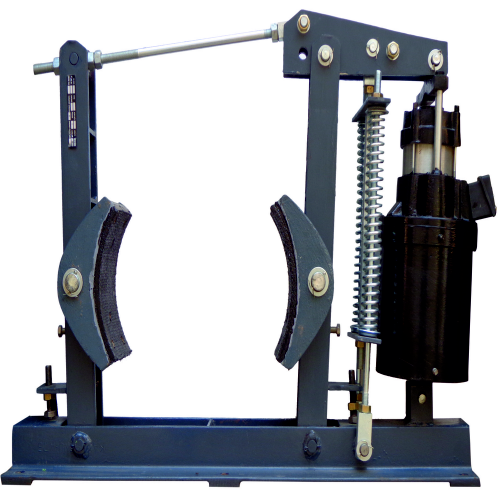

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 400-114
Drum Dia=400mm
Brake shoe=asbetos free/BA
Braking torque=290kg-m
Thrust=114kg
Stroke=76mm
Oil+capacity=transformer oil 2.5 litres
Weight=43kg

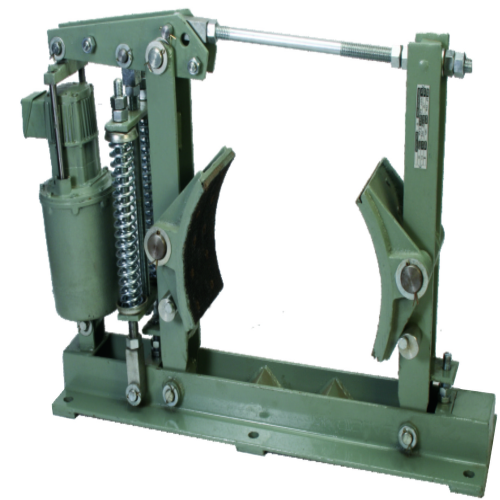

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 500-34
Drum Dia=500mm
Brake shoe=asbetos free/BA
Braking torque=110kg-m
Thrust=35kg
Stroke=51mm
Oil+capacity=transformer oil 2 litres
Weight=90kg

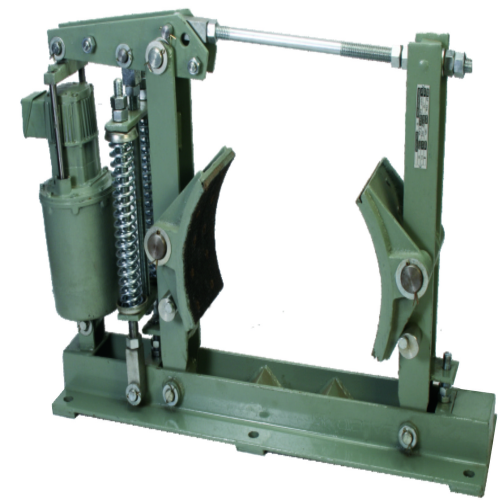

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 500-46
Drum Dia=500mm
Brake shoe=asbetos free/BA
Braking torque=190kg-m
Thrust=46kg
Stroke=51mm
Oil+capacity=transformer oil 4.5 litres
Weight=62kg

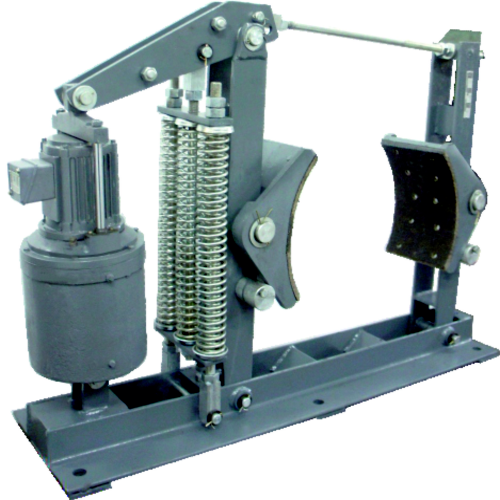

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 500-68
Drum Dia=500mm
Brake shoe=asbetos free/BA
Braking torque=290kg-m
Thrust=68kg
Stroke=76mm
Oil+capacity=transformer oil 2 litres
Weight=60kg

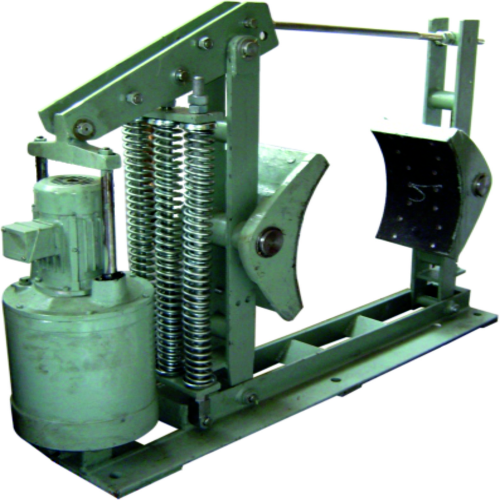

Thruster brake is device to retard the speed of moving machinery and to stop it accurately to the desired position. the breaking force is applied to the brake shoes by a pre-stressed compression spring. the shoes press on the rotating brake drum retarding its speed, and finally stopping it.

Technical Data-
Model=MDT 500-114
Drum Dia=500mm
Brake shoe=asbetos free/BA
Braking torque=485kg-m
Thrust=114kg
Stroke=76mm
Oil+capacity=transformer oil 4.5 litres
Weight=75kg

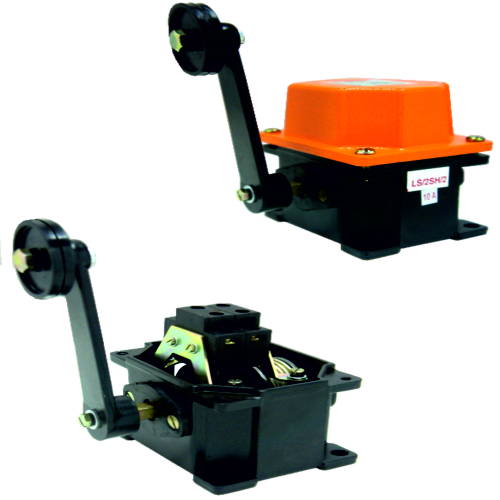

Lever type limit switch operates the control change-over contacts of motor of an moving equipments when a cam moving with loads actuates the lever of limit switch. this turns the cam on a square shaft and operate the NO/NC change over contact elements.

Technical Data-
Body material= Aluminium die cast(powder)
Protection degree=IP-55 confirming to (IS/IEC-60529(2001)
Mounting position=floor
Cable entries=2,3/4' circuit
No. of contacts=MAX 2
Contact material=silver cadmium
Wire connection=screw terminal
Rated voltage=500 V.A.C max
Thermal test current= 10A

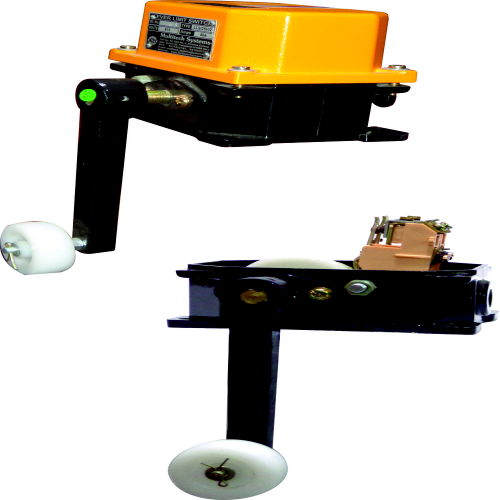

Lever type limit switch operates the control change-over contacts of motor of an moving equipments when a cam moving with loads actuates the lever of limit switch. this turns the cam on a square shaft and operate the NO/NC change over contact elements.

Technical Data-
Body material= Aluminium die cast(powder)
Protection degree=IP-55 confirming to (IS/IEC-60529(2001)
Mounting position=floor
Cable entries=2,3/4' circuit
No. of contacts=MAX 4
Contact material=silver cadmium
Wire connection=screw terminal
Rated voltage=500 V.A.C max
Thermal test current= 40A

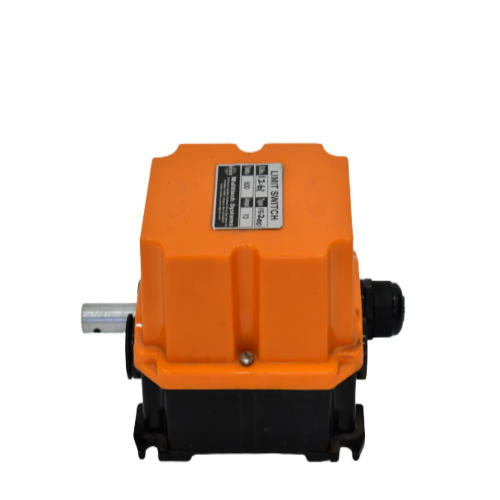

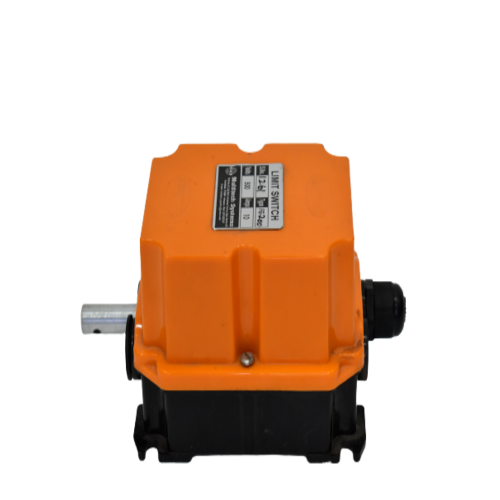

Rotary geared limit switch grls is used to trip motor supply when the moving loads reach the extreme end positions of working zone. the driving motion is transmitted by worm gear through worm shaft. the rotations and movements are transmitted to switches by adjustable cams. complying to IEC/EN 60947-5-1, IEC/EN 60529, IES 60060-2-78 IEC 60068-2-30.

Applications-
A rotary geared limit switch are suitable for use on reversing drivs such as hoists, winches rolling mills and various other mechanisms used in steel plants such as coke even, feeding oven machinery etc.

Rotary geared limit switch grls is used to trip motor supply when the moving loads reach the extreme end positions of working zone. the driving motion is transmitted by worm gear through worm shaft. the rotations and movements are transmitted to switches by adjustable cams. complying to IEC/EN 60947-5-1, IEC/EN 60529, IES 60060-2-78 IEC 60068-2-30.

Applications-
A rotary geared limit switch are suitable for use on reversing drivs such as hoists, winches rolling mills and various other mechanisms used in steel plants such as coke even, feeding oven machinery etc.

Rotary geared limit switch grls is used to trip motor supply when the moving loads reach the extreme end positions of working zone. the driving motion is transmitted by worm gear through worm shaft. the rotations and movements are transmitted to switches by adjustable cams. complying to IEC/EN 60947-5-1, IEC/EN 60529, IES 60060-2-78 IEC 60068-2-30.

Applications-
A rotary geared limit switch are suitable for use on reversing drivs such as hoists, winches rolling mills and various other mechanisms used in steel plants such as coke even, feeding oven machinery etc.

Rotary geared limit switch grls is used to trip motor supply when the moving loads reach the extreme end positions of working zone. the driving motion is transmitted by worm gear through worm shaft. the rotations and movements are transmitted to switches by adjustable cams. complying to IEC/EN 60947-5-1, IEC/EN 60529, IES 60060-2-78 IEC 60068-2-30.

Applications-
A rotary geared limit switch are suitable for use on reversing drivs such as hoists, winches rolling mills and various other mechanisms used in steel plants such as coke even, feeding oven machinery etc.

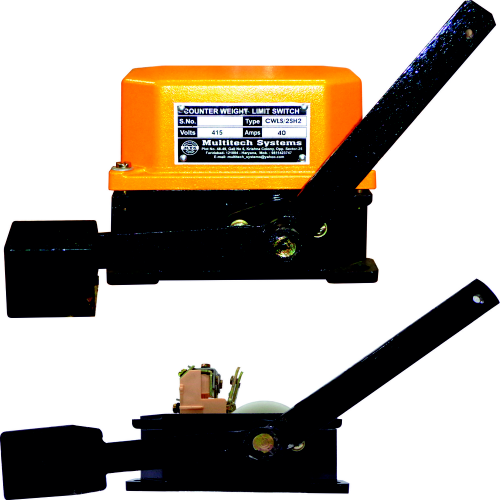

Weight operated limit switches are used on control/power circuit of reversing drives so as to limit their rotation/movement with in a predetermined position. complying to IEC/EN 60947-5-1, IEC/EN 60529, IEC 60068-2-78, IEC 60068-2-30.

Operation-
When the snatch block of the crane reaches its top position the snatch boxes pushes a plate which is hanging from one end of the lever of the limit switches. due to the weight placed on the other end of the lever, this lever is pushed up. when the lever is pushed up the shaft to which this lever is connected rotates there by rotating the cams which eventually open the contacts.

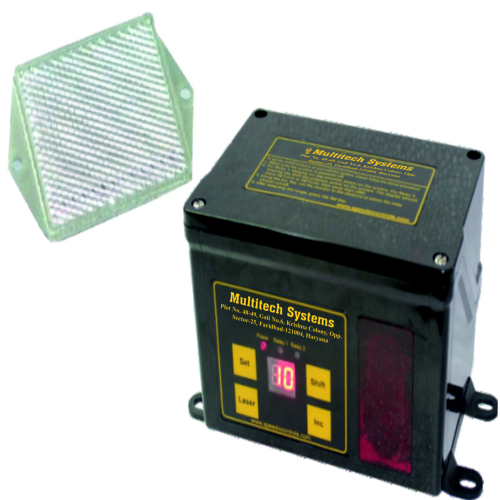

The anti-collision system is a safety device to avoid collision of two electric overhead travelling cranes on the same bay. the system works on the principle of retro-reflective infrared waves.
The system comprises of an emitter cum receiver module and a reflector. the emitter continously emits infrared back to the receiver end of the system which activates an alarm signal to an stops/reduce the speed of the crane. if two cranes are away from each other the reflected waves will not reach the sensor and the cranes operate normally.
The advanced digital anti-collision system incorporates a micro-controller based circuit for taking digital inputs for easy range setting and gives an accurate cut-off range to the device.two sets of anti-collision systems are required for collision avoidance between the two cranes.

Technical Specifications-
Supply voltage  = 110VAC-220VAC
Operating Temperature = upto 70C
Output  =upto 2 potent
Sensing distance(adjustable)=1-3/3-10meter

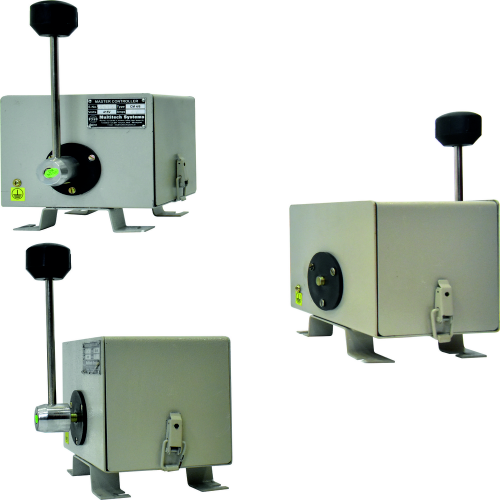

Master controller is housed in enclosure and provided with an easily removable cover with ample area for maintenance. the cam shaft is mounted on bearing bushes on walls of housing. the cam are made of thermoplast material and fixed on square spindle switch which is moved by a handle. the cams are cut to correspond to the switching program aluminium die cast powder coated suitable for hoist-grab, mill duty, E.O.T. cranes and rolling mill drives.

Technical Data-
Body material= Aluminium die cast
Protection Degree=IP-41(IS/IEC-60529(2001
Monting position= horizontal
Contact material=silver cadmium
Rated voltage=500 V.A.C.
Thermal test current=10 AMPS.
Cable entries=2x20,2x26 standard conduct
Input speed=1200 RPM, maximum
Contacts= single break
No. of contacts=24 max.
No. of steps=6-0-6 maximum
Optional=spring return/deadman's handle arrangement

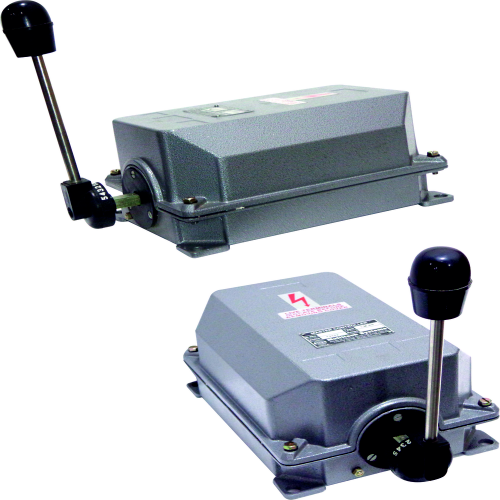

Master controller is housed in enclosure and provided with an easily removable cover with ample area for maintenance. the cam shaft is mounted on bearing bushes on walls of housing. the cam are made of thermoplast material and fixed on square spindle switch which is moved by a handle. the cams are cut to correspond to the switching program aluminium die cast powder coated suitable for hoist-grab, mill duty, E.O.T. cranes and rolling mill drives.

Technical Data-
Body material= Aluminium die cast
Protection Degree=IP-54(IS/IEC-60529(2001
Monting position= horizontal
Contact material=silver cadmium
Rated voltage=500 V.A.C.
Thermal test current=40 AMPS.
Cable entries=2x20,2x26 standard conduct
Input speed=1200 RPM, maximum
Contacts= single break
No. of contacts=24 max.
No. of steps=6-0-6 maximum
Optional=spring return/deadman's handle arrangement

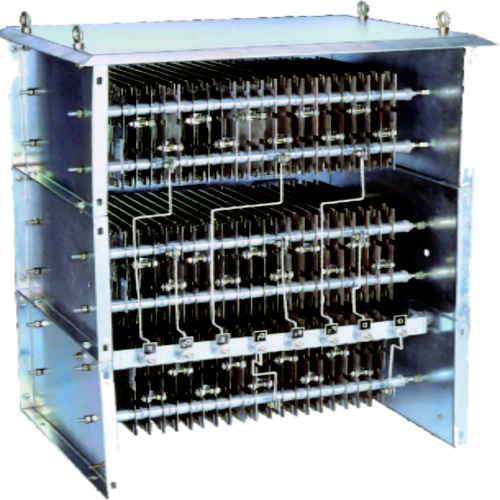

Resistance boxes are used to add resistance into an electric motor circuit for modifying the performance characteristics of slipring induction motor of eot cranes,rubber mills, steel rolling mills, cement mills, power plants, conveyors, coke oven, blowers etc. for speed control and developing starting torque with low starting currents. they are also used as dynamic braking for Vvvf Ac drives, electric loading of Ac alternators, degenerators and dynamometers. resistors are designed to meet requirements of both A.c and D.c. applications.

Technical Data-
Type of grid= Punched grid
cooling=natural air cooled
Resistors Material=stainless steel/fechral
Enclosure=sheet metal (galvanished)
Mounting=floor mounting horizontal
Cable entry=bottom
Protection Degree=IP-20/IP-21/IP-23/IP-33.
Over ambient temp.=375 C
Current rating=8 Amps---------3000Amps
Connections=series/parallel
Voltage=600 V
Terminals=3/8'
Other voltage=1100/3300 V on request
