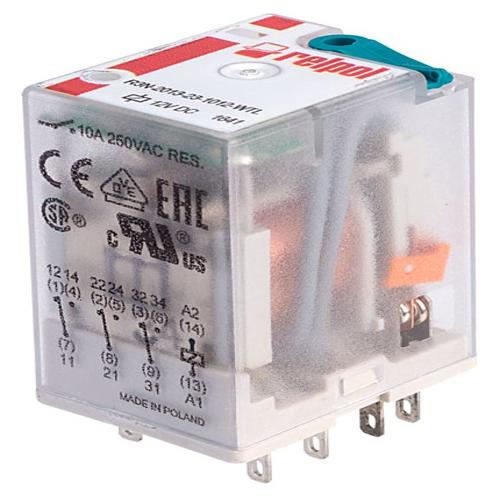

Product Details Available in 1 /2/3/4 Change Over contacts Rated Contact Switching current up to 48A Coil Voltage available DC : 5/12/24/48/60/80/110/125/ 220 V AC : 6/12/24/42/48/60/80/110/115/120/127/220/230/240 Versions with coil overvoltage suppression Versions with Flag indicators & Manual relay Test Push Buttons with the possibility of latching the normally open contacts closed Mounting on PCB; Plug-in Socket; 35 mm DIN Rail Screw & Spring terminals of Plug-in Sockets ROHS; CE; VDE;

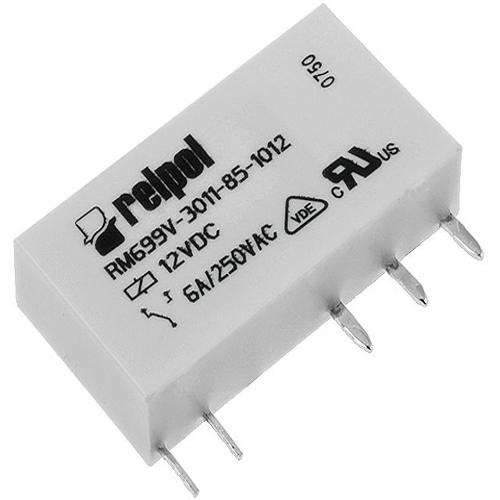

Product Details Rated Contact Switching current up to 20 A Wide Range of Coil Voltages available DC : 5/12/24/48/60/80/110/125/ 220 V AC : 6/12/24/42/48/60/80/110/115/120/127/220/230/240 Height from 10.5 – 26 mm High Electric Strength of Insulation Mounting on PCB; Plug-in Socket & SMT ROHS; CE; VDE

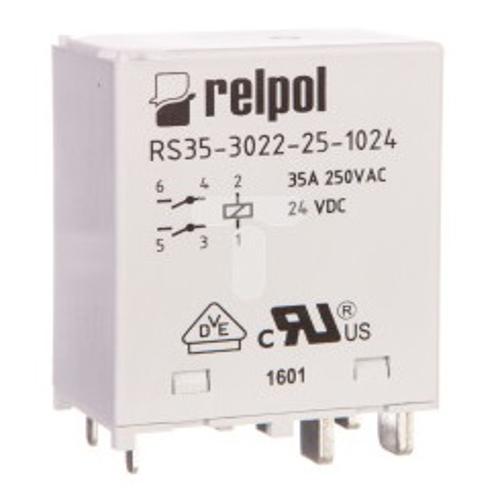

Product Details Electromagnetic relays are applied in solar systems for two main purposes 1. At the DC side, they switch on and off the DC voltage generated by photovoltaic cells. 2. At the AC side, they connect to / disconnect the entire system from the power network. Rated Contact Switching current 16 A ---48 A Contact clearance of minimum 1.5 mm. Resistance of the contact clearance to surge voltage of 2500 V. Low Power consumption of coil of 0.4 W Popular Types RS35/ RS50/ RUC/ RUC-M Mounting on PCB Approvals- ROHS; CE; VDE; DIN VDE 0126-1-1

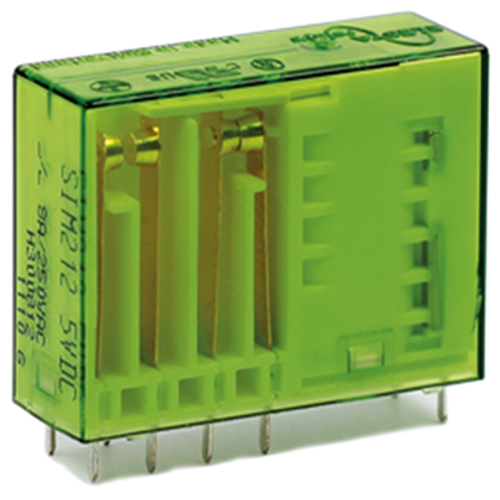

Product Details RelayRelays with forcibly guided contacts are normative elementary relays according to IEC 61810-1. These electromechanical components consists of a special set of contacts in accordance with EN 50205 (IEC 61810-3 in the future), in which all contacts are connected together so that NO and NC contacts are never closed simultaneously in the failed condition. In opposition to standard relays, this allows for monitoring the switch position of the relay, even if one of the contacts does not open, e.g. when a contact is welded. The main application areas of our relays are currently Industrial Automation Robotics Mechanical Engineering Laser and Welding Technology Medical Technology Elevators / Lifting Systems Process Technology Railway Engineering Combustion Plants Building Control No of Contact : 2- 10 Switching Current : 5mA ----16 A Excitation voltages of 3 VDC to 220 VDC

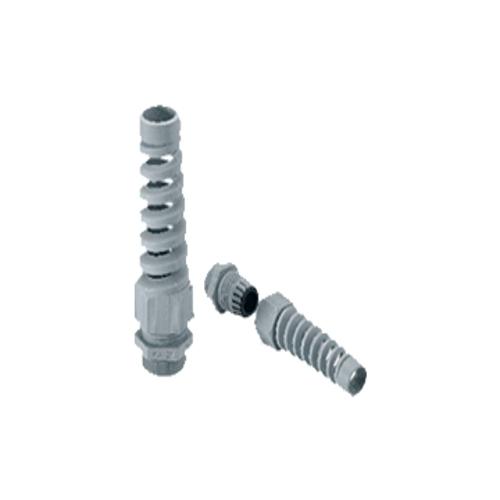

Spiral glands offer maximum protection against conductor fatigue caused by flexing cables, Designed for kink protection and mainly used for moving machine assemblies

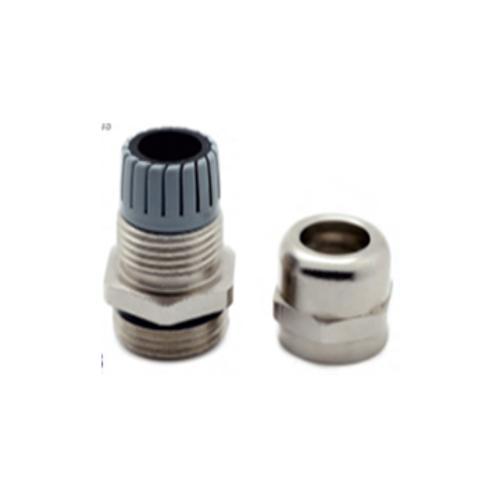

Cable glands are liquid tight, easy to assemble and offer good strain relief with wide clamping range. The lamellar construction of glands provide an excellent grip on the cable. These glands offer gas and water tight sealings.

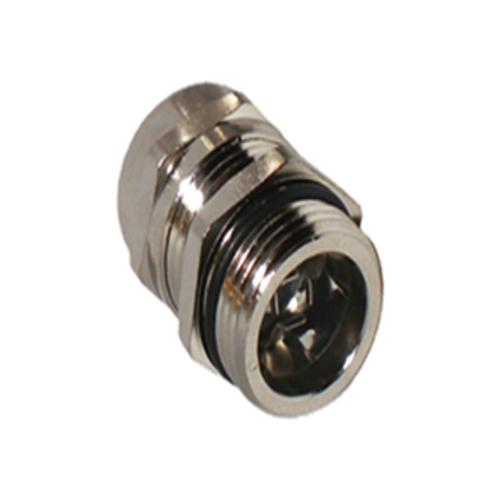

EMC Cable Glands are used in different applications which require shielded cables for electromagnetic protection. These Glands aid in maintaining the electromagnetic integrity of the shielded cable by just compressing the gland.

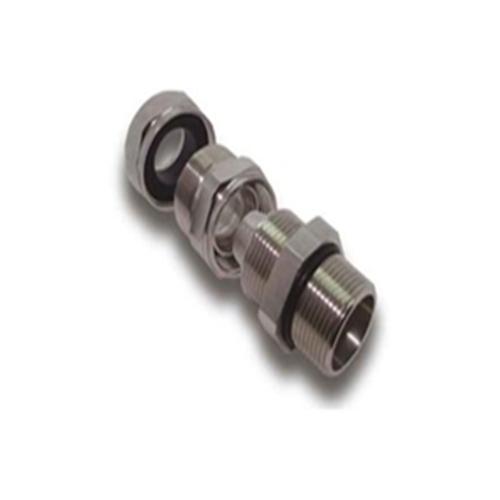

Double compression glands provide extra support to the heavy armored cables entering or exiting the panel.
