Your SBC for series use - price-optimized, long-term available and certifiable.

• i.MX 6 Solo / Quad with up to 4x 1 GHz
• Easy individual modification
• Successful EMC pretests
• Secure Boot in BSP
• RAUC update knowledge in the BSP supported
• Ready-to-use add-on solutions to accompany the development

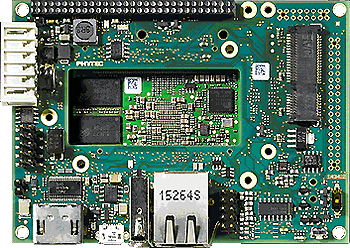

Compact and cost-optimized design, certifiable and with industry-standard software support with Yocto-BSP: The phyBOARD-Mira is a powerful single board computer for industrial use.

The heart of the SBC is the phyCORE-i.MX 6 module with the i.MX 6 Cortex-A9 processor from NXP. Typical interfaces such as Ethernet, USB, RS-232 / RS-485, CAN, microSD card holder and miniPCIe are built directly on the phyBOARD-Mira. An expansion bus offers access to many other interfaces and expansion options via plug-in boards.

HDMI, LVDS and parallel interfaces as well as connection options for resistive and capacitive touch serve as the user front end.

The AM335x module is directly soldered onto this compact single board computer in Pico-ITX format.

• AM3354 with 800 MHz
• Module soldered on directly
• 2x Ethernet
• 2x RS-232, 1x CAN
• Expansion bus for extensions
• 5 V or 12 V - 24 V.

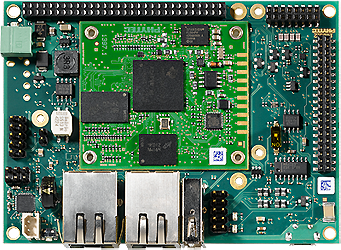

The phyBOARD-Wega in Pico-ITX format (100 mm x 72 mm) is the tiny among the phyBOARDs. A subset is brought out directly to the phyBOARD at interfaces, which is completely sufficient for many applications. In addition, the AM335x single board computer can be modularly expanded using expansion strips. The phyCORE-AM3354 module (in its DSC variant) with ARM Cortex-A8 processor is soldered directly to the phyBOARD-Wega and thus the costs of the overall solution are further reduced.

A number of signals from the AM335x processor are routed to an expansion connector that is intended for plugging in customer-specific circuits. These process connections can easily be implemented by the customer himself. For the customer-specific combination of an individual system, further interfaces are provided on connector strips, such as CAN, RS-232, audio and touch. Connect display and touch efficiently, for this purpose the parallel display interface and the connection of a resistive touch to the AM335x are available. Alternatively, capacitive touches can be connected.

Support of real-time Ethernet protocols and high graphics performance.

• Dual / single-core ARM Cortex-A15
• PRU-ICSS for industrial Ethernet
• Embedded vision engine for AI
• Dual C66x DSP
• 2D / 3D high-performance graphics
• Advanced Video Accelerator with 1080p

The phyCORE-AM57x System on Module (SOM) supports the ARM® CortexTM-A15 processor from Texas Instruments. Particularly noteworthy for the first time is the integration of the dual-core 3D graphics acceleration (SGX544) and the video acceleration for a 1080p HD stream in one processor, which is also able to control multiple displays.

On the performance side, the two Cortex-A1,5 cores (15 DMIPS / MHz) that can be clocked up to 3,5 GHz and the two C66x DSPs are supported by 2x 32-bit DDR3 / DDR3L, with one memory with ECC (Memory Error Detection ) Is provided.

With the extensive feature set described, the phyCORE-AM57x is particularly suitable for applications in the areas of human-machine interface, aviation control, industrial automation, machine vision, medical imaging and networking.

For security-critical applications, time sensitive networking and high demands on graphics performance.

• Quad ARM Cortex-A53 and Dual Cortex-R5F subsystem
• 3D graphics support via PowerVR SGX544 Core
• Up to 6 gigabit industrial communication interfaces
• Wi-Fi onboard
• 3x audio McASP
• MIPI DSI and LVDS

The phyCORE-AM65x System on Module offers Secure Boot, interfaces for industrial multi-protocol gigabit communication and comprehensive graphics features. It is suitable for security-critical applications and Time Sensitive Networking (TSN).

Possible applications of the module are industrial communication systems, automation, edge computing, networked infrastructure and applications with high demands on reliability. The main applications can run on the Quad-Cortex-A53 processor, while the six PRUs are used for time-critical communication protocols such as TSN. The separate dual Cortex-R5F processor cores are available for safety-critical applications.

The phyCORE-AM335x module is a cost-effective and robust solution in machine-level applications.

• Texas Instruments AM3359/8/7/6/4/2
• ARM Cortex-A8 with up to 1 GHz + 2 x PRU computing core
• Flexibility through soldering or plug technology
• Real-time Ethernet protocol support
• SGX530 graphics unit for 2D or 3D
• Optional: module variant with up to 64 GB eMMC

• Yocto / Linux BSP kernel, including preempt RT support
• Integrated RAUC update mechanism
• bbu.sh Script for bootloader updates from the userspace

The phyCORE-AM335x module is a cost-effective, space-saving and robust solution in machine-level applications. High computing power, accelerated 2D / 3D graphics and the real-time processor unit (PRU) enable the support of real-time protocols such as CANOpen, Profibus and EtherCAT with simultaneous visualization of system processes. A module variant with eMMC instead of NAND Flash is also available.

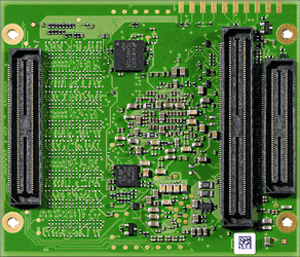

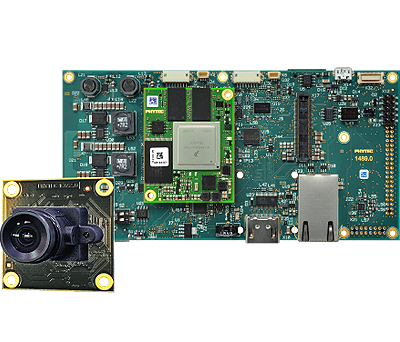

The phyCORE-i.MX 6 is suitable for numerous industrial applications. Long-term available and proven many times over.

• Scalable: i.MX 6Solo to i.MX 6Quad ​​1.2 GHz
• Flexibility through soldering or plug technology
• Voice control engine
• MIPI CSI + camera parallel
• SATA
• LVDS, parallel 24-bit, HDMI

With the phyCORE-i.MX 6 you are choosing the smallest industrial i.MX 6 design on the market. The Cortex-A9 quad-core computing power is only 40 mm x 50 mm including PMIC. The module can optionally be equipped with SLC-NAND Flash or eMMC. Variants of the System on Modules in DSC technology are also available.

Release PD 6 is available for download as a Board Support Package for the phyCORE-i.MX 18.1 System on Module. The mainline BSP with kernel version 4.14 (LTS) offers open-source graphics support via Etnaviv, extended camera support for our phyCAM-P and phyCAM-S camera modules and the preparation of RAUC update mechanisms including a demo.

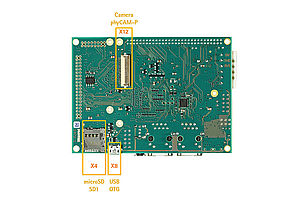

Linux computers for less than 20 euros

• Energy efficient
• Cost-efficient
• Soldering module
• Small form factor
• Can be produced completely by machine
• Available in rolls of 175 pieces.

• MIPI CSI + camera in parallel
• Available in the industrial temperature range
• Long-term availability of 15 years

The phyCORE-i.MX 6UL / ULL is an embedded SOM suitable for industrial use with complete Linux implementation, which is available at series prices below 20 euros (from 10.000 pieces). With its low energy consumption and module size of just 36 x 36 mm, it also opens up the advantages of the Linux world for applications that were previously only equipped with MCUs. The module is based on the i.MX 6UL / ULL processor from NXP.

The System-on-Module was developed and optimized with regard to complete industrial suitability and for large-scale production. On the other hand, it is characterized by its price-optimized parts list as well as by the one-sided assembly and the solder contacts on the outside. The module supports the extended temperature range for use in industrial applications. Long-term availability of at least 15 years and the fulfilment of the highest demands on quality, EMC properties and security enable use in medical technology and automation, among other things. On request, Phytec can supply the phyCORE-i.MX 6UL taped on rolls of 175 modules or 20 modules in the prototype -phase.

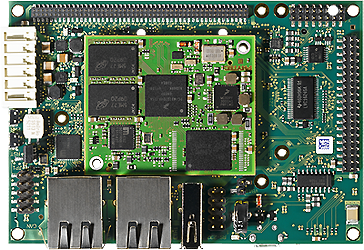

This module is ideally suited for applications with critical power consumption requirements.

• i.MX 7Solo / Dual up to 2x 1 GHz
• Cortex-M4 for real-time applications
• eMMC or SLC NAND
• 2x Gigabit Ethernet
• MIPI DSI and parallel 24-bit
• MIPI CSI

The module supports onboard DDR3, NAND, NOR, eMMC, Gigabit-Ethernet, RTC, power management and offers a variety of interfaces for connecting external devices via PCIe, WiFi, Bluetooth and GPS, displays, cameras and sensors. This module is easy to use and offers a range of applications for industrial use, such as IoT gateways, HMIs, factory automation, operator terminals, building automation, medical imaging and portable measuring devices.

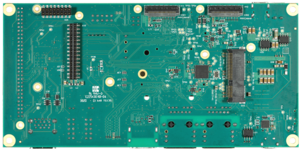

For the highest demands in the areas of graphics, imaging and security.

• Up to 8 cores
• Maximum feature expansion with 480 pins
• Optimal EMC properties
• Vision extensions
• Audio processing subsystem
• 2x LVDS, 2x MIPI DSI, 1x HDMI

• Less circuit complexity due to 3,3 V supply voltage and suitably programmed PMICs
• Easier design of the baseboard through optimized pinout
• Dual GB Ethernet
• USB 3.0, 3x FlexCAN
• Finished cooling concept

• Quad Core Cortex-A53 1,5 GHz and Cortex-M4F
• Wi-Fi / BLE 4.2 onboard
• 4k Ultra HD, HDR10, Dolby Vision
• Optimal signal and system stability
• Fused Tin Grid Array (FTGA) with excellent shock and vibration resistance
• Maximum 8 GB LPDDR4 RAM, up to 64 GB eMMC

• 505 pins, large interface subset
• Suitable for applications in demanding and harsh environments
• Optimized pinout for carrier boards with low circuit complexity

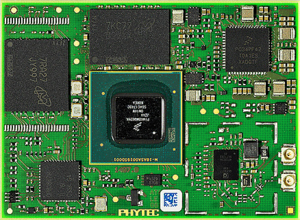

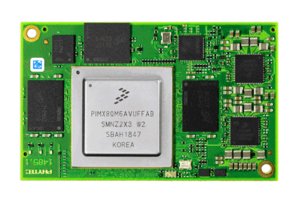

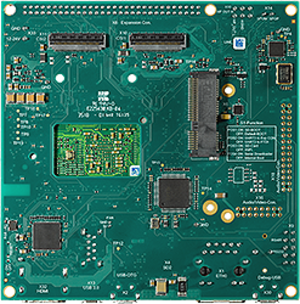

NXP i.MX 8M processor with up to 1,5 GHz and 3D graphics acceleration

• Quad-Core Cortex-A53 1,5 GHz and Cortex-M4F 400 MHz
• GC7000L 3D graphics processor
• 4k Ultra HD, HDR10, Dolby Vision

On-board

• Maximum 8 GB LPDDR4 RAM, up to 64 GB eMMC
• 4 kB EEPROM and up to 64 MB QSPI NOR flash
• Module PMIC, GBit Ethernet-PHY, RTC, Wi-Fi / BLE 4.2

Small, compact dimensions

• Dimensions: 60mm x 40mm x 5mm
• 501 solder contacts + 4 solder corners
• Fused Tin Grid Array (FTGA) with excellent vibration resistance

Development advantages

• 3,3 V power supply and optimized pinout for carrier boards with low circuit complexity
• The soldering module, therefore direct cost savings by saving the connectors
• Optimal EMC properties thanks to more than 20% GND contacts that are directly assigned to the individual signals

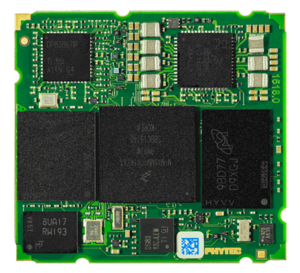

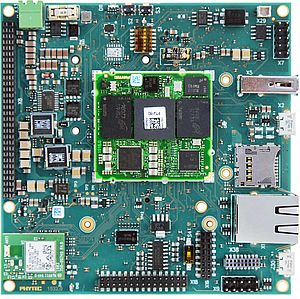

Energy-efficient computing power on just 40 mm x 37 mm.

• Scalable performance i.MX 8M Mini SoloLite to Quad
• Cortex-M4 for real-time applications
• MIPI-DSI to FlatLink converter
• Optimal EMI and EMC properties
• FTGA soldering technology
• Resistance to shock and vibration

• 1080p video encoding / decoding
• 2D / 3D graphics acceleration
• MIPI CSI-2
• Multichannel audio
• Pin-compatible with the i.MX 8M nano processor

• Multimedia encoder - video, graphics, audio

  The i.MX 8M Mini encodes videos and converts camera raw data into a transferable format. i.MX 8M Mini is a performance-oriented multimedia professional, i.MX 8M Nano has slimmer multimedia properties and is cheaper.

• Scalable performance across the entire i.MX 8 family

  Under Yocto, PHYTEC maintains the same software infrastructure for all derivatives of the entire i.MX 8 family.

• Hard real-time and convenient application

  The Cortex-A53 processor handles application tasks comfortably with the support of an operating system. The Cortex-M4 controller takes on deterministic tasks with real-time requirements.

• High performance with low power consumption

  Simpler cooling concepts thanks to the favourable MIPS per watt ratio of the Advanced 14LPC FinFET process technology.

• High vibration and shock resistance

  Tested according to DIN EN 60068-2-6, DIN EN 60068-2-64 and DIN EN 60068-2-27.

The phyCORE-i.MX 8X System on Module combines high performance with low power consumption.

• Energy efficient design
• HiFi 4 audio DSP
• SE050 NXP Security Chip
• Optimal EMC properties
• 3x CAN / CAN FD
• 2x LVDS

• Less circuit effort due to 3,3 V power supply and appropriately programmed PMICs
• MIPI CSI and camera parallel

The phyCORE-i.MX 8X System on Module combines high performance with low power consumption. It was designed with a view to a favorable price / performance ratio and for use in a wide range of control tasks. Thanks to the industrial interfaces such as CAN, the phyCORE-i.MX 8X System on Module is suitable for common industrial applications.
