Products & Services
MINI COMBINE HARVESTER 4LBZ110
Product Detail
MINI COMBINE HARVESTER 4LBZ110
KYM(TM) Combine Harvester 4LBZ-110 Model,
Manufactured by S S Agrotech,
22, Rabindranagar, Ground floor, Shop-2, Kolkata-700108,
Under Make in India Project.
Office: 033-7962 5468.
For More Details Contact: 6291310004 / 9903410899
e-mail: e-procure@ssagrotech.in
Web: www.ssagrotech.in
Product Description:-
Name: Wet Paddy Rice and Wheat Harvester
Model:4LBZ-110
Structure form: Crawler self-propelling
Engine Model: ZS1115/Hp22
Type: Single-cylinder four-stroke horizontal water-cooled
Power: 14.7KW
Speed: 2200rpm
Overall dimension in operating status(L*W*H):590 x 1330 x 2010 mm
Weight:950kg
Width of cutting table: 1100mm
Feeding quantity: 1.0kg/s
Minimum ground clearance: 172mm
Theoretical operating speed: 1.6-2.8km/h
Mud depth :≤200mm
Total loss: ≤2.5%
Sundries: ≤1% (with wind selection)
Breakage:≤0.3%
Hourly production: 0.08-0.15ha/h(1ha=10000 square meter)
Fuel consumption: 12-20kg/ha(1ha=10000 square meter)
Type of cutter: Reciprocating type
Thresher drum Quantity: 2
Main drum type: Stripping belt
Main drum dimension(perimeter*width): 1397 x 725mm
Type of concave screen: Grid type
Re-thresher type: Axial flow tooth
Grain collecting type :Manual grain collecting
Additional Information:-
Item Code: 4LBZ-110
Delivery Time : 60 DAY
Production Capacity: 100 PIECE
Packaging Details: NOOD PACK
+ Show more
- Show less
Specifications
KYM MINNI COMBINEE HAARVESTER 4LBZ 120
Product Detail
KYM MINNI COMBINEE HAARVESTER 4LBZ 120

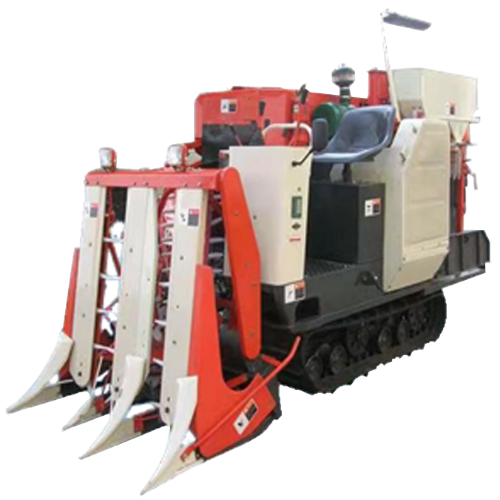

HEAD FEED MINI COMBINE HARVESTER 4LBZ-120
SPECIFICATIONS
Model 4LBZ-120
Sizes:(L*W*H) (mm) 3650x1800x1820
Weight:(kg) 1480
Engine Model: 2105
Type Vertical water cooling two cylinder four stroke diesel engine
Rated output / speed ps (KW) / rpm] 35 (26) / 2400
Fuel: Diesel
Starting Mode Electrical starting
Track: pitch gap × pitch number × width 90×42×350
Ground clearance :(mm) 220
Walking Section Shift mode Hydrostatic continuously variable transmission (HST)
Shift grade Stepless (subtransmission 2 grade )
Walking speed Forward:(m/s) "low speed 0-1.06,
high speed 0-1.51"
Backward: (m/s) "low speed 0-1.06,
high speed 0-1.51"
Steering mode Hydraulic control
Harvesting Section Harvesting lines 3
Harvesting width: (mm) 1200
Cutting height range:(mm) 50-150
Adaptable height of crop (full height) (mm) 650-1200
Lodging crops adaptability:(degrees)
Cutting forward direction: ≤75° Cutting reverse direction: ≤ 65°
Threshing depth control system Manual
Gear of cutting table 3 levels (low speed, high speed, middle speed)
Threshing Section Threshing system Monocular, axial, low detachable
Threshing cylinder Diameter × length (mm) 380×665
Speed:(rpm) 630 Grain tank "Capacity [L (bag × 50L) ]" 105 (2×50)
Grain unloading port 2
Straw Cutting Section Factory style Straw cutting length (mm) 65
Working Efficiency Ha/h 0.1 - 0.2
DELIVERY 60 DAYS
+ Show more
- Show less
Specifications
Agricultural machinery
Product Detail
Agricultural machinery
+ Show more
- Show less
FULL FEED COMBINE HARVESTER 88 HP
Product Detail
FULL FEED COMBINE HARVESTER 88 HP
+ Show more
- Show less
FULL FEED COMBINE HARVESTER 100 HP
Product Detail
FULL FEED COMBINE HARVESTER 100 HP

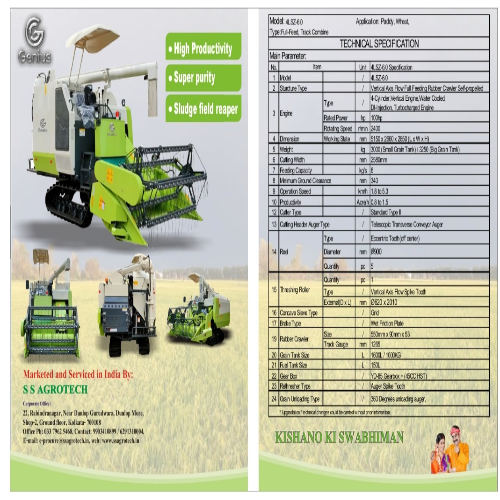

"Genius" full feed combine harvester,
Model: name GENIUS- 4LSZ-06
Engine: 100hp.
cutter : 9 ft. ,
grain tank: 1000 kg,
working capacity: 1.5 acre/hr
Warantee: 2 years service waranty only,
Finance: Available on this machine
+ Show more
- Show less
Specifications
