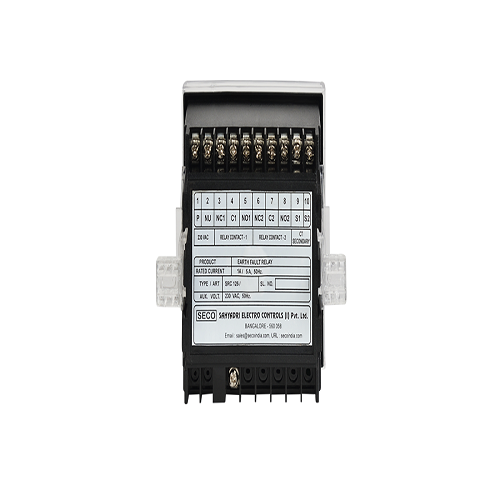

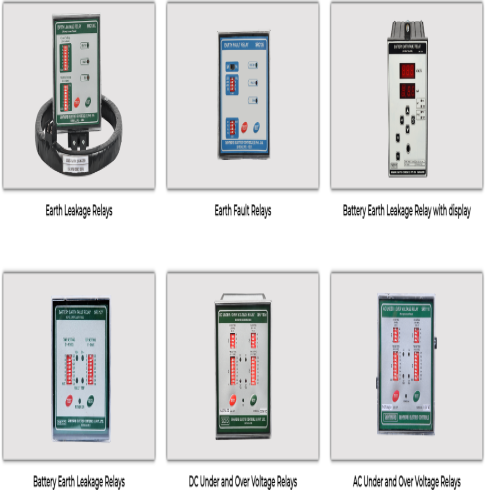

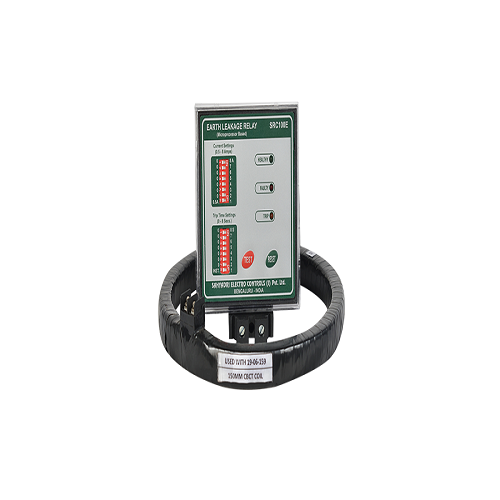

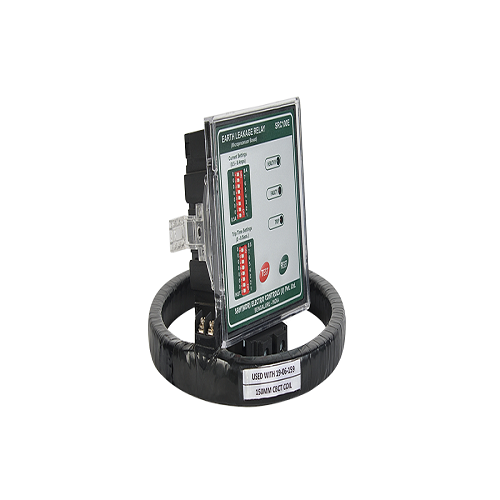

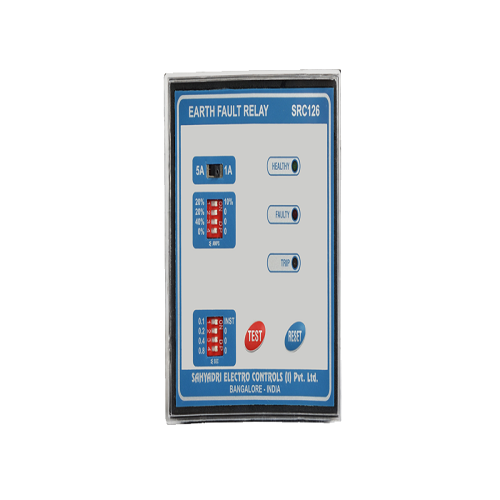

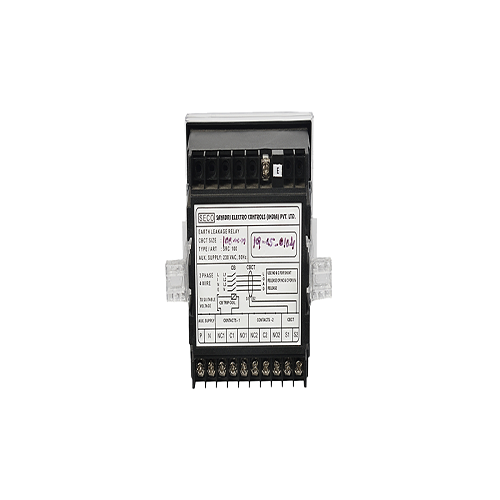

We design and manufacture microcontroller based Earth fault Relays with advance technology & wide range of current setting & time setting with selectable 1A & 5A and high operating accuracy. Low depth of 45 mm moulded Box with Suitable clamps are provided for surface mounting and projection mounting.

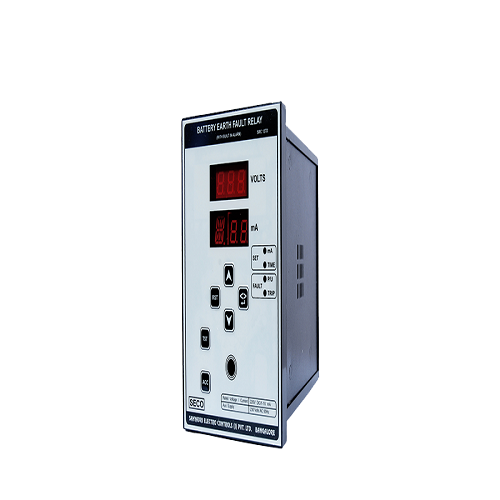

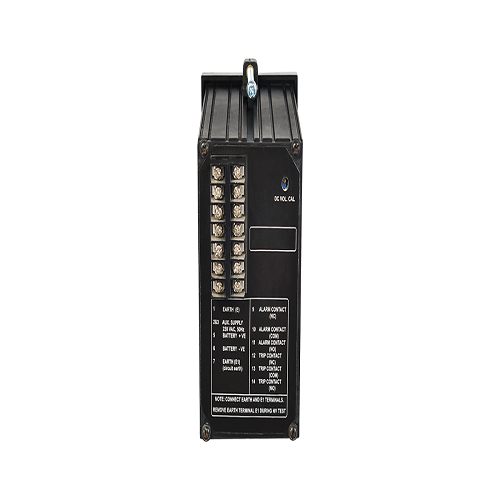

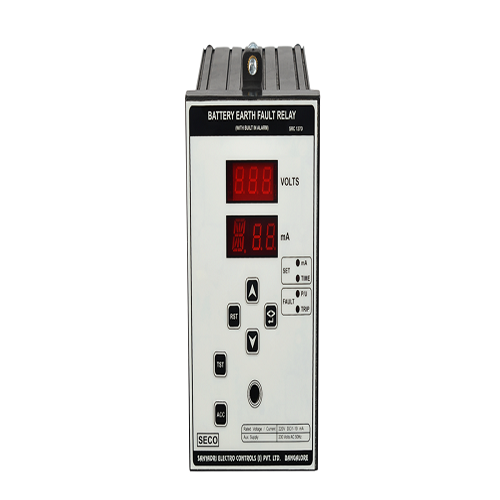

We design and manufacture microcontroller based advanced technology Battery Earth fault / Leakage Relays with Display unit and wide range of leakage current setting, time setting, Voltage display & Battery leakage Indication display.

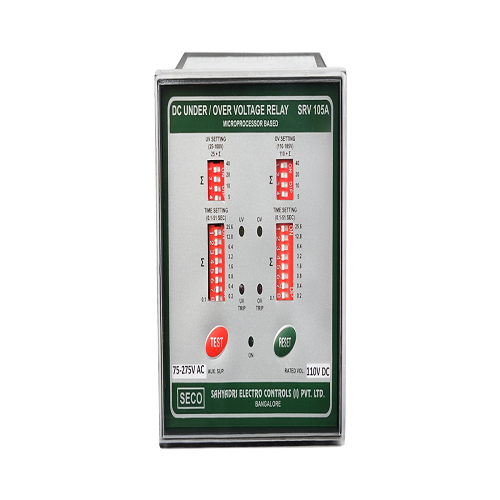

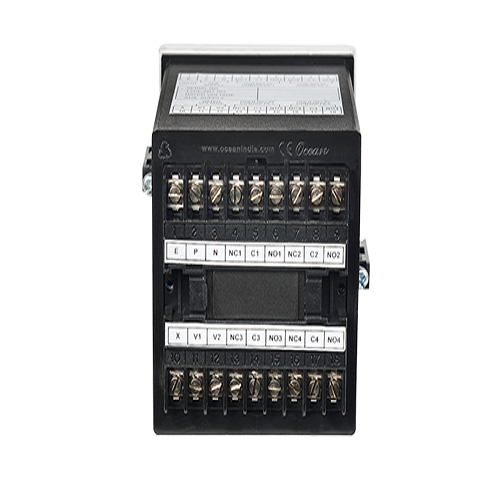

We design and manufacture Microcontroller based DC Under and Over Voltage Relays with wide range of voltage & time setting through Dip switches, suitable for 24, 30, 110 & 220V DC rating. Highly accurate & reliable product is provided in 96 Sq. mm Box.

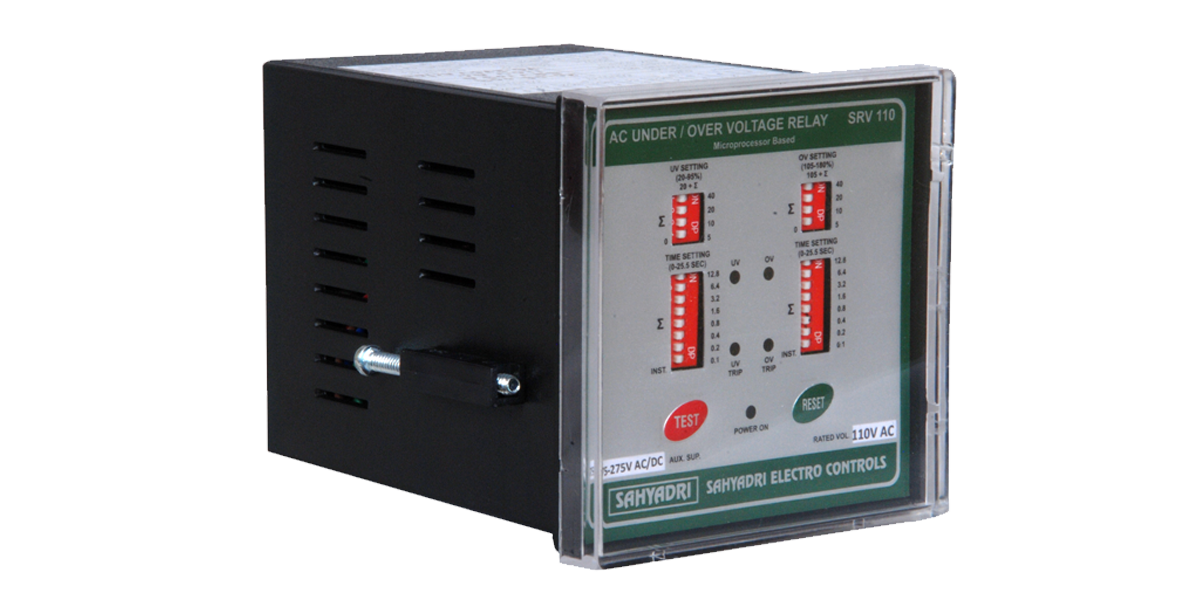

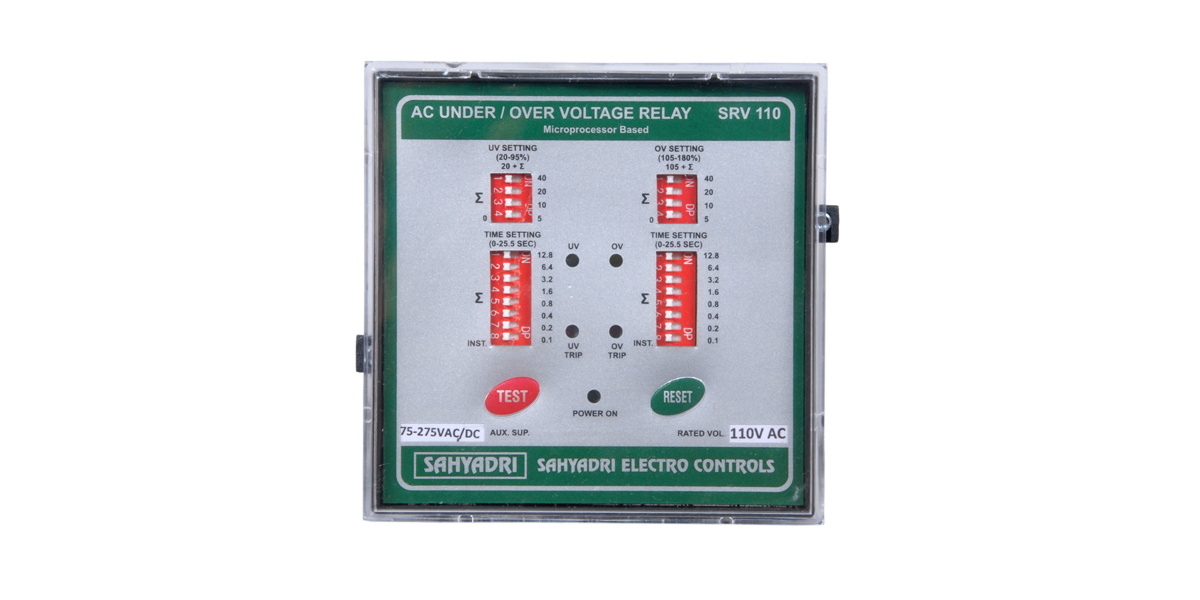

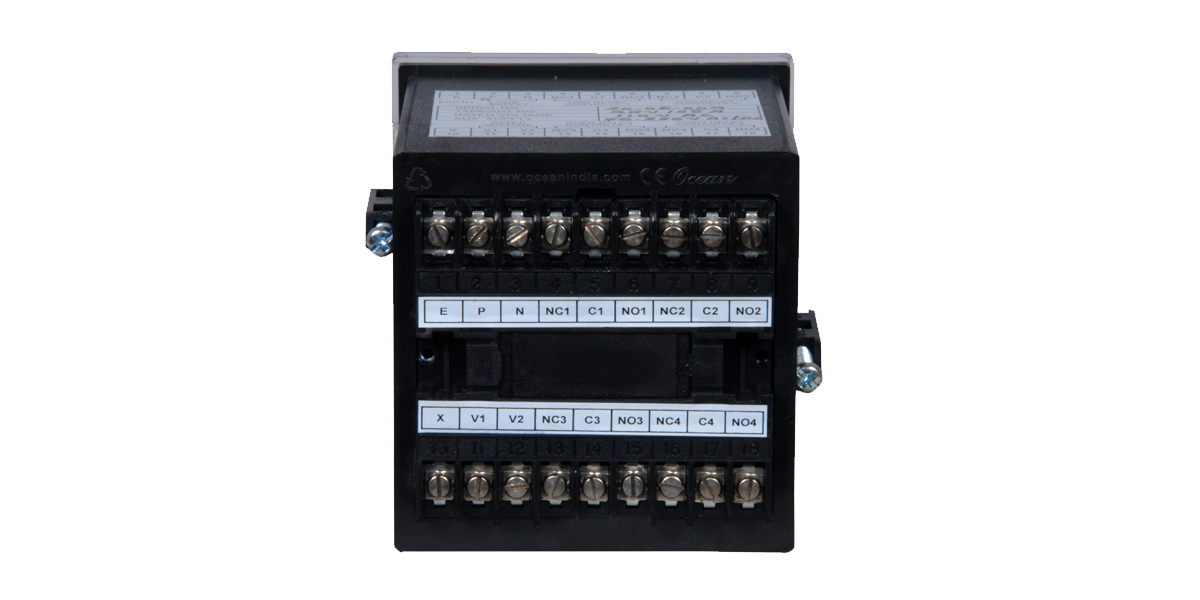

We design and manufacture Microcontroller based advance technology Single phase AC Under Voltage Relays with wide range of voltage & time setting through Dip switches, suitable for 110V, 230V, & 415V rating. Highly accurate & reliable product is provided in 96 Sq. mm Box.

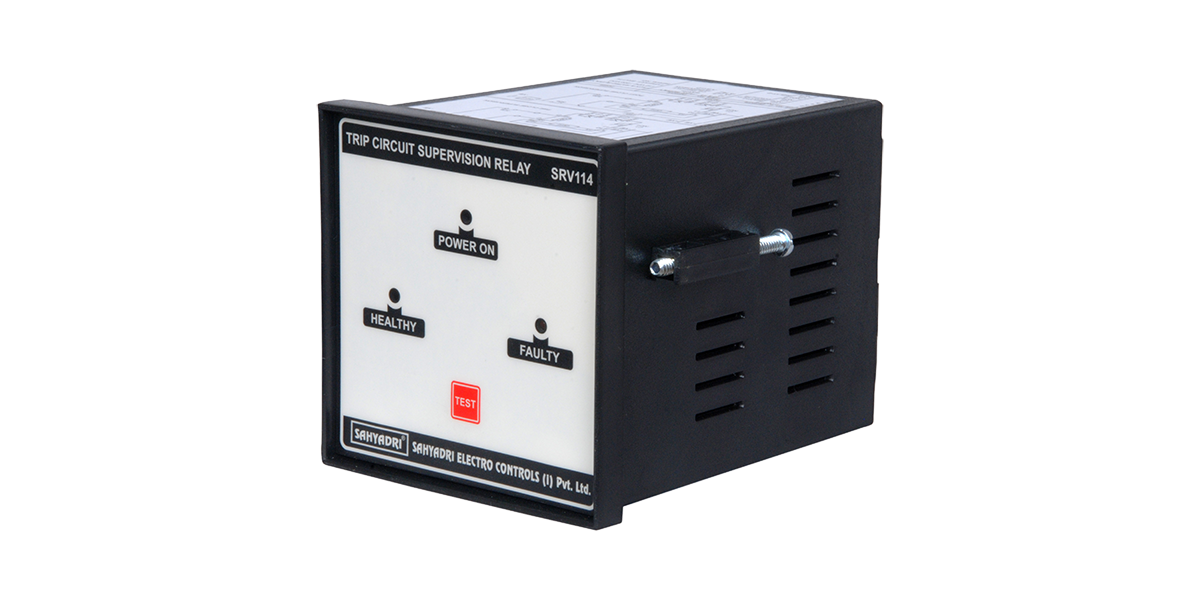

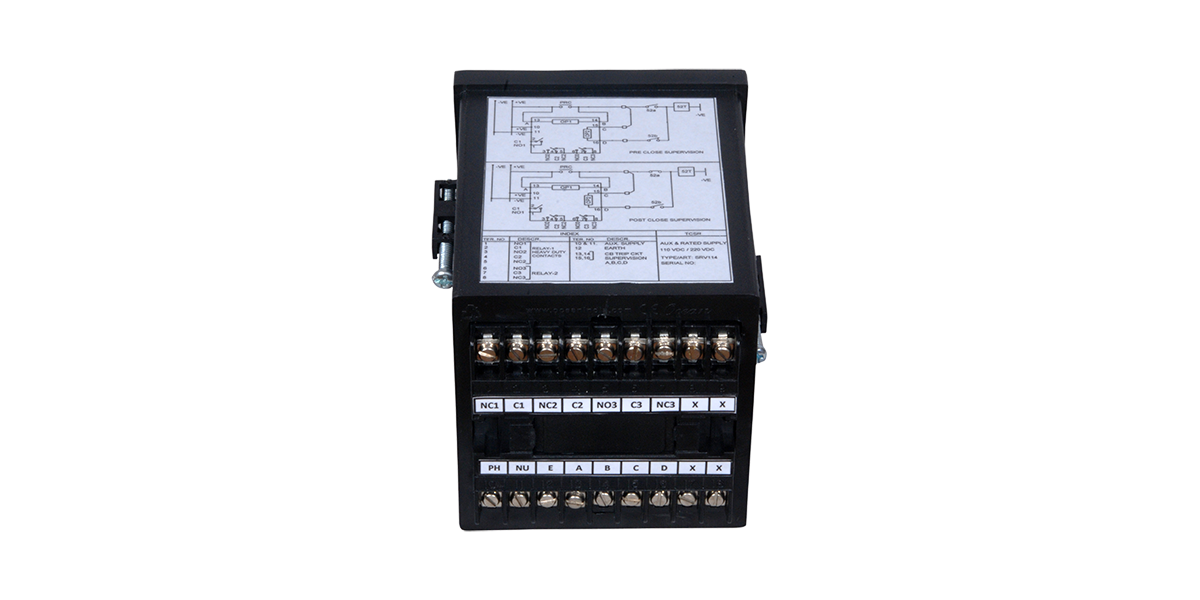

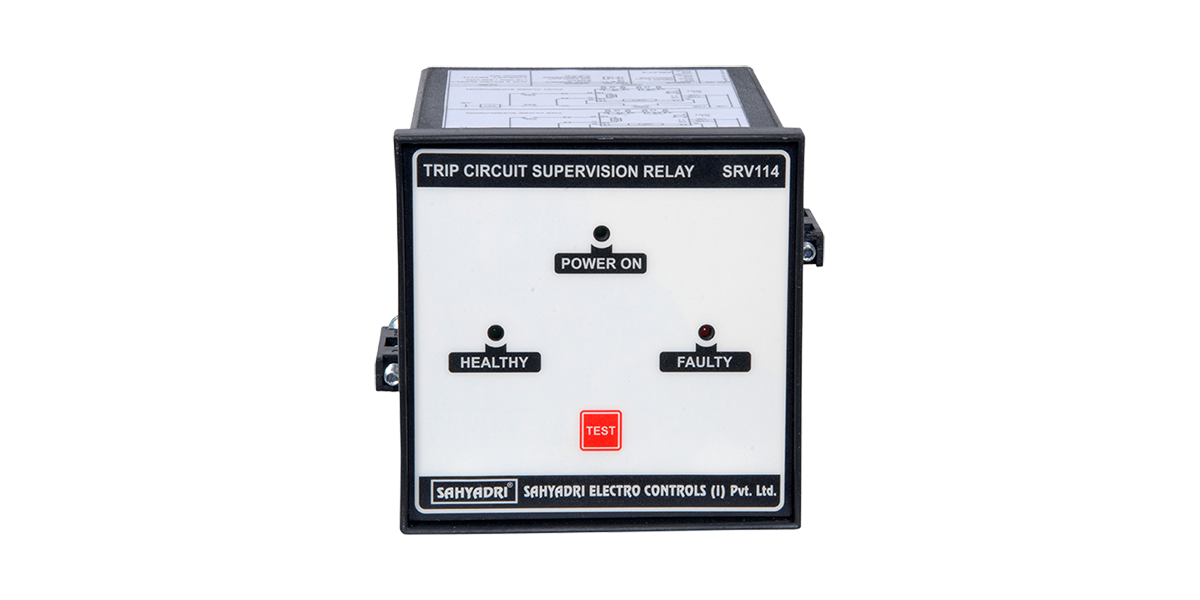

We design and manufacture Microcontroller based Trip Circuit supervision Relay to monitor the trip circuit of the Breakers. Unit is Suitable for single cable & three cable supervision of the Trip circuit. Relay gives fault indication along with output relay contacts. Useful in 11KV breakers and Control panels.

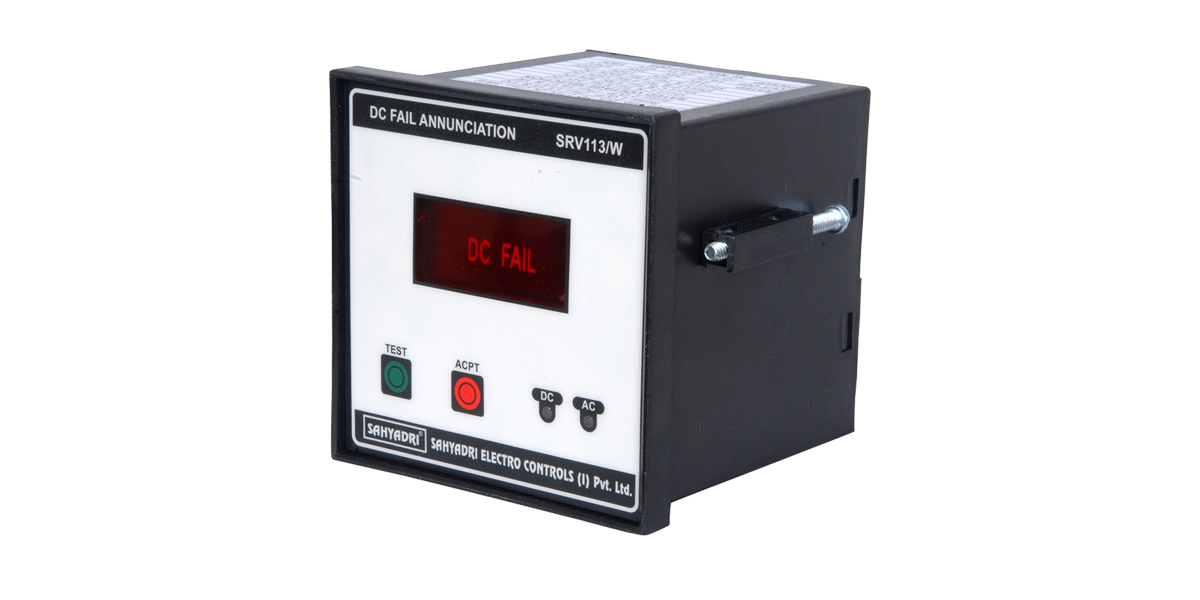

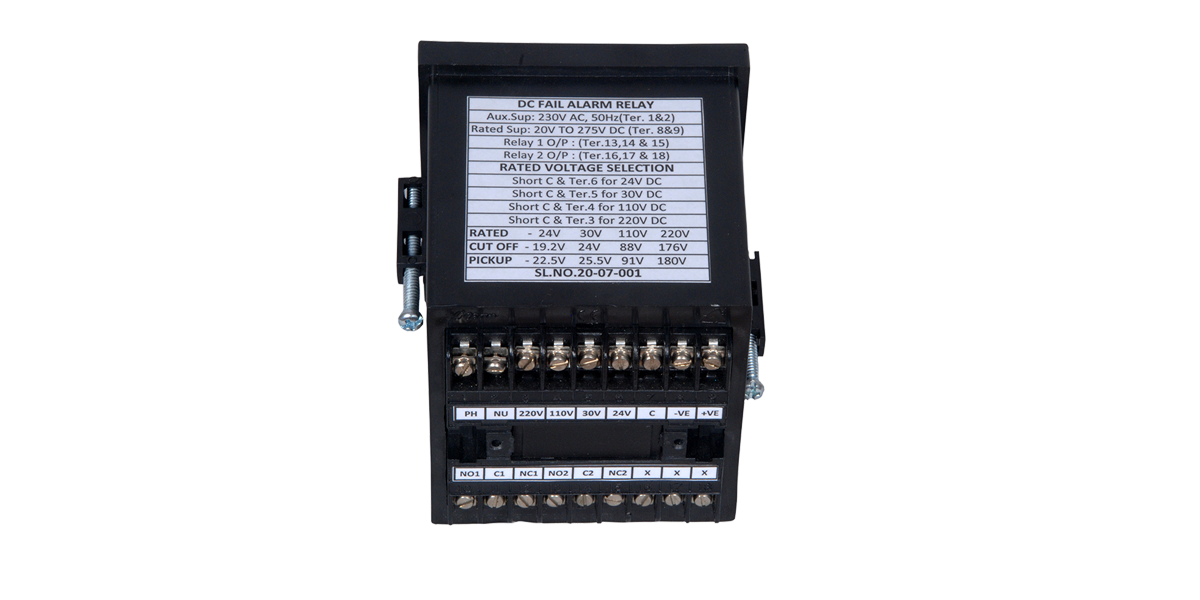

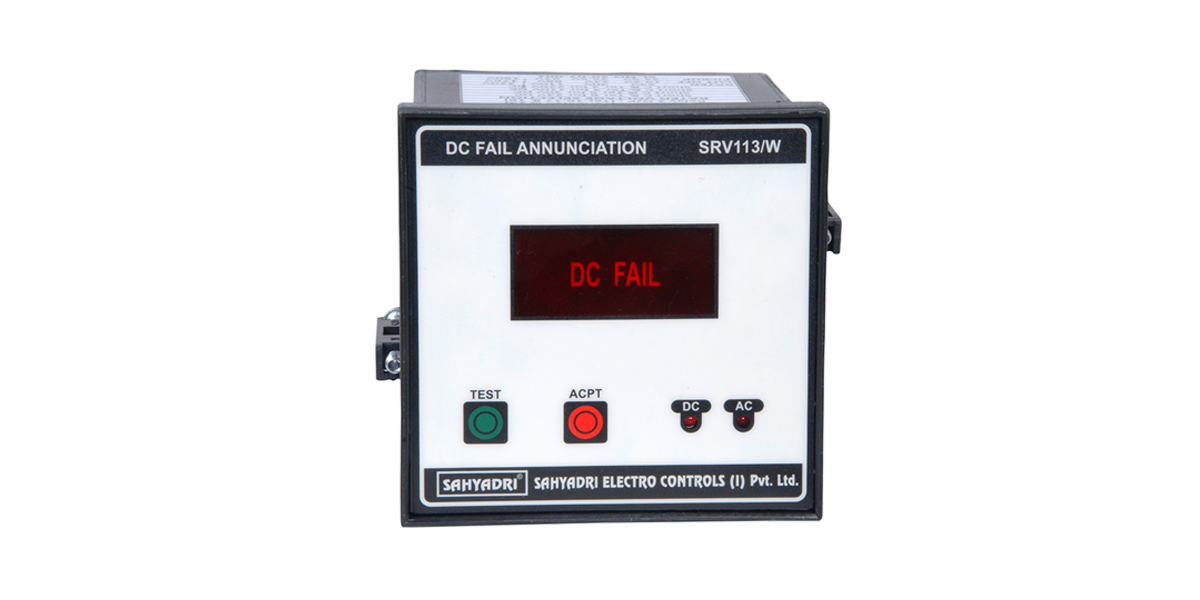

We design and manufacture Microcontroller based DC Failure Relay to monitor the DC supply / station batteries voltage and DC Protection Fuses in Control & relay panels. When DC supply fails and need the attention of the operators in the substations, DC failure relay gives Indication & output contacts.

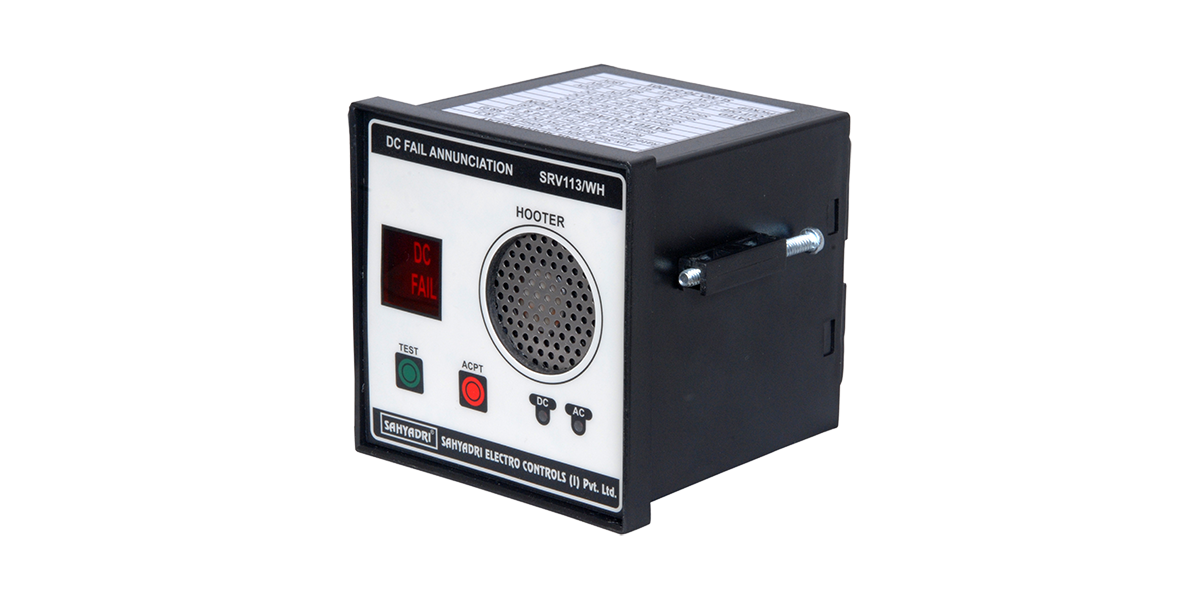

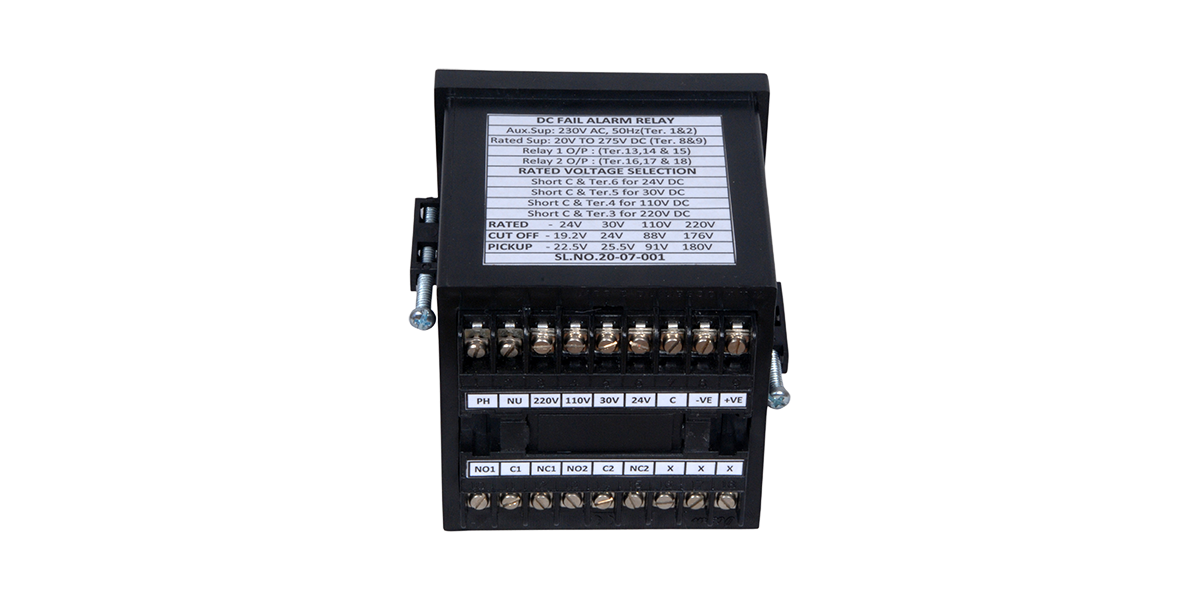

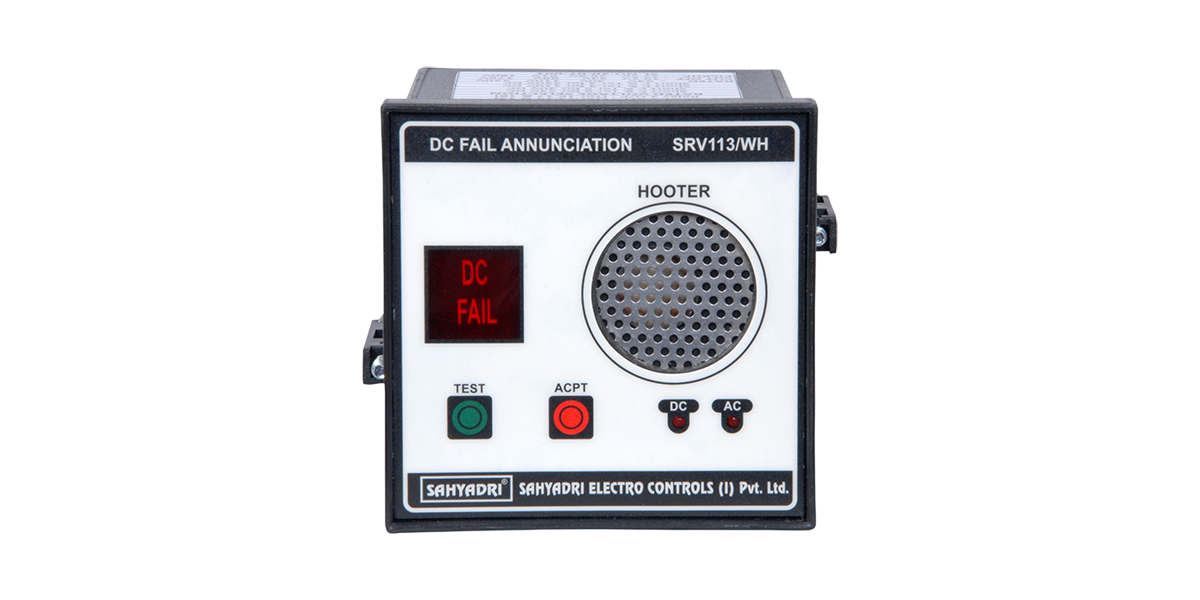

We design and manufacture Microcontroller based DC Failure Relay to monitor the DC supply / station batteries voltage and DC Protection Fuses in Control & relay panels. When DC supply fails and need the attention of the operators in the substations, DC failure relay gives Indication & Alarm sound.

We design and manufacture Microcontroller based DC & AC Failure Relay to monitor the DC supply / AC Supply &DC Protection Fuses in Control & relay panels & Battery Charging panels, When the DC / AC supply fails and need the attention of the operators in the substations, DC failure relay gives Indication & Alarm sound.

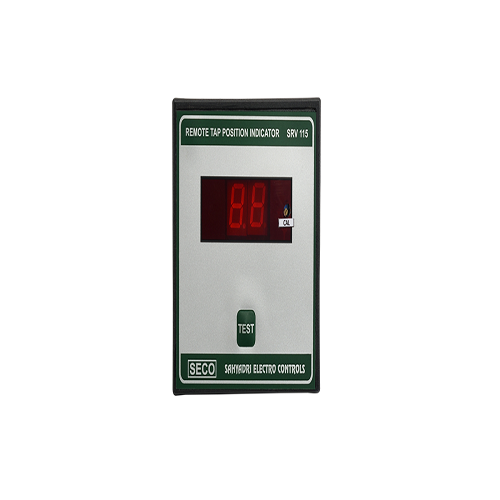

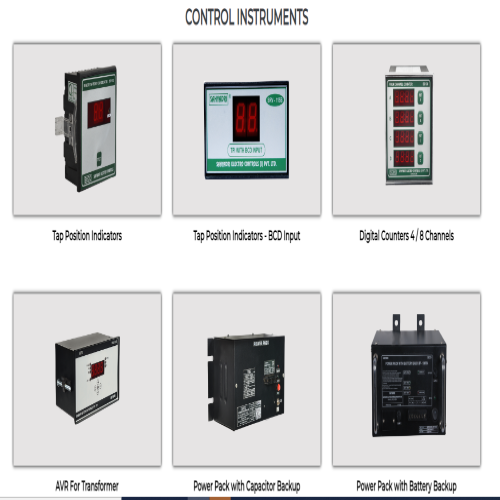

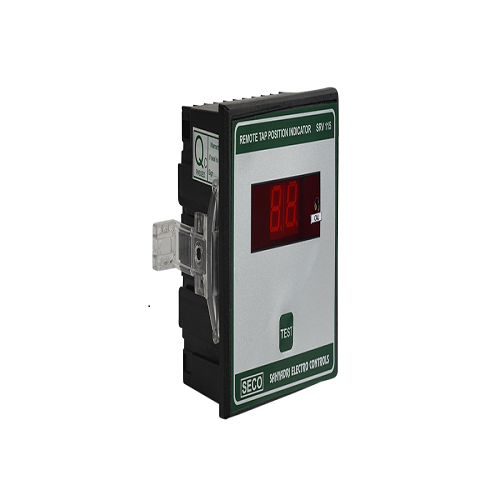

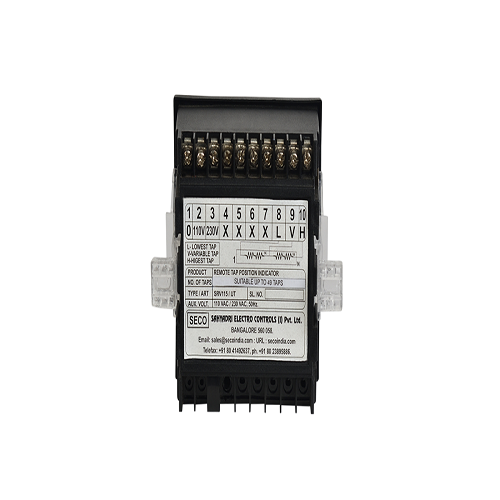

We design & manufacture Microcontroller based TAP Position Indicators to monitor the Transformer TAPS. This is a common unit suitable for 17, 21, 25, 35 Taps and input of 1K resistor of the Transformer used in RTTC panels.

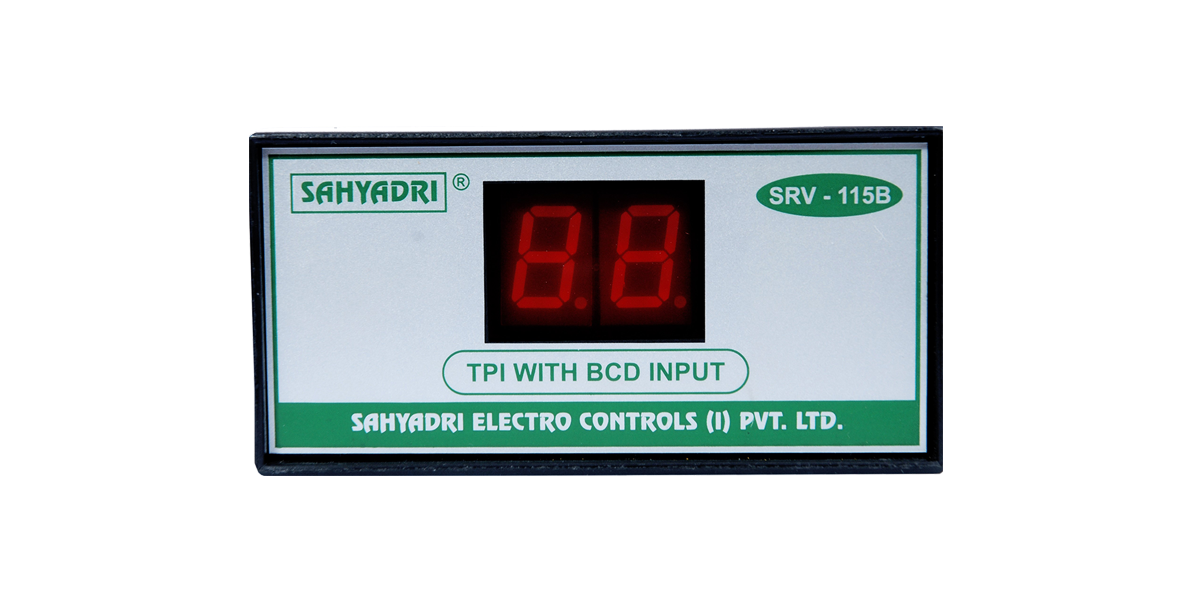

We design & manufacture Microcontroller based TAP Position Indicators to monitor the Transformer TAPS. This unit works on BCD input from Tap changer of the Transformer used in RTTC panels.

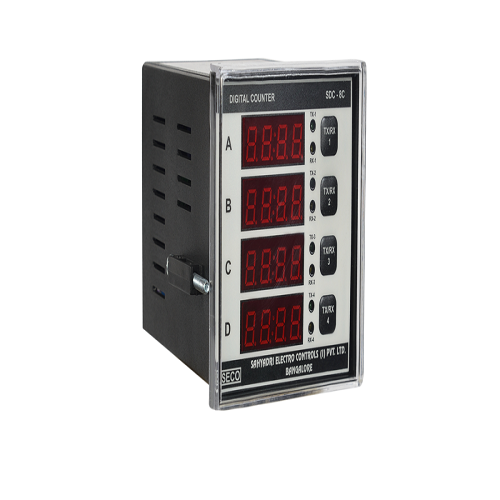

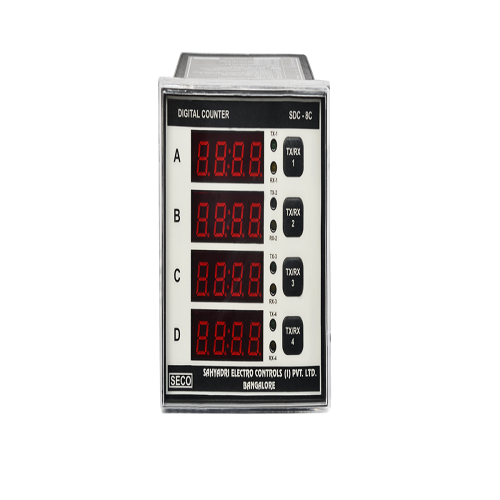

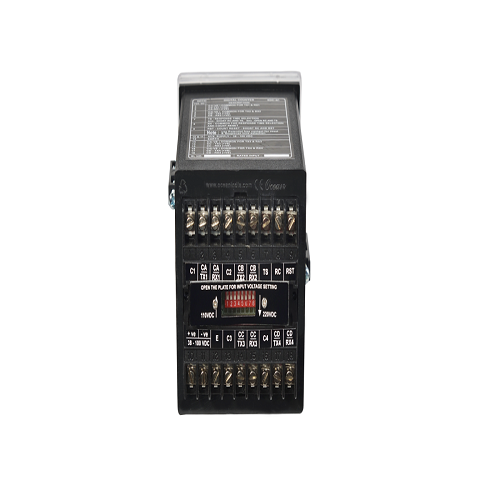

We design & manufacture Microcontroller based Digital counters which counts the number of operation with Digital Display. This product has universal application in complex counting, packing, Pharmaceutical, textile Industries and also used in Substation SCADA communication.

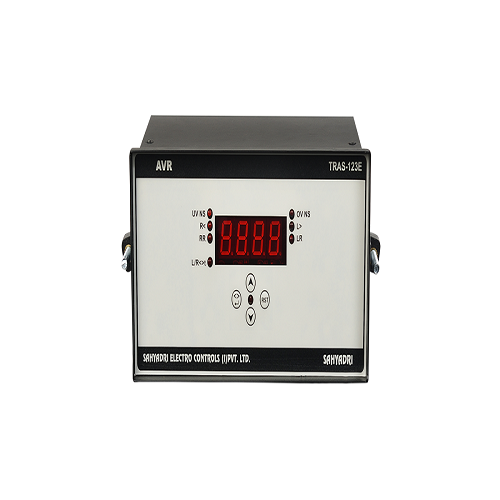

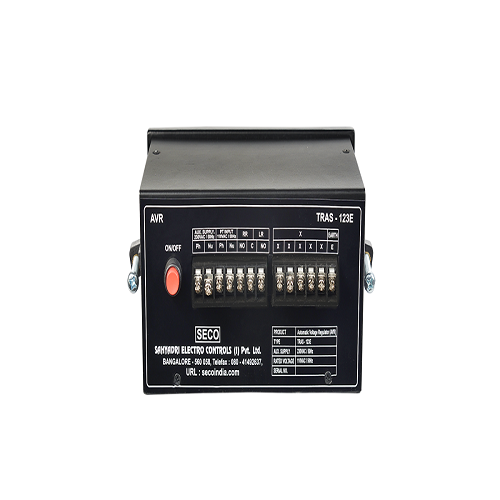

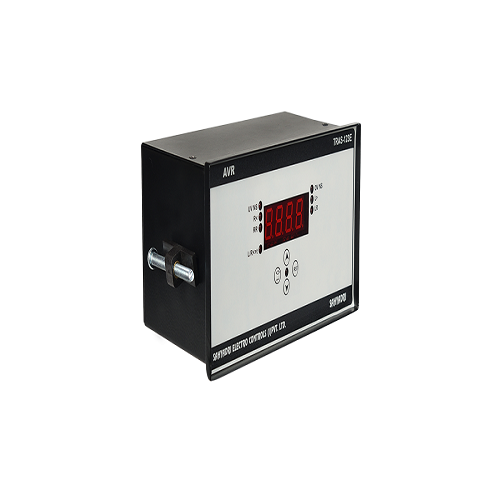

We design and manufacture Automatic Voltage Regulating Relay with Microcontroller based advance technology. This is used for regulating the secondary voltage of power Transformer with on- load Tap changer. This will reduce the number of operations of the tap changer, When the regulated voltage falls below the specified Under Voltage limit.

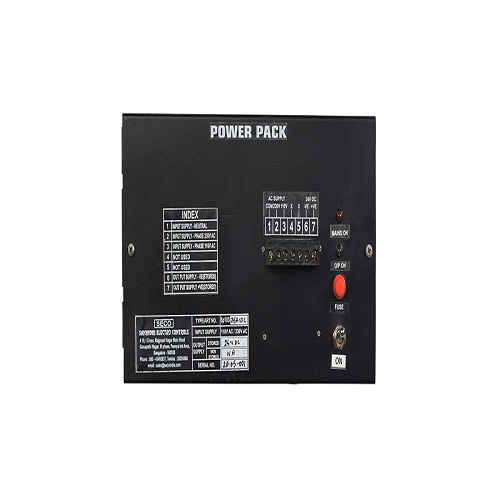

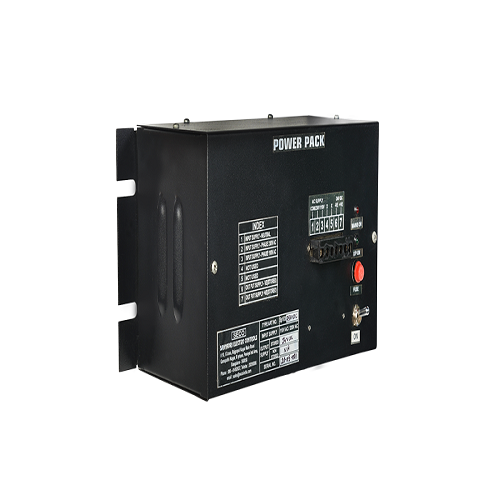

We design and manufacture Power Pack (Capacitor Backup) unit that rectifies the AC supply and stores rectified DC energy in number of predetermined capacitors to ensure that sufficient DC energy is made available to energize the Trip coil of the breaker during fault condition.

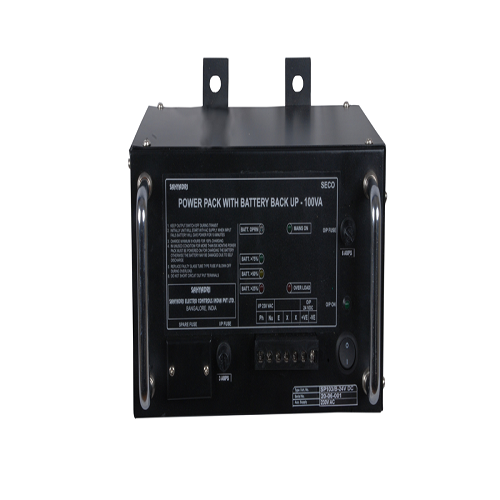

We design and manufacture Powerpack (battery backup) used as a power source for Breakers & Control Relay Panels in substations where dedicated Station Batteries are not available. Internal 12V Battery of the Power packs gets charged from AC Source and it will give DC Voltage output to the connected loads for operating close/trip coils and other essential loads such as auxiliary supplies to protection relays, Indicating Lamps and other circuits.

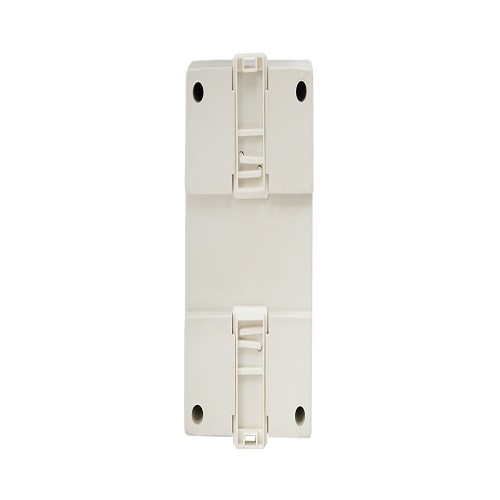

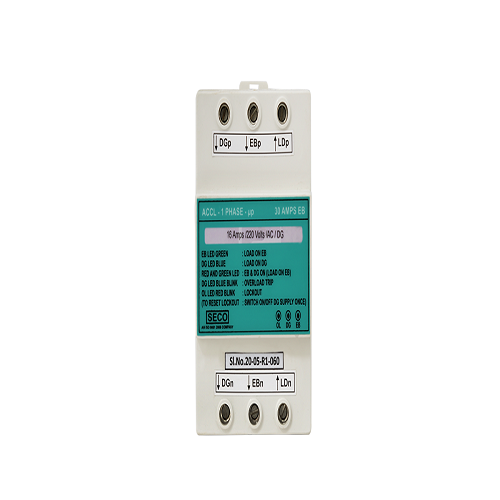

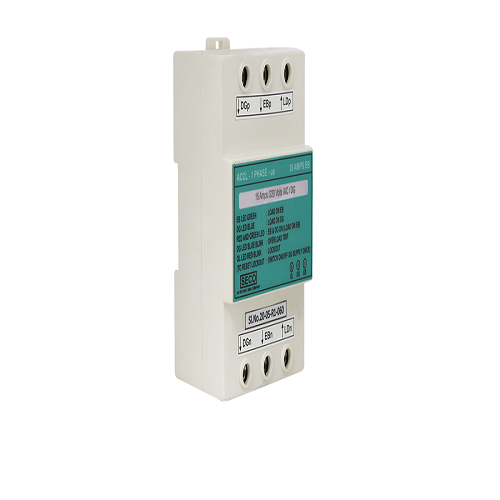

We design and manufacture Automatic Source Change over with current limiter unit is more useful in domestic sector(apartments), where unit will allow maximum load current in EB supply & with Generator supply it acts like load limiter to protect the DG with over load. And also this will give under voltage & Over Voltage blocking protection with DG supply. Maximum DG load set current will be pre specified in the factory settings only (from 5 to 30A).

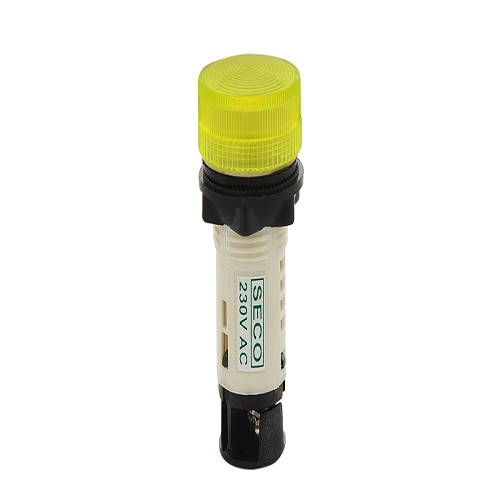

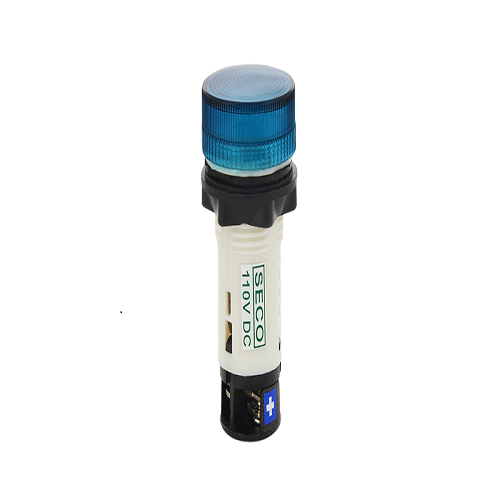

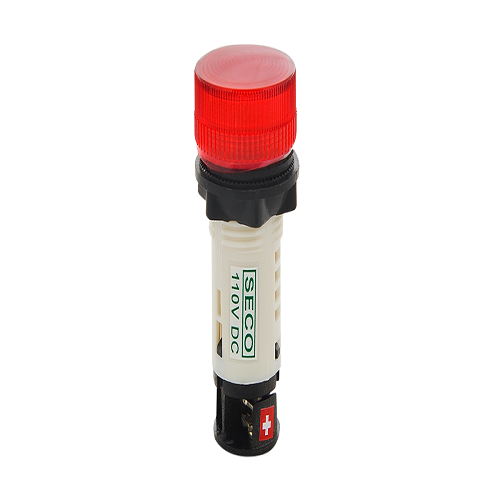

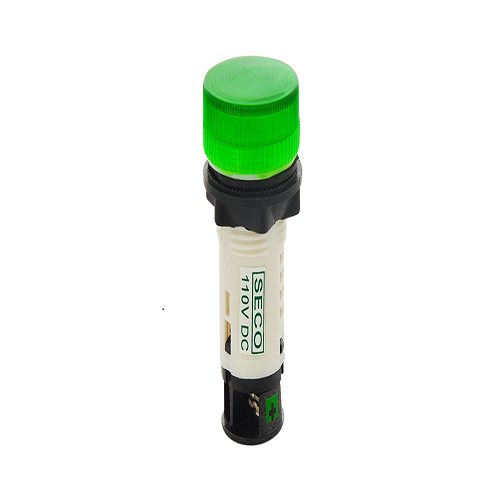

We design and manufacture tubular type Indicating lamps suitable for 22.5 Dia holes. Available in all colours, all fixed voltages and universal voltages. Suitable for all types of Electrical panels.

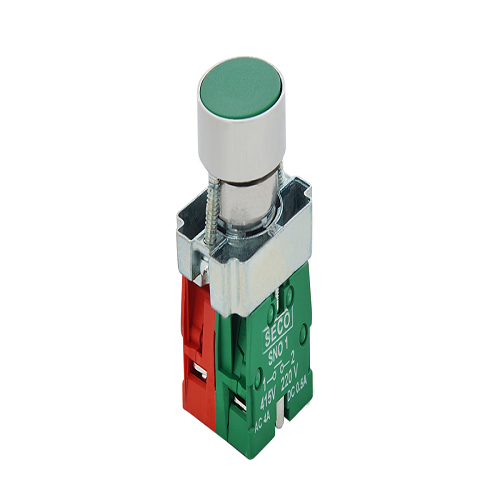

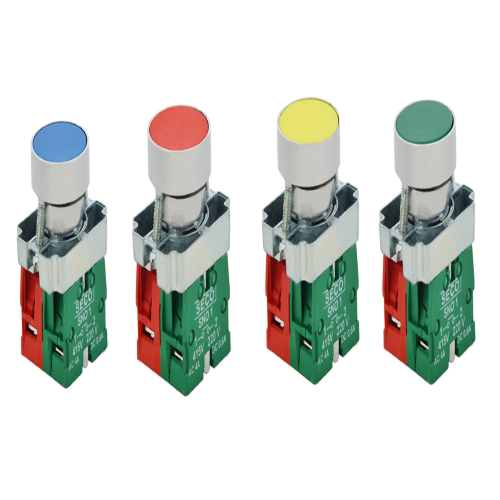

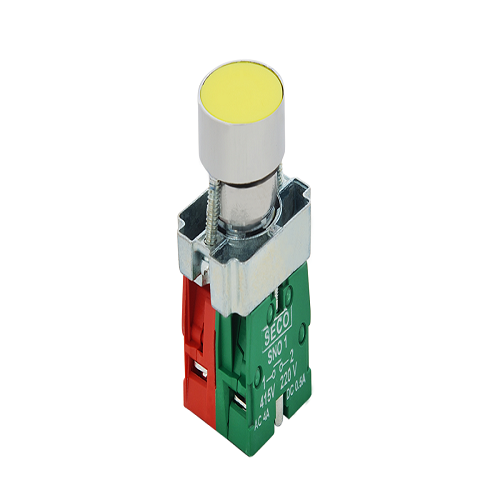

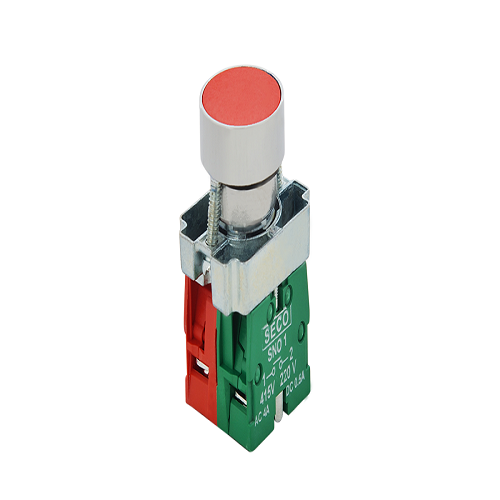

We manufacture Push Buttons and Elements (NO & NC) used in all control panels, Push buttons are suitable for 22.5 Dia hole and available in Black, Red, Green, Yellow & Blue colours.

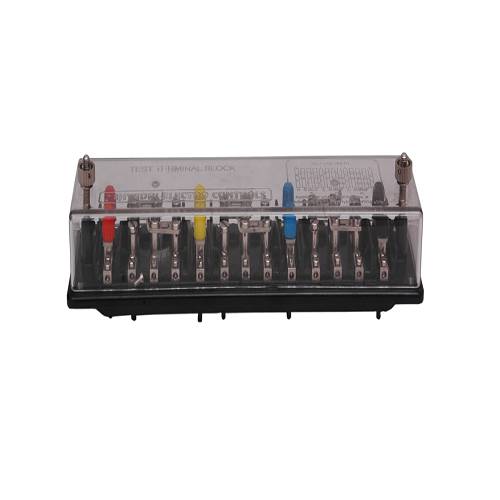

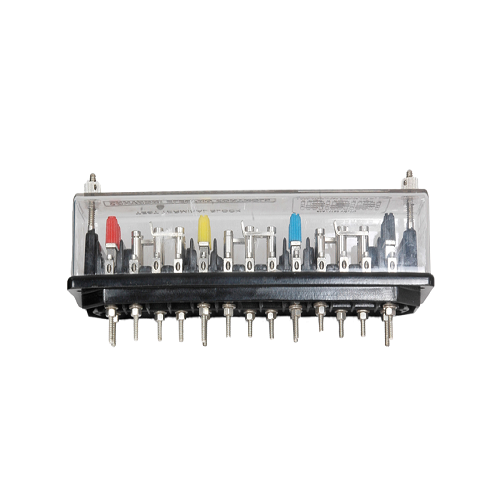

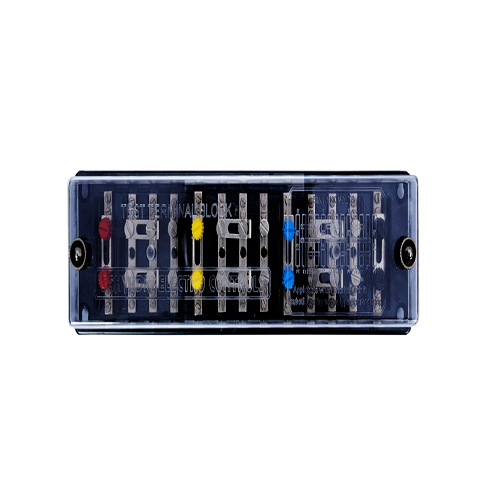

We manufacture Test Terminal Block- 3 Phase 4 wire with high quality raw materials. TTB is used in Control Relay panels, Metering panels to measure the current without disconnecting the metering circuits.

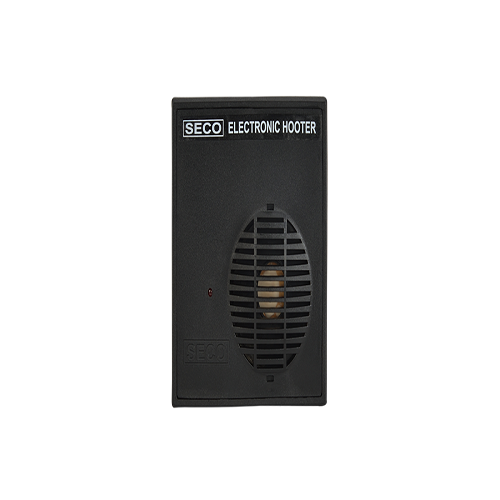

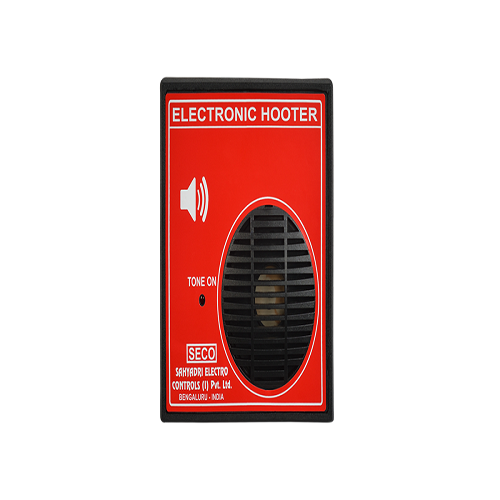

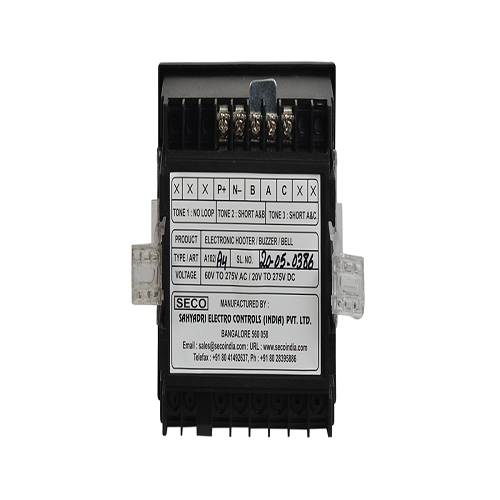

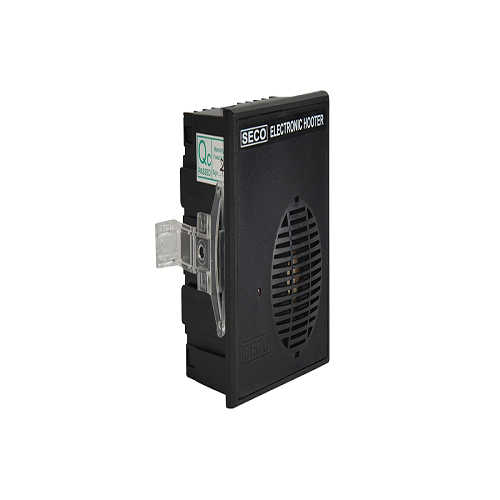

We design and manufacture Electronic Hooter with universal input supply of 20 to 275V DC & 65 to 275V AC. Site selectable three tones with a sound output of Intermittent, Continuous and bell sound.(Any one tone can be selectable through link). Output sound is more than 90 dB. Low depth of 45 mm moulded Box with Suitable clamps are provided for surface mounting and projection mounting.

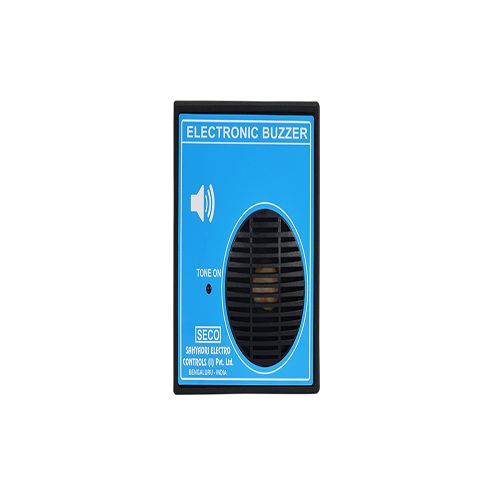

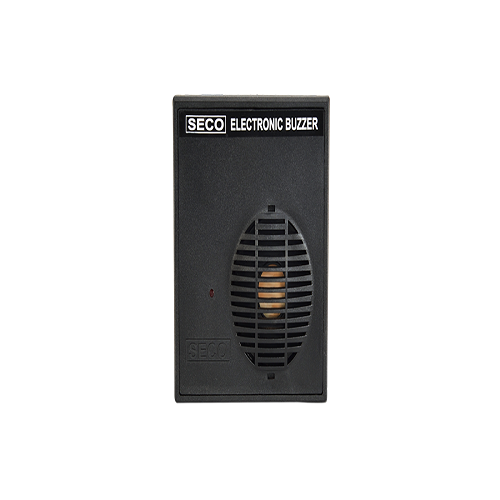

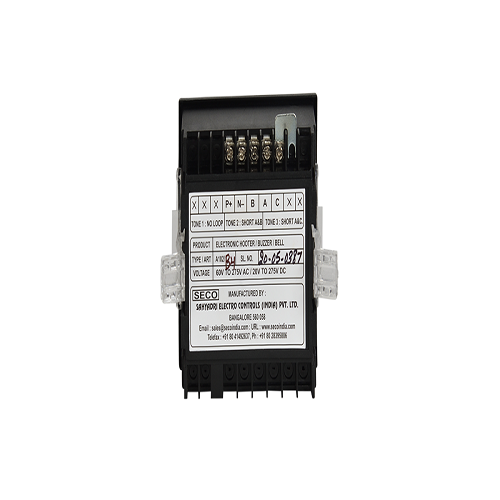

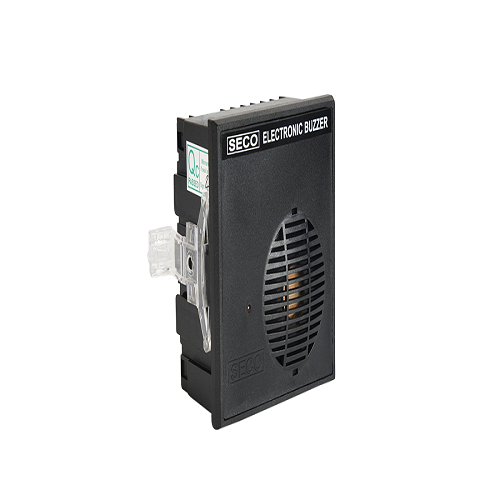

We design and manufacture Electronic Buzzers with universal input supply of 20 to 275V DC & 65 to 275V AC. Site selectable three tones with a sound output of Intermittent, Continuous and bell sound. (any one tone can be selectable through link ) Output sound is more than 90 dB. Low depth of 45 mm moulded Box with Suitable clamps are provided for surface mounting and projection mounting.

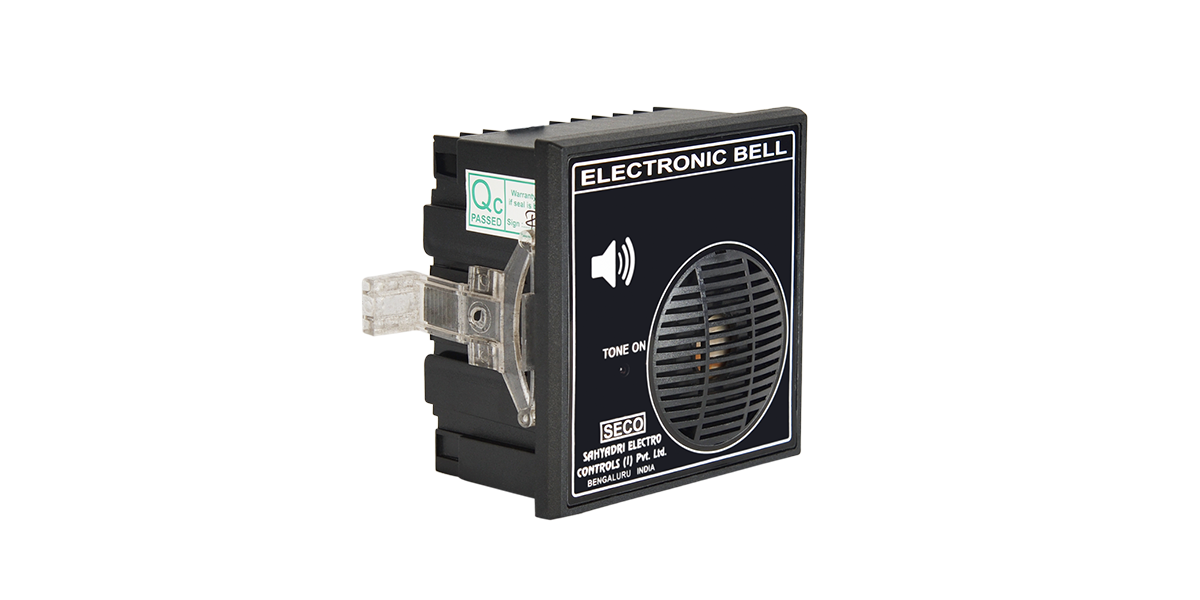

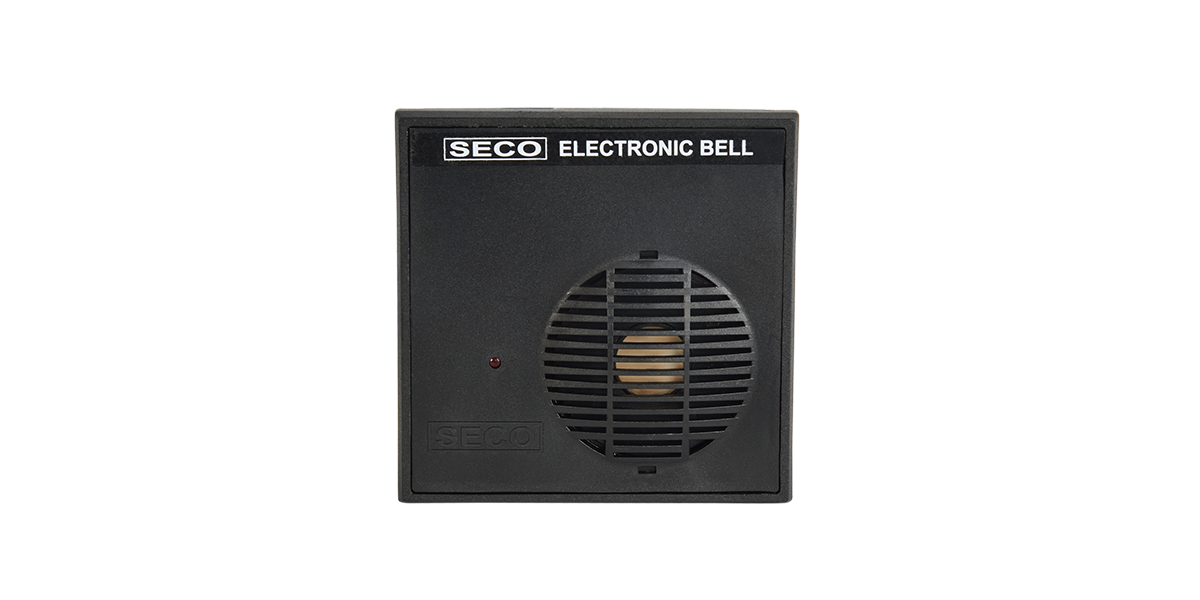

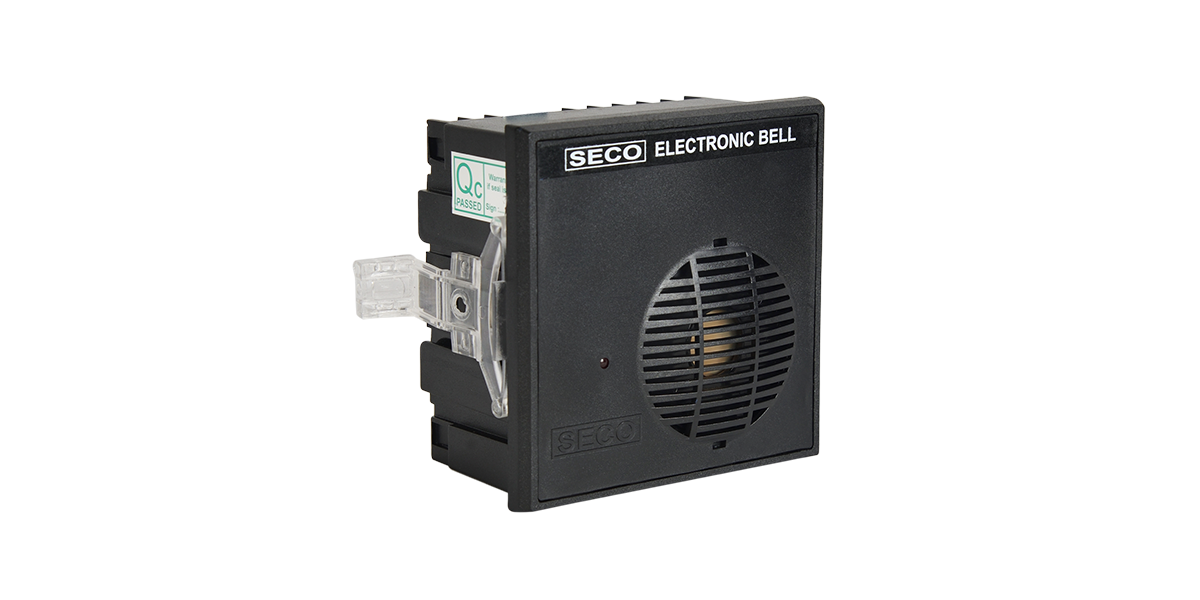

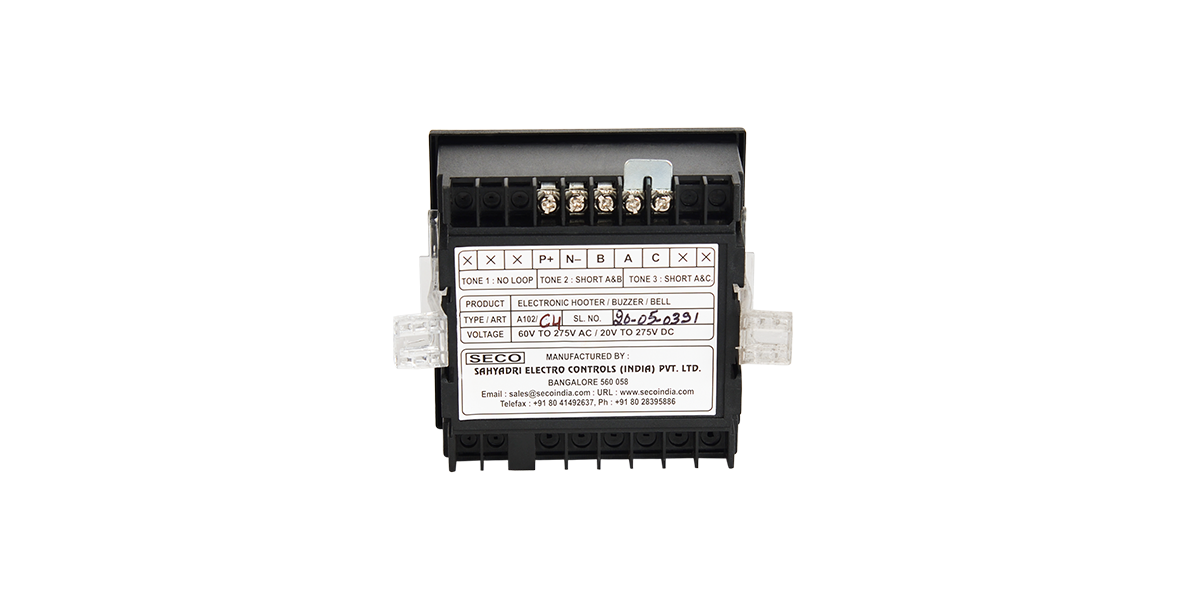

We design and manufacture Electronic Bell with universal input supply of 20 to 275V DC & 65 to 275V AC. Site selectable three tones with a sound output of Intermittent, Continuous and bell sound.(any one tone can be selectable through link ) Output sound is more than 90 dB. Low depth of 45 mm moulded Box with Suitable clamps are provided for surface mounting and projection mounting.

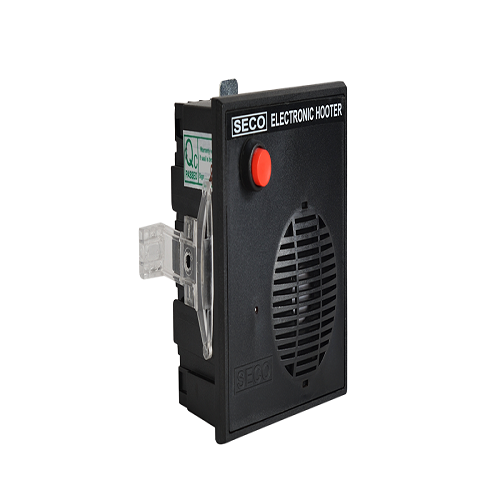

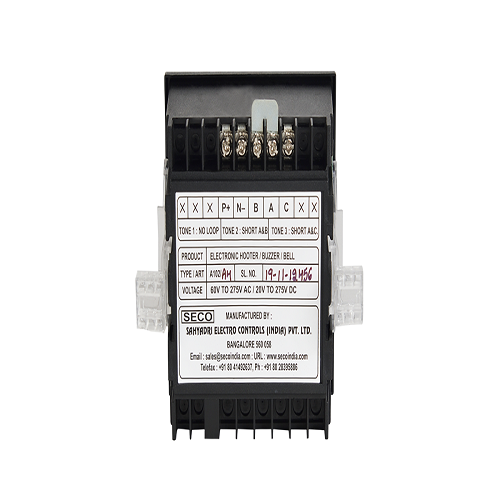

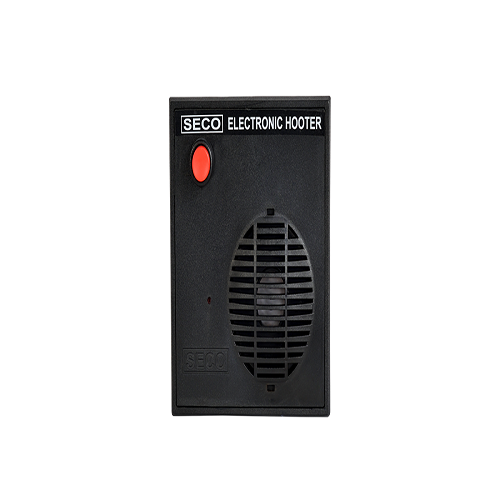

We design and manufacture Electronic Hooter with Accept PB with universal input supply of 20 to 275V DC & 65 to 275V AC. Site selectable three tones with a sound output of Intermittent, Continuous and bell sound. (any one tone can be selectable through link) Output sound is more than 90 dB. Sound can be Accepted by inbuilt Accept push Button. Low depth of 45 mm moulded Box with Suitable clamps are provided for surface mounting and projection mounting.

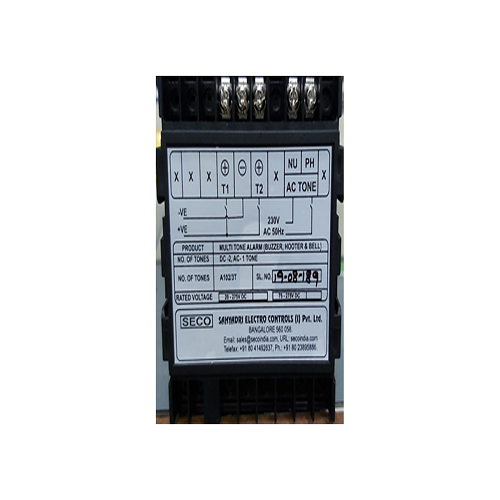

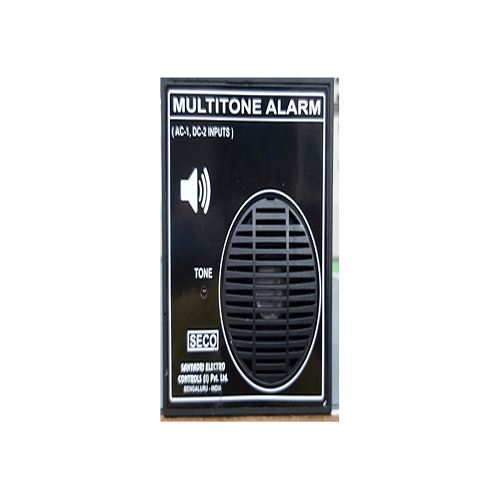

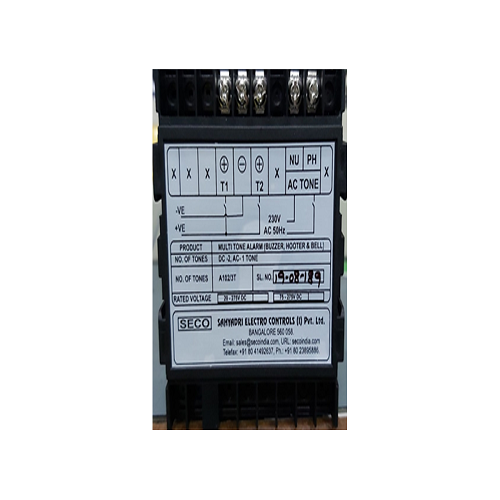

We design and manufacture Multitone Alarm with universal input supply of 20 to 275V DC & 65 to 275V AC. This unit is suitable to take 2 DC & 1AC separate inputs and will give three separate tones – Intermittent sound for one DC input, Continuous sound for second DC input and Bell sound for AC supply input. If two or more inputs are given, then output will be of different sounds with intervals. Output sound is more than 90 dB. Low depth of 45 mm moulded Box with Suitable clamps are provided for surface mounting and projection mounting.

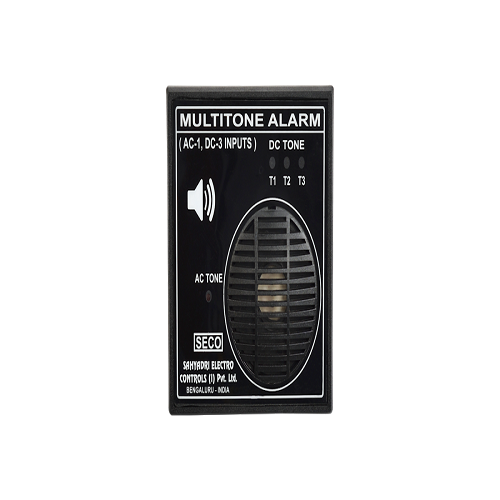

We design and manufacture Multitone Alarm with universal input supply of 20 to 275V DC & 65 to 275V AC. This unit is suitable to take 3 DC & 1AC separate inputs and will give three separate tones – Intermittent sound for one DC input, Continuous sound for second DC input, another sound for 3rd DC input and Bell sound for AC supply input. If two or more inputs are given, then output will be of different sounds with intervals. Output sound is more than 90 dB. Low depth of 45 mm moulded Box with Suitable clamps are provided for surface mounting and projection mounting.

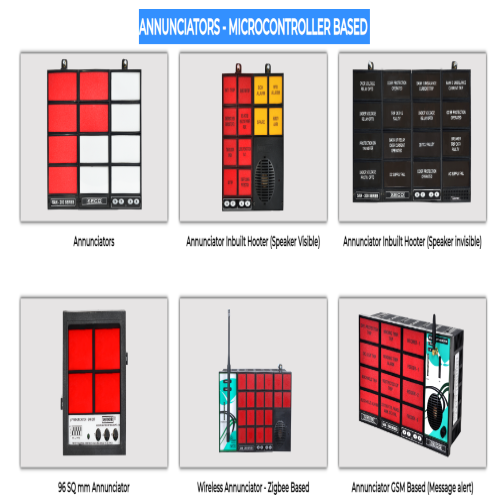

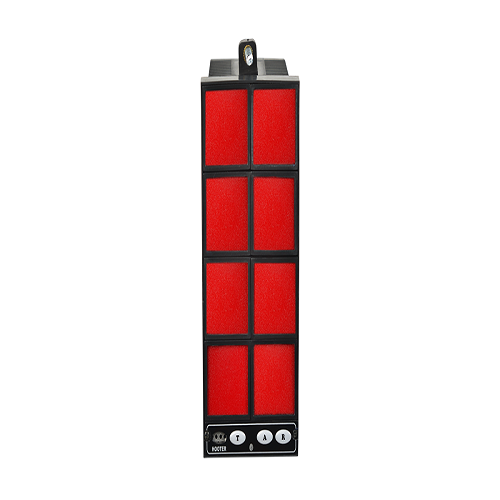

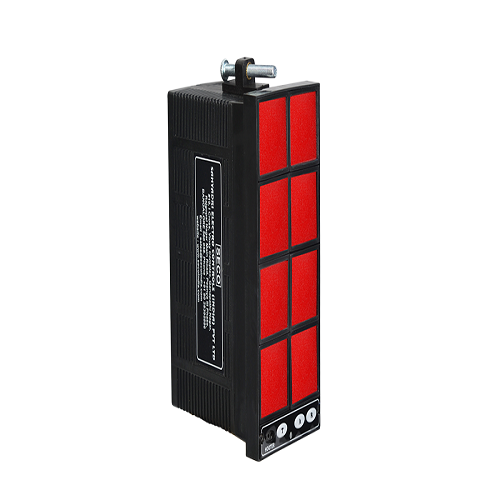

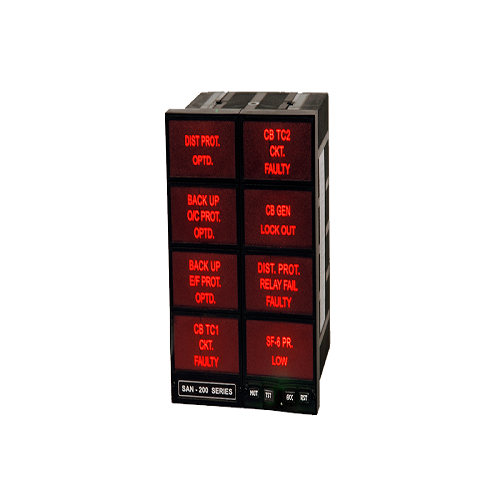

We design & manufacture Microcontroller based Annunciator from 2 windows to 64 windows with both Big window unit and small window unit & combination of Big & small window units in moulded box with Wide Aux. supply range, Standby working with AC supply, site selectable window colour, DC Fail Indication, Ac Fail Indication, RS 485 communication and Repeat relay contacts.

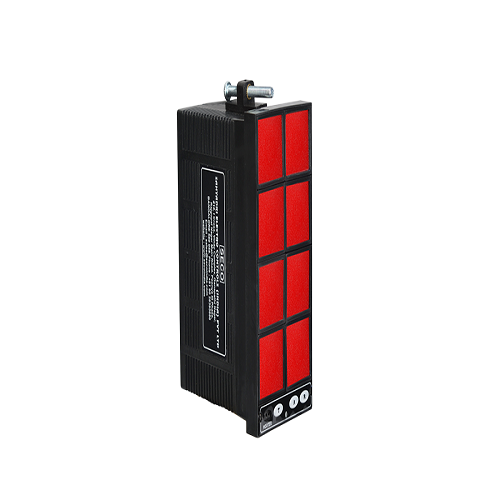

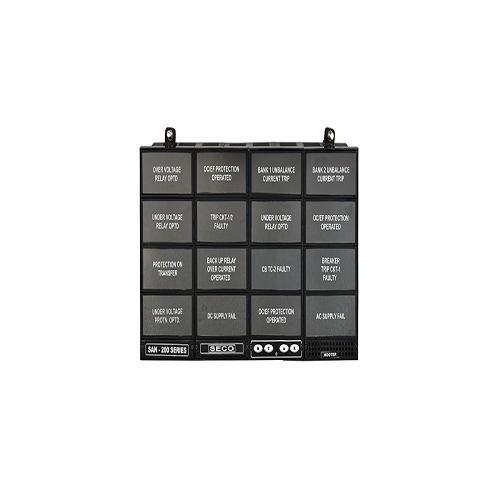

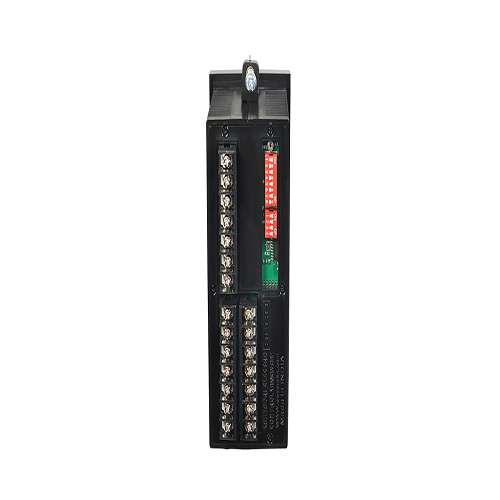

We design & manufacture Microcontroller based Annunciator with inbuilt Hooter from 2 windows to 64 windows with both Big window units and small window unit & combination of Big & small window units in moulded box with Wide Aux. supply range, Standby working with AC supply, DC Fail Indication, Ac Fail Indication, RS 485 communication and Repeat relay contacts.

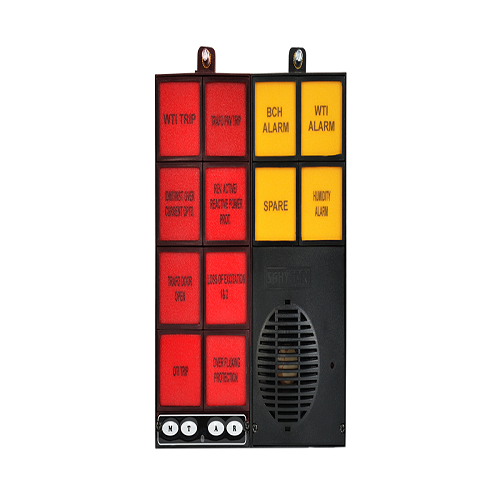

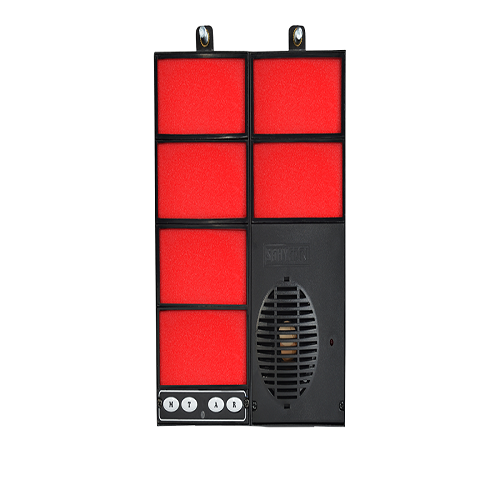

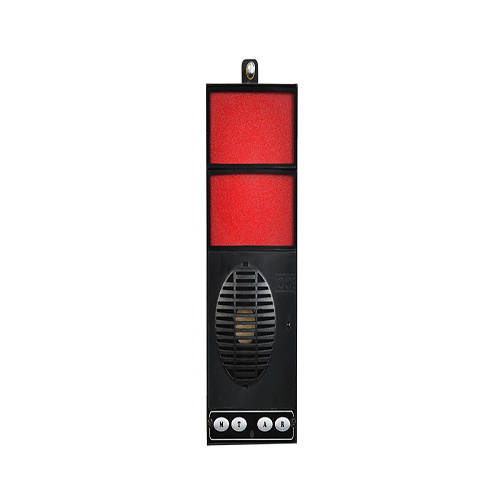

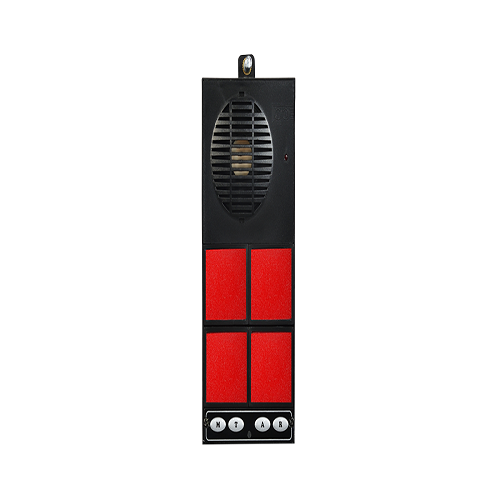

We design & manufacture Microcontroller based Annunciator with inbuilt hooter (Speaker and other related circuits mounted inside the unit) from 2 windows to 64 windows with both Big window unit and small window unit & combination of Big & small window units in moulded box with Wide Aux. supply range, Standby working with AC supply, DC Fail Indication, Ac Fail Indication, RS 485 communication and Repeat relay contacts.

We design and manufacture Microcontroller based annunciator (96 sq mm) - 4 window and 8 window with wide Aux supply range. This unit is field proven model for all types of fields and environmental conditions.

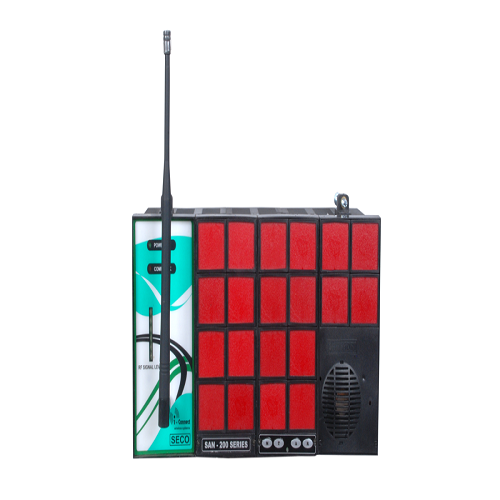

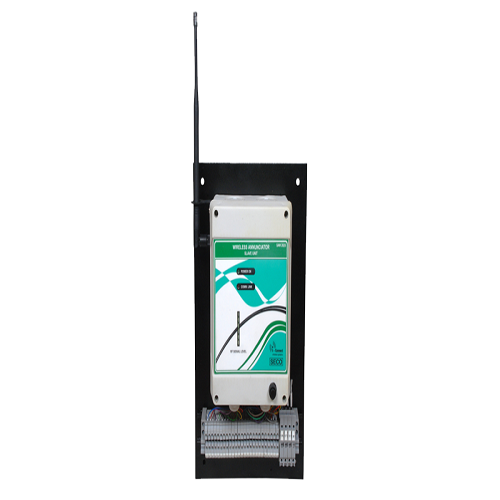

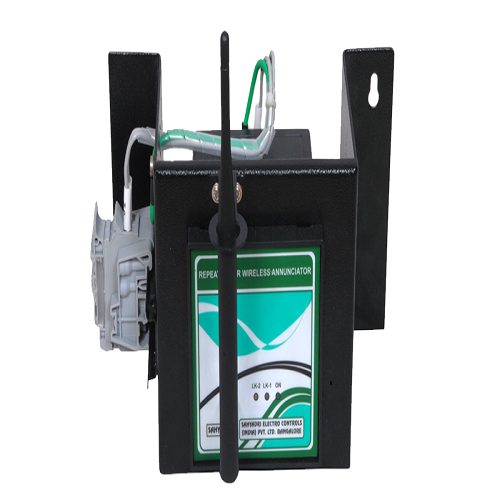

We design and manufacture Wireless Annunciator with Microcontroller based advance technology and field proven model for all types of fields and environmental conditions. The purpose of this product is to give window Annunciation required at specific place and where the inputs or protective relays are at distance with the use of the radio frequency signal. This product can be used in the Power generation projects/ Power transmission projects/ process control or Industrial applications where we can’t run the wires to get the Annunciation for devices that may be in the hazardous environment and it also saves the copper wires.

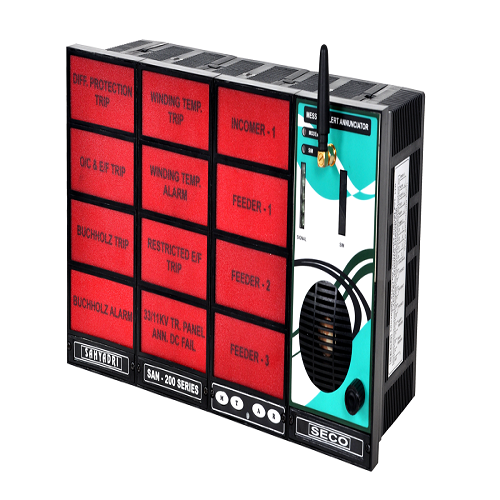

We design and manufacture GSM based Annunciator with advance technology microcontroller used to send the message along with window Annunciation when the fault occurs (Trip) in the system or in the process. It is the high integration of digital trip inputs converting to messages by using GSM modem. Short messages will be sent to the pre specified mobile numbers with Station name, feeder no., window no., description, unit Sl no, Date & Time of Trip/ Close. It is more useful in the process industries at hazardous area where more attention is required.

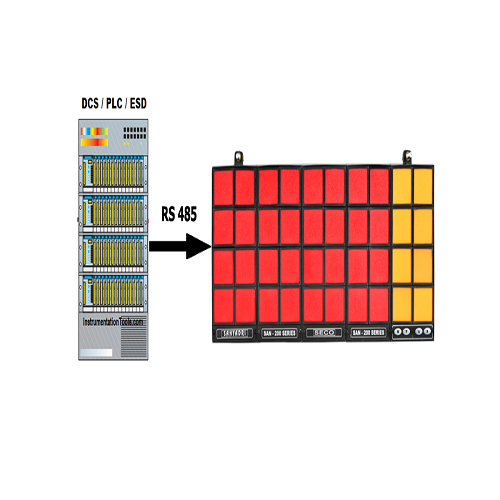

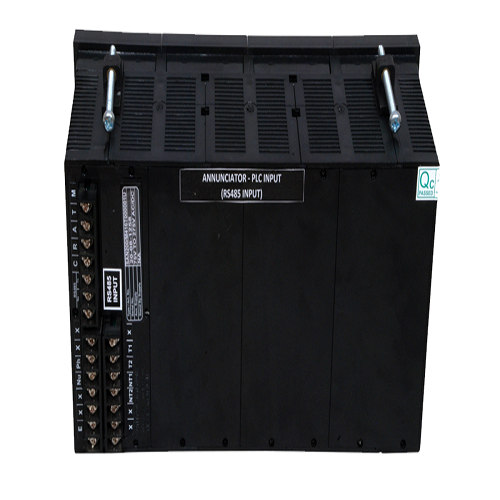

We design and manufacture Alarm Annunciator – input form PLC (RS 485 input) with Microcontroller based advance technology. This type of Annunciation system is useful in process control panels/ PLC panels to eliminate control cable wires and accept input from Program logic controller by only twisted two wires on RS 485 (Modus protocol). It saves cable cost, labour and also solve loose contact issues. This unit increases the reliability of the system.

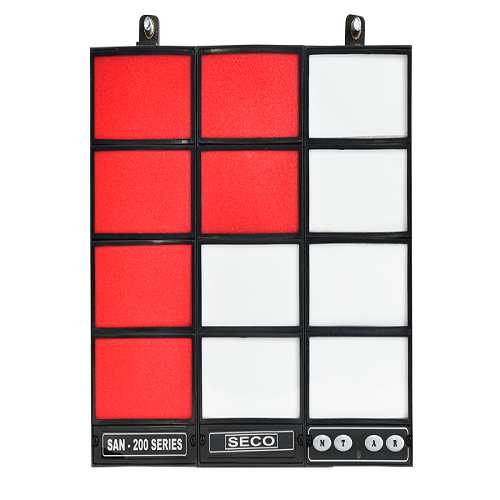

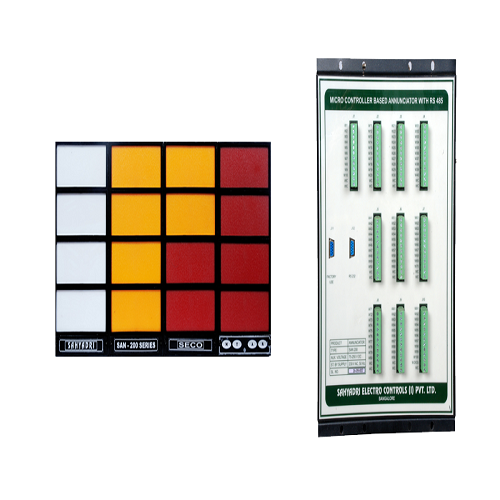

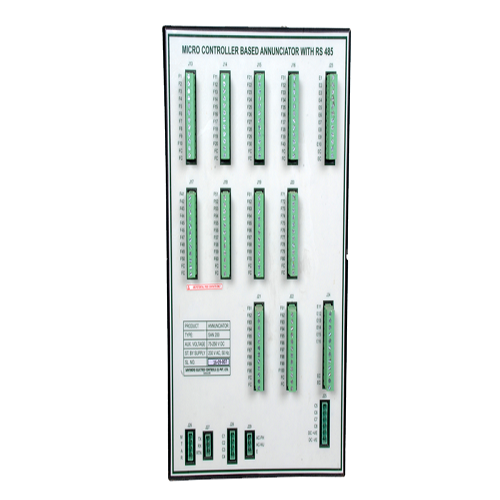

We design and manufacture Alarm Annunciator Split type – 100 windows- SAN 200 series with Microcontroller based advance technology and field proven model for all types of fields and environmental conditions. This type of split type Annunciator is useful in Generation power stations and Thermal power plants where only Facia is required at control room and control unit is at remote place.

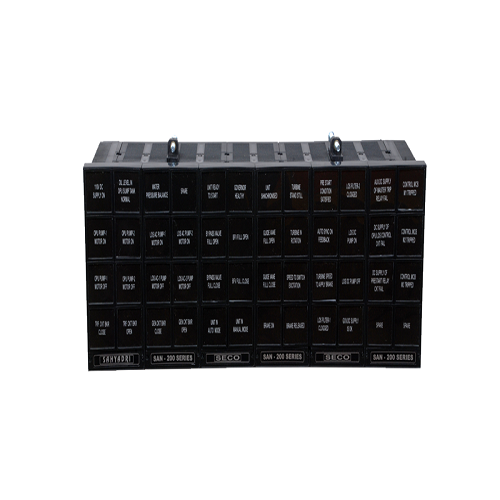

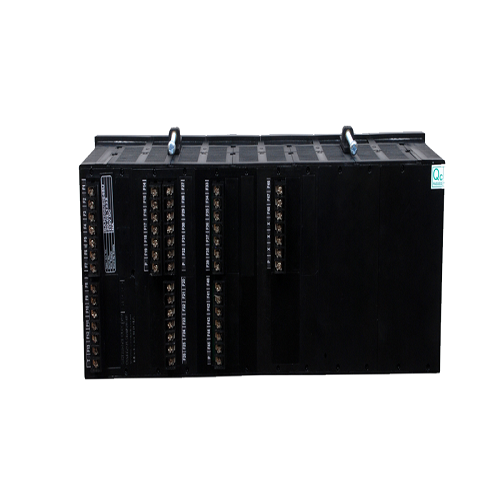

We design and manufacture Status Indicator (Facia unit) with hardware-based technology with field proven model for all types of fields and environmental conditions. Status indicator/ facia unit is nothing but lamp indications in window format. Instead of using huge no. of indicating lamps, this type of status indicator will be useful.
