About Us
SANPAR has been in the field of Thermal Engineering for the past 26 years; conceptualizing, manufacturing and maintain capital equipments in the domain of Compressed air treatment, Industrial air conditioning, Industrial Cooling and Aerospace concepts. SANPAR being an ISO 9001:2015 & AS 9100D certified company, is deep rooted in the ideas of energy conservation and sustainability, providing qualitative and reliable solutions to its wide spectrum of partners.
View more
Our Leadership Team
Mr. K S Sudhakaran
Business Head
Products & Services
Refrigerated Air Dryer
Product Detail
Refrigerated Air Dryer
The capacity ranges from 5 cfm to 180 cfm with operating pressures from 4 bar g to 16 bar g.,Wherein higher pressure ranges are also available up to 50 bar g.
These generally comes with air cooled condensers and have proven to work efficiently even at ambient temperatures soaring up to 50°c. This provides compressed air at a consistent pressure dew point of (+) 3 ° c and with a pre filter and after filter ensures the compressed air quality conforms to iso 8573.1 class 1.4.1. Where,
1 stands for dust particles less than 5 micron
4 stands for pressure dew point of (+) 3 ° c
1 stands for residual oil content less than 0.01 mg/m3.
Salient features
• Air Cooled
• Classic tube- in-tube type Heat Exchanger
• Hermetically Sealed Compressor
• Modulating capacity controller - 0-100% Thermal Load Handling
• Eco-Friendly refrigerated R134
• Fan Pressure Switch
• Capillary Tube Expansion Device
• Modular-In Design for optimum Serviceability
Technical Specification
• Operating Pressure : 7 Bar g
• Air Inlet Temperature : 45°C
• Pressure Dew Point : 3°C
• Condenser Cooling Air Temperature : 40°C
+ Show more
- Show less
Specifications
Air Chiller
Product Detail

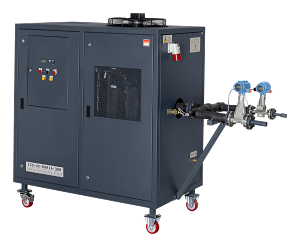

Air Chiller
Air Chiller is used for cooling different processes and machines in the industry. It works on the refrigeratio principle. Suitable for ambient air as well as compressed air.
+ Show more
- Show less
Brochures
Gallery(1)
