Again, our range of masking dots provide an ideal solution for the conformal coating production process due to both the size range of dots available and our compatibility testing.

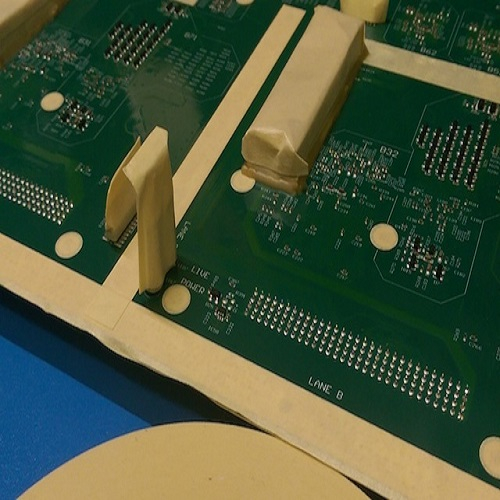

Our pre-cut masking shapes for conformal coating can help speed up the process for masking printed circuit boards.

They are extremely easy to apply, very convenient to use and low cost to buy.  In fact, instead of having to cut masking tape to shape, which can create long process times, the masking shapes are already pre-cut on a tape sheet or roll.

So, the custom shapes are simply removed from the sheet or roll when needed. Therefore, this saves a lot of masking time.

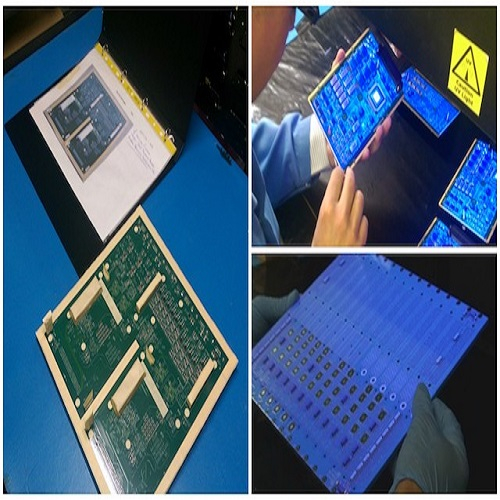

SCH provide a full range of conformal coatings throughout India from our offices in Hyderabad. This includes acrylic and polyurethane environmentally friendly materials.

This extensive range of UL (underwriter Laboratory) and IPC qualified conformal coatings, thinners and stripping solutions are manufactured and stocked in India. This is to make it easier for customers for supply of product and convenient for purchasing.

Our extensive range means we can provide all types of protective solutions. This includes prevention of damage through moisture, water, high temperature and chemical attack. This ensures your electronic circuit boards are protected to the highest level in all areas including the automotive, aerospace, military, industrial and telecommunications industries.

Further, these innovative conformal coatings can be used in a variety of different techniques including dipping, spraying, selective robot system or brushing.

Fluoropolymer Nano-coatings:

SCH Technologies supply ultra-thin Nano-coatings made of fluoropolymer chemistries. This provides low cost solutions to protecting printed circuit boards from the environment around them.

These ultra-thin coatings have many different properties that are extremely important for circuit board protection.

First, they can have hydrophobic (water repellent) and oleophobic (oil repellent) behaviour that provides a high moisture barrier and corrosion resistance protection for the circuits.

Why use Nano-coatings to protect circuit boards?

Nano-coatings are a subset of liquid protective coatings like conformal coatings that are for protecting printed circuit board assemblies (PCBs).

They have very specialised properties due to their fluoropolymer based chemical structure and design. These specialist properties can include:

• Being highly hydrophobic (water repellent) and oleophobic (oil repellent)
• Excellent moisture barrier and excel at preventing corrosion
• Do not require masking before coating since they are so thin
• Strong chemical resistance, lubricity (reduced friction) and dielectric properties due to the fluorinated chemistry

Our cleaning fluids from UK based Surclean consist of aqueous and solvent based chemistries designed to clean many types of contamination on circuit board assemblies and stencil screens.

Surclean provide innovative, cost-effective, and environmentally friendly materials to the electronics industry because customers need high quality, advanced technologies to complete their work effectively.

Surclean does not re-badge or re-market products from any other manufacturer since research and development is at the centre of the product range. This allows SCH to offer high-quality, technical cleaning fluids while also providing the most competitive prices.

The CB100 Spray Booth is designed specifically for spray application of materials such as conformal coatings and RFI EMI shielding paints onto printed circuit boards and small size products.

The CB100 Spray Booth is a free standing, purpose built system, which can be made to customer’s size and specification requirements. The CB100 is designed for safe application of coatings whilst spraying, without compromise to performance, quality or throughput.

Standard features:

• The latest in HVLP spray gun technology giving a repeatable film thickness with the minimum amount of training
• Downward draft extraction, coupled with the high quality spray gun ensures minimal over spray wastage and minimises health & safety risk
• Manual turntable at an ergonomic application height for full 360 degress coverage
• UVA Ultraviolet light for in situ inspection DURING spraying to aid the operator in ensuring a high quality of application is achieved without compromise to health & safety
• White light for further inspection and maintenance.

The DC100 floor standing drying cabinet was designed specifically for practical conformal coating air temperature drying of conformal coating on the printed circuit boards (PCBs) away from air borne contamination.

The DC100 floor standing drying cabinet is designed to be used in conjunction with conformal coating application equipment, this compactly designed system not only offers an enclosed extraction area for protecting newly coated PCBs from contamination during the drying process, but also safely removing excess solvents through the attached exhaust.

Standard features

• Removable and fully height adjustable enclosed mesh shelves for hanging PCBs individually or holding trays of conformal coated boards
• Unique extraction pathway behind shelving to allow free flowing air throughout the system even when the DC100 is completely full with conformal coated PCBs
• Single 150 mm diameter spigot inlet for connection to suitable extraction system (not supplied)
