Products & Services

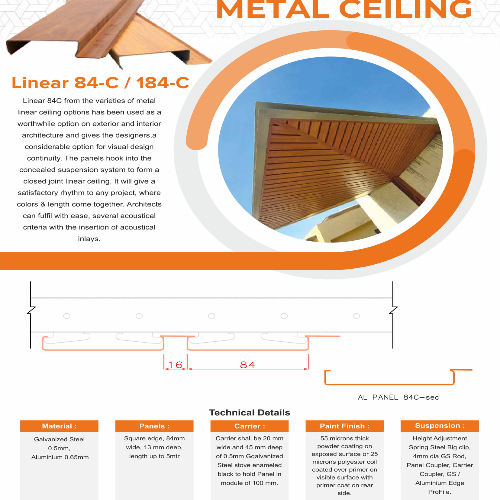

Schepper 84C Metal False Ceiling
Product Detail
Schepper 84C Metal False Ceiling
Available in Natural Wood Finish | Any Plain Colour as per RAL Colour shade card.
Panel Details: Panels 84mm wide x 15mm deep x 25mm Flange length up to 5mtr. Panels shall be finished on visible surfaces with Powder Coating to enhance the property of Fadedness Resistivity
Carrier: Carrier, 20 mm wide at the bottom x 45 mm deep formed out of 0.60 mm thick galvanized steel black Powder Coated with protruding ears to hold the panels in a module of 100 mm
Installation Details: Gi rod 4 mm shall be fixed on Anchor Fastener into the slab at distance, of not more than 1.2 meters. Centre to center on which will be laid with corrosion proof ss clip and on this rigid structure carrier shall be fixed horizontally at a distance of 1 meter. To 1.2 meters. Centre to center. The panel shall be clipped in carriers. 18*20 mm edge profile or ‘W’ / ‘G’ Angle, wood finish to be fixed on all corners of walls.
+ Show more
- Show less
Specifications

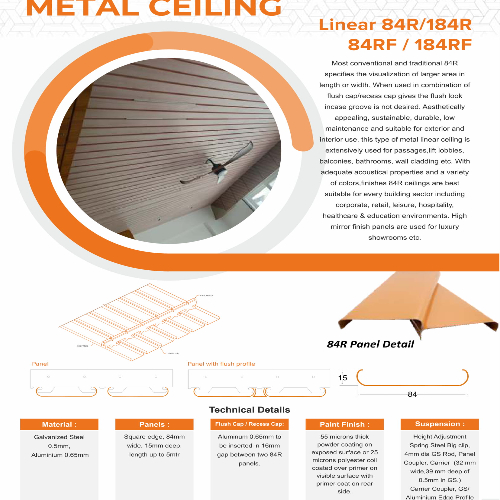

Schepper 84R Metal False Ceiling
Product Detail
Schepper 84R Metal False Ceiling
Available in Natural Wood Finish | Any Plain Colour as per RAL Colour shade card.
Panel Details: Panels 84mm wide x 15mm deep x length up to 4mtr. Formed out of 0.50 mm thick (TCT) galvanized steel will be fixed on carriers. Panels shall be 50 microns powder-coated on visible surfaces with special exterior SUPER DURABLE powder to enhance the property of Fadedness Resistivity.
Carrier: Carrier, 20 mm wide at the bottom x 40 mm deep formed out of 0.60 mm thick galvanized steel black Powder Coated with protruding ears to hold the panels in a module of C to C 100 mm
Installation Details: Gi rod 4 mm shall be fixed on slab weather-resistive screw at distance, not more than 1.2 meters. Centre to center on which will be laid with corrosion proof ss clip and on this rigid structure carrier shall be fixed horizontally at a distance of 1 meter. To 1.2 mtr. Centre to centre. The panel shall be clipped in carriers
+ Show more
- Show less
Specifications

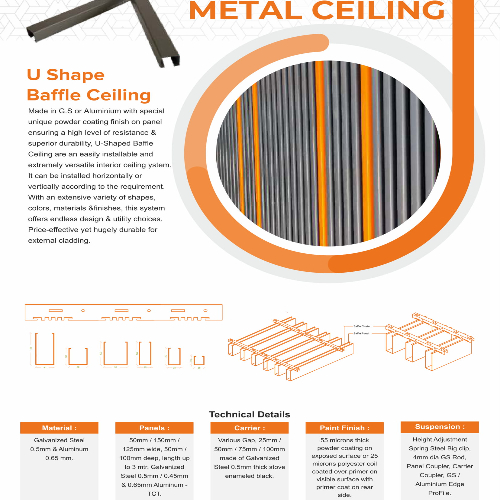

U Shape Baffle Ceiling
Product Detail
U Shape Baffle Ceiling
Available in Natural Wood Finish | Any Plain Colour as per RAL Colour shade card.
Panel Sizes: 25*25*25 | 25*50*25 | 25*75*25 | 50*25*50* | 50*50*50 | 50*75*50 | 75*50*75 | 100*25*100 | 100*50*100 | and more in Multiply of 25mm
The gap between 2 Panels is available in multiple of 25mm.
Panel Details: Panels length up to 4mtr. Formed out of GS 0.50 TCT will be fixed on carriers. Panels shall be powder-coated on visible surfaces with Powder coating to enhance the property of Fadedness Resistivity.
Carrier: Carrier, 20 mm wide at the bottom x 45 mm deep formed out of 0.60 mm thick galvanized steel black Powder Coated with protruding ears to hold the panels in a module of 25 | 50 | 100 and 150mm
Installation Details: Gi rod 4 mm shall be fixed on Anchor Fastener into the slab at distance, of not more than 1.2 meters. Centre to center on which will be laid with corrosion proof ss clip and on this rigid structure carrier shall be fixed horizontally at a distance of 1 meter. To 1.2 meters. Centre to center. The panel shall be clipped in carriers. 18*20 mm edge profile or ‘W’ / ‘G’ Angle, wood finish to be fixed on all corners of walls.
+ Show more
- Show less
Specifications

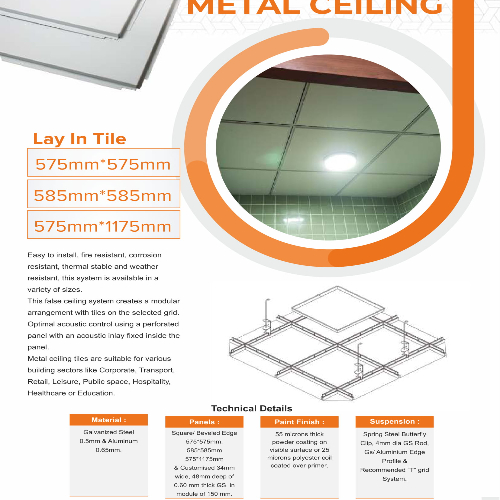

Schepper Lay In Tile Ceiling System.
Product Detail
Schepper Lay In Tile Ceiling System.
Panel Details: Panels shall be made from 0.5/0.65mm thick Galvanized sheet and Plain Powder Coating on the visible surface. Panel surface shall be 575mm * 575mm with 24mm Plain T.
Grid Detail: G.S. Tee section 24mm wide 3000 mm long main Tee with Cross T 600 mm wide.
+ Show more
- Show less
Specifications
Gallery(2)
