Products & Services

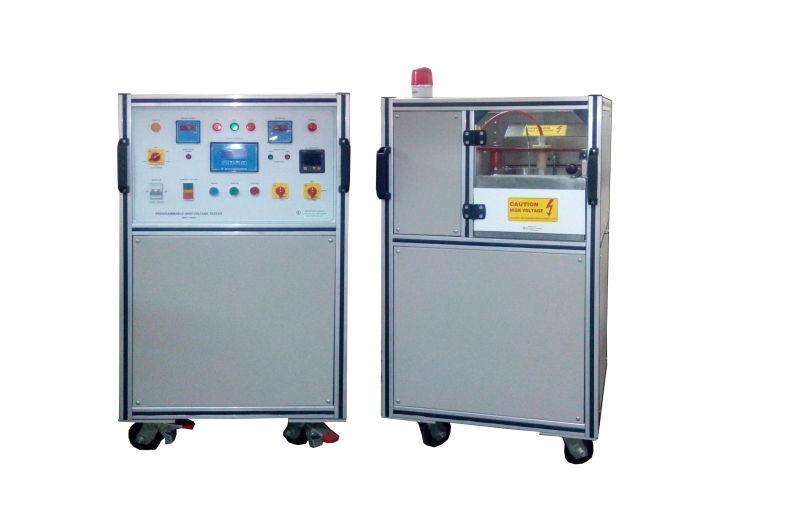

High Voltage Inclined Plane Tracking and Erosion Tester
Product Detail

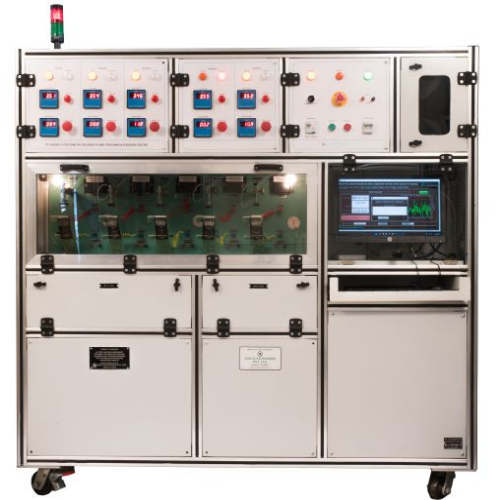

High Voltage Inclined Plane Tracking and Erosion Tester
High Voltage Inclined Plane Tracking and Erosion Tester for Insulating Materials as per ASTM D2303-97.
The equipment covers the evaluation of the relative tracking and erosion resistance of insulating solids using the liquid contaminant designed as per standard ASTM D2303
As per ASTM D2303, insulating material should withstand against tracking & Erosion on the field. Which why they are evaluated in a laboratory by means of liquid contamination in a particular arrangement. The equipment displayed herewith are used for the same purpose. A high voltage is applied between two electrodes and a liquid contaminant is used in between so as to check & measure tracking. We offer this system in various configurations based on your application – R&D or Compliance Test & Assessment. The routines/measurements that can be conducted by this equipment are:
Time to track method Initial tracking voltage Erosion test
The test bench can be customized as per number of stations 1, 2,& 5 and can also be customized with Micro controller based or PC based.
Please contact us for a free consultation regarding test methods in ASTM D2303 and IEC EN-50397-1
+ Show more
- Show less
Hipot Tester
Product Detail
Hipot Tester

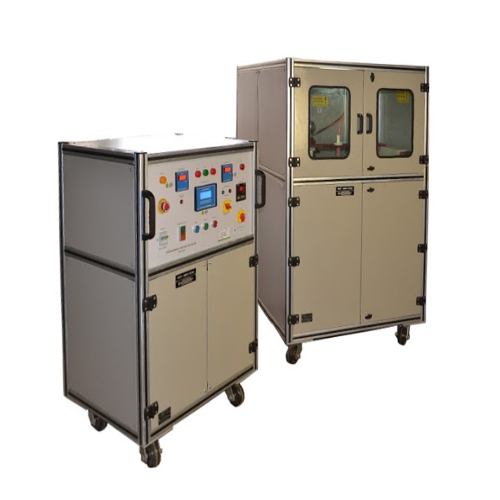

Customised Hipot Tester for testing Dielectric Breakdown Voltage and Dielectric Strength of Solid Insulating material as per ASTM D149 – 09
In this test, an AC voltage at the frequency of the electrical utility is applied using simple test electrodes at opposite faces of the solid insulating material. The voltage is gradually increased in steps as described in clause 12 of ASTM D149 – 09.
The SCR Hipot model, HipotMax – Automatic is custom built for this test. It has the necessary system to support High Voltage Application up to 100kV AC. Safety Interlocks & features such as foot switch etc. are provided to take care of operator safety. The high voltage, steps and other parameters can be programmed in the dedicated control unit. The operator gets record of the voltage & test as it progresses. We have a PC based option on the HipotMax like in all electrical safety test equipment from us. The test routines are pre-programmed to support ASTM D149 – 09 so there is no room for operator error. This equipment can be used as a generic hipot tester since all the parameters are programmable using the PLC & timer.
+ Show more
- Show less
Glow Wire Apparatus
Product Detail

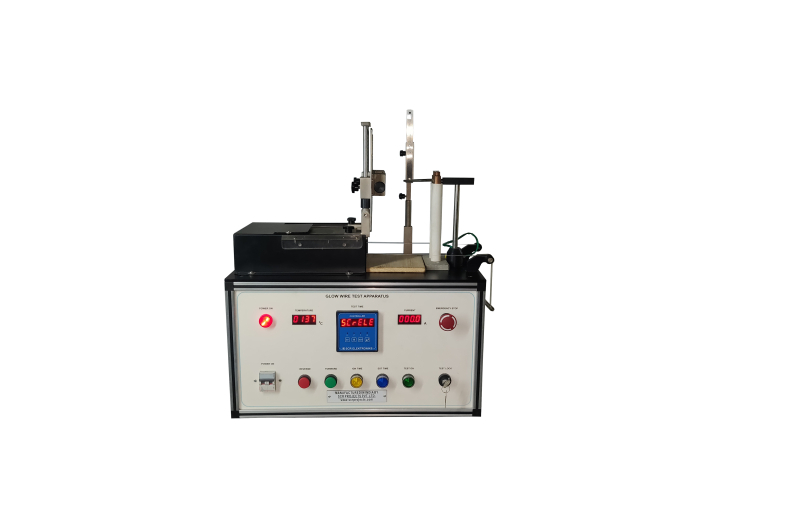

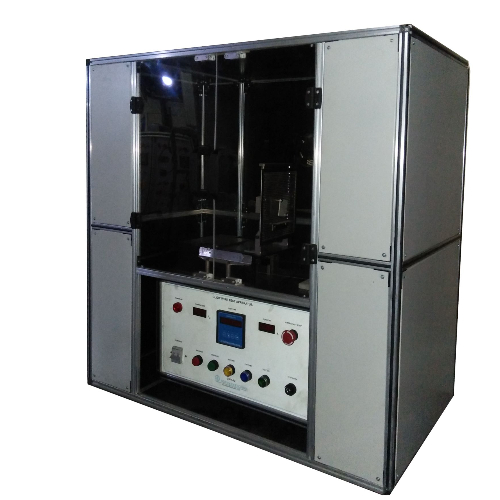

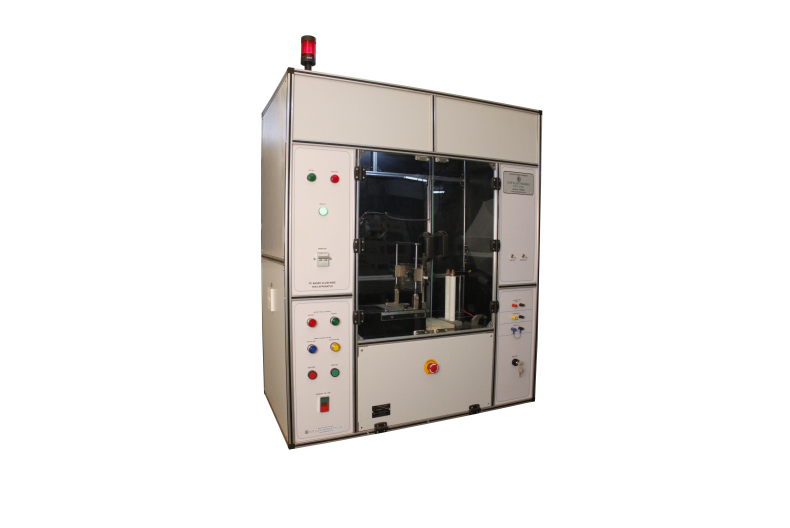

Glow Wire Apparatus
Glow wire apparatus is the commonly used equipment for testing solid insulating material for fire hazard testing. This test apparatus is covered in IEC 60695-2-10 and commonly referred for various devices in many standards such as IEC 60335, IEC 60695-2-11, IEC 60695-2-12, IEC 60598-1, IEC 60947, IEC 60898, IEC 61008-1, IEC 60669-1, IEC 60884-1, IEC 60950-1 / IS 13252, IEC 60238, IEC 60745-1, IEC 60400, IEC 60730-1, IEC 61050, IEC 60320-1, IEC 61058-1, ASTM D 6194-03 and UL 60745-1.
As per IEC 60695 - 2 - 10 (Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure), parts of solid insulating materials are ignited by glowing wires. A nickel/chromium wire is heated to 960°C and the insulating material is pushed against it with a force of 1 Newton. It is checked that the insulating material does not attain a certain temperature or catches fire so as to prevent fire hazard in their vicinity. For complete description, please refer IEC 60695 - 2 - 10, even if you have product specific standards such as IEC 60898 for Miniature Circuit Breakers (MCB), IEC 60335 for Safety of Electrical Appliances or IEC 60947 for Switchgears and so on. If your product is to be tested for conformity assessment, please also refer ASTM D 6194 – 3 (Standard Test Method for Glow-wire ignition of materials).
+ Show more
- Show less
Needle Flame Apparatus
Product Detail

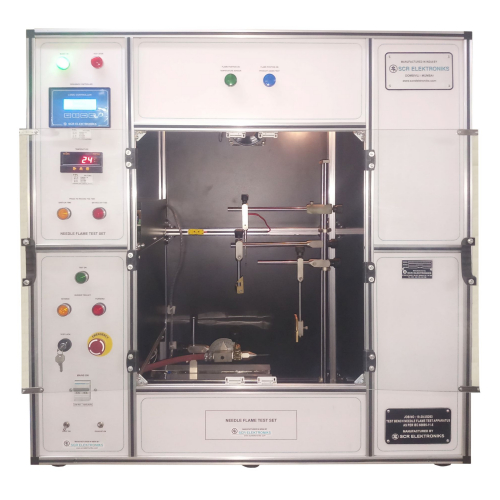

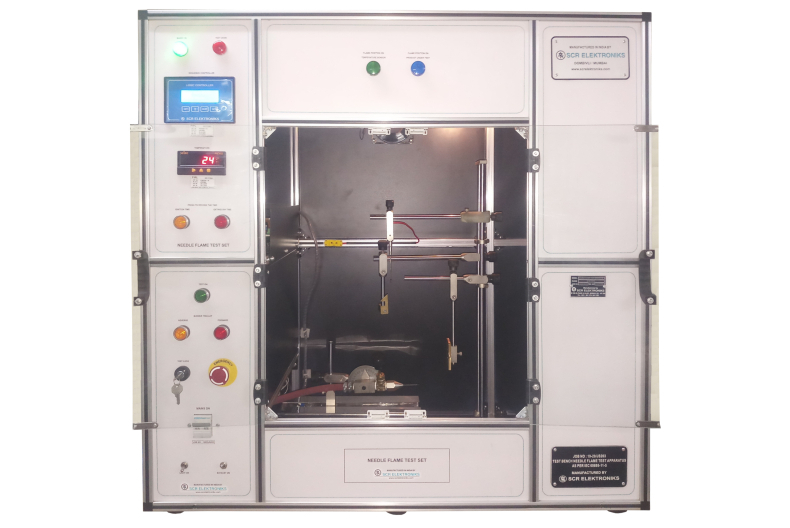

Needle Flame Apparatus
Needle Flame Test Apparatus is the commonly used equipment for testing solid insulating material for fire hazard testing. This test apparatus is covered in IEC 60695-11-5 and commonly referred for various devices in many standards such as IEC 60335-1, IEC 60695-11-3, IEC 60695-11-10, IEC 60695-2-2, IEC 60598-1, IEC 60512-20-1, IEC 60749-32, ASTM D635-18, UL 94, UL 1694, BS 6458, and IS 11000-2-2.
The SCR ELEKTRONIKS Needle Flame Test Apparatus is designed to cover all the referring standards in addition to IEC 60695 – 11 – 5 and UL 94. The entire operation is automatic and there is zero room for sequence error because the micro-controller based dedicated PLC is pre-programmed as per IEC suggested sequence. It’s built using extruded aluminum so as to ensure better aesthetics. All the parts & workmanship is conservative and built to last as per our tradition in test equipment since 1975. We provide parts for the entire life of the equipment which is why leading companies such as Philips, TUV, NRTC, Nemko, Whirlpool, CSIR, BIS, Intertek, Franke Faber, Panasonic and other leading companies depend on SCR Needle Flame Test Apparatus for certification & conformity assessment.
+ Show more
- Show less
Hot Wire Ignition Tester
Product Detail

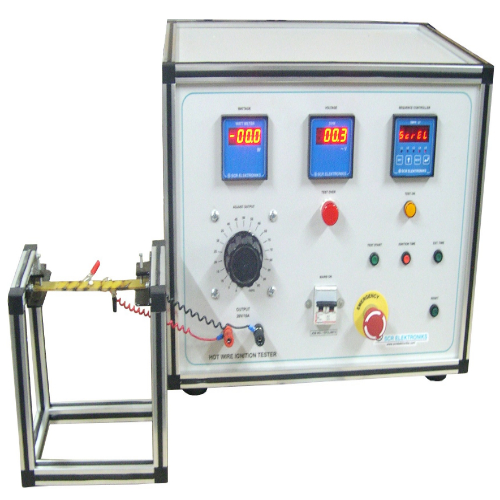

Hot Wire Ignition Tester
The SCR ELEKTRONIKS Heated Wire Tester is used for testing Ignition of Materials by Hot Wire Sources as per ASTM D 3874. As suggested by the standard, Heated Wire Tester is designed to evaluate a material's ability to resist ignition when exposed to abnormally high temperatures.
As per the standard, the center position of the specimen is wrapped with a Nichrome wire in a specific way as per clause 10.1 of ASTM D 3874. The free ends of the wire is connected to a circuit which supplies current as per clause 6.3 “Supply Circuit” of ASTM D 3874. Next the circuit is energized such that it dissipates 0.26 W/mm. When the ignition occurs or after 120 seconds (whichever is earlier), the circuit is switched off and the time to ignition is noted. If the material under test melts, then the circuit is switched off when the material is no longer in touch with the 5 turns of the heated wire. In such case the time to melt is noted.
The SCR ELEKTRONIKS Heated wire test apparatus has a micro-controller based dedicated logic unit to conduct this test. It’s built in extruded aluminium chassis with all material carefully chosen for durability & dependability. It’s used by leading test labs world-wide.
+ Show more
- Show less
Impulse Voltage Tester
Product Detail

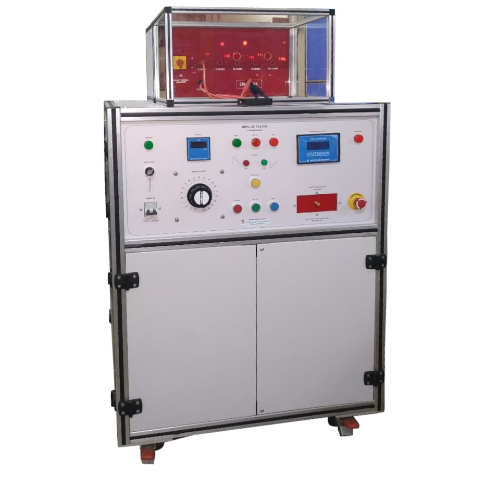

Impulse Voltage Tester
SCR ELEKTRONIKS Impulse Voltage Testers is designed for interference test as per IEC 61000-4-5 & IEC 61180. Impulse Voltage Testers produce a Voltage Impulse of the required 1.2 / 50 microsecond waveform, meaning a high voltage pulse with 1.2 microseconds rise time and 50 microseconds fall time. The voltage level is settable from 0.5kV to 25kV (depending upon model).
The Impulse Voltage Test Equipment is designed to generate a settable voltage impulse of 0.5 to 25kV (as per model) in both polarities. The waveform generated has a rise rime of 1.2 micro-second and 50 micro-seconds duration. This test is described in various standards including IEC 61180.
Impulse Tester 1.2/50µSec
- a) 6kV (1.2/50 µSec) Energy Max. 18J
- b) 10kV (1.2/50 µSec) Energy Max 50J
- c) 12kV (1.2/50 µSec) Energy Max 70J
- d) 15kV (1.2/50 µSec) Energy 112J
- e) 20kV (1.2/50 µSec) Energy 200J
- f) 6kV (1.2/50 µSec) a) Energy Max. 18J & b) Energy 0.5J
+ Show more
- Show less
Surge Tester
Product Detail

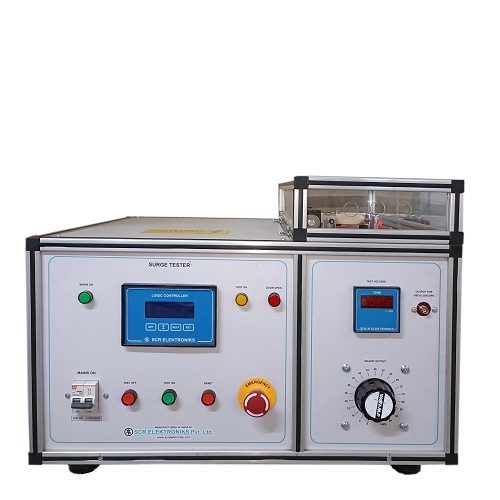

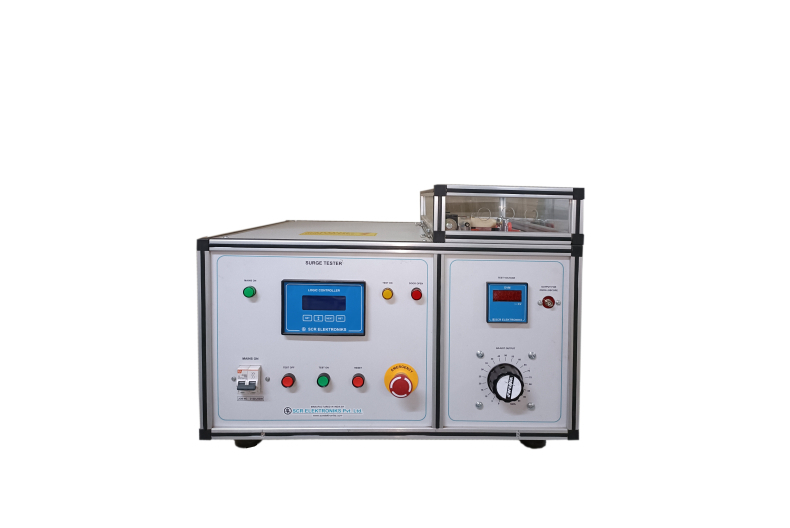

Surge Tester
Surge Tester is intended for testing of insulating materials, and for testing of particular components in mains operated electronic apparatus for household and telecommunication. This is tested with high voltage surges 10kV.
High voltage switch with IEC 60065 circuit is located in solid, isolated housing made of Plexiglas, so that it is protected from dust. Due to the transparency monitoring of high voltage switch is possible. The switch is mounted on top of sheet steel housing that consists control unit and high voltage source.
The arrangement of switch electrode is as shown figure 5b of IEC 60065. Brass sphere and contacts of high voltage switch are gold plated to avoid oxidation.
Electric circuit as per figure 5a of IEC 60065.
SCR Elektroniks make Logic Controller for adjusting the number of discharges and their rate.
+ Show more
- Show less
Ring Wave Generator
Product Detail

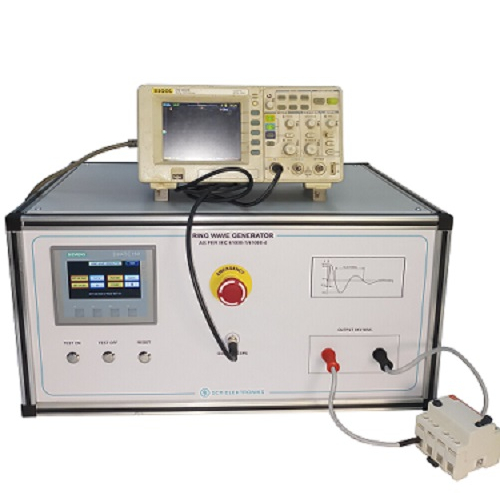

Ring Wave Generator
The SCR ELEKTRONIKS is design this test equipment for type testing of residual current circuit breakers.
High-voltage pulse generator producing Ring Wave 0.5 μs / 100 kHz acc. to IEEE 587. The output peak voltage can be preset continuously from 0.2 - 6 kV. Rise time 0.5μs to the first peak, ringing frequency 100 kHz. A built-in current transformer allows monitoring of the output current waveform. The generator comprises an electronically regulated high-voltage power supply, an energy storage capacitor, a high-voltage/high-current switch, a pulse forming network and a control- and monitoring unit.
Salient Features:
- Oscillatory wave
- Output Voltage : 0.2-6KV
- Frequency : 100 kHz
- Rise time : 0.5 μs
- Ring wave test according to IEEE 587
- Ring wave test of RCCBs according to IS 12640-1: 2016 / IEC 61008-1:2012 Clause No. 9.19.1
+ Show more
- Show less
Safety Test Panel for Air Conditioner
Product Detail

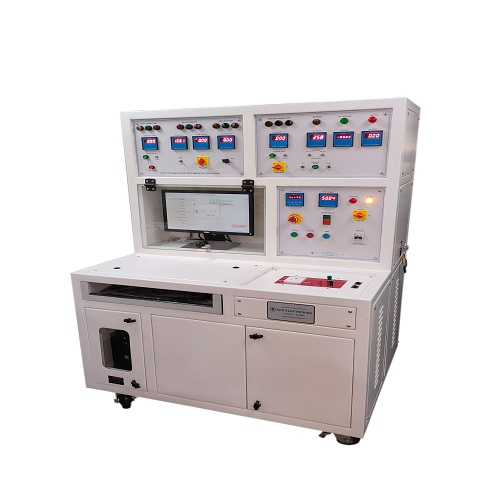

Safety Test Panel for Air Conditioner
SCR ELEKTRONIKS have developed safety and performance test setup for carrying out Performance Test, Earth Contact Resistance Test, High Voltage Test, Megger Test and Leakage Current Test.
The tester tests various safety tests of the domestic appliance and ensures safety to the end user (consumer) before being shipped.
Also it ensures quality and reliability (hence life) of the appliance thus improving brand value
It consists of Voltmeters, Ammeters and Wattmeter's for observing the values of different parameters. OK / NOT OK lamps are also provided to display the results of Earth Contact Resistance Test, HV test, Megger Test, Leakage Current Test
The Test Panel can be customized with Micro controller based or PC based.
Basic Specifications:
1. Microcontroller based Timer- Test time of all the tests can be set on this timer.
2.Auto/Manual selector switch- In Auto mode Timer will conduct all the operations. In manual mode seperate push buttons will be provided for making ON/OFF the tests.
3. Start, Stop, Reset, Emergency OFF Push Buttons will be provided seperately
4.Output will be on Clip ON terminals with appropriate ratings.
5. Automatic switching of the test parameters will be through contactors.
6.Panel will be built in M.S. Powder Coated cabinet floor mounting type.
+ Show more
- Show less
Ball Pressure Test Apparatus
Product Detail

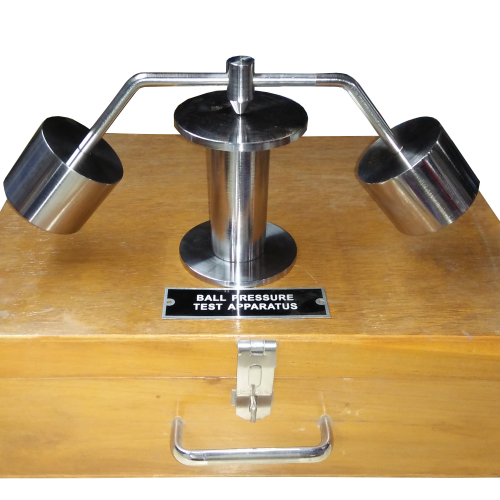

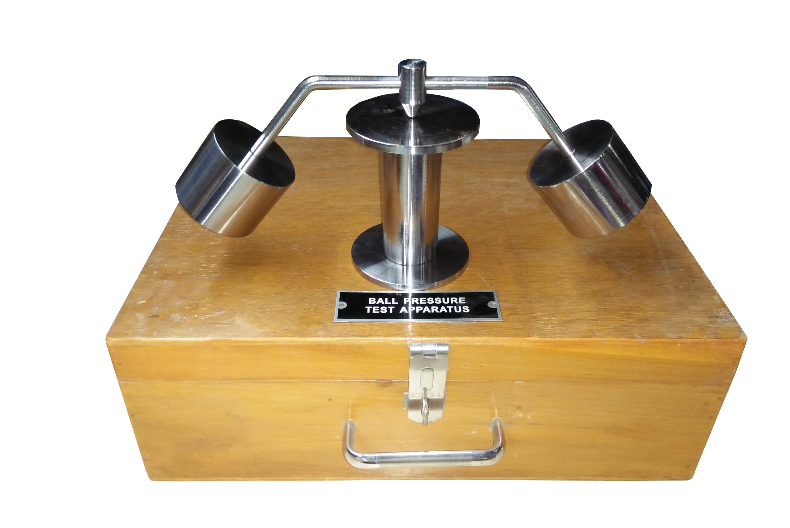

Ball Pressure Test Apparatus
SCR ELEKTRONIKS focuses on designing a solution around the end use at her customer. Instead of offering a standard instrument for a specific task, we have an approach of customizing the test bench to target the specific goals of the process or test procedure. Our measurement instruments, test modules, electrical power systems & software libraries are developed with this vision, thereby reducing the test system’s time-to-deploy.
The Ball Pressure Test Apparatus is used to check the integrity of dielectric material with respect to resistance to elevated operating temperature. The Ball Pressure Test Apparatus model BP 21 takes care of this testing useful for insulator manufacturers and other electro-technical manufacturers who use insulating material in their electrical appliances. The BP21 is made of stainless steel for long life.
Specifications:
Ball diameter : 5 mm.
Force exerted on sample : 20 n, + \ - 0.1 n.
Material of construction : Stainless steel.
Magnifier : X 10 magnification,0.1 + mm
Resolution : 0~10mm scale
+ Show more
- Show less

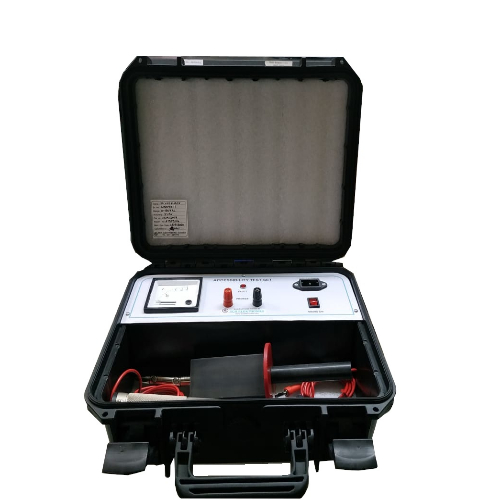

Test Finger Apparatus
Product Detail
Test Finger Apparatus

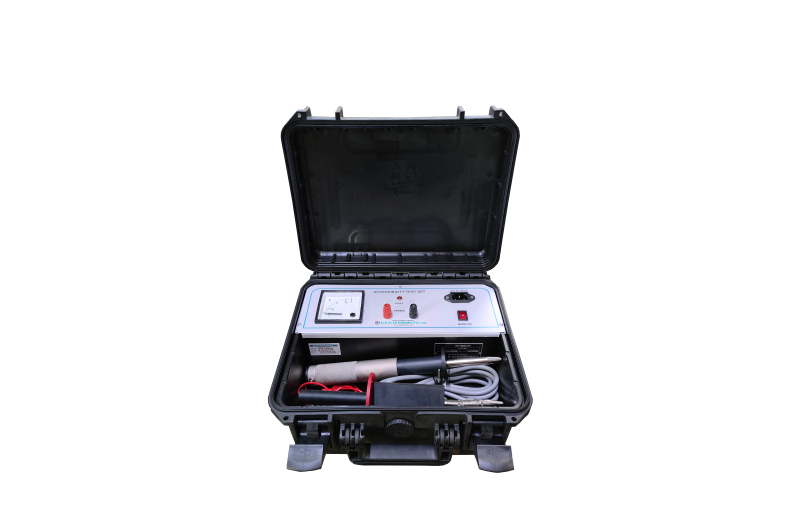

SCR ELEKTRONIKS focuses on designing a solution around the end use at her customer. Instead of offering a standard instrument for a specific task, we have an approach of customizing the test bench to target the specific goals of the process or test procedure. Our measurement instruments, test modules, electrical power systems & software libraries are developed with this vision, thereby reducing the test system’s time-to-deploy.
SCR ELEKTRONIKS Designs for the Test of the products non Accessible of live parts through shutters, when the plug is in partial with the product.
+ Show more
- Show less
Drc Arc Resistance Tester as per ASTM D 495
Product Detail
Drc Arc Resistance Tester as per ASTM D 495

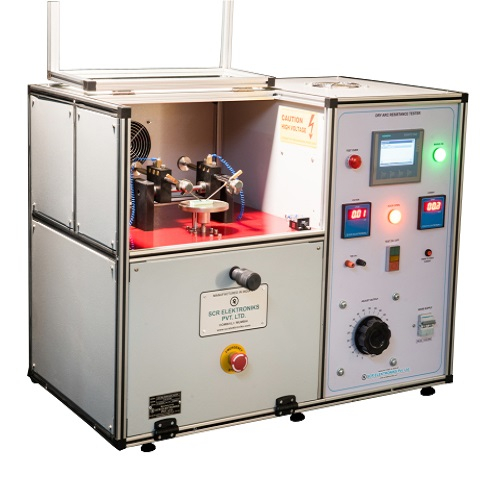

This equipment is made to test the electrical insulating material by exposing it to Arcing under high voltage. The test specimen is placed under electrodes, spaced at a distance of 6.35mm as per ASTM D 495. An Arc is generated between these electrodes. The test consists of 7 Cycles starting from cycle 1. As the cycles progress the test becomes progressively severe. The test specimen that has lower insulating strength fails earlier in the first few cycles while those with higher insulating strength sustain higher cycles. The test is halted when the specimen fails and the time taken from the start of the test till the failure is used for comparing INSULATING STRENGHTS (time in seconds) of various insulating materials. The test specimen may fail by forming a conducting path, by burning into flames, by melting or any other physical, visual deformities.
The test method as per ‘ASTM D 495 – Standard Test Method for High-voltage, Low-current Dry Arc Resistance of Solid Insulating Material’ is pre-programmed in the PLC. Please refer to ASTM D 495 for more details. This equipment complies testing as per other standards as well, such as IEC 61621 (Dry, solid insulating materials - Resistance test to high-voltage, low-current arc discharges), UL 746 A (Polymeric Materials – Short Term Property Evaluations Testing For Electrical Properties) and IS 14672 (Method of Test for High Voltage Low Current Dry Arc Resistance of Solid Electrical Insulation).
+ Show more
- Show less
High Current Arc Ignition Test Apparatus
Product Detail

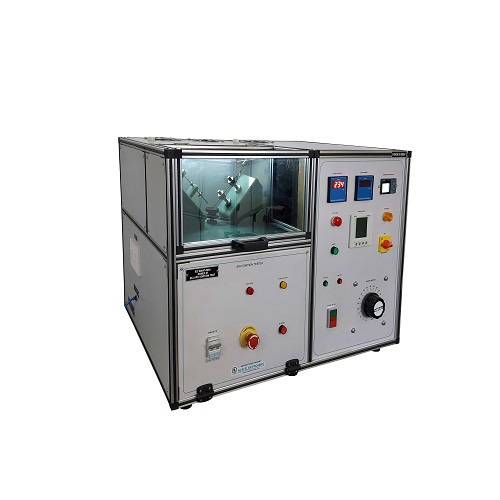

High Current Arc Ignition Test Apparatus
High-Current Arc Ignition Test Machine is used for evaluating Ignition Performance Level Category as per UL 746A. Any insulating material should resist electrical arcing when a high current tries to make path between a short distance that is only ‘connected’ by insulating surface. This is a requirement as per IEC 60947 - 1, BS EN 60950 - 1 and IEC 60335 - 2 - 40. Thus, it is a basic electrical safety requirement for all components such as cables, or for that matter any device employing an insulation such as polymers or polycarbonates.
The SCR ELEKTRONIKS High-Current Arc Ignition Test Machine makes testing as per clause 32 of UL 746A a breeze. It offers a Siemens PLC based control system with all relevant meters on board. It is a cost-effective and yet elegant apparatus for your quality control department. Even the IEC 60947 - 1 clause 8.2.1.1.2 is available as a pre-programmed test procedure – something switchgear manufacturers have come to expect from us. The whole equipment is built in extruded aluminium with multiple fail-safety interlocks.
+ Show more
- Show less
Steam Rate Assessment - DA Manual Steam Rate Assessment
Product Detail
Steam Rate Assessment - DA Manual Steam Rate Assessment
+ Show more
- Show less
PC Based Automatic Safety Test Panel for Mixer
Product Detail
PC Based Automatic Safety Test Panel for Mixer

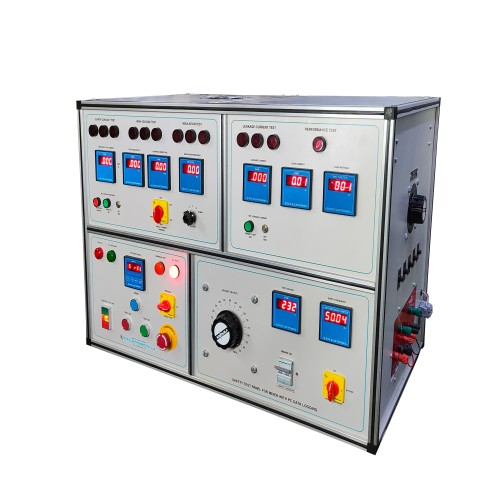

Safety Test Panel for Domestic Mixer with PC Datalogging. The tests are Performed as Prescribed in IS the Panel Carries out different tests one by one and provides indication of the Test results as OK or NOT-OK. It is very useful and handy in line testing on Mass production line as well as type Testing. Special fixture can be provided for the specific product. This avoids the connections & disconnections of the product for different tests. The total time for entire testing is less than 20 seconds. Micro controller based sequential timer maintains the sequence of operation and displays the test status. This manual contains information about operating instructions and maintenance of the equipment. Please go through this manual carefully and retain it for future reference.
+ Show more
- Show less
Tumbling Barrel Test Apparatus
Product Detail

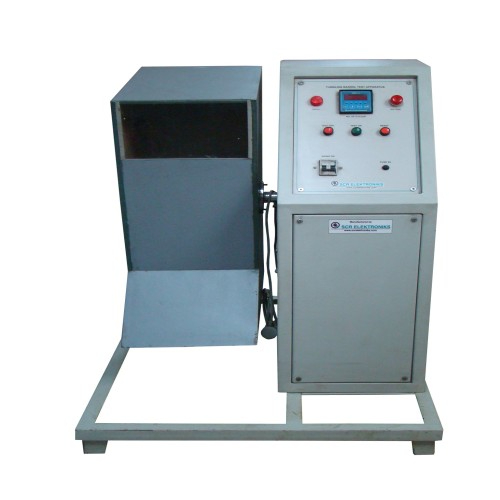

Tumbling Barrel Test Apparatus
Tumbling Barrel Apparatus is specially designed and manufactured for use in laboratories involved in testing Appliances, Electrical Accessories, Luminaries and other related Electro technical products. It is used to perform the test specified in many standards to determine compliance with safety requirements, particularly mechanical strength of test samples. SCR Elektroniks Makes Counter to count ON/OFF of Limit switch.
+ Show more
- Show less
Temperature Rise Test Panel 2000A
Product Detail

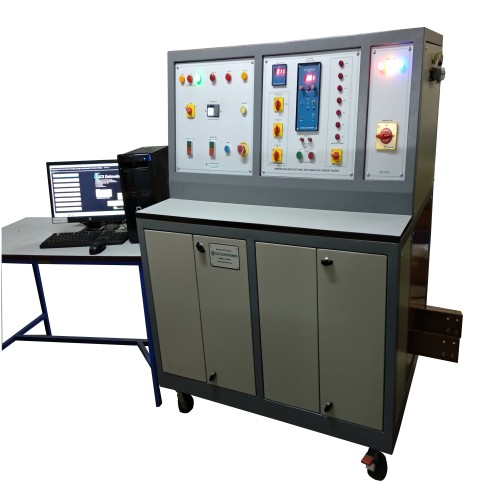

Temperature Rise Test Panel 2000A
“TEMPERATURE RISE TEST BENCH FOR MEDIUM VOLTAGE SWITCH BOARDS” to measure rise in temperature at various points as mentioned in standard at junctions.
The set-up consists of a True RMS Constant Current Source (to maintain the Current within + / - 1 % of set value with Digital Indication), PC based control system, Temperature data logging on PC, Servo-Controller and other indications. Digital voltmeter Primary Voltage) indicates the position of auto transformer (variac).
+ Show more
- Show less
