Product Details

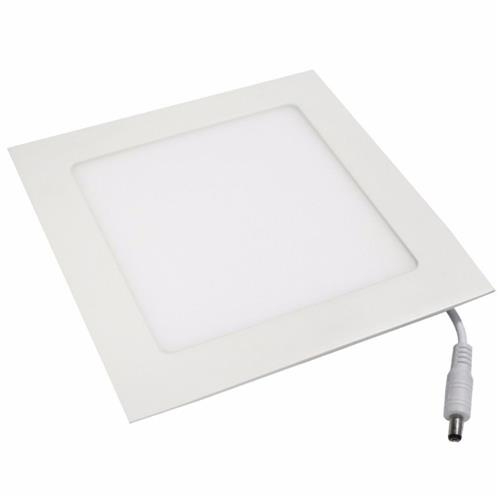

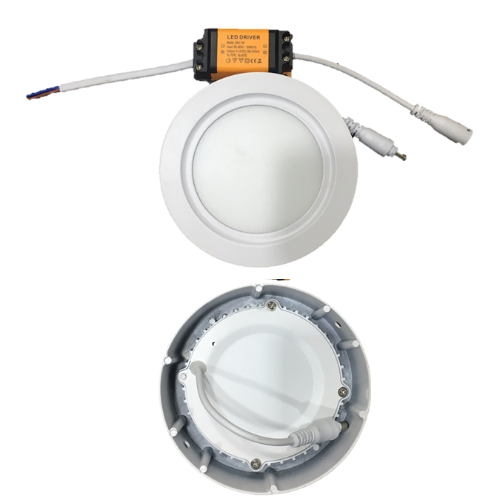

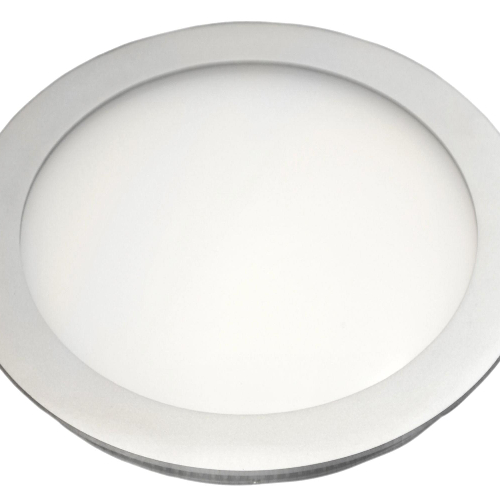

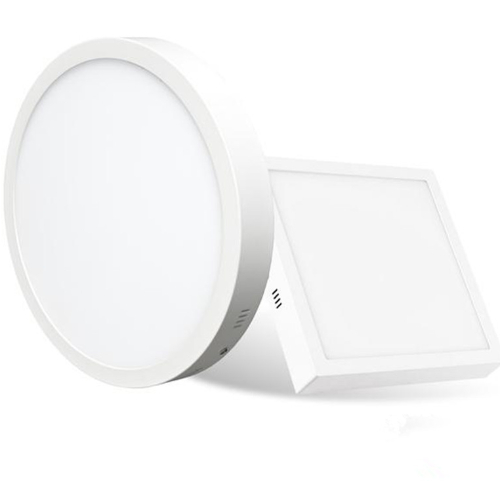

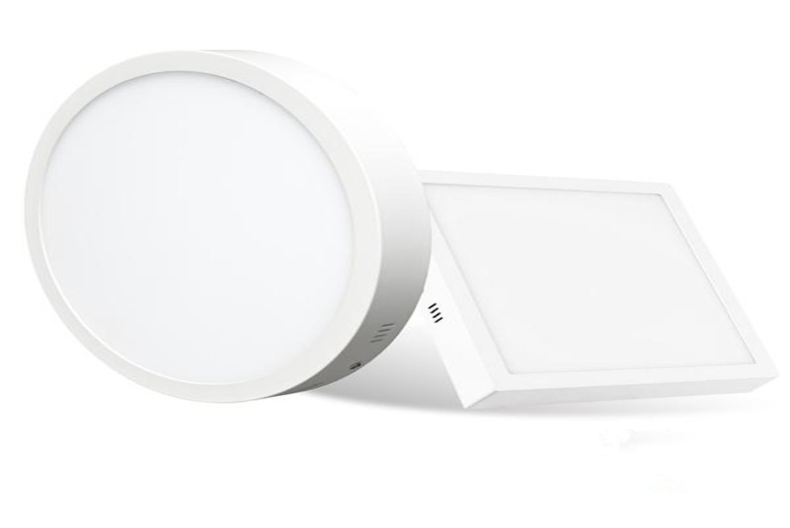

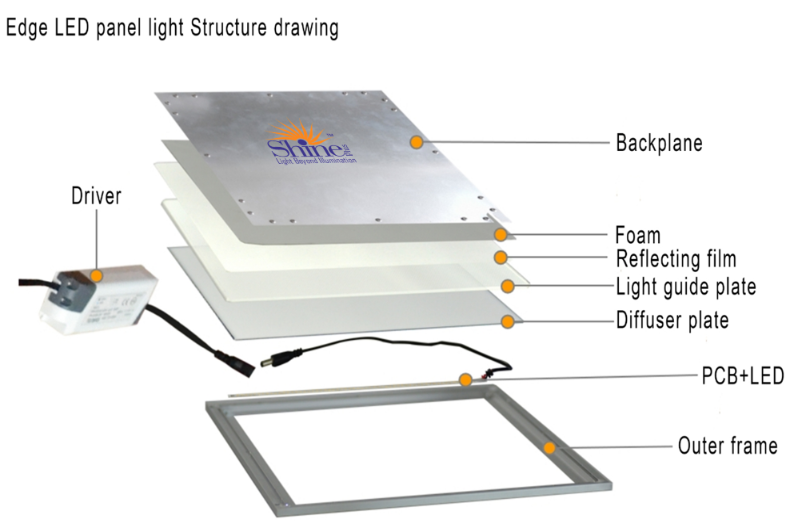

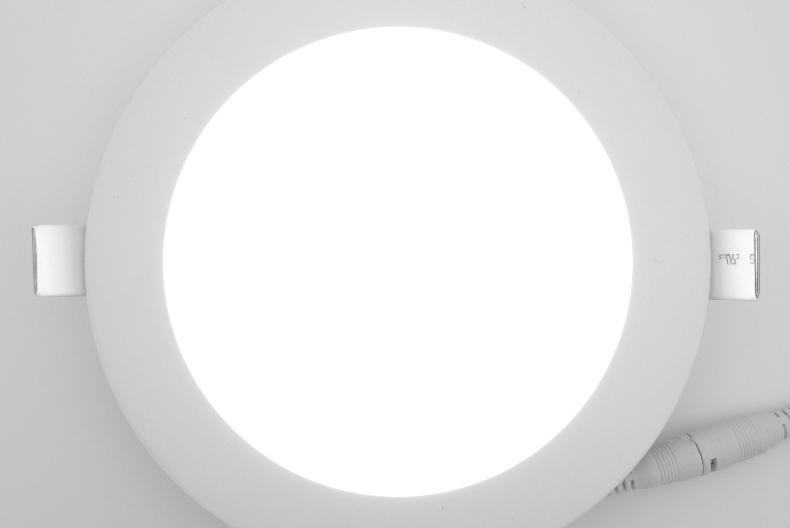

Code : SL_1505 18W LED Panel Light
Model : Panel Light
Make : SHINE PLUS
Electrical Data
Power Consumption : 18W
Operating Voltage Range: 90VAC-265VAC
Frequency : 50 Hz
Power Factor : > 0.96
THD : < 15%
Driver : Constant Current (External)
Efficiency : > 85%
Light Data
Light source (LED): Edison
Efficacy : 110 lm/Watt
Luminous flux : 1980 lumens
Colour temperature: 3000K-6500K
CRI : 80
Average Life : L70 @ 50,000 Hours.
Environmental
Working Temperature: 0 °C to + 55 °C
Working Humidity : 10 to 90% RH
Storage Temperature: 0°C TO + 85 °C
IP Rating : IP20 Protected from touch by fingers and
objects greater than 12 MM.
Not protected from liquids
Protection
Input Overvoltage/Under voltage : Protected
High voltage standing : Protected
Output Short circuit : Protected
Voltage Power Fluctuations/Surge : Protected
Physical Details
Material : Aluminium Die cast
Cut out (⌀) : 200MM
Suitable Fixing : Recess Mount
Applications : Indoor
Application Area : Commercial and residential
Hotels and restaurants
Shops and showrooms

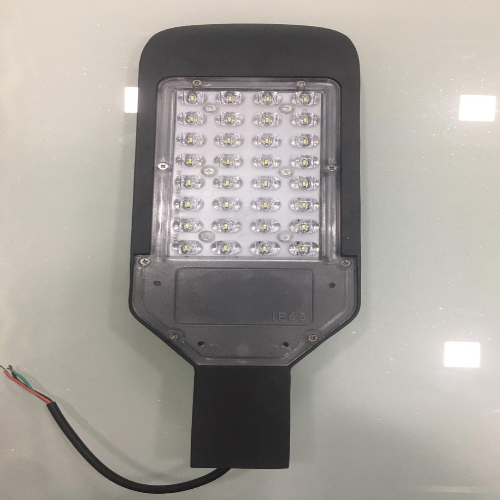

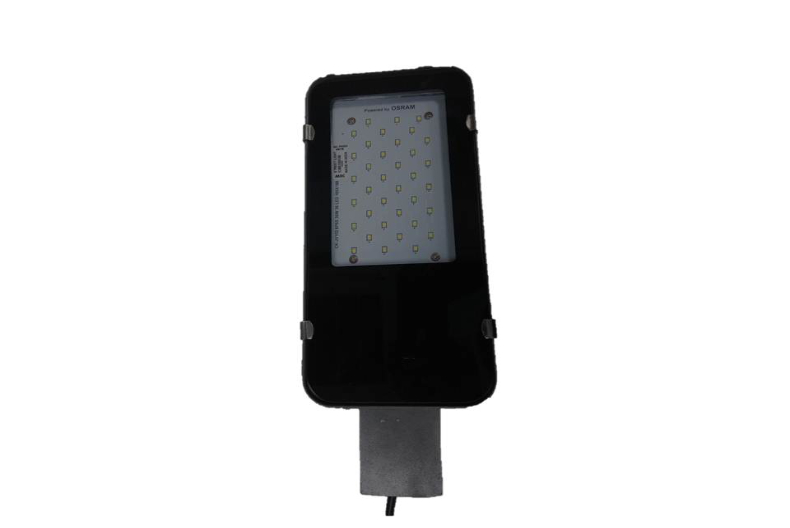

1. 30W LED Street Light – Shine Make

• Rated power : 30W
• Input voltage : 90 – 285 V AC, 50 Hz
• LED Make : Osram
• Luminous Efficiency : 110 lm/W
• Luminous Flux : 3300 lm
• Power factor : >0.95
• Surge Protection : 4 KV
• LED Driver : Constant Current (Internal)
• Driver efficiency : 85%
• Lumen Maintenance : 70% at 50,000 hours
• Colour Temp : 6500k
• CRI : >80
• Housing : Aluminium die cast
• IP Rating : IP 65
• Working Life : 50,000 hours

• Warranty : 2 years

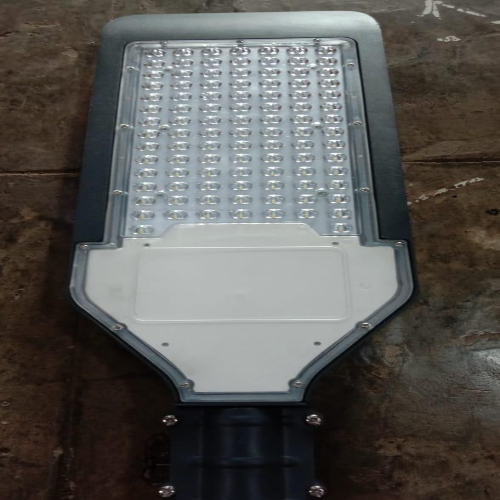

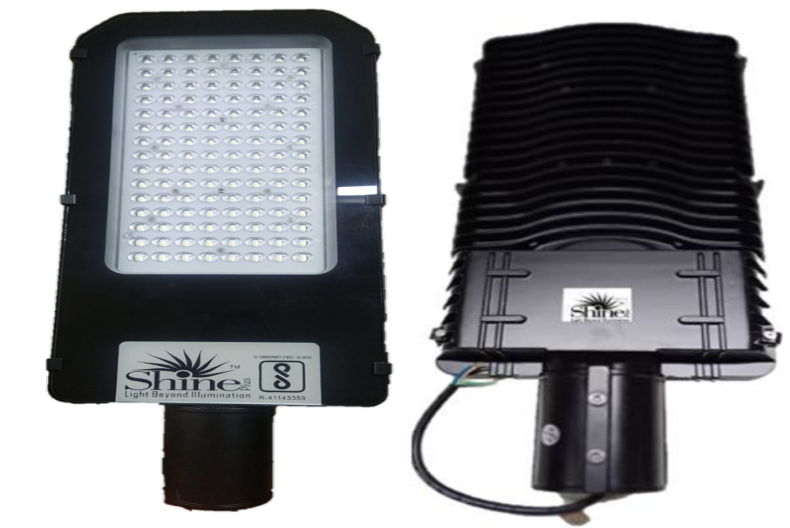

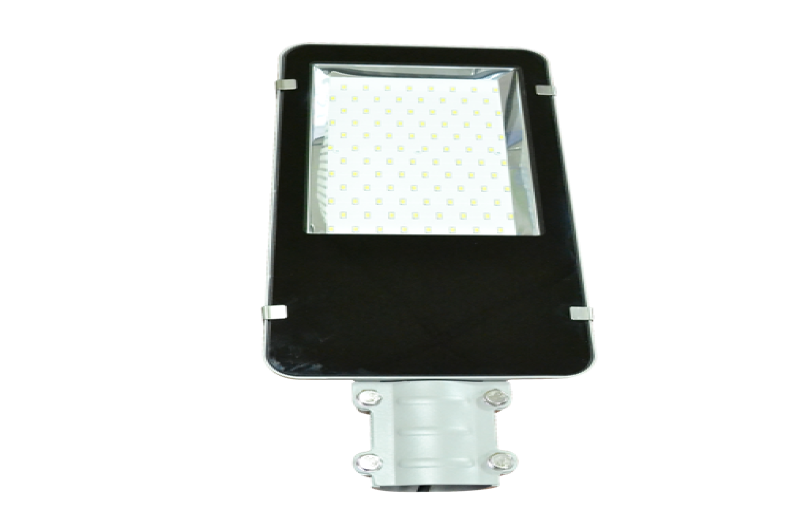

1. 100W LED Streetlight

• Rated power : 100W
• Input voltage : 90 – 285 V AC, 50 Hz
• LED Make : Osram
• Luminous Efficiency : 110 lm/W
• Luminous Flux : 11000 lm
• Power factor : >0.96
• Surge Protection : 4 KV
• LED Driver : Constant Current
• Driver efficiency : 85%
• Lumen Maintenance : 70% at 50,000 hours
• Colour Temp : 6000k
• CRI : >80
• Housing : Aluminium die cast
• IP Rating : IP 66
• Working Life : 50,000 hours

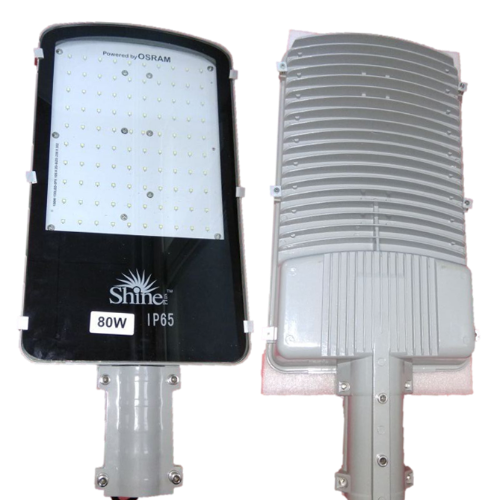

1. 80W LED Streetlight

• Rated power : 80W
• Input voltage : 90 – 285 V AC, 50 Hz
• LED Make : Osram
• Luminous Efficiency : 110 lm/W
• Luminous Flux : 8800 lm
• Power factor : >0.96
• Surge Protection : 4 KV
• LED Driver : Constant Current
• Driver efficiency : 85%
• Lumen Maintenance : 70% at 50,000 hours
• Colour Temp : 6000k
• CRI : >80
• Housing : Aluminium die cast
• IP Rating : IP 66
• Working Life : 50,000 hours

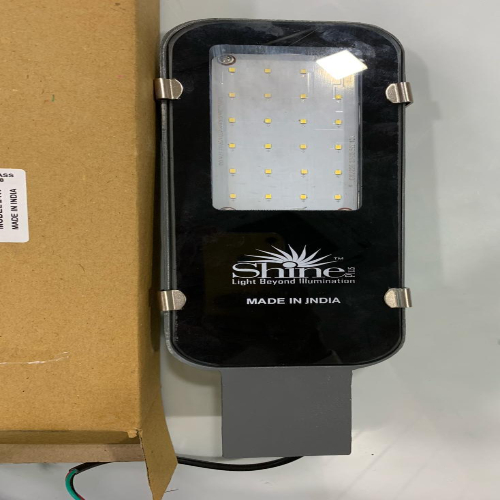

1. 20W LED Street Light – Shine Make

• Rated power : 20W
• Input voltage : 90 – 285 V AC, 50 Hz
• LED Make : Osram
• Luminous Efficiency : 110 lm/W
• Luminous Flux : 2200 lm
• Power factor : >0.95
• Surge Protection : 4 KV
• LED Driver : Constant Current (Internal)
• Driver efficiency : 85%
• Lumen Maintenance : 70% at 50,000 hours
• Colour Temp : 6500k
• CRI : >80
• Housing : Aluminium die cast
• IP Rating : IP 66
• Working Life : 50,000 hours

• Warranty : 2 years

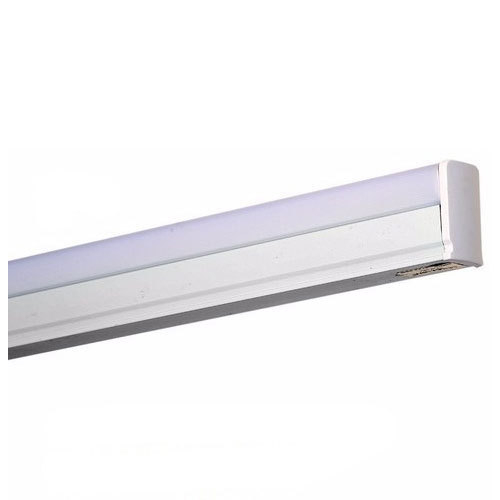

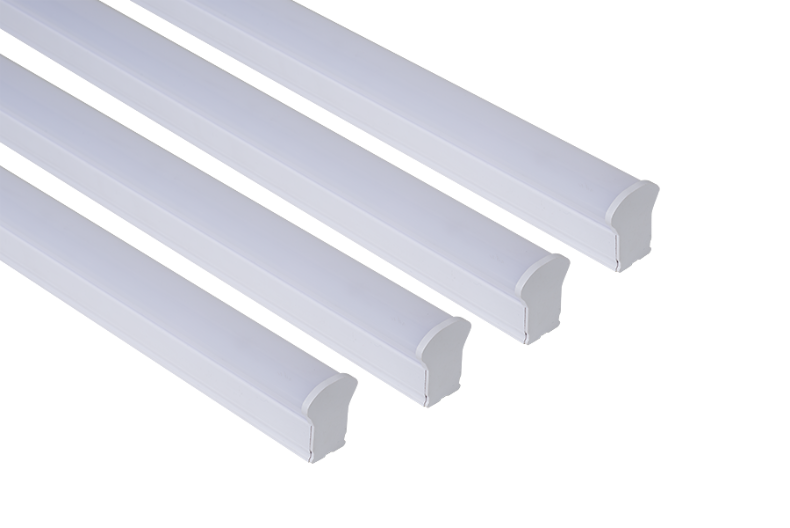

20W LED Batten
 Rated power : 20W
 Input voltage : 90 – 285 V AC, 50 Hz
 LED Make : Edison
 Luminous Efficiency : 110 lm/W
 Luminous Flux : 2200 lm
 Power factor : >0.96
 Surge Protection : 2 KV
 LED Driver : Constant Current
 Driver efficiency : 85%
 Lumen Maintenance : 70% at 40,000 hours
 Colour Temp : 3000k/4000k/6500k
 CRI : >80
 IP Rating : IP 20
 Working Life : 40,000 hours

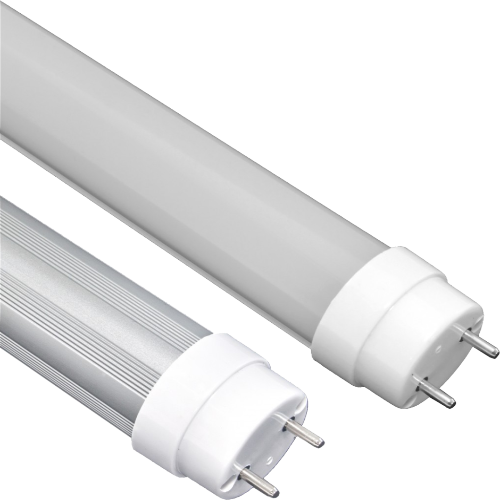

Product Details

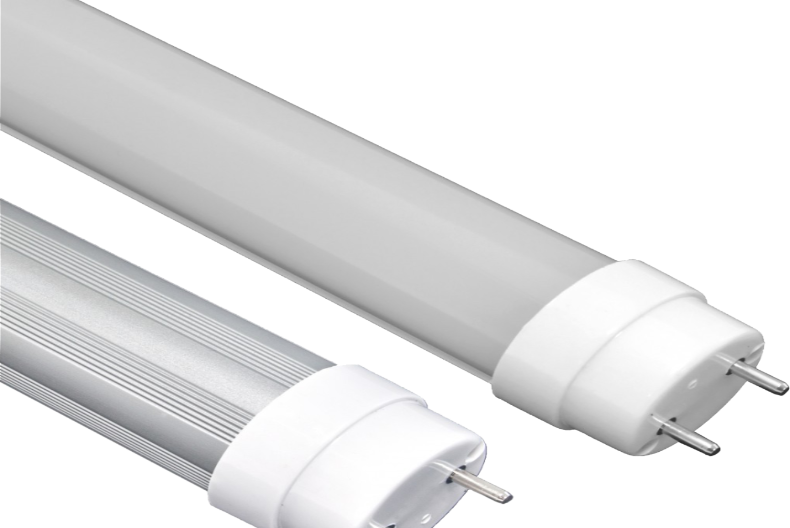

Code : 20W LED Retro Tube_4ft-T8
1)SHTLT8-20W-Double End
2)SHTLT8-20W-Single End
Model : Tube Light
Make : SHINE PLUS
Electrical Data Power Consumption : 20W
Operating Voltage Range: 90VAC-265VAC
Frequency : 50 Hz
Power Factor : > 0.96
THD : <15%
Driver : Constant Current
Efficiency : > 85%
Light Data
Light source (LED) : Edison
Efficacy : 110 lm/Watt
Luminous flux : 2200 lumens
Colour temperature : 6000k CRI : >80
Average Life : L70 @ 50,000 Hours.
Environmental Working Temperature : 0 °C to + 55 °C
Working Humidity : 10 to 90% RH Storage Temperature : 0°C TO + 85 °C IP Rating : IP20 Protected from touch by hands And objects greater than 12MM. Not protected from liquids
Protection
Input Overvoltage/Under voltage : Protected
High voltage standing : Protected
Output Short circuit : Protected
Voltage Power Fluctuations/Surge : Protected
Physical Details
Material : Heat sink-Aluminium with PC Diffuser Suitable Fixing : Surface Mounting , Wall Mounting / Ceiling Mounting (with fixture) Dimensions (L) : 1200mm
Applications : Indoor Application Area : Commercial and residential Warehouse Overhead machine lighting Production Line. Retail & Hospitality
Warranty : 2 Years
www

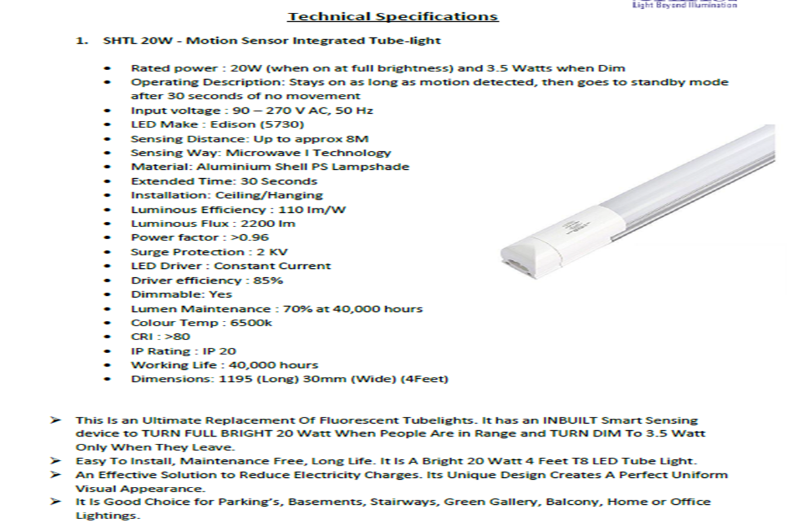

Technical Specifications

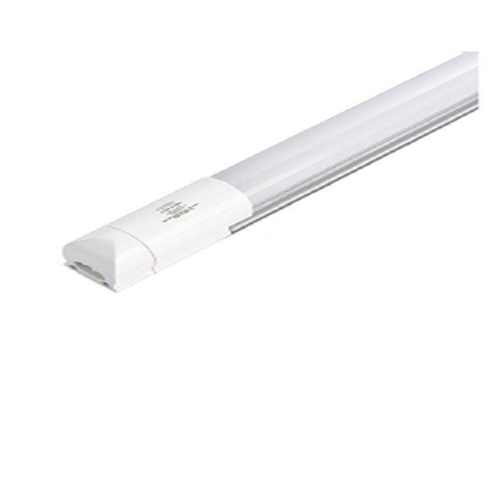

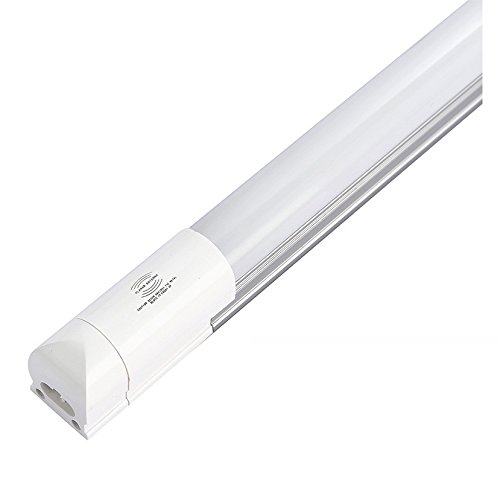

1. SHTL 20W - Motion Sensor Integrated Tube-light

• Rated power : 20W (when on at full brightness) and 3.5 Watts when Dim
• Operating Description: Stays on as long as motion detected, then goes to standby mode after 30 seconds of no movement
• Input voltage : 90 – 270 V AC, 50 Hz
• LED Make : Edison (5730)
• Sensing Distance: Up to approx 8M
• Sensing Way: Microwave I Technology
• Material: Aluminium Shell PS Lampshade
• Extended Time: 30 Seconds
• Installation: Ceiling/Hanging
• Luminous Efficiency : 110 lm/W
• Luminous Flux : 2200 lm
• Power factor : >0.96
• Surge Protection : 2 KV
• LED Driver : Constant Current
• Driver efficiency : 85%
• Dimmable: Yes
• Lumen Maintenance : 70% at 40,000 hours
• Colour Temp : 6500k
• CRI : >80
• IP Rating : IP 20
• Working Life : 40,000 hours
• Dimensions: 1195 (Long) 30mm (Wide) (4Feet)

• This Is an Ultimate Replacement Of Fluorescent Tubelights. It has an INBUILT Smart Sensing device to TURN FULL BRIGHT 20 Watt When People Are in Range and TURN DIM To 3.5 Watt Only When They Leave.
• Easy To Install, Maintenance Free, Long Life. It Is A Bright 20 Watt 4 Feet T8 LED Tube Light.
• An Effective Solution to Reduce Electricity Charges. Its Unique Design Creates A Perfect Uniform Visual Appearance.
• It Is Good Choice for Parking’s, Basements, Stairways, Green Gallery, Balcony, Home or Office Lightings.

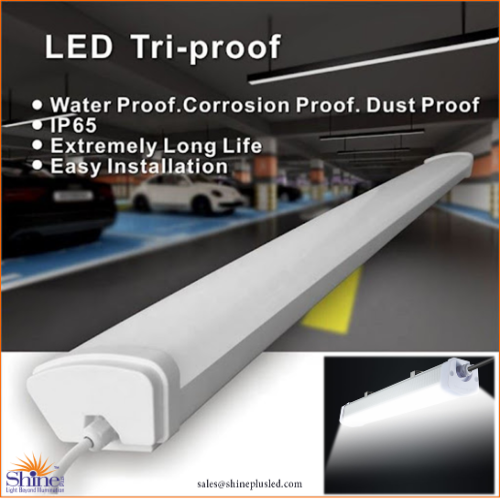

Product Details
Code : 40W Tri proof LED Batten_6000k_IP65 (Waterproof, Dust proof & Corrosion proof)
Model : 4Ft Tube Light
Make : SHINE PLUS
Electrical Data Power Consumption : 40W
Operating Voltage Range: 90VAC-265VAC
Frequency : 50 Hz
Power Factor : > 0.96
THD : < 15%
Driver : Constant Current
Efficiency : > 85%
Light Data
Light source (LED): Edison
Efficacy : 130 lm/Watt
Luminous flux : 5200 lumens
Colour temperature: 6000k CRI : 80
Average Life : L70 @ 50,000 Hours.
Environmental Working Temperature: 0 °C to + 55 °C
Working Humidity : 10 to 90% RH Storage Temperature: 0°C TO + 85 °C IP Rating: IP65 (Protected from total dust and Low Pressure water jets from any direction)
Protection
Input Overvoltage/Under voltage : Protected
High voltage standing : Protected
Output Short circuit : Protected
Voltage Power Fluctuations/Surge : Protected
Physical Details
Material : Heat sink-Aluminium and the body of fixture
Made from polycarbonate Suitable Fixing : Surface Mount Suitable for any Ceiling by stainless steel clips
Applications : Indoor/outdoor
Application Area : Commercial and residential premises
Warehouse Parking garage lighting Supermarket lighting Outdoor areas-Pedestrian bridges Awning Back lighting and more
Warranty : 2 Years

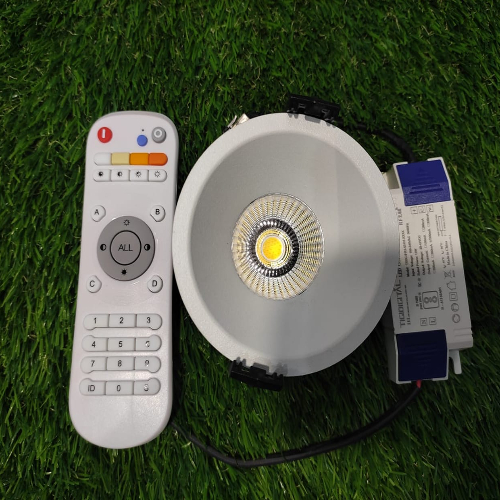

15W LED COB Spot Light
 Rated power : 15W
 Input voltage : 90 – 285 V AC, 50 Hz
 LED Make : Osram
 Luminous Efficiency : 110 lm/W
 Luminous Flux : 1320 lm
 Power factor : >0.96
 Surge Protection : 2 KV
 LED Driver : Constant Current
 Driver efficiency : 85%
 Lumen Maintenance : 70% at 40,000 hours
 Colour Temp : 3000K – 6500K (Tuneable & Dimmable )
 CRI : >80
 IP Rating : IP 20
 Working Life : 40,000 hours
 Dimensions (MM) : 90*70
 Cut-Out (MM) : 90

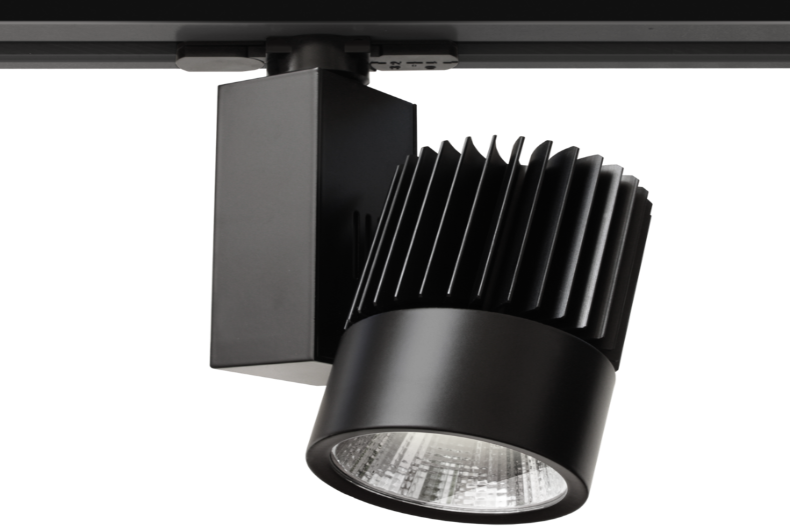

18W LED COB Track Light (Cree)
 Rated power : 18W
 Input voltage : 90 – 285 V AC, 50 Hz
 LED Make : Cree
 Luminous Efficiency : 130 lm/W
 Luminous Flux : 2340 lm
 Power factor : >0.96
 Surge Protection : 4 KV
 LED Driver : Philips Constant Current
 Driver efficiency : 85%
 Lumen Maintenance : 70% at 50,000 hours
 Colour Temp : 6000k 4500k 3000K
 CRI : >80
 IP Rating : IP 65
 Working Life : 40,000 hours
 Beam Direction : 40deg

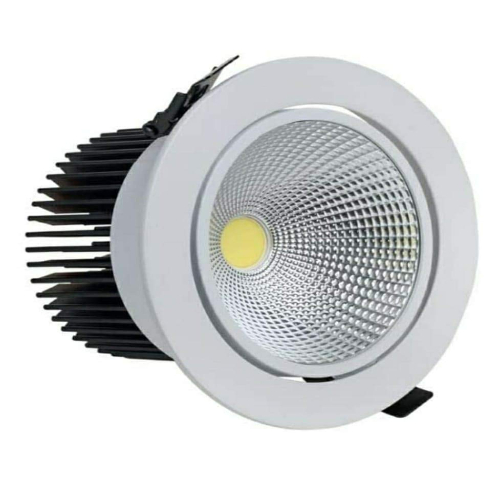

50W LED COB Down Light
 Rated power : 50W
 Input voltage : 90 – 285 V AC, 50 Hz
 LED Make : Epistar
 Luminous Efficiency : 110 lm/W
 Luminous Flux : 5500lm
 Power factor : >0.96
 Surge Protection : 2 KV
 LED Driver : Constant Current
 Driver efficiency : 85%
 Lumen Maintenance : 70% at 40,000 hours
 Colour Temp : 3000K
 CRI : >80
 IP Rating : IP 20
 Working Life : 40,000 hours

Product Details

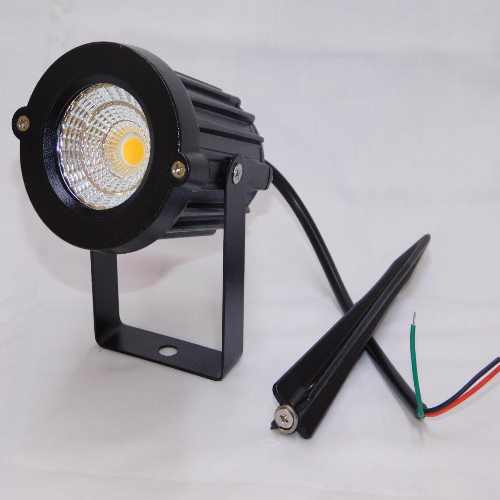

Code : SHSPK2302_9W Garden Spike_IP67
Model : Garden Light
Make : SHINE PLUS
Electrical Data Power Consumption : 9W +/- 5% Tolerance
Operating Voltage Range : 140VAC-265VAC
Frequency : 50 Hz
Power Factor : > 0.95
THD : < 10%
Driver : Constant Current
Efficiency : > 85%
Light Data
Light source : LED OSRAM COB 9W
Efficacy : 120lm/Watt
Luminous Flux : 1080Lm
Beam Angle : 40 degree
Colour temperature: 3500K/4500K/6500K
CRI : 80
Average Life : L70 @40,000 Hours.
Environmental Working Temperature: 0 °C to + 55 °C
Working Humidity : 10 to 90% RH Storage Temperature: 0°C TO + 85 °C IP Rating : IP67 (Protected from total dust and High Pressure water jets from any direction)
Protection
Input Overvoltage/Under voltage: Protected >320VAC
with 5-10V hysteresis
High voltage standing : Protected (440VAC)
Output Short circuit : Protected
Voltage Power Fluctuations/Surge: 2.5KV Protected
Physical Details
Material : Die-Casting Aluminium
Dimensions (L X W X H): 230X80X80 MM
Weight (Gross) : 0.8 Kg
Suitable Fixing : Outdoor/Inground
120 Degrees Rotate Spike
Applications : Indoor/Outdoor
Application Area : Garden Lighting
Façade Lighting
Tree Lighting
Warranty : 2 Years

Product Details

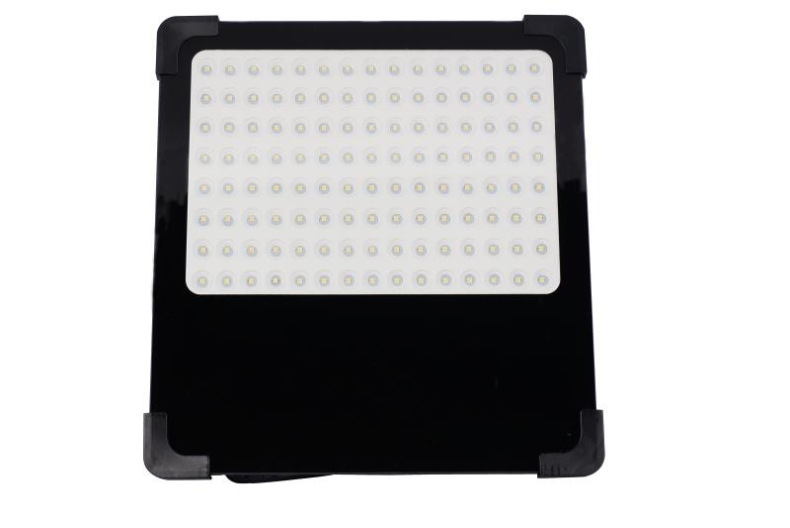

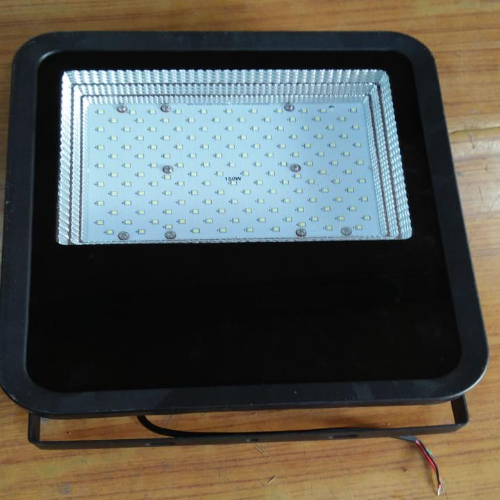

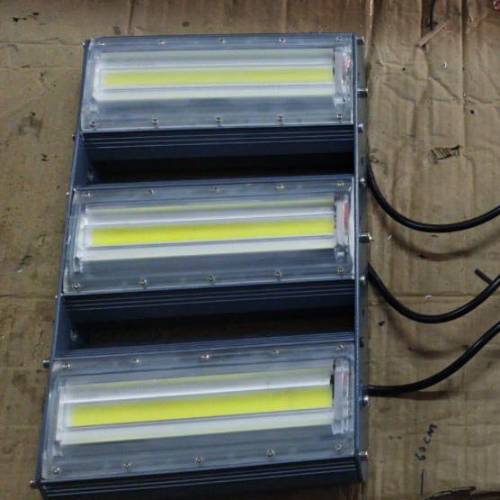

Code : 150WBM Project Linear LED Explosion Proof Model Flood Light
Make : SHINE PLUS
Electrical Data
Power Consumption : 150W
Operating Voltage Range: 140VAC-265VAC
Frequency : 50 Hz
Power Factor : > 0.95
THD : <10%
Driver : Constant Current
Efficiency : > 85%
Light Data
Light source : LED COB Epistar
Efficacy : 130 lm/Watt
Luminance Flux : 19500 lumens
Beam Angle : 120 degree
Colour temperature: 6000K
CRI : >80
Average Life : L70 @50,000 Hours.
Environmental
Working Temperature: 0 °C to + 55 °C
Working Humidity : 10 to 90% RH
Storage Temperature: 0°C TO + 85 °C
IP Rating : IP67 (Protected from total dust and
Protected from immersion between
15
CM and 1 M in depth
Protection
Input Overvoltage/Under voltage : Protected
High voltage standing : Protected
Output Short circuit : Protected
Voltage Power Fluctuations/Surge : Protected
Physical Details
Material : Aluminium diecast
Suitable Fixing : Ceiling/Surface Mount
180 Degrees Rotate Adjustable
handle
Applications : Indoor/Outdoor
Application Area : Factories & Assembly Line
Industrial Plants & Units
Toll Plaza
Warehouses
Warranty : 2 Years

Product Details
Code : 150W LED Project Linear light
Model : Project Linear light
Make : SHINE PLUS
Electrical Data Power Consumption : 150W
Operating Voltage Range: 140VAC-265VAC
Frequency : 50 Hz
Power Factor : > 0.95
THD : <10%
Driver : Constant Current
Efficiency : > 85%
Light Data
Light source (LED) : Osram 3030 1W
Efficacy :130 lm/Watt
Luminance Flux : 19500 lumens
Beam Angle : 120 degree
Colour temperature: 6500K
CRI : 80
Reflector : Aluminium reflector for uniform
Light distribution
Average Life : L70 @50,000 Hours.
Environmental Working Temperature: 0 °C to + 55 °C
Working Humidity : 10 to 90% RH Storage Temperature: 0°C TO + 85 °C IP Rating : IP66 (Protected from total dust and High Pressure water jets from any direction)
Protection
Input Overvoltage/Under voltage : Protected >280VAC with
5-10V Hysteresis
High voltage standing : Protected (440VAC)
Output Short circuit : Protected
Voltage Power Fluctuations/Surge : Protected
Physical Details
Material : Aluminium diecast
Weight :3.5Kgs
Suitable Fixing : Ceiling/Surface Mount
180 Degrees Rotate Adjustable handle
Applications : Indoor/Outdoor
Application Area : Factories & Assembly Line
Industrial Plants & Units
Toll Plaza
Warehouses
Warranty : 2 Years

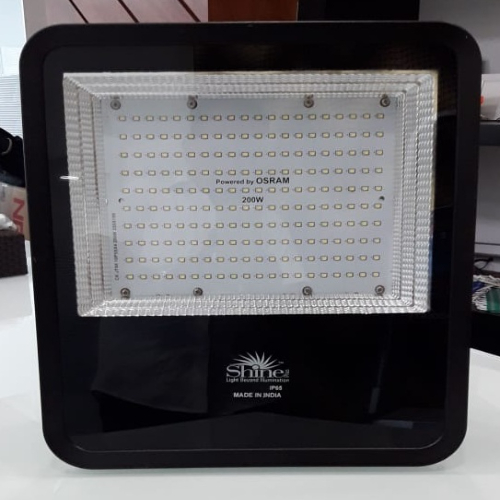

200W LED Floodlight SMD
 Rated power : 200W
 Input voltage : 90 – 285 V AC, 50 Hz
 LED Make : Osram
 Luminous Efficiency : 130 lm/W
 Luminous Flux : 26000 lm
 Power factor : >0.96
 Surge Protection : 4 KV
 LED Driver : Constant Current
 Driver efficiency : 85%
 Lumen Maintenance : 70% at 50,000 hours
 Colour Temp : 6500k
 CRI : >80
 IP Rating : IP 66
 Working Life : 50,000 hours
 Housing: Aluminium Body
 Weight: 5.1 Kg

22W LED Surface Light
 Rated power : 22W
 Input voltage : 90 – 285 V AC, 50 Hz
 LED Make : Edison
 Luminous Efficiency : 110 lm/W
 Luminous Flux : 2420 lm
 Power factor : >0.96
 Surge Protection : 4 KV
 LED Driver : Constant Current (External)
 Driver efficiency : 85%
 Lumen Maintenance : 70% at 40,000 hours
 Colour Temp : 3000K - 6000k
 CRI : >80
 Housing : Aluminium die cast
 IP Rating : IP 20
 Working Life : 40,000 hours
 Cut Out : 8 inches
 Warranty : 2 years

Product Details
Code : 12W LED Surface Panel Light
Model : Panel Light
Make : SHINE PLUS
Electrical Data Power Consumption : 12W
Operating Voltage Range: 90VAC-265VAC
Frequency : 50 Hz
Power Factor : > 0.96
Driver : Constant Current (External)
Efficiency : > 85%
Light Data
Light source (LED): Edison
Efficacy : 110 lm/Watt
Luminous flux : 1320 lumens
Colour temperature: 3000K-6500K CRI : >80
Average Life : L70 @ 50,000 Hours.
Environmental Working Temperature: 0 °C to + 55 °C
Working Humidity : 10 to 90% RH Storage Temperature: 0°C TO + 85 °C IP Rating : IP20 Protected from touch by fingers and Objects greater than 12 millimeters. Not protected from liquids
Protection
Input Overvoltage/Under voltage : Protected
High voltage standing : Protected
Output Short circuit : Protected
Voltage Power Fluctuations/Surge : Protected
Physical Details
Material : Aluminium Die cast Suitable Fixing : Surface Mount Suitable for any ceiling
Applications : Indoor
Application Area : Commercial and residential premises Hotels and restaurants Shops and showrooms
Warranty : 2 Years

Product Details
Code : SHSL100W LED Street Light
Model : Street Light
Make : SHINE PLUS
Electrical Data
Power Consumption : 100W
Operating Voltage Range: 140VAC-265VAC
Frequency : 50 Hz
Power Factor : > 0.95
THD :<10%
Driver : Constant Current
Efficiency : > 85%
Light Data
Light source : LED OSRAM 3030 1W
Efficacy : 135 lm/Watt
Luminous Flux : 13500
Beam Angle : 80X150 degree
Colour temperature:6500K
CRI : 80
Average Life : L70 @ 50,000 Hours.
Environmental
Working Temperature: 0 °C to + 55 °C
Working Humidity : 10 to 90% RH
Storage Temperature: 0°C TO + 85 °C
IP Rating : IP66 (Protected from total dust and
High Pressure water jets from any direction)
Protection
Input Overvoltage/Under voltage : Protected >280VAC with
High voltage standing : Protected (440VAC)
Output Short circuit : Protected
Voltage Power Fluctuations/Surge: Protected
Physical Details
Material : Aluminium Die cast
Dimensions (L X W X H): 320 X471 X 96 MM
Weight : 3 Kgs apprx.
Applications : Indoor/Outdoor
Application Area : Highway and roadway lighting
Park and Playground lighting.
Industrial lighting and
Outdoor security lighting.
commercial lighting .
Warranty : 2 Years

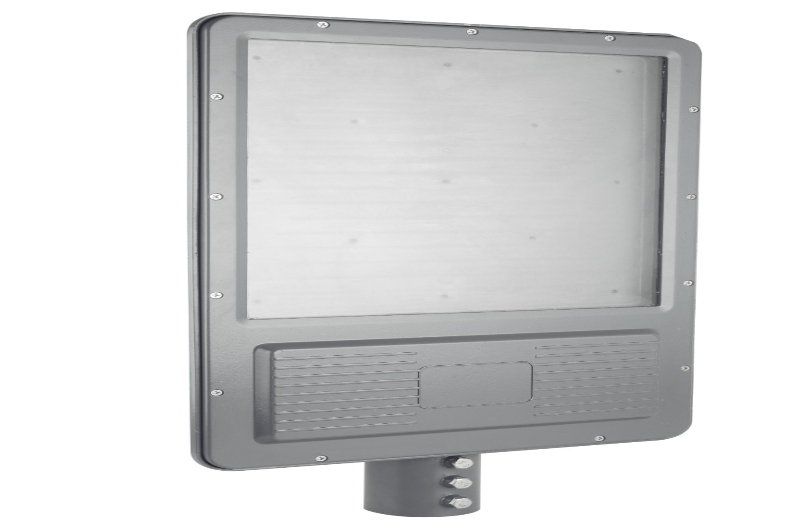

Shine LEDs are the ideal solution for street lighting due to their long life, directional light, uniform brightness and illumination. LEDs in a properly designed luminaire are dark sky friendly, eliminating stray light and reducing overall light pollution. LED Street light has strong aluminum housing. It helps in proper heat dissipation.

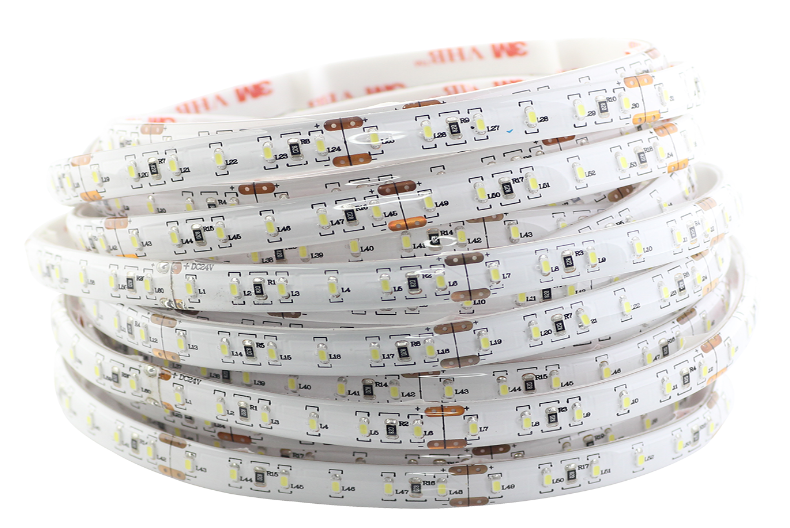

SMD stands for Surface Mount Devices, and these are basically very small and light LED chips that are surrounded by epoxy resin. The so called surface mount technology (SMT) is a commonly used method for designing and manufacturing circuits in which the components are mounted directly onto the surface of printed circuit board or PCB.

Install vintage elegance in your home without outlandish energy costs with this Shine LED filament light bulb. This Filament bulb will give you an antique flair with all of the benefits of an LED bulb. The warm white color will provide a comfortable display, so enjoy energy-efficient, classic lighting with this LED filament bulb.

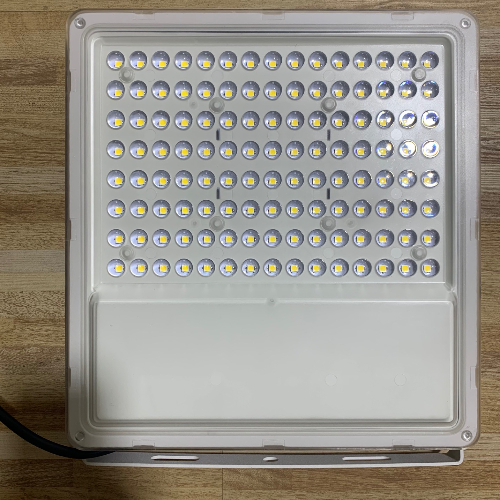

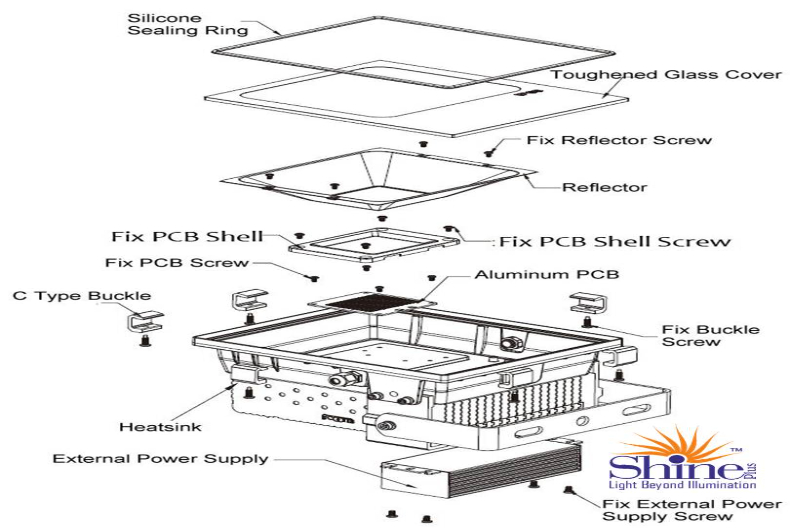

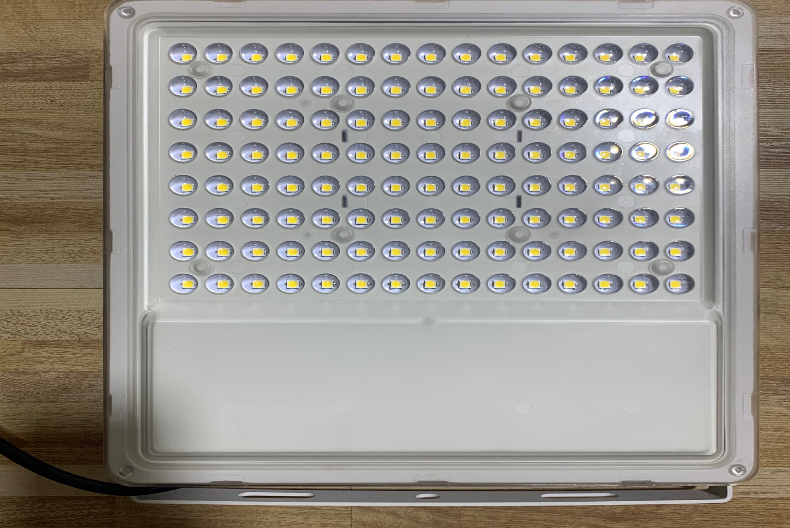

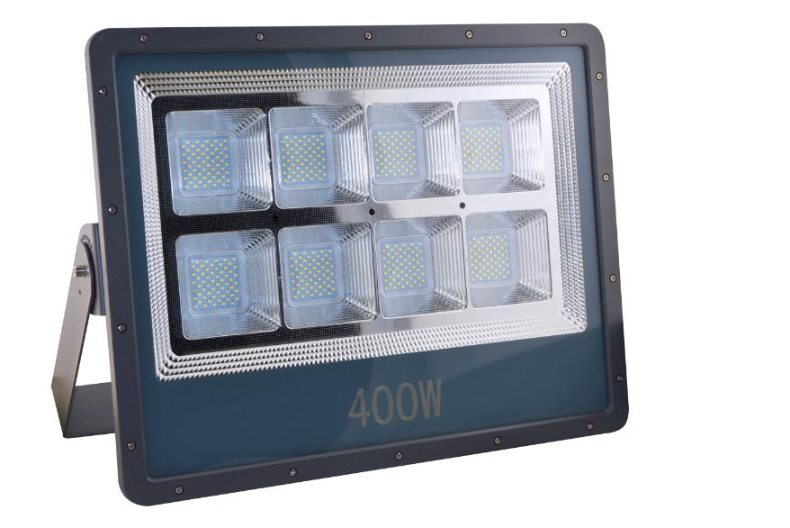

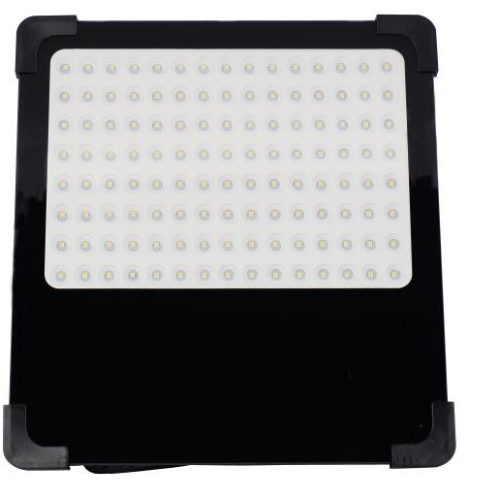

Manufactured using aluminum Die casting, LED flood lights are highly energy efficient as compared to traditional HID fixtures. Their high heat dissipation capability makes these fixtures zero maintenance and work under high voltage fluctuations as well as in tough climatic conditions

We are counted amongst as the foremost manufacturer, wholesaler and supplier of excellent quality LED track Light. The offered light is available in various technical specifications that best suit various requirements of the clients. The offered range of products is manufactured using high quality raw material and latest technology under the guidance of our skilled professionals. Further, our clients can avail these lights at the most affordable price.
