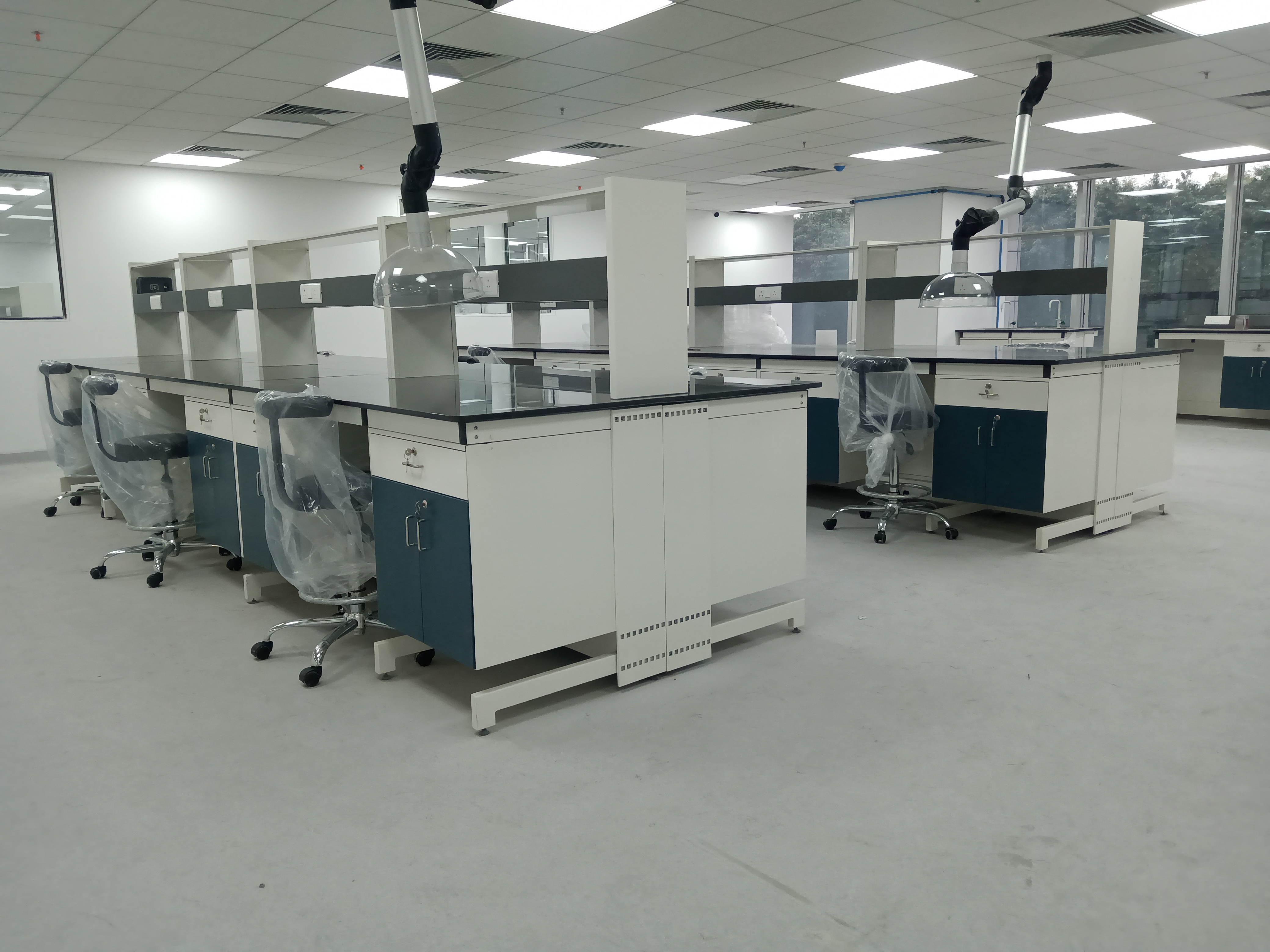

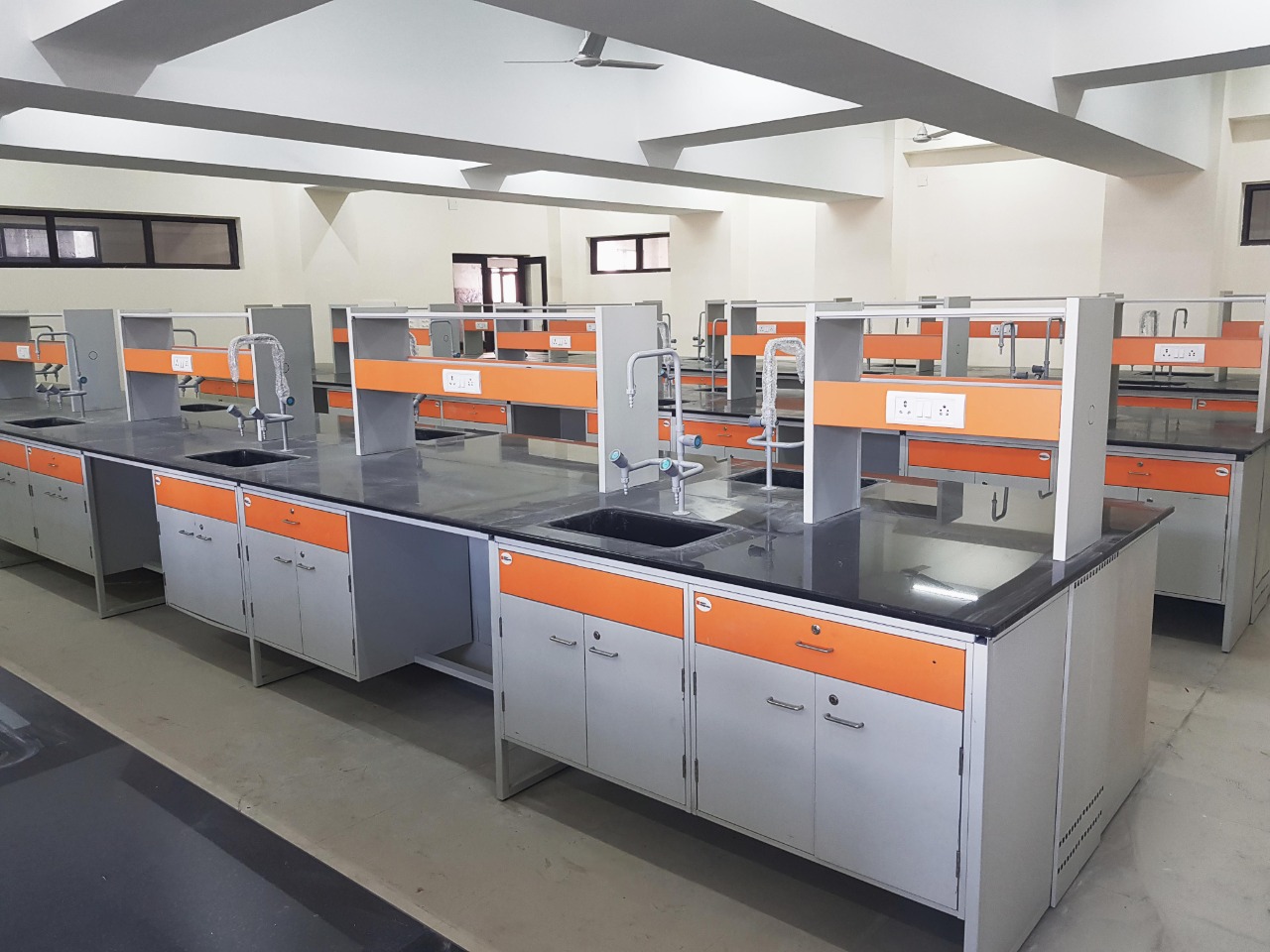

C’ Frame System Lab Furniture, that is based on a Cantilever Systems and is internationally most widely accepted, at a very ECONOMICAL PRICE.

‘C’ Frame is constructed using a 60 mm x 30 mm rectangular pipe, which is usually 2 mm thick. The Frame does not have any front vertical legs, which provides a much orderly look. It comes with a leveler at the bottom, so that unevenness of any floor can be ironed out. Frames are offered in both standing height (900 mm) and sitting height (750 mm), as per the requirement of user. Horizontal Connecting Rods are removable and can be constructed in any width according to preference. Back Panels are removable and are used to cover the utility lines going on the back. They can be easily removed to approach the service area for maintenance.

SPOT EXTRACTION ARM is suitable for use at laboratories / hospitals & food manufacturing industries, hairdressers, dental clinics, jewellers, pharmacies, veterinarians, podiatrists, schools, etc. In addition, the suction arm is suitable for the electronics industry (ESD approved), as well as for the chemicals, plastics and engineering industries. The arm consists of a standard Aluminium tube with two moulded plastic (POM) joints. Equipped with removable black plastic covers for easy cleaning.

The said arm is suitable for use at laboratories / hospitals & food manufacturing industries, hairdressers, dental clinics, jewellers, pharmacies, veterinarians, podiatrists, schools, etc. In addition, the suction arm is suitable for the electronics industry (ESD approved), as well as for the chemicals, plastics and engineering industries. The  arm consists of a standard Aluminium tube with two moulded plastic (POM) joints. Equipped with removable black plastic covers for easy cleaning.

Chemical Storage is similar to Full Height Storage with Glass in Shutters, but with Chemical resistant coating on all inner surfaces, having 4 shelves, 5 compartments and 4 openable doors. Optional PP Trays are also offered for each shelf. The entire cabinet has an exhaust provision at the top, which can be connected to ducting and blower, via a flow control valve.
