SPEKTRUM FLUID POWER PRIVATE LIMITED

Corporate

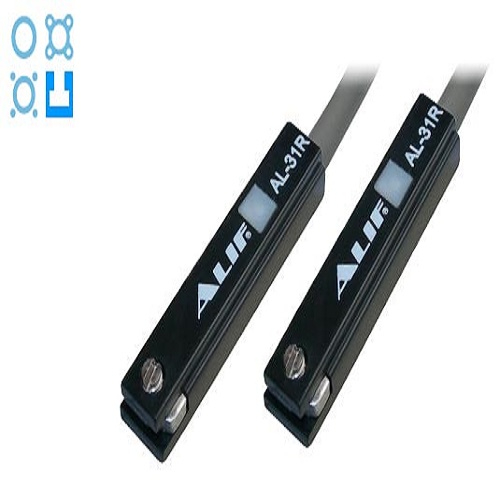

Suitable for FESTO, OMAL, IFM, SMC, JANATICS cylinders (Square Groove). We have different types of AL-31 series Reed switch & Solid State Magentic Sensors available

AL-31R-3m----- 2 wire Reed Sensor with 3 mtr cable
AL-31P-3m-----3 wire(PNP) with 3 mtr Cable,
AL-31N-3m---- 3 wire (NPN) with 3 mtr cable,
AL-31DF-3m---- 2 wire PNP & NPN with 3 mtr Cable.
AL-31S -3m----- 3 wire PNP & NPN with 3 mtr cable

Please refer brochure for Technical details.

--OUR PRODUCT RANGE-

We offer over 500 types of ALIF TECH Reed Switch and magnetic sensors which are suitable for wide range of cylinder types ( Tie rod, Round , Mickey mouse, etc) of FESTO, AIRTAC,KITA, FKM, MINDMAN, JANATICS, METAL WORK, OMAL,SMC etc. Alif magnetic sensors outperform other brands out in the field in terms of performance over price. Alif boasts her wide range of magnetic sensors covering features such as anti-explosion, magneto resistive, highly sensitive, highly flexible, water-proof, oil-proof, acid-resistive, etc

AL-01 to AL-72 Series

ALIF TECH Reed Switch and Solid State Magnetic sensors come in series of AL-01 to AL-72.

Various models available are R,RD, DF, NPN, PNP, S.

DFS Series

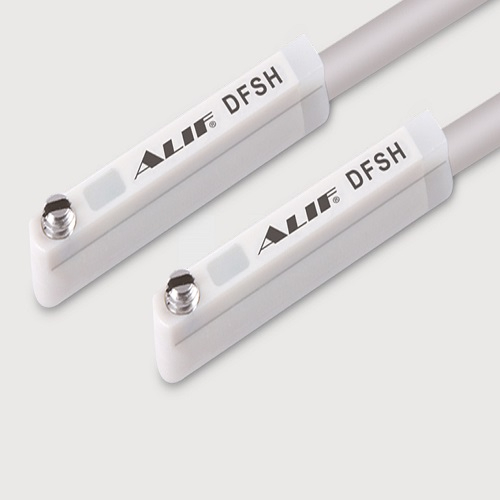

ALIF TECH also offers premium quality magentic sensors which come in DFS series like DFSH, DFSG, DFSE, DFSU, DFSM etc.

Brackets, Adaptors and Connectors are available for easy mounting of sensors on cylinders.

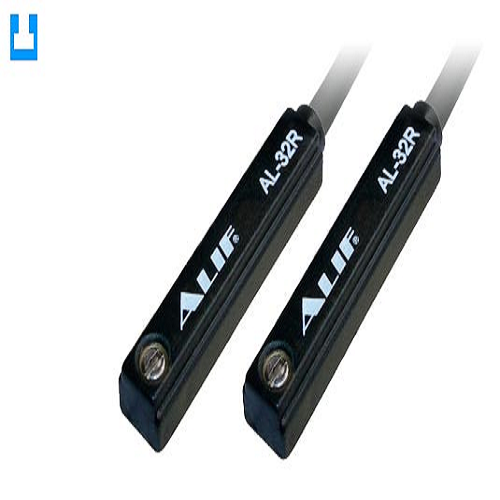

Suitable for Taiyo, CKD Cylinders. We have different types of AL-32 series Reed switches are available suitable for mounting on wide range of cylinders.

1. AL-32R-2m---- 2 wire Reed with 2 mtr Cable.

Reed Switch (N.O.) Voltage Range 5~240V DC/AC Output Range 10W /100 mA Max.

2. AL-32RD-2m---- 3 wire Reed with 2 mtr Cable.

Reed Switch (N.O.) Voltage Range 5~240V DC/AC Output Range 10W /100 mA Max.

3. AL-32DF-2 m---- 2 wire Reed PNP & NPN with 2 mtr Cable

 Solid State 2 Wire (N.O.) Voltage Range 10~28 V DCOutput Range 1.4 W /50 mA Max

4. AL-32P-2 m-----3 wire(PNP) with 2 mtr Cable

 Solid State PNP (N.O.) Voltage Range 5~30 V DC Output Range 6 W / 200 mA Max

5. AL-32N-2 m---- 3 wire (NPN) with 2 mtr cable

Solid State NPN (N.O.) Voltage Range 5~30 V DC Output Range 6 W / 200 mA Max

Please refer brochure for Technical details.

--OUR PRODUCT RANGE-

We offer over 500 types of ALIF TECH Reed Switch and magnetic sensors which are suitable for wide range of cylinder types ( Tie rod, Round , Mickey mouse, etc) of FESTO, AIRTAC,KITA, FKM, MINDMAN, JANATICS, METAL WORK, OMAL,SMC etc.

AL-01 to AL-72 Series

ALIF TECH Reed Switch and Solid State Magnetic sensors come in series of AL-01 to AL-72.

Various models available are R,RD, DF, NPN, PNP, S.

DFS Series

ALIF TECH also offers premium quality magentic sensors which come in DFS series like DFSH, DFSG, DFSE, DFSU, DFSM etc.

Brackets, Adaptors and Connectors are available for easy mounting of sensors on cylinders.

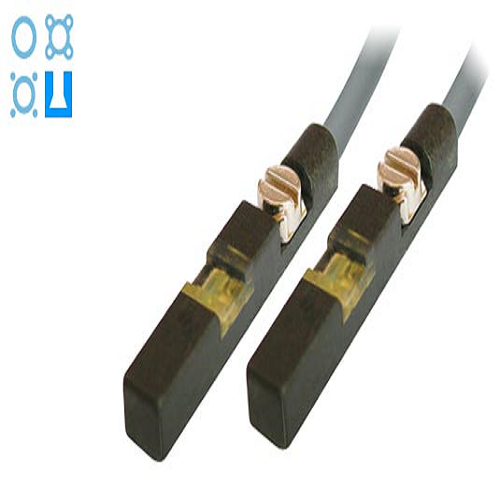

Suitable for FESTO , Janatics Etc. Square Groove. We have different types of AL-39 series Reed switches & Solid State Magnetic Sendors available.

AL-39R-3m----- 2 wire Reed Sensor with 3 mtr cable

AL-39RD-3m----- 3 wire Reed Sensor with 3 mtr cable
AL-39P-3m-----3 wire(PNP) Solid State Sensor with 3 mtr Cable,
AL-39N-3m---- 3 wire (NPN) Solid State Sensor with 3 mtr cable,
AL-39DF-3m---- 2 wire PNP & NPN Solid State Sensor with 3 mtr Cable.

AL-39S-3m-----3 wire PNP/NPN Auto detection Solid State Sensor with 3 mtr Cable,

Please refer brochure for Technical details.

--OUR PRODUCT RANGE-

We offer over 500 types of ALIF TECH Reed Switch and magnetic sensors which are suitable for wide range of cylinder types ( Tie rod, Round , Mickey mouse, etc) of FESTO, AIRTAC,KITA, FKM, MINDMAN, JANATICS, METAL WORK, OMAL,SMC etc. Alif magnetic sensors outperform other brands out in the field in terms of performance over price. Alif boasts her wide range of magnetic sensors covering features such as anti-explosion, magneto resistive, highly sensitive, highly flexible, water-proof, oil-proof, acid-resistive, etc

AL-01 to AL-72 Series

ALIF TECH Reed Switch and Solid State Magnetic sensors come in series of AL-01 to AL-72.

Various models available are R, RV,RD, DF, NPN, PNP, S.

DFS Series

ALIF TECH also offers Solid State magentic sensors which come in DFS series like DFSH, DFSG, DFSE, DFSU, DFSM etc. (2/3 wire)

Brackets, Adaptors and Connectors are available for easy mounting of sensors on cylinders.

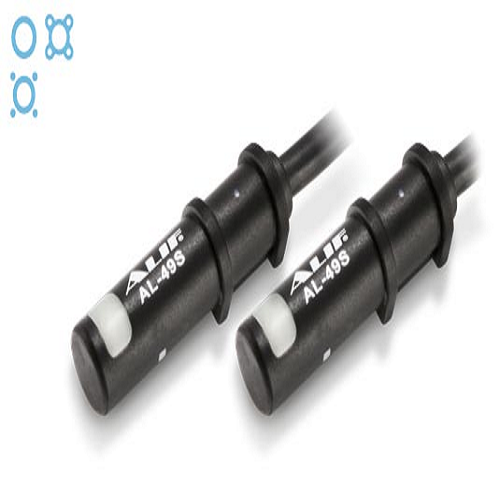

Suitable For Round, Micky Mouse Type And Tie Rod Cylinders.

We have different types of AL-49 series Reed switch & Solid State Magnetic Sensors available.

1. AL-49R-2m---- 2 wire Reed with 2 mtr Cable.

Reed Switch (N.O.) Voltage Range 5~240V DC/AC Output Range 10W /100 mA Max.

2. AL-49DF-3m---- 2 wire Reed PNP & NPN with 3 mtr Cable

 Solid State 2 Wire (N.O.) Voltage Range 10~28 V DCOutput Range 1.4 W /50 mA Max

3. AL-49P-3m-----3 wire(PNP) with 3mtr Cable

 Solid State PNP (N.O.) Voltage Range 5~30 V DC Output Range 6 W / 200 mA Max

4.AL-49N-3m---- 3 wire (NPN) with 3m mtr cable

Solid State NPN (N.O.) Voltage Range 5~30 V DC Output Range 6 W / 200 mA Max

5.AL-49S-3m---- 3 wire (NPN) with 3mtr cable

Solid State NPN/PNP Auto detection (N.O.) Voltage  5~30 V DC Output Range 6 W / 200 mA Max

Please refer brochure for Technical details.

--OUR PRODUCT RANGE-

We offer over 500 types of ALIF TECH Reed Switch and magnetic sensors which are suitable for wide range of cylinder types ( Tie rod, Round , Mickey mouse, etc) of FESTO, AIRTAC,KITA, FKM, MINDMAN, JANATICS, METAL WORK, OMAL,SMC etc

AL-01 to AL-72 Series

ALIF TECH Reed Switch and Solid State Magnetic sensors come in series of AL-01 to AL-72.

Various models available are R,RD, DF, NPN, PNP, S.

DFS Series

ALIF TECH also offers premium quality Solid State magentic sensors which come in DFS series like DFSH, DFSG, DFSE, DFSU, DFSM etc. in 2 & 3 wire.

Brackets, Adaptors and Connectors are available for easy mounting of sensors on cylinders.

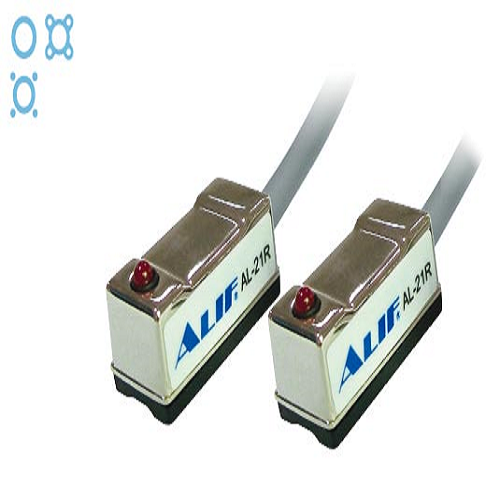

Suitable for Mindman Make RPA, Mindman Make RNA (AL-21N-2m ). We have different types of AL-21 series Reed switches which are suitable for  MINDMAN, FESTO, SMC , Janatics Etc. Round Cylinders.

AL-21R-3m----- 2 wire Reed Sensor with 3 mtr cable
AL-21P-3m-----3 wire(PNP) with 3 mtr Cable,
AL-21N-3m---- 3 wire (NPN) with 3 mtr cable,
AL-21DF-3m---- 2 wire PNP & NPN with 3 mtr Cable.

Please refer brochure for Technical Specification details.

--OUR PRODUCT RANGE-

We offer over 500 types of ALIF TECH Reed Switch and magnetic sensors which are suitable for wide range of cylinder types ( Tie rod, Round , Mickey mouse, etc) of FESTO, AIRTAC,KITA, FKM, MINDMAN, JANATICS, METAL WORK, OMAL,SMC etc. Alif magnetic sensors outperform other brands out in the field in terms of performance over price. Alif boasts her wide range of magnetic sensors covering features such as anti-explosion, magneto resistive, highly sensitive, highly flexible, water-proof, oil-proof, acid-resistive, etc

AL-01 to AL-72 Series

ALIF TECH Reed Switch and Solid State Magnetic sensors come in series of AL-01 to AL-72.

Various models available are R, RV,RD, DF, NPN, PNP, S.

DFS Series

ALIF TECH also offers premium quality Solid State magentic sensors which come in DFS series like DFSH, DFSG, DFSE, DFSU, DFSM etc. in 2 wire and 3 wire.

Brackets, Adaptors and Connectors

To make sensor mounting on various cylinders easy, we also offer various adaptors, clamps and brackets.
