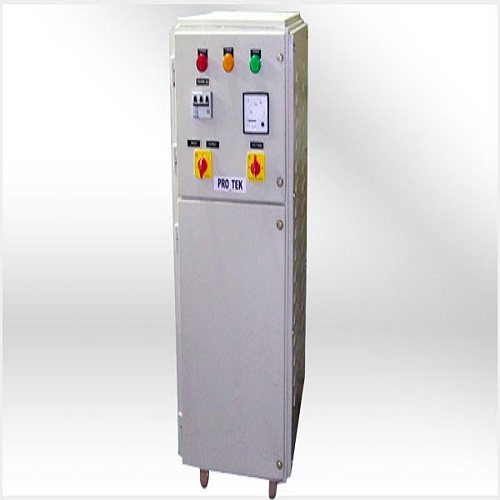

Optional Features :

• Automatic High / Low Voltage Cut-off.
• Overload & Short-circuit protection.
• Audio alarm at extreme input voltages.
• Line-noise and surge suppression network.
• Separate line current meter with rotary switch.
• Single-phasing preventer for Balanced Load Application.
• Ultra Isolation Transformer at output (star-delta optional).

Applications :

• CNC Machines
• Plastic Moulding Machines.
• Mainframe Computers .
• Communication equipments like Radio and TV transmitters, Space applications.
• Operation theaters, large X-ray machines, CAT Scanners.
• Airconditioning plants.
• Production plants, general heating and lighting equipments.
• Large test laboratories.
• Elevators & Escalators.
• Centralised stabilisation of domestic power.
• Textile machinery like Autoconers, Draw Frames & Power looms.
• Diamond cutting / Polishing machines.

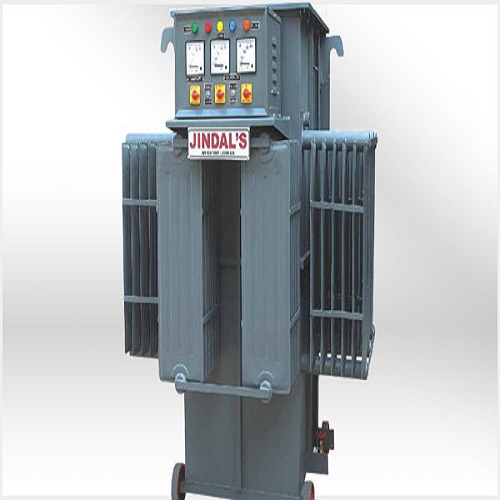

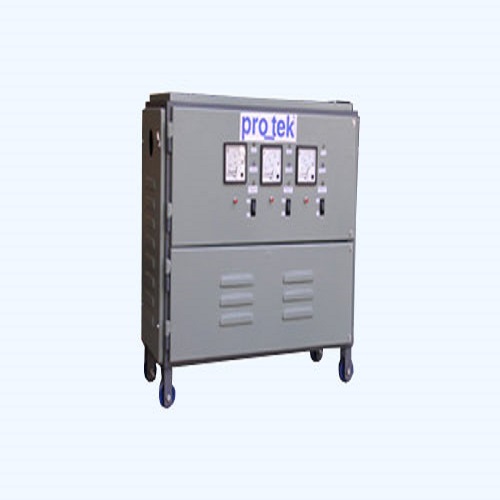

The basic purpose of AVC is to maintain the desired voltage and to reduce the breakdown of Electrical Equipments due to low/high voltage. Power saving and reduction in MDI and improvement of P.F.will be added advantage at high voltage.

Voltage variation is a common pheno-menon. The imput voltage is generally low during daytime and high during night hours. In India all Electrical Equipments are designed for 230/400 volts Single/ Three phase.

Low Voltage :

• At low voltage you will not be able to operate your machines at rated capacity resulting in lower production
• You need to run the machines on DG set. The power cost of DG set is three times as compared to charge by electricity board

Unbalanced Input Voltage Between Phase to Phase :

It is suggested to install unbalanced type AVC in the following conditions

• Where the customer do not have their own Distribution Transformer
• Industries / Offices are situated in Residential / Commercial / Rural areas
• Where most of load is of Single phase nature
• Where the voltage is very Low / High

Swastik Electronics – More value for every rupee We do not just sell our products, rather understand your needs and help you determine the best product to save you more !

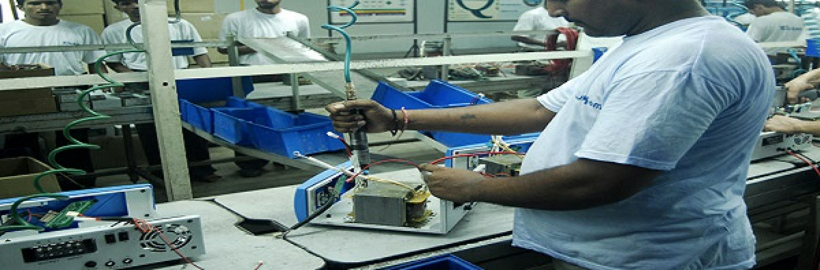

Being in this business for more than 2 decades, we have continuously improved in lieu of the changing demands and our commitment to delighting the customer. We thrive on repeated business and hence have trained or staff to help you at every stage of deployment from installation to ensuring successful deployment and beyond. Our precision and quality measures throughout the product lifecycle make us different from the fellow manufacturers.

We follow professional business processes at every stage of the product development and put exhaustive measures to ensure best quality products. Our products are modular in nature, i.e. connectors based cards assembly topology, that provide ease of service (when required) (e.g. replacing a faulty module is much quicker and easier leading to minimal down time)

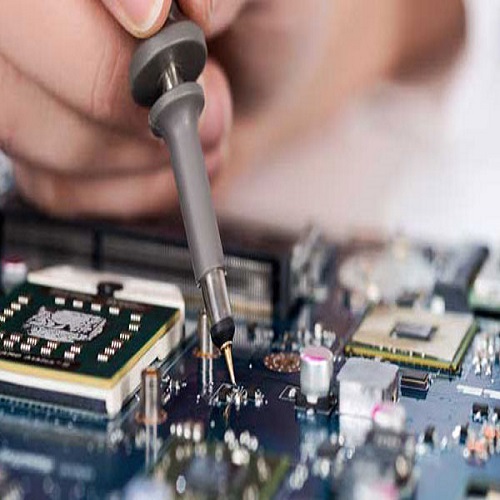

Our staff is the best in industry and our satisfied customers speak for the same. The highly trained and equipped technical staff is there for you and can work onsite while remotely connected to the senior staff in office through cell phones.

We stand by our motto and can assure you that you will get the best value for your money at SWASTIK PRO_TEK .

We have vast experience in consulting services, having served various clients in Gujarat and other states

 Electrical distribution planning per sq ft area and per requirement

• Analyze and calculate electrical load
• Prepare specifications needed to bid for an electrical job
• Use industry benchmark data and analyze any/all opportunities to save energy – applicable to industries, retail outlets, hospitals and similar such places
• We use industry standard Data logger to record energy (voltage and current) for multiple days taken at fixed intervals and mine the data for best results

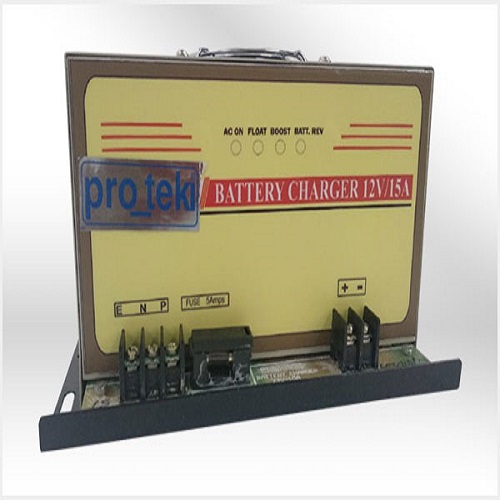

We specialize in the design and production of reliable high quality DC Power Systems / SMPS Battery chargers for various applications.

SALIENT FEATURES :

• On Board EMI/RMI filter.
• Pwm Based compact power supply.
• Industrial grade component used.
• Precise control with auto cut off/float smooth charging,
• Reliable and coast effective unit.
• Efficiency :> 75 typical at full load.
• Screw / jack type connecters/wires.
• Soft start (input surge current limiting).
• Adjustable output volt (selected mode).
• Cccv mode charging.

Wastage of power is observed in electrical circuits due to the Voltage variations , power pollutions like harmonics, unbalanced current, spikes, surges and high reactive currents. PRO-TEK power saving product uses latest upgraded technology to provide quality and optimum power to various loads to save power. Once quality power ,rated power is supplied to electrical gadgets, they work to optimum efficiency with enhanced life span.

Features :

• Power savings upto 20% , More in lighting load.
• Reduces heat generation in chokes, ballast and prevents energy loss and hazards.
• Reduction in MDI.
• Improves life of all equipment.
• Uses high quality raw material to get high efficiency of 99.5%
• Reduces maintenance cost .
• Continuous duty rated 365 days 24 hours.
• Pay back period is shorts within 1-2 years based on the conditions and usage.
• Life above 15 years
• We can also provide timing profile for enhanced power savings. We put a Data logger and records grid variations for a week with every 5-15 min.

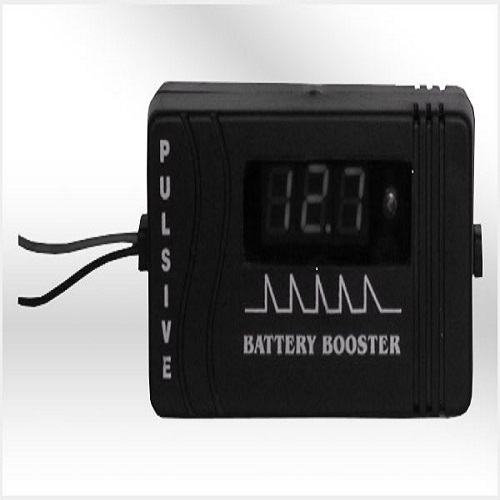

Sulphation of plates and terminals is a major problem with Lead Acid Batteries used in Inverters and Vehicales. Using our de-sulphating Battery Booster circuit, the working life of a Lead Acid Battery can be increased from 2 years to 6 years, with dramatic improvement in the output (Ampe re-Hours).

SALIENT FEATURES :

• Prevents Sulphation of plates
• Increases working life
• Improves performance (output Ampere-Hours)
• Lets you monitor the Battery condition by displaying precise Battery Voltage on a 3-digit 7 segment LED Display
• Can even revive a Battery already damaged due to Sulphation
• Cosumes less than 2W
• Micro-Controller based with Intelligent De- sulphation Algorithm
• Easy to install Compact * Economical
• Reduce electricity bill as it keeps battery plates clean, Which reduce recharge time. Working indication by LED's. Help protect the Environment

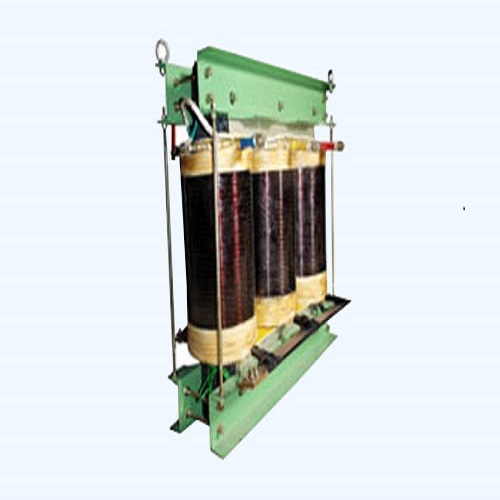

We are specialized In Isolation, Ultra Isolation and K-Rated transformers. We Design our Isolation Transformers in such a way to meet all the purpose of an Isolation Transformer. We are supplying our Isolation Transformers serving with lot of CNC Manufacturers, CNC Machine Shops, UPS Manufacturers, Imported UPS dealers, etc.

Isolation Transformer: An Isolation Transformer is a device which is use to decouple two circuit, the load to the Isolation Transformer and to the Input supply, Isolation Transformer suppress electrical noise which occurs in transmission line. An Isolation Transformer blocks transmission of DC signal from one Circuit to other and allow ac signal to transmit. It also prevent interference cost by ground looping. Isolation Transformers are constructed with two isolated Faraday shields between the primary and secondary windings. The use of two shields in the construction of the isolation transformer diverts high frequency noise, which would they occur The two shields provide more effective isolation of the primary and secondary circuits and also isolation to their grounds.

Ultra Isolation Transformers are used where high attenuation level is required like Communication Systems, Wireless Station, Sensitive Medical Equipments etc., These special type transformers are manufactured by splitting primary and secondary coils results reduction in coupling Capacities in transformer Circuit.

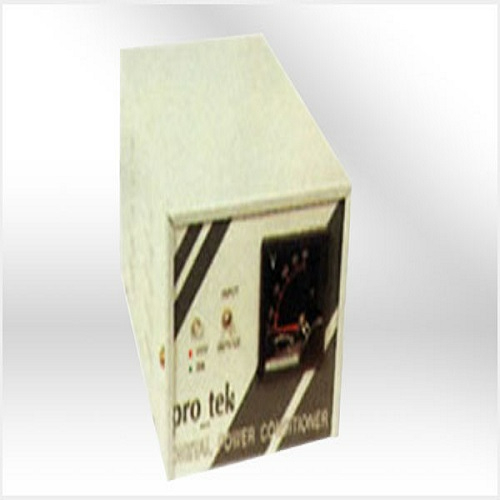

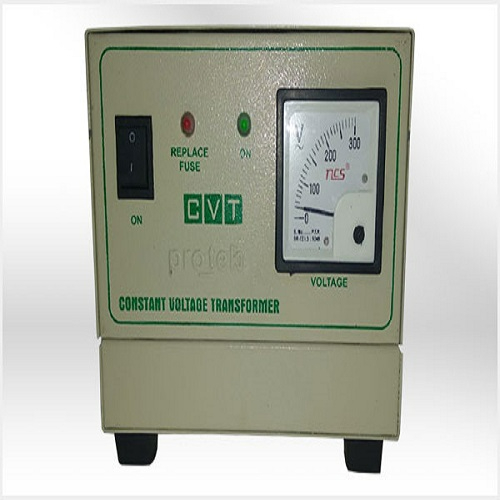

Pro_tek range of Advanced Power conditioner Series introduces Pro_tek CVT. These CVT are specially designed for their best performance to Indian power conditions.

General specifications :

• Power supply : 210 – 250 Volts 50 hz.
• Power consumption : 15 Va ( max.)
• Size : 190 mm L X 95 mm W X 210 mm D
• Weight : @ 2.0 Kg
• Operating temperature : 20 – 50 degree centigrade

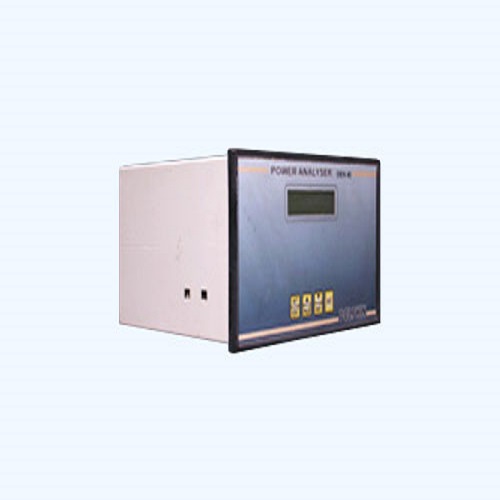

Measurement function :

• PARAMETER : Voltage / Current / Power factor ( star model)
• SYSTEM : digital sampling , Typical r.m.s measuremetnt and averaging samples.
• VOLTAGE : 0-500 volts accuracy : .5 % to 1 % of reading
• CURRENT : 5 Amp through CT can be defined multification factor during initial setup
• TIME : True Real Time Clock
• DATA LOG.INTERVAL : Can be set from 1 min to 60 Min.
• INTERFACE : Through RS-232 , dedicated software to analyze values , can be transfer to Microsoft excel
• Report : data , graphical

PRO_TEK DIGITAL STEP STABILIZER WITH MICROCONTROLLER DEVICE

Application :

• Air Conditioner System
• Household Appliances
• Office equipments
• versatile applications

Specifications :

• INPUT : 180-280Volts. 140-280 Volts , 110-280Volts / As required
• OUTPUT : 220 +- 8% Volts
• METERING : DIGITAL display Output Volts / Input Volts
• EFFICIENCY : > 98 %
• HARMONIC DISTORTION : Nil, Sine wave output (as Input).
• CAPACITY : 500 VA to 5 KVA, Higher capacity available on demand.

PROTECTION :

• Over load / short ckt.by MCB/ fuse.
• Low cut / high cut output with soft turn On / turn off delay (optional)
• Spike , surge protection.

FEATURES : Power switching is done at Zero point of sine wave, it makes long life Of power relay, avoids spikes, noise at output.

Models : DVR , TSR , FSR in Table top / wall mounted models.
