Techno Machines India is Hi-Tech and most efficient manufacturer of Vertical Injection Molding Machine, Insert Molding Machines, USB Soldering Machines, Fiber Laser Plastic/Metal Marking Machine, Wire Cutting Stripping Machines, USB Cable Tester, Multi-Plug Tester, Crimping Machine, Power Cord Binding and Winding Machine, Cable Extruder, etc. Our machines and systems up-gradation result in complete production solutions and make the processes most efficient:
- Automation Most machines are less labour-intensive in turn resulting inthe saving of labour numbers needed for the process.
- Space The machines are latest and compact sized with high outputsresulting in space-saving.
- High Production Even with less labour and less space, the production of our machines is much higher than conventional machines.
- Low Operation Cost Achieving the optimum efficiency using ourmachines, the production cost is minimum.
View more
Our Leadership Team
Mr. Ravi Sethi
Business Head
Products & Services

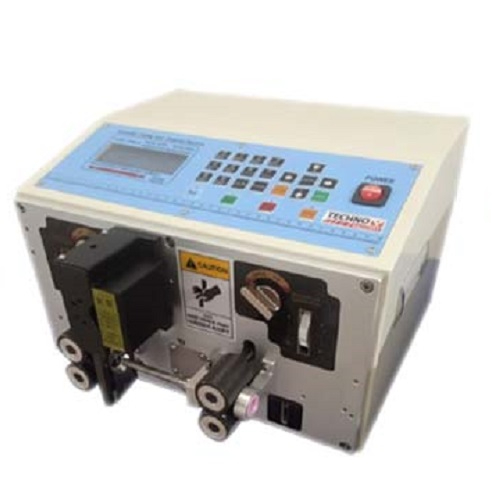

Wire Cutting Stripping Machines
Product Detail
Wire Cutting Stripping Machines
Wire Cutting Stripping Machine used for high production.
Model: TM-220
Features
- Suitable for cutting, head-stripping and tail-stripping of single-strand and multi-strand wire and sheath wire
- The maximum processing cross-sectional area is 0.1-3mm2, the maximum cutting length is 9999mm, head-stripping 25mm and tail-stripping 15mm
- With rollers lifting function when stripping wire head
Specification
| Model | TM-220 |
| Weight | 36KG |
| Overall Dimension | 450x450x360mm |
| Power | 200-450W |
| Mode of Display | LCD LIQUID CRYSTAL DISPLAY SCREEN |
| Cutting Length | 0. 1~60000mm |
| Cutting Tolerance | 0.2 ~ 0. 002l mm |
| Sheet Stripping Length | HEAD 0.1-25mm,TAIL 0.1-15mm |
| Cutting Cross-Sectional Area of Wire Core | 0.1-3mm2 |
| Maximum Diameter of Conduit Pipe | 11 |
| Material of Knife | TUNGSTEN STEEL |
| Stripping Speed | 3000-4000PCS/H |
| Mode of Driving | FOUR-WHEELED DRIVE(EACH STEP 0.1mm FORWARD) |
| Adjusting Speed | 0 SLOWEST, 9 FASTEST |
+ Show more
- Show less
Specifications
Vertical Injection Molding Machine
Product Detail

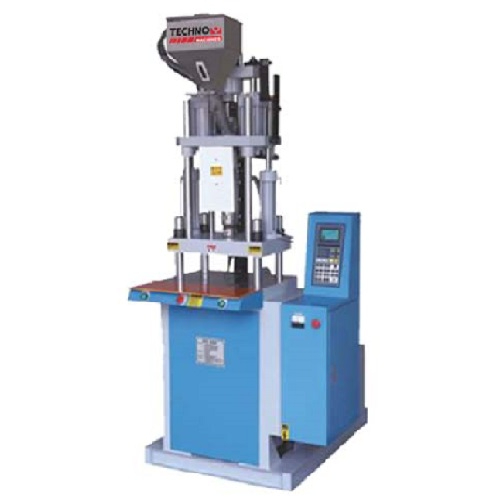

Vertical Injection Molding Machine
Injection Molding Machine best used for Power Cord manufacturing Plant.
Model: TM 35 TON
Features
Injection Unit
| Model | TM-35 TON | |
| Screw Diameter | mm | 34 |
| Injection Pressure | kgf/cm2 | 1785-1367 |
| Injection Capacity | cm3 | 74-96 |
| Injection Weight | gr | 100-110 |
| oz | 3. 0-3. 9 | |
| Injection Rate | cc/s | 50-58 |
| Screw Speed | R. P. M | 0-150 |
| Screw Stroke | mm | 120 |
| Nozzle Stroke | mm | 150 |
| Nozzle Contact Force | tf | 2.4 |
Clamping Unit
| Clamping System | -- | Hydraulic |
| Clamping Force | ft | 35 |
| Clamping Strike | mm | 215 |
| Max Mold Space | mm | 360 |
| Min Mold Height | mm | 145 |
| Overall Size Of Platens(HXV) | mm | 600x320 |
| Space Between Columns(HXV) | mm | 450x190 |
| Hydraulic Ejector Force | ft | 0.7 |
| Ejector Stroke | mm | 28 |
+ Show more
- Show less
Specifications
Crimping Machines
Product Detail

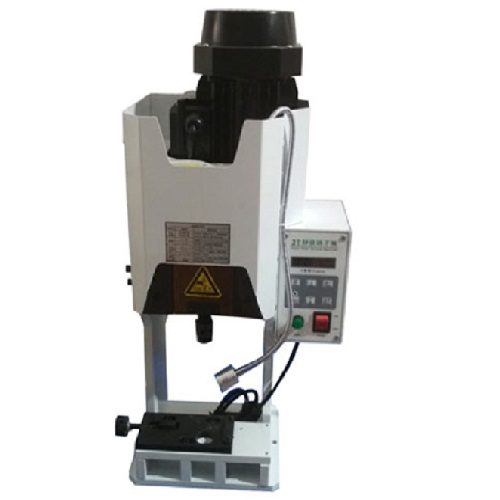

Crimping Machines
Side feed and Vertical feed terminal crimping high-speed machine.
Model: TM 2.0
Features
- The use of advanced electronic control, with high precision, imported electromagnetic clutch/brake, move fast, and accurate.
- Low noise, low power consumption, feeding standards, high efficiency.
- A wider range of height adjustment, higher regulation accuracy, saving time for crimp height adjustment.
- Maybe in the configuration direct-card mode transverse mode to send cards to achieve universal crimping.
Specification
|
Model |
TM-2.0 |
|
Pressing Force |
2.0 ton |
|
Dimension |
280X320X650MM |
|
Motor Power |
0.75KW |
|
Power Supply |
AC220V 50/60HZ |
|
Strode Length |
30MM (Can Set 40MM) |
+ Show more
- Show less
Specifications

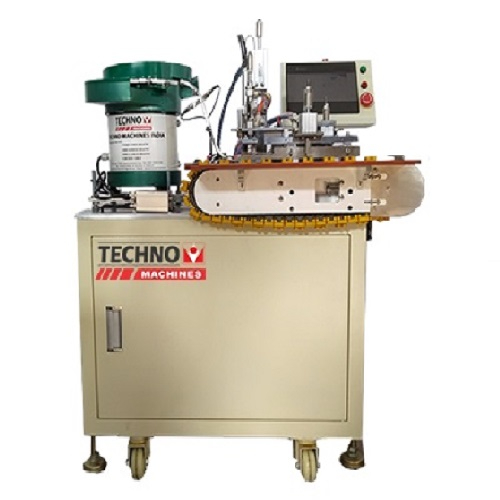

Connector Soldering Machine
Product Detail
Connector Soldering Machine
AUTOMATIC USB CONNECTOR SOLDERING MACHINE
Model : TM 1188
Product Description
Automatic USB Solder Machine
| Model | TM 1188 |
|---|---|
| Voltage | AC110-220V |
| Power | 300W |
| Air Pressure | 6-8KG |
| Capacity | 800-1200pcs/H |
| Installation Form | Can moving Temperature constant temperature |
| Soldering Material | Solder wire |
| Size | 116cm*66cm*100cm |
+ Show more
- Show less
Specifications
Automatic Wire Extruder Line
Product Detail

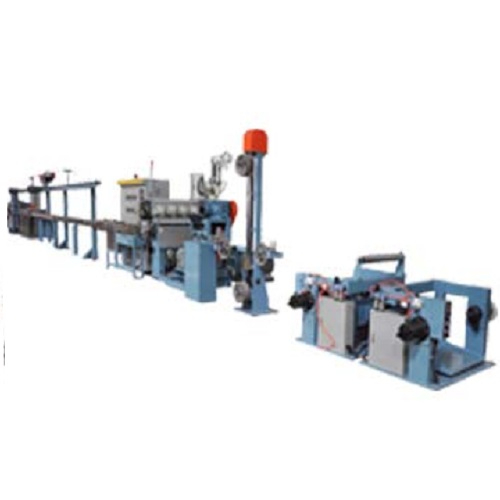

Automatic Wire Extruder Line
Fully Automatic Wire Extrusion Line
Model: 70+50 mm
The range of products which we manufacture and supply to the customers are inclusive of high quality of Extrusion/Accumulator Lines which are used in the aerospace system, in refrigerators and in air conditioning systems. They have been priced at very affordable rates in the market. These products have been made using high quality of raw materials which have been bought from well-known vendors and they offer a high performance to the customers and are used in various industries.
Features
- High Quality
- Effective
- High Performance
Application
- Apply to Manufacture of PVC
- PE
- Insulation and Sheath of UL
- Flexible Cable
- Computer Cable
Main Specification and Performance
| Finished Outside Diameter | Φ1.5～Φ12.0mm |
| Output | 140kg/h |
| Concentricity | Above 95% |
| Line speed | Max 400m/min (According to Diameter) |
| Center Height of the Machine | 1000mm Above of the Ground |
| Power Supply | AC 380V |
| Total Power | 45 KW |
+ Show more
- Show less
Specifications
Plastic Injection Molds
Product Detail

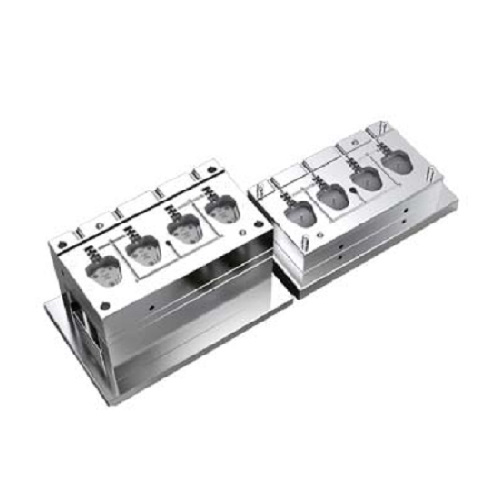

Plastic Injection Molds
Vertical Clamping Plastic Injection Mold
Sutaible for: USB Plug, Micro, C Type, I Phone, Small Auto Parts, Hand Tools.
We are engaged in manufacturing and supplying a wide range of High-Quality Molds. These precisely engineered molds find their wide application in various industries owing to purpose-specific construction and high usability. These molds are extensively acclaimed for the finest quality and consistent performance. These can be availed in various technical specifications and at cost-effective prices.
Features
- Reliable
- Purpose Specific
- Durable.
+ Show more
- Show less
Specifications
USB Data Cable Manufacturing Plant
Product Detail

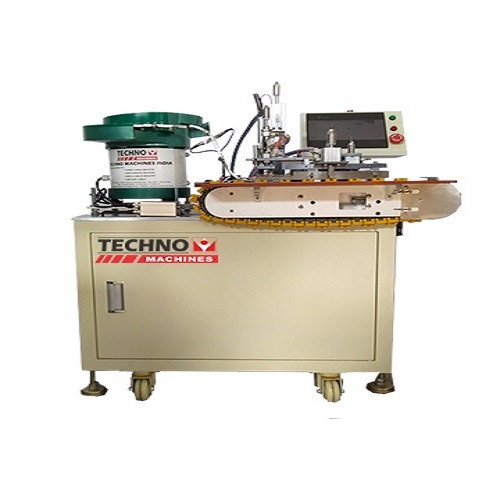

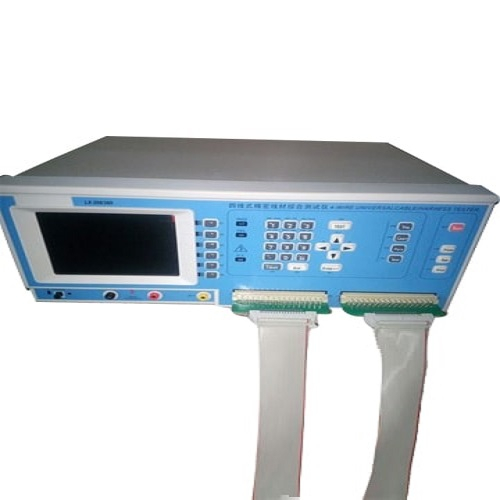

USB Data Cable Manufacturing Plant
Techno Machines India Sets-up Worlds class USB Data cable Plant. Here we do'not set-up only machines, We set-up quality producing production line.
In this Plant we line-up several automatic machines like Vertical Injection Molding Machines, Wire Extruder line, Wire Cutting & Stripping Machines, Automatic Connector Soldering Machines, Salt Spray Tester, Winding & Binding Machines. Specification of all machines is given below.
USB Data Cable Manufacturing Process.
Wire Manufacturing: The beginning procedure for USB Data Cable starts with wire making. The wire is made up with the utilization of fully automatic Wire extruder Line.
Cutting and Stripping Process: once the wire is totally prepared to be used. The wire is processed with cutting and denudation machine.
Soldering Process: During this method, the wire is soldered with USB Pin at one finish end and with small USB Pin at the opposite finish end.
Moulding process: once Soldering of USB Pin at each side of the wire. The USB Pins area unit currently lined with PVC to safeguard the pins and to achieve the appearance as we have a tendency to see of USB Data cables.

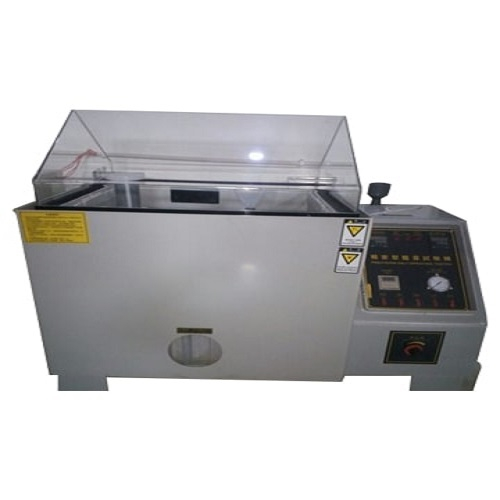

Salt Spray Testing: once USB Data cable completes all steps, then Data cable is tested to substantiate its era.
+ Show more
- Show less

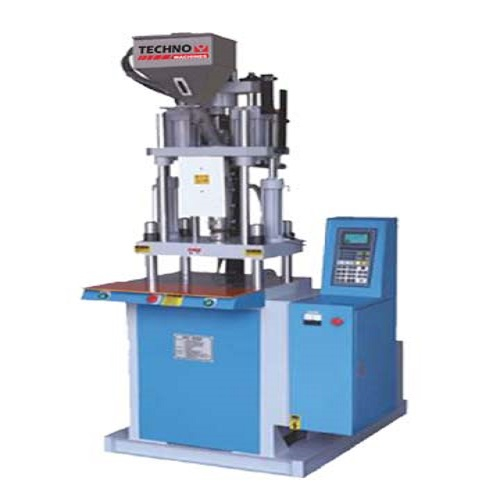

Insert Molding Machines
Product Detail

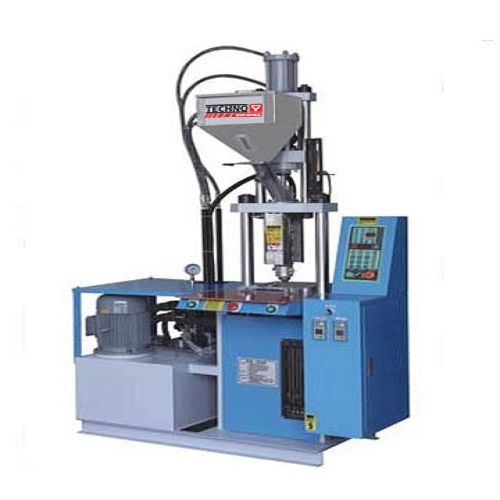

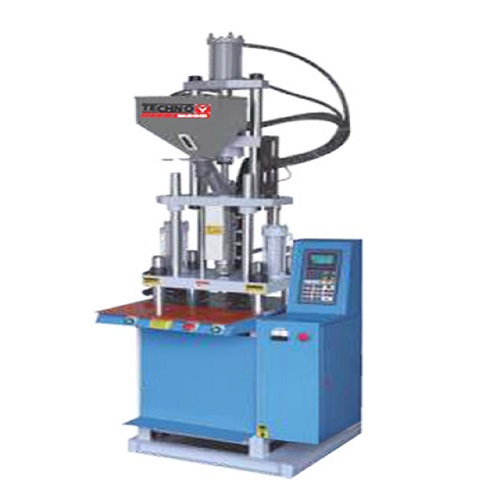

Insert Molding Machines
- VERTICAL INJECTION MOLDING MACHINE 15 TON 2 SIDE OPERATION
- VERTICAL INJECTION MOLDING MACHINE 25 TON
- VERTICAL INJECTION MOLDING MACHINE 35 TON
- VERTICAL INJECTION MOLDING MACHINE 45 TON
+ Show more
- Show less
