Vertical Reciprocating Conveyor
Product Detail

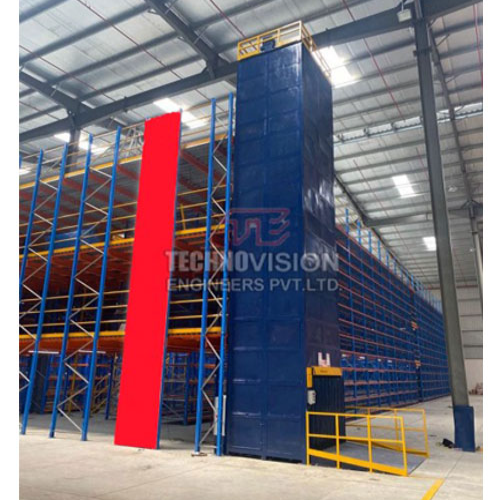

Vertical Reciprocating Conveyor
General:
Technovision 'Two Post' VRC is widely used to move the material from one floor to another floor with great safety. It is a self-supported free standing structure.
Product Range:
Series 'Two Post' VRC is available with lifting capacity up to 2000kgs, carriage size 1500x1500mm and travel height 16.0Mtrs.
Structure: Modular design with MS tubular structure with 'T' guide and vertical 'H' beams. Carriage is MS fabricated tubular structure with checkered platform. Carriage is covered with MS perforated sheet at non-operating sides, operating sides are provided with collapsible doors. Vertical structure has provided with MS bracing and can be also covered with MS perforated sheet optionally.
Operation: Carriage lifting & lowering movement is controlled with SEW Fail Safe Motor and speed Reduction Gear Box with the help of Chain & sprockets mechanism.
Safety:
- 2 Nos. of spring loaded Safety cams are provided to arrest sudden fall of the carriage due to failure of lifting chains. Bottom Safety Limit Switch provided to prevent carriage from hammering the ground in case of failure of the level floor limit switch
- Chain Tensioner Limit Switch provided to stop the carriage in case of the lifting chains are pulled out due to any external obstruction in the upward / downward movement of the carriage
- Top safety counter weight limit switch provided to cut-off the main power supply in case the carriage does not stop due to the failure of top floor level limit switch
+ Show more
- Show less
Specifications
Pipe & Joint Systems (PJS)
Product Detail
Pipe & Joint Systems (PJS)
Technovision Pipe Joint System is an ideal material handling system that is wisely designed for all industries’ material handling needs. It is smart, dynamic and flexible. It can make various types of production of racks, trolleys, productions cell tables, viewing boards and gravity flow racks. In fact, the usage of Pipe & Joint Systems is limitless, add in your idea today!

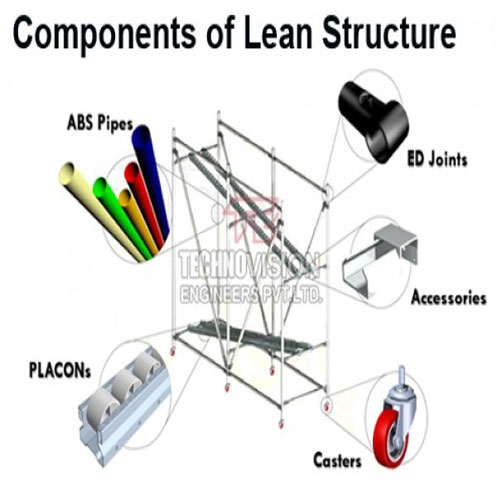

What is PJS:
- Pipe & Joint System is a material storage & handling solution, used world wide by replacing the systems of welded constructions.
- It comprises of specially made GOBLIN PIPES (ERW1-IS 3074) covered with ABS RESIN and the SS PIPES.
- A variety of JOINTS also go into the making of rack, trolleys, carts, worktables etc...
Advantages of PJS:
- Very quick installation.
- Modification can be done easily at site.
- Easy and simple assembly without special skills.
- Clean and Durable system.
- Continuous changes possible.
Industries using PJS:
- Automobile manufacturers
- Auto ancillary units
- Textile factories
- Food & Departmental stores
- Electronics & Electrical units
- Plastic Industries
- Other applicable areas
+ Show more
- Show less
Specifications
