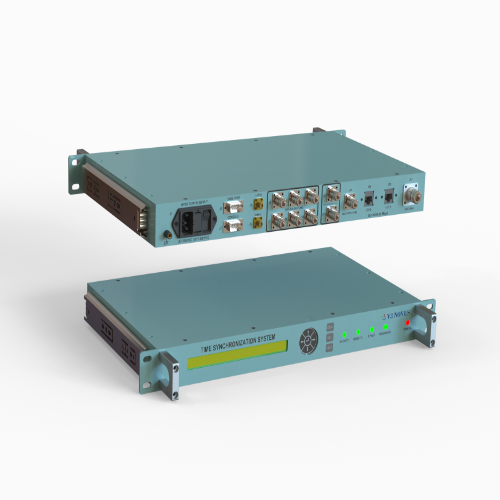

V3novus high performance Timing Synchronization System provides synchronized Time and Frequency output. The unit is configured to provide appropriate Timing interface data at designated connectors mounted on the back panel.

• 72/128 Channel multi GNSS Engine
• Supports GPS/QZSS, GLONASS, BEIDOU, GALILEO & IRNSS
• Anti-Spoofing and Anti-Jamming features
• 1 Gbps / 10 / 100 Mbps NTP/PTP Server
• Synchronization over ETHERNET , iRIG-B & Fiber Optic
• Highly stable OCXO/Rubidium Oscillator
• Programmable pulse per second
• < One μs per day holdover accuracy
• GPS GLONASS Monitoring Software (RHEL and Windows)
• Customized for defence application

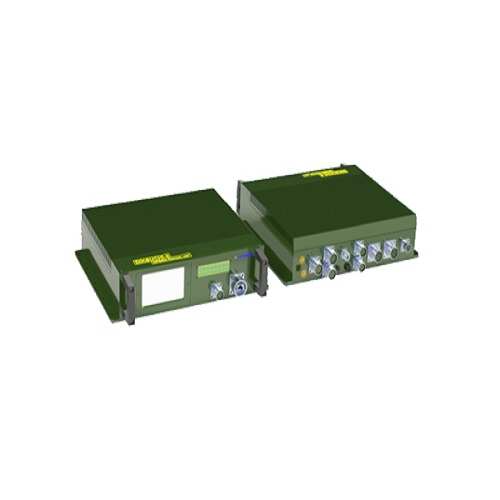

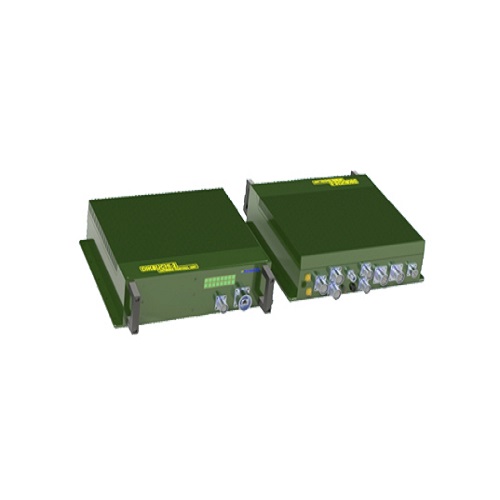

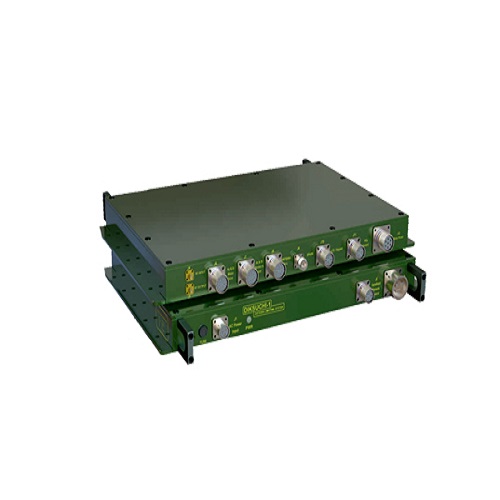

DIKSUCHI is a Precise ,Rugged Antenna Control Unit Built around a Power full Combination of ARM Cortex M4 Controller and an FPGA . DIKSUCHI is used to Control the azimuth, elevation and polarization of an Antenna.

DIKSUCHI is having an integrated Satellite Beacon Receiver, PSU and GNSS Receiver (Optional). We will also provide External 3D Compass, IMU , Servo Motor Drives and Inclinometer as an Accessories along with the Antenna Control Unit.

• 32bit ARM Cortex M4 processor
• Spartan FGPA with 43K Programming Logic
• Built in Satellite Beacon Receiver
• Built in GPS/GLONASS Receiver
• Rugged Construction to meet MIL Standards
• Ethernet / RS232/R485 Connectivity
• CAN & BISS Interface
• Supports 16 Digital inputs & Digital outputs
• Support 16 Analog inputs & Analog outputs
• Complied to MIL 461-F & MIL 810-G

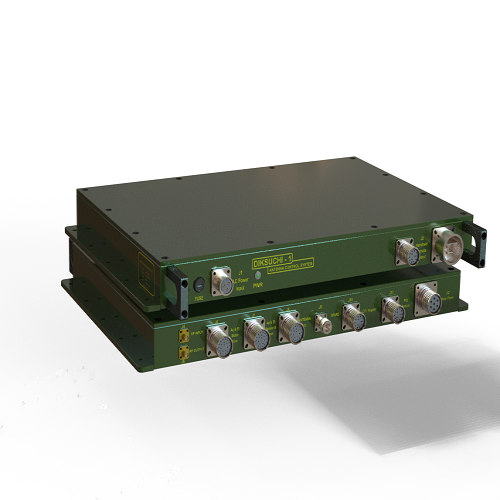

DIKSUCHI is a Precise, Rugged Antenna Control Unit Built around a Powerfull Dual Core ARM Cortex-A9 MPCore Processor. DIKSUCHI is used to Control the azimuth, elevation and polarization of an Antenna.

DIKSUCHI is having an integrated Satellite Beacon Receiver, PSU and GNSS Receiver (Optional). We will also provide External 3D Compass, IMU, Servo Motor Drives and Inclinometer as an Accessories along with the Antenna Control Unit.

DIKSUCHI is a Precise, Rugged Antenna Control Unit Built around a Powerfull Dual Core ARM Cortex-A9 MPCore Processor. DIKSUCHI is used to Control the azimuth, elevation and polarization of an Antenna.

DIKSUCHI is having an integrated Servo Motor Drives , Satellite Beacon Receiver, PSU and GNSS Receiver. We will also provide External 3D Compass, IMU and Inclinometer as an Accessories along with the Antenna Control Unit.

DIKSUCHI is a Precise, Rugged Antenna Control Unit Built around a Powerfull Dual Core ARM Cortex-A9 MPCore Processor. DIKSUCHI is used to Control the azimuth, elevation and polarization of an Antenna.

DIKSUCHI is having an integrated Servo Motor Drives , Satellite Beacon Receiver, PSU and GNSS Receiver. We will also provide External 3D Compass, IMU and Inclinometer as an Accessories along with the Antenna Control Unit.

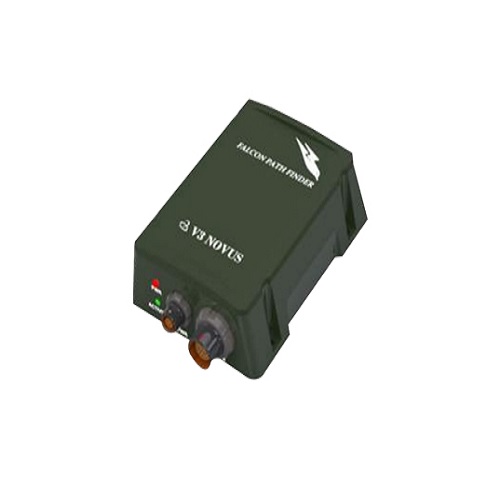

FALCON PATH FINDER is a compact, rugged enclosure containing a high quality GNSS receiver, antenna and a processing unit.

FALCON PATH FINDER provides the latest technology for precise positioning, high velocity, high altitude and high dynamics using GNSS.

This receiver meets military standards, so it can be easily deployed, without any external covering. It is designed is such a way that it can be integrated into your existing equipment and is available at the most affordable price.

The receiver has internal adaptive anti-interference algorithm which enables the module effectively suppress wideband, narrowband and continuous-wave interference. It can provide users with highquality observing data even in the complex electromagnetic environment.

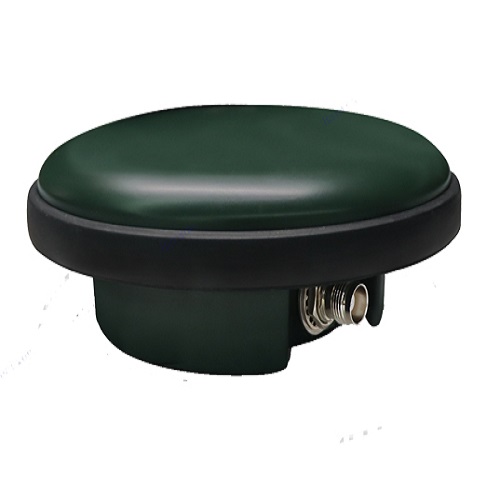

The V3Novus V3N-GGI-103 is a high performance reliable and Rugged GNSS antenna designed for high precision positioning service and offers superior satellite signal tracking, like GPS, GLONASS, IRNSS L5, IRNSS S Band, GALILEO, BeiDou. Antenna is designed to meet Industrial, Marine and Military Applications.

The V3-GGI-105 is a Multi-Frequency antenna for accurate Position navigation & timing (PNT).

This Wideband Antenna Support, GPS, Glonass, Galileo & IRNSS L5, S band Frequencies for accurater Global Navigation system (GNSS) reception.

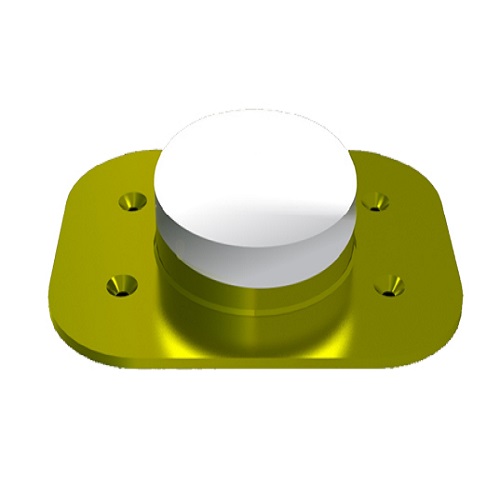

The Basepalte is Compatible with an ARINC 743 mounting hole & Footprint requirement. An O-ring real between the antenna & your platform ensures easy installation.

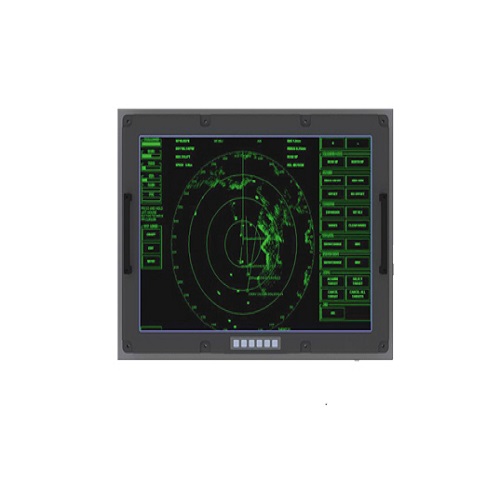

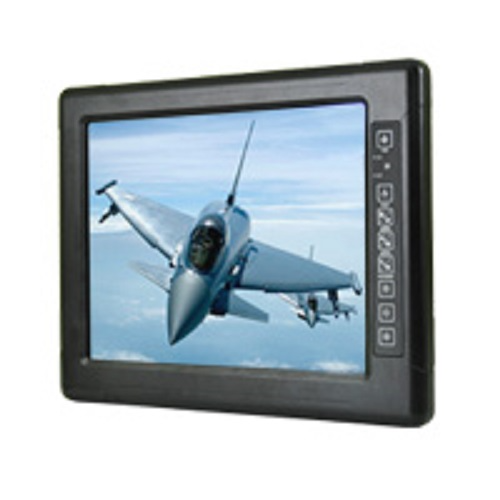

Milgrade Rugged Display

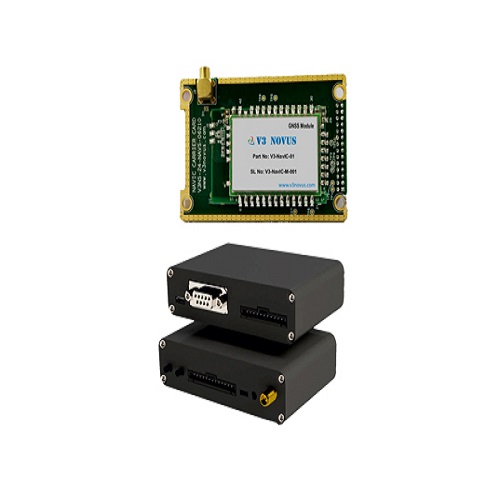

The V3-NavIC-01 is a satellite navigation receiver capable of using L5 & S Band of NavIC and GPS / GAGAN, GLONASS, Galileo, Beidou signal to provide 3D navigation in a single compact SMD module

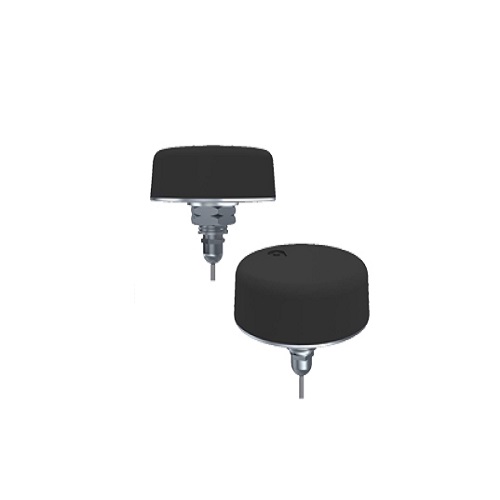

The PATH FINDER is a multi-constellation GNSS Smart Antenna Receiver which provides Concurrent receptions of GPS / GLONASS / BEIDOU / GALILEO / IRNSS. Path Finder is most Economical Smart Antenna Receiver designed for various applications such as Radar Antenna Control Unit, Timing, Network synchronization and Tracking/positioning applications.

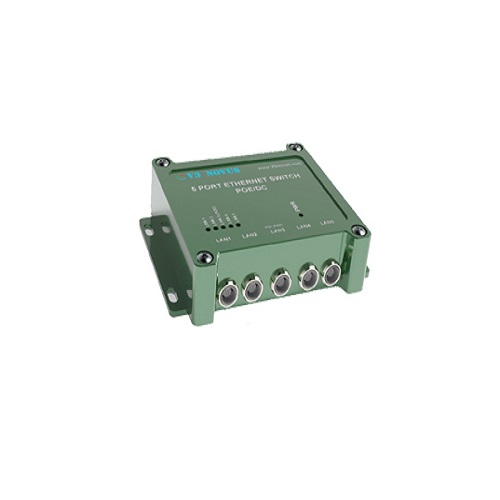

V3 Novus Military Series Rugged PoE Ethernet Switch with power distribution capabilities provides constant LAN & Power between multiple devices used by infantry soldiers. This MIL-STD, Rugged PoE Ethernet Switch with power distribution capabilities features 5 LAN 10 / 100 / 1000M Ethernet ports + power supply ports.

V3N - RES - 5P features mechanical packaging enhancements designed for MIL - STD - 810F airborne and ground environmental compliance and high reliability. The unit has been especially hardened to improve ingress, impact, and shock / vibration protection. Passive cooling allows for the elimination of moving parts. Sealed connectors ensure protection against water and dust.

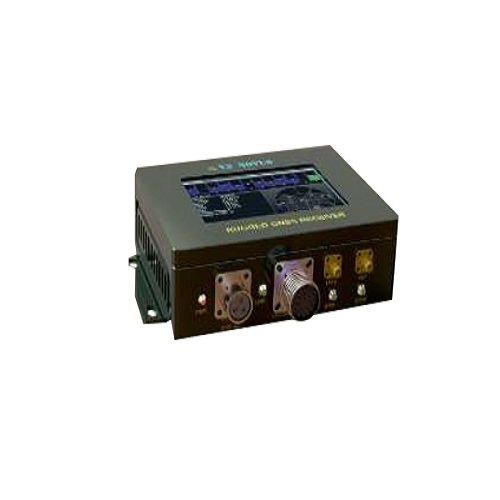

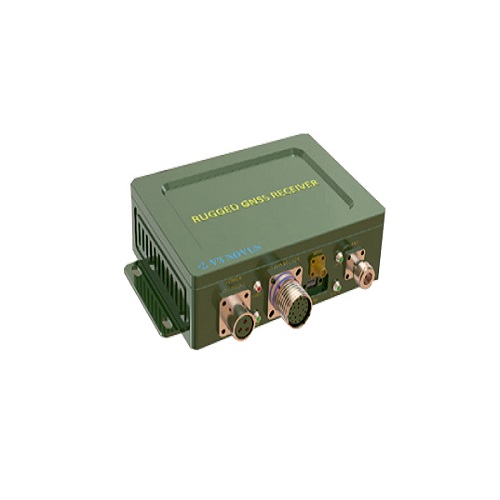

V3Novus Rugged GNSS Receiver is a GPS, GLONASS, QZSS, BeiDou, GALILEO, IRNSS L5 and S-Band Receiver designed and built to meet Military Standards, Our receiver is a Concurrent Receiver Supporting IRNSS L5 and S-Band along with other GNSS Frequencies.

3Novus Rugged GNSS Receiver is a GPS, GLONASS, QZSS, BeiDou, GALILEO, IRNSS L5 and S-Band Receiver designed and built to meet Military Standards, Our receiver is a Concurrent Receiver Supporting IRNSS L5 and S-Band along with other GNSS Frequencies.

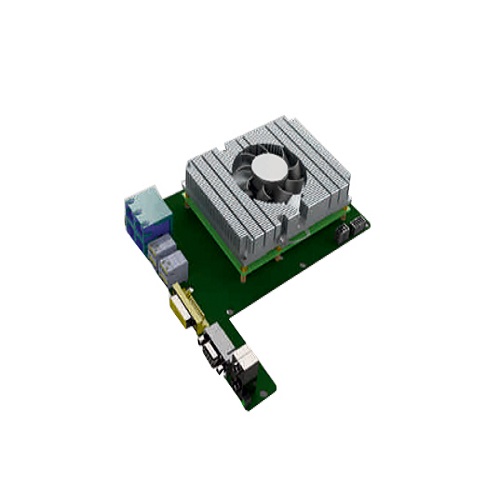

V3Novus Rugged Industrial PC Carrier card is Designed to accommodate standard intel i3/i5/i7 atom based Com-e Modules.

The board comes with several interface as mentioned in the below table V3Novus Rugged Industrial PC Carrier card will meet Industrial, Military Qualitication Requirements.

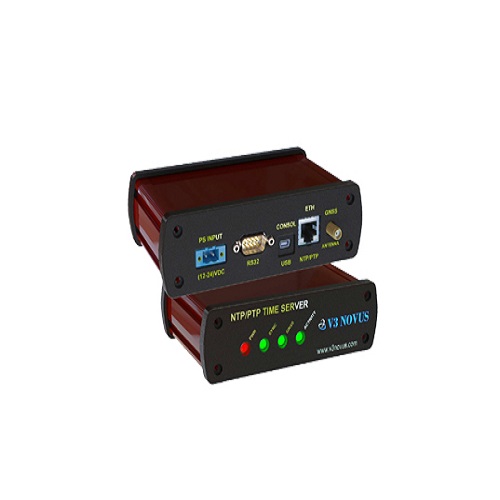

SAFESYNC is a Entry level Time server providessynchronized Time and Frequency output. The unit is configured to provide accurate timing data at designated connectors mounted on the back panel.

This is achieved by using a 72/128 channels multi GNSS Engine. GPS / GLONASS / SBAS / IRNSS receiver which tracks every visible satellite and maintains accurate and reliable time.

While tracking GNSS is accurate to <15 nsecs to UTC. Beyond accurate NTP time stamping,this precision is excellent for generating the standard 1 PPS and 10MHz outputs.

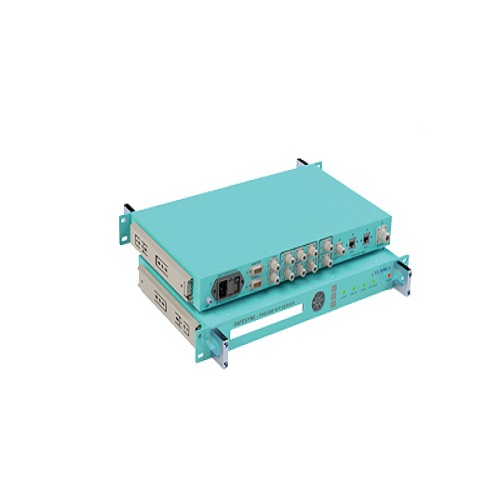

SAFESYNC is a high performance Time Synchronization System provides synchronized Time and Frequency output. The unit is configured to provide accurate timing data at designated connectors mounted on the back panel.

The unit generates highly accurate disciplined 1 PPS signal from an internal high stability OCXO/Rubidium that is synchronised with reference to 1 PPS signal from the GPS / GLONASS / SBAS / IRNSS receiver along with the reference frequency that is phase synchronised to GPS / GLONASS / SBAS / IRNSS 1 PPS signal.

This is achieved by using a 72/128 channels multi GNSS Engine. GPS / GLONASS / SBAS / IRNSS receiver which tracks every visible satellite and maintains accurate and reliable time.

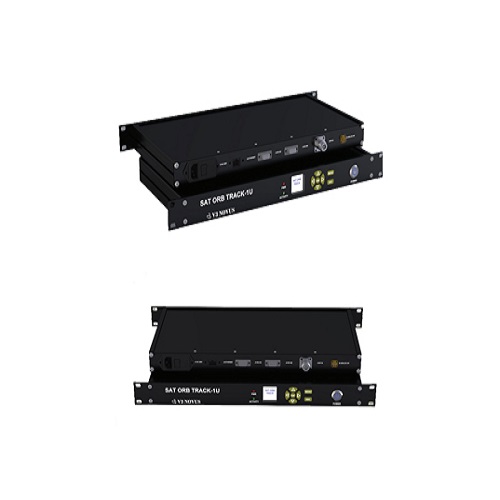

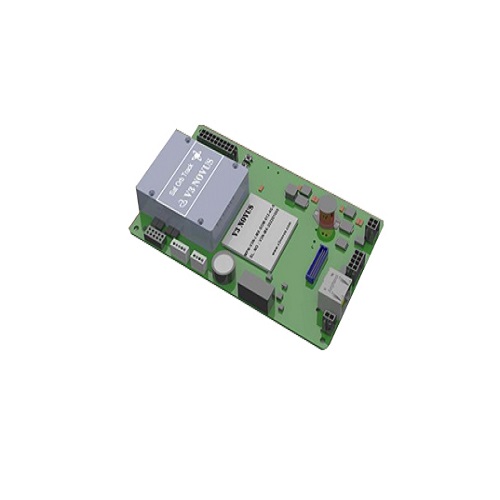

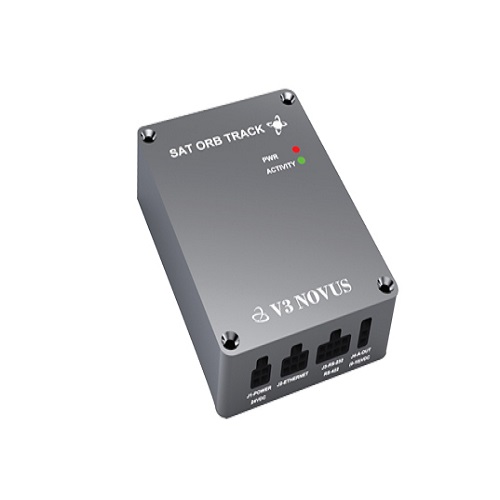

3 Novus Satellite Orbit Tracker ( Sat Orb Track ) - Sat Orb Track is mainly used to receive L-band single tone Beacon, accurately estimate its power and is translated to digital ( RS232, Ethernet, RS422 ) and analog voltage. The superior acquisition time and amplitude stability enable it to simultaneously meet the satellite-seeking applications of portable station, static and dynamic antenna systems. The product has the characteristics of high sensitivity, wide dynamic range and short acquisition time.

V3 Novus Satellite Orbit Tracker (Sat Orb Track) - Sat Orb Track is mainly used to receive L-band single tone Beacon, accurately estimate its power and is translated to digital (RS232, Ethernet, RS422) and analog voltage. The superior acquisition time and amplitude stability enable it to simultaneously meet the satellite - seeking applications of portable station, static and dynamic antenna systems. The product has the characteristics of high sensitivity, wide dynamic range and short acquisition time.

V3 Novus Satellite Orbit Tracker (Sat Orb Track) - Sat Orb Track is mainly used to receive L-band single tone Beacon, accurately estimate its power and is translated to digital (RS232, Ethernet, RS422) and analog voltage. The superior acquisition time and amplitude stability enable it to simultaneously meet the satellite - seeking applications of portable station, static and dynamic antenna systems. The product has the characteristics of high sensitivity, wide dynamic range and short acquisition time.

The V3-A236S is a high Gain (30dB) GNSS antenna covering the High Band BDS-B1/GPSL1/GLONASS-G1:1561.098-1602Mhz, Low Band/IRNSS L5:1176.45Mhz. It is especially designed for precision industrial, agricultural and military applications.

The V3 - GGI - 105 is a Multi-Frequency antenna for accurate Position navigation & timing (PNT). This wideband Antenna Support GPS, Glonass, Galileo & IRNSS L5, S band Frequencies for accurater Global Navigation system (GNSS) reception.

The V3novus V3N-GGI102 is a high performance GNSS antenna designed for high precision positioning service and offers superior satellite signal tracking, including IRNSS, GPS, GLONASS, GALILEO, BeiDou, as well as L-Band correction service. Its RTK level positioning accuracy makes it ideal to be integrated in to application as surveying and mapping, and various UAVs operations as aerial photography, remote sensing, infrastructure inspection, traffic control, and public security.

Multi GNSS Platform - Supporting GPS, Galileo, GLONASS, BeiDou, SBAS and all L- / S-Band signals

Flexible Capability Licensing - Extend your GNSS capabilities by simple SW licensing.

Scalable Signal Channels - Scalable from 8 to 160 accoridng to your needs.

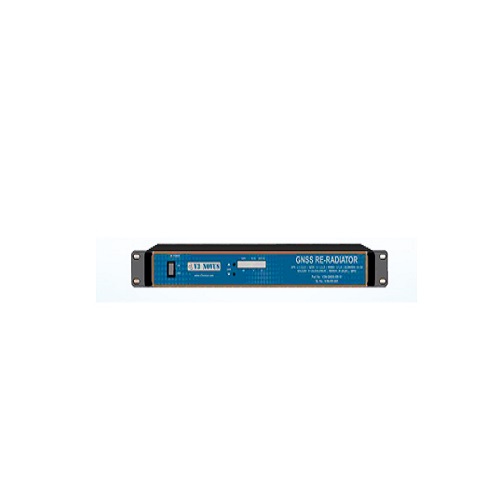

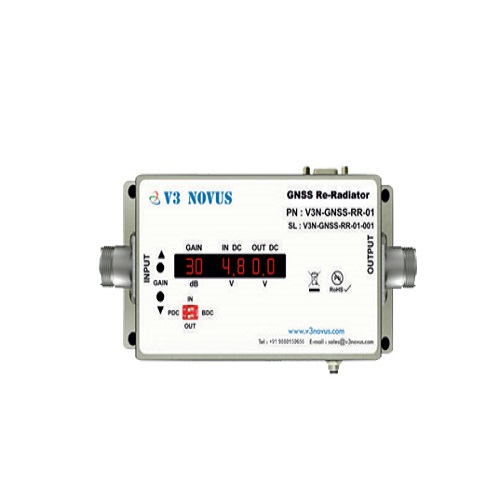

GNSS Re-Radiator operates by receiving GPS/GLONASS/Beidou2/IRNSS satellite signals with an antenna located at the Roof top outside of the building (To open Sky view), with Lightning Protector and In-line amplifier, which is used to Protect Co-axial cable and Boost the signal strength, Received signals send to the GNSS Re-Radiator, Re-Radiator Amplified Signals and Split into different Channel using Splitter (ex.4/8/16/32/64 channels). Using LMR 240 cable up to 40 meter length, Each channel can transmit with same signal strength through Different Passive antenna which can cover around 5~10 meter Radius.

GNSS Re-Radiator operates by receiving GPS / GLONASS / Beidou2 / IRNSS satellite signals with an antenna located at the Roof top outside of the building (To open Sky view), with Lightning Protector and In-line amplifier, which is used to Protect Co-axial cable and Boost the signal strength, Received signals send to the GNSS Re-Radiator, Re-Radiator Amplified Signals and Split into different Channel using Splitter (ex.1/4/8/16/32/64 channels). Using LMR 240 cable up to 40 meter length, Each channel can transmit with same signal strength through Different Passive antenna which can cover around 5~10 meter Radius.

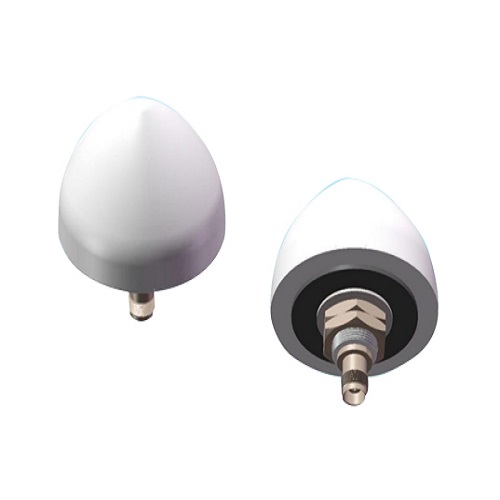

The V3N - GGI - 106 is a high Gain (40dB) GNSS antenna covering the GPS L1, GLONASS L1, IRNSS L5 and SBAS (WAAS, EGNOS & MSAS), Cover in Higher frequency band BDS - B1 / GPS - L1 / GLONASS - G1 : 1561.098 ~ 1602MHz Lower Band GPS - L5 & L2 / Galileo - E5a & E5b / BDS - B2 / IRNSS L5 : 1176 ~ 1227MHz. It is especially designed for precision industrial, agricultural and military applications.

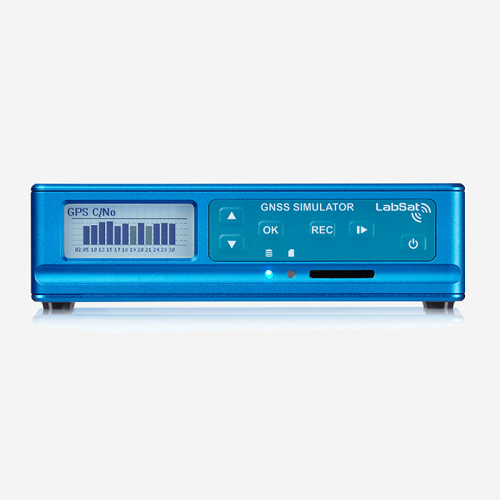

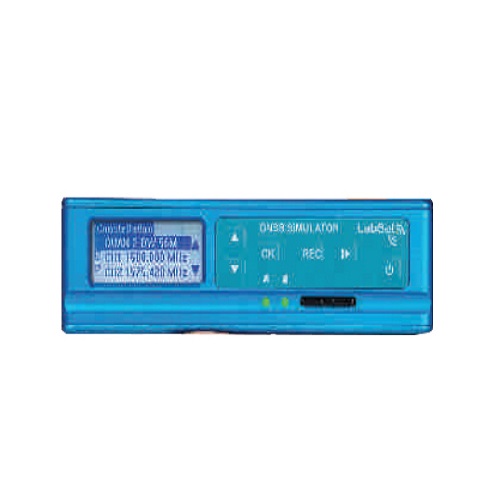

GNSS Record and Replay with a recording bandwidth of up to 56MHz
LabSat is recognised as the most cost effective and intuitive GNSS simulator available. New to the LabS at range of GNSS Record and Replay devices is LabSat 3 Wideband, which continues with the established reliability, cost-effectiveness, and simplicity of operation that are the benchmarks of the LabSat system.

V3N-GGI-105 is the ideal antenna for a wide range of high accuracy permanent, reference base station and monitoring application.

The V3N-GGI-105 contains V3novus advanced antenna technology for improved tracking performance, excellent phase centre symmetry and unmatched multipath suppression across all GNSS frequency bands. An all new amplifer (LNA) is used to provide excellent out of the band rejection, helping to significantly reduce potential interference due to jamming. The V3N-GGI- 105 is suitable for use with antenna cable lengths up to 100m without the need for an in line amplifier.

The V3N-GGI-105 contains new innovative internal structure design, robust and UV resistant radome, it's made to withstand extreme temperature, humidity, dust, salt, solar radiation, shock and vibration with in very small size.

The V3N-A057 features a dual-feed wideband patch element, with a two stage Low Noise Amplifier, comprised of one input LNA per feed, a mid section SAW to filter the combined output, and a final output gain stage. This configuration provides excellent axial ratio that is constant across the full frequency band. An optional tight pre-filter is available with part number V3N-A057 to protect against saturation by high level sub-harmonics and L-Band signals.

The V3N-A057 is housed in a compact, industrial-grade weather-proof, magnet mount enclosure, and is available with a variety of connectors and cable lengths. The antenna can be ordered without the magnet. In such cases, the magnet is replaced with a plastic plug to provide a smooth under surface.

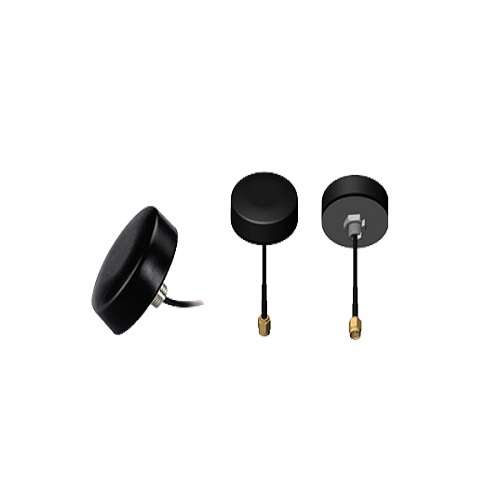

GPS Screw Type - V3N - 003

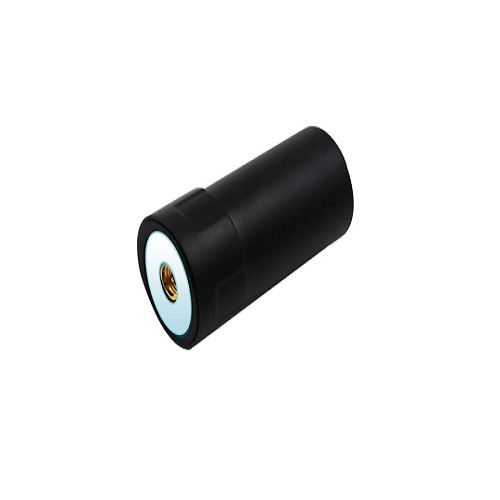

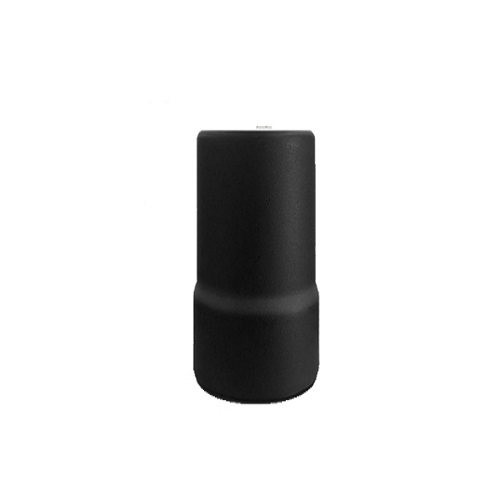

V3N-HT-1560can receive signals of GPS L1 L2, BDS B1 B2 B3, GLONASS G1 G2 and GALILEO E1 E5b at the same time. It is suitable for four systems, high precision measurement and military positioning.
