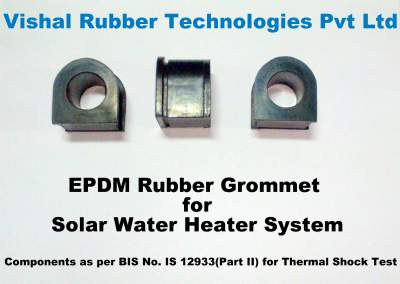

EPDM Rubber Grommet for Solar Water Heater Panel Header Pipe used for 1 inch pipelines as per BIS no. IS12933(Part II) for thermal shock test.

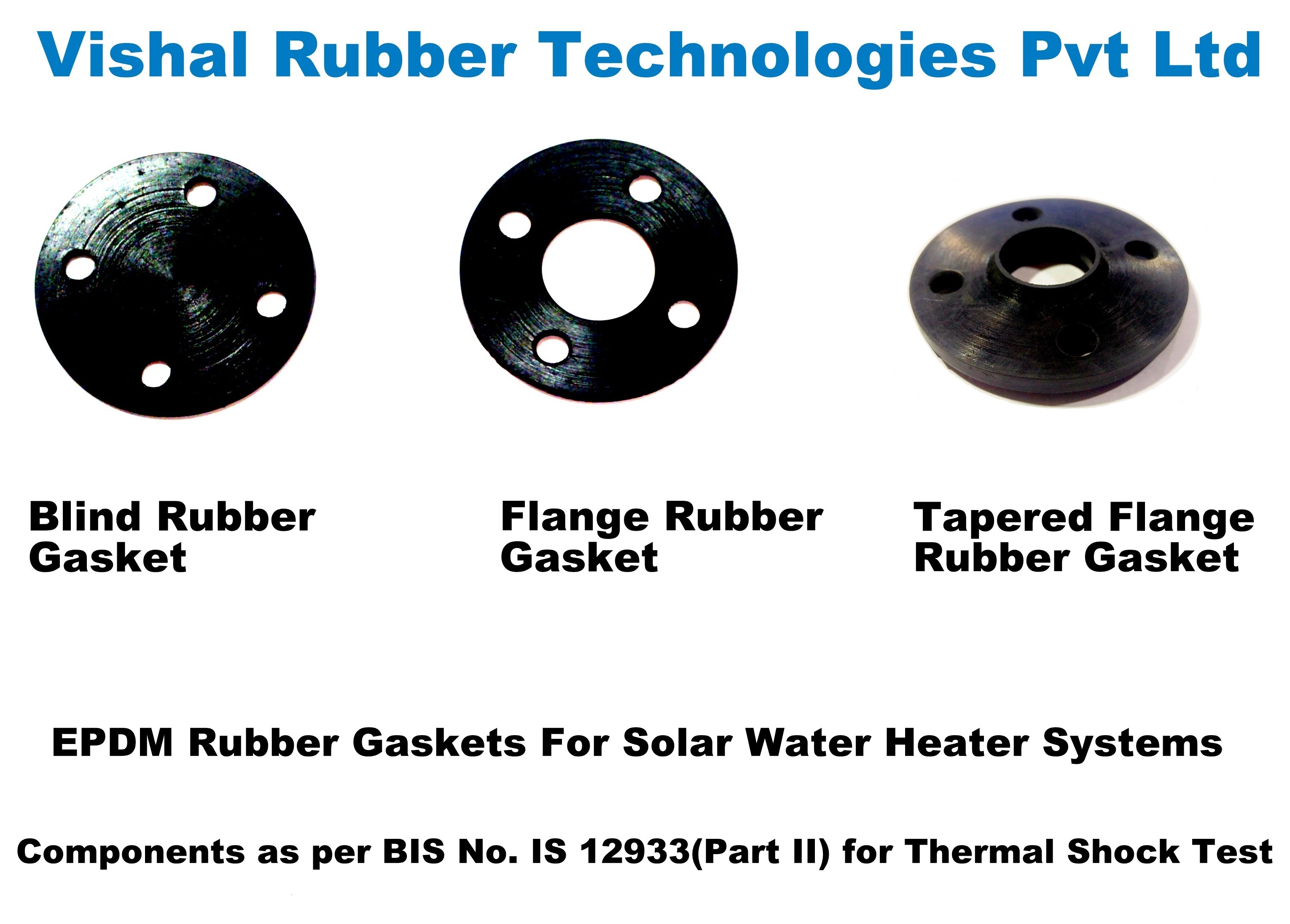

EPDM Rubber Gaskets for Solar Water Heater Panels used for 1 inch pipelines as per BIS no. IS12933(Part II) for thermal shock test.
Type of Gaskets:
1. Blind Rubber Gasket
2. Flange Rubber Gasket
3. Tapered Flange Rubber Gasket

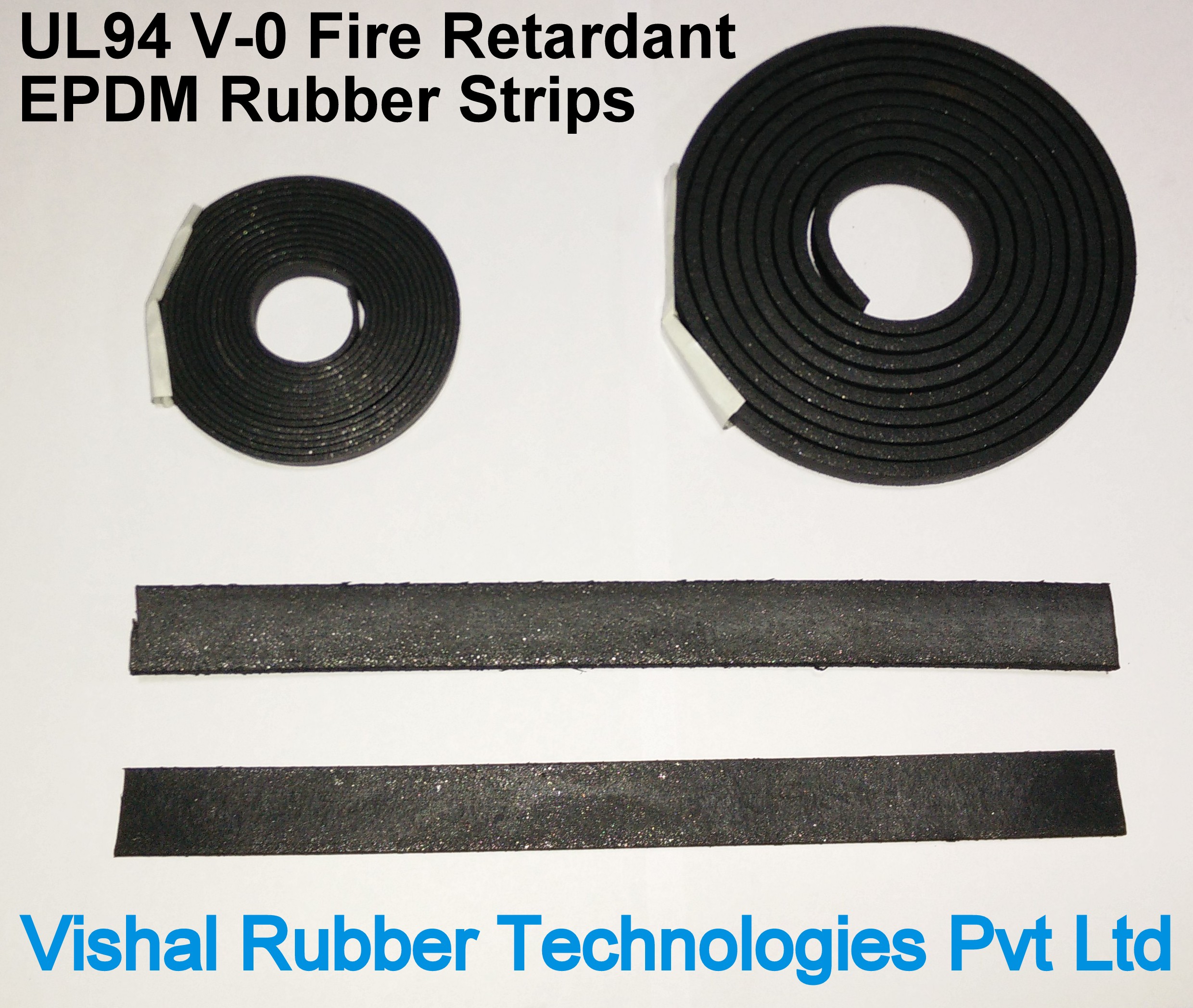

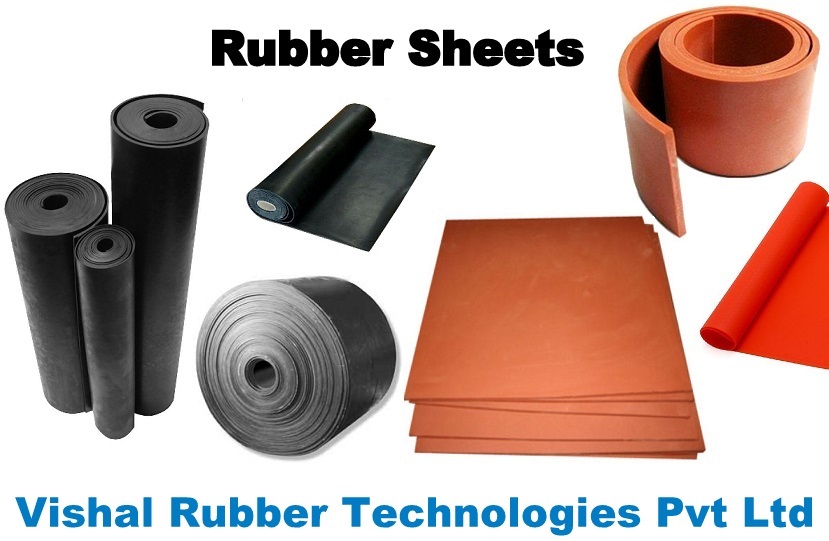

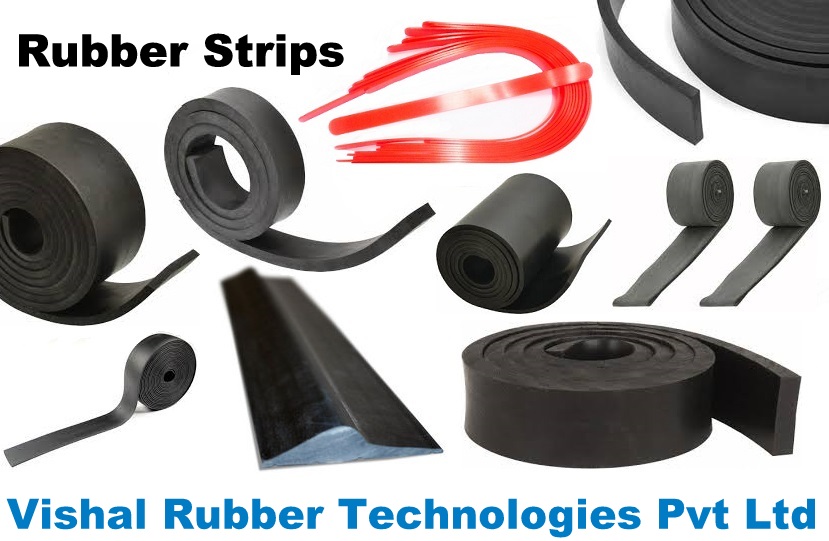

• We manufacture and Supply UL 94 EPDM Rubber Belts, Rubber Gaskets, Rubber Sheets and Rubber Strips as per customer requirements
  From Lowest (Least Flame - Retardant) to Highest (Most Flame - Retardant).
  Standards are given below for details about its details of testing,
• UL 94-5VA
• UL 94-5VB
• UL 94 V-0
• UL 94 V-1
• UL 94 V-2
• UL 94 H-B


• HB: slow burning on a horizontal specimen; burning rate < 76 mm/min for thickness < 3 mm or burning stops before 100 mm
• V-2: burning stops within 30 seconds on a vertical specimen; drips of flaming particles are allowed.
• V-1: burning stops within 30 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
• V-0: burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
• 5VB: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may develop a hole.
• 5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not develop a hole.

We have wide range of Drip Irrigational Grommets. We are one of the largest suppliers of Rubber Grommets used in Drip Irrigation sector.
We usually prefer EPDM Rubber Grommets as we are specialized and we have tested life acceleration and UV testing on EPDM Grommets for longer Life upto 3-5years in all weather conditions according to Test Reports.

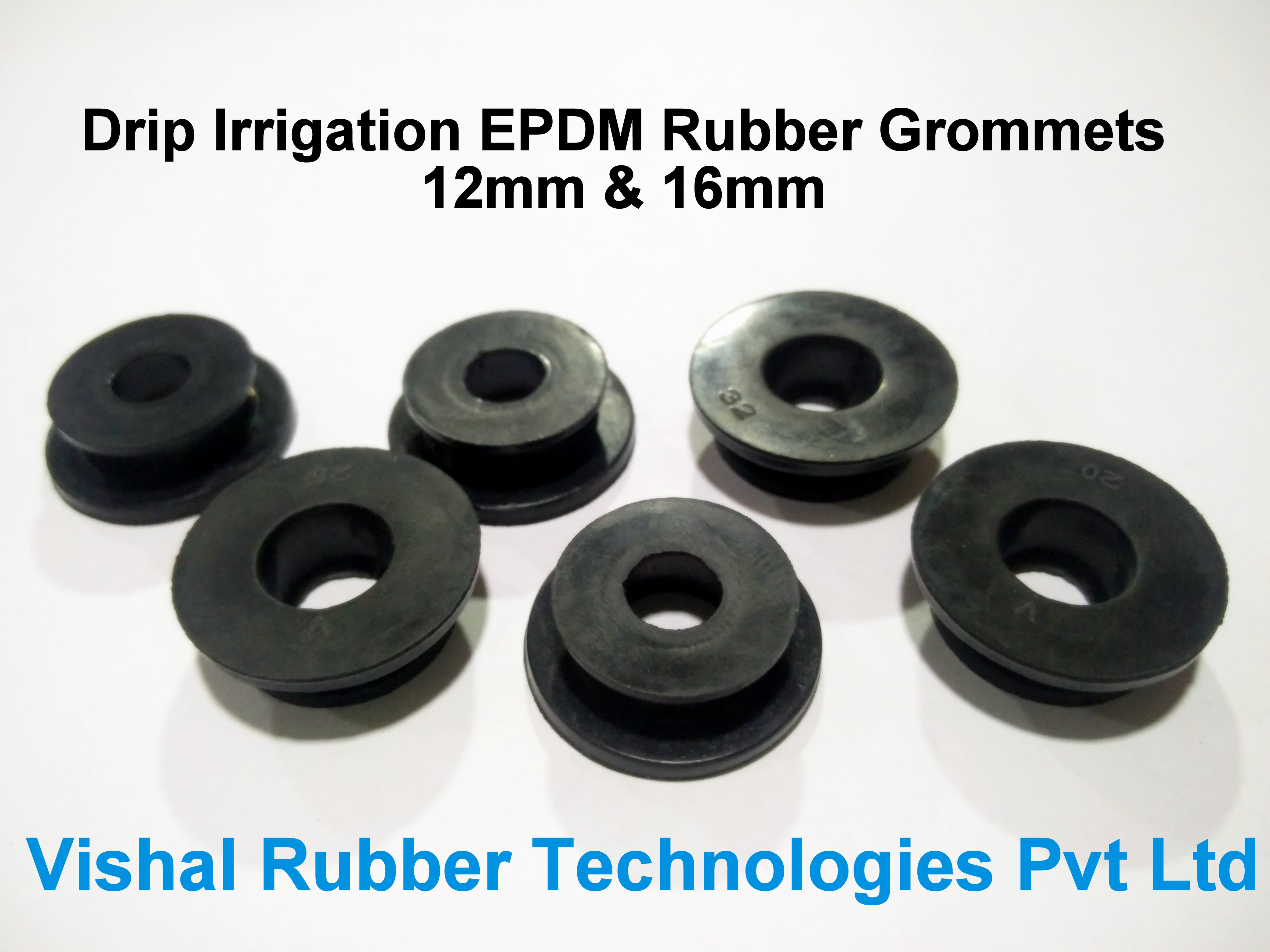

Drip Irrigation Rubber Grommets for 12mm and 16mm Laterals:

We are glad to Introduce that we are the Largest Manufacturers of EPDM Rubber Grommets for Drip Irrigation in India. We have been manufacturing and supplying Drip Irrigation Rubber Grommets since 1990's to the Irrigation Sector in India. We also do manufacture other allied Rubber Products for Drip Irrigation like Orings and Seals.
Product Description: EPDM Rubber Grommets for Drip Irrigation.Production Capacity: 15 lakh Grommets per month.Product Specifications: Ozone Resistance, Weather Resistance, Excellent Tensile Strength, Elongation and compression set. Temperature Resistance: 120 Degree Centigrades.

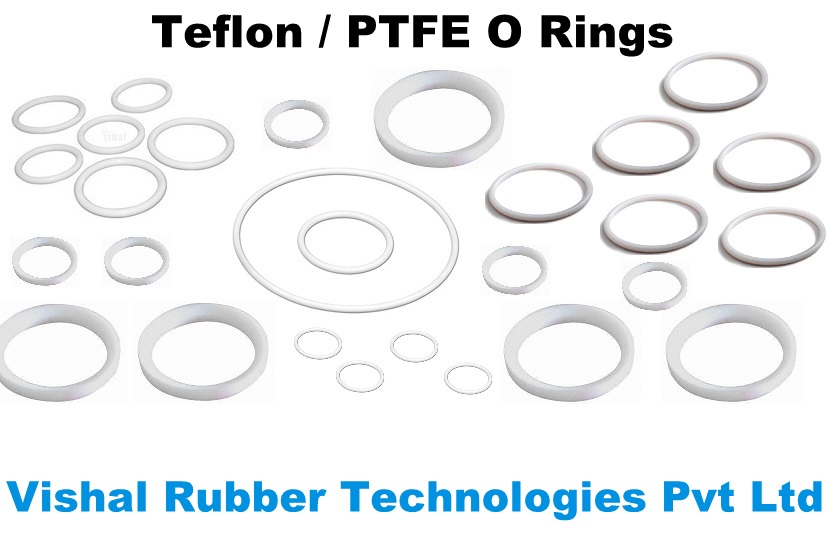

PTFE O rings are excellent resistant to acids, chemicals, steam, oils, bases, high temperatures, etc. Widely known by its brand name Teflon.

Ebonite Rubber Products:

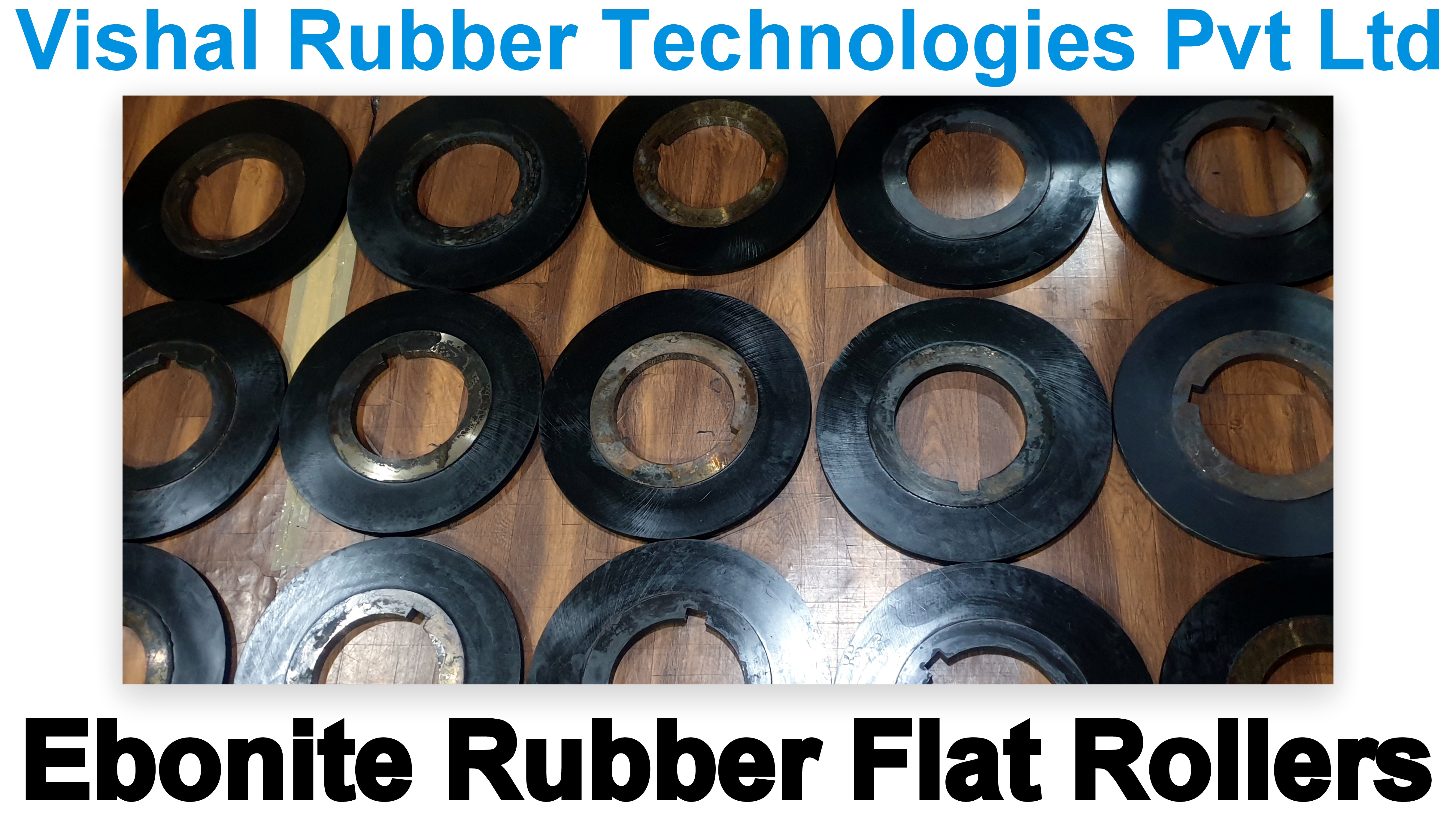

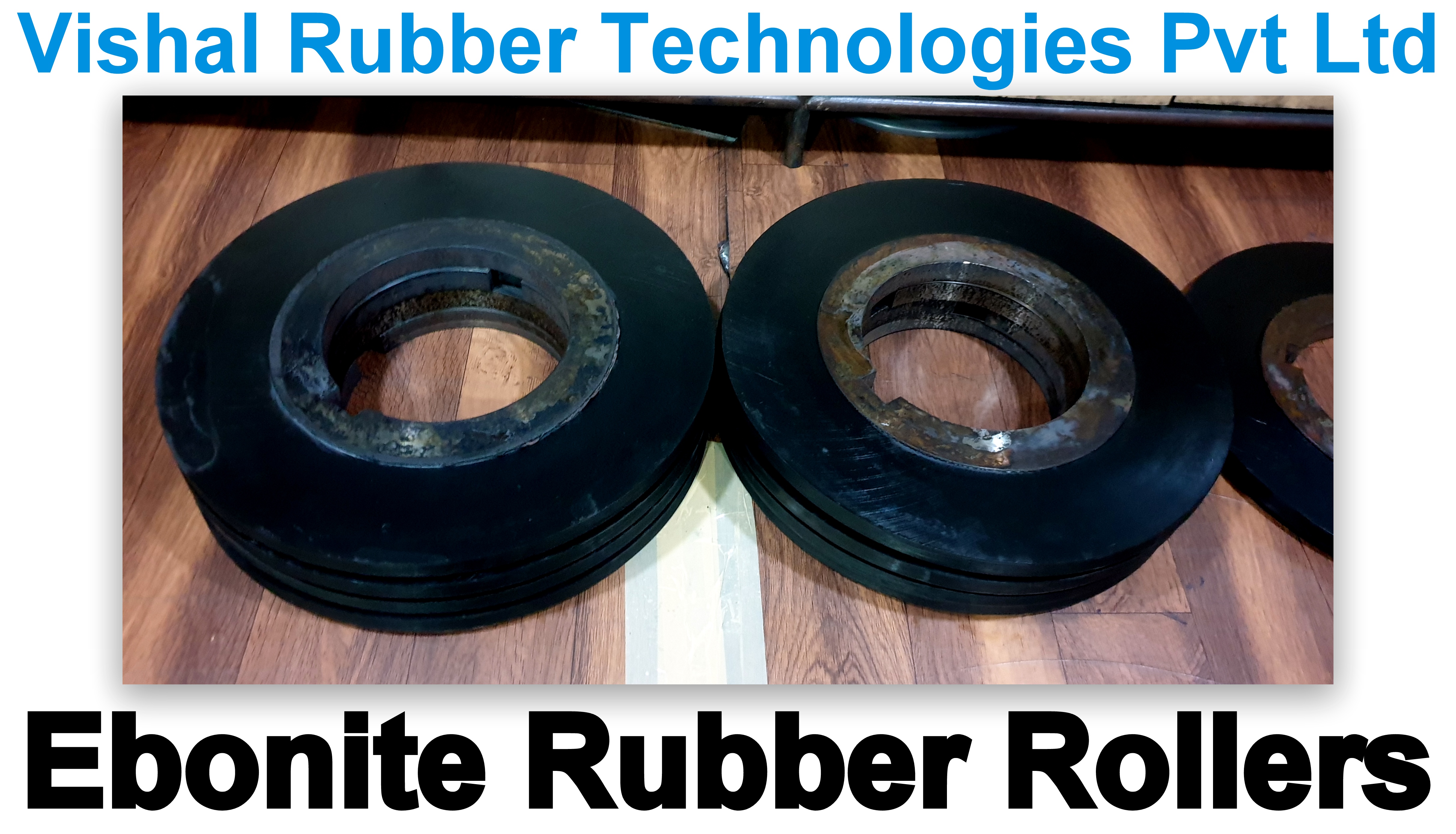

A) Ebonite Rubber Rollers are used in paper industry and various conveyor belt systems, Chemical Industries, etc.
B) Ebonit Rubber Nozzles are used in Ejector Systems where pressure is convered to kinetic energy and mixing of two motives.
C) Ebonite Rods are used for tooling purpose to manufacture various Ebonite Rubber Products in Industries.
D) NBR Ebonite Float is used for measuring liquid level based on up and down movments of float. It is not just used in fuel tanks but also industrial purpose where high chemical resistance is to be used.
Applications:
1. Automobiles
2. Transformer Oil Indicators.
3. LPG Level Guages.
4. Industial Liquid Level Guages/Sensors.
5. All kinds of Liquid Level Sensors.
6. Steel Industry for Sheet Pulling & Cutting

Higher Resistance : Ethanol, Methanol, Diesel, Kerosine, Alcohol, Transformer Oils, Engine Oils, Pertolieum,

Working pressure:
     Up to 30 kg/cm2 (420 psi), but the hydraulic test result for the OPD valve is 53 kg/cm2  Hardness     Minimum 90 Shore A Type, up to 55 Shore D Type  Coefficient of expansion     5x10^-5mm/m/deg. ºC(9.8x10^-5in/in/ºF)  Dimentional &weight variation     Dimention: max. 4%  weight: max. 15%

Ebonite Rubber Products:
A) Ebonite Rubber Rollers are used in paper industry and various conveyor belt systems, Chemical Industries, etc.
B) Ebonit Rubber Nozzles are used in Ejector Systems where pressure is convered to kinetic energy and mixing of two motives.
C) Ebonite Rods are used for tooling purpose to manufacture various Ebonite Rubber Products in Industries.
D) NBR Ebonite Float is used for measuring liquid level based on up and down movments of float. It is not just used in fuel tanks but also industrial purpose where high chemical resistance is to be used.
Applications:
1. Automobiles
2. Transformer Oil Indicators.
3. LPG Level Guages.
4. Industial Liquid Level Guages/Sensors.
5. All kinds of Liquid Level Sensors.
6. Steel Industry for Sheet Pulling & Cutting

Higher Resistance : Ethanol, Methanol, Diesel, Kerosine, Alcohol, Transformer Oils, Engine Oils, Pertolieum,

Working pressure:
     Up to 30 kg/cm2 (420 psi), but the hydraulic test result for the OPD valve is 53 kg/cm2  Hardness     Minimum 90 Shore A Type, up to 55 Shore D Type  Coefficient of expansion     5x10^-5mm/m/deg. ºC(9.8x10^-5in/in/ºF)  Dimentional &weight variation     Dimention: max. 4%  weight: max. 15%

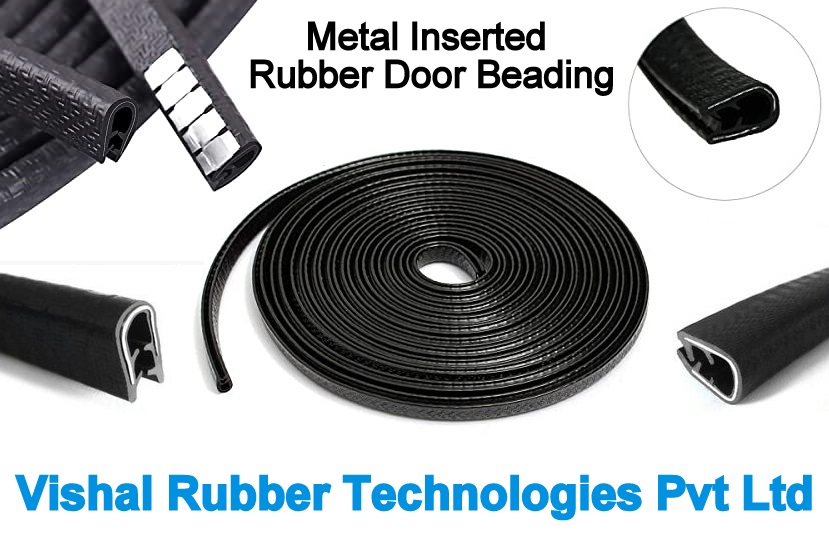

Edge Trims are ideal to cover Edges of panels with self grip mechanism to hold them in its place. They are metal inserted Clips which provides it locking in its position and gripping tongues to provide grip as per panel or edge thickness.

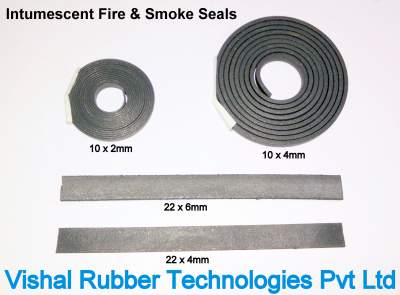

Intumescent fire door Smoke seals fit into a rebate on the fire door or frame. They expand to many times the original size and fill the gaps around the door with a flame-tight seal for 30 or 60 minutes, depending on width.
The key points for passive fire protection products are :-
1.Prevent the spread of fire, smoke and hot gases through a building by containing it in the 2.compartment of origin.
3.Maintain the integrity of escape routes from a building.
4.Reduce loss or damage to property from the effect of fire and smoke.
5.Maintain pressure differential between compartments and ventilation channels.

Standard Sizes Available:
1. 22 x 4 mm
2. 22 x 6 mm
3. 10 x 4 mm
4. 10 x 2 mm

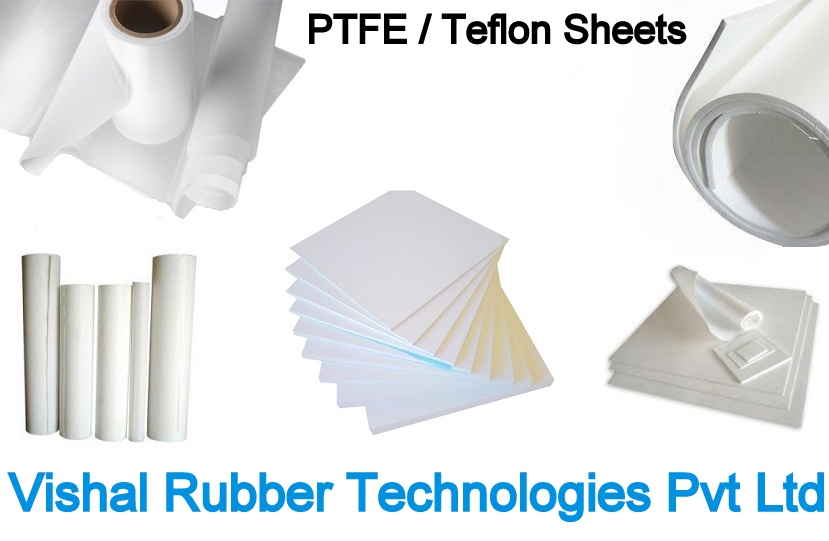

PTFE Sheets are typically of two types, namely Skewed PTFE Sheets and Moulded PTFE Sheets. Widely used in applications where high abrasion resistance is required, chemical resistance, high heat resistance, Oil & Acid resitance, etc.

PTFE is principally used as a gasket material because of it's capability to remain unaffected by the majority of chemicals used in industry. It is also classified, in most cases, as a food grade material, making it acceptable to both medical and food production industries. There are three basic types of PTFE gasket materials. Virgin PTFE , filled PTFE and expanded PTFE .

Virgin PTFE is by far the least expensive of the three varieties, and is used in most general applications. Filled PTFE is a gasket material with a virgin PTFE base to which a substance is added during manufacture to improve the sealing characteristics of PTFE . This "filler" usually is glass or graphite particles although ceramics has sometimes been used. The resulting gasket material is strong, yet highly compressible with very good, though not universal, chemical resistance.

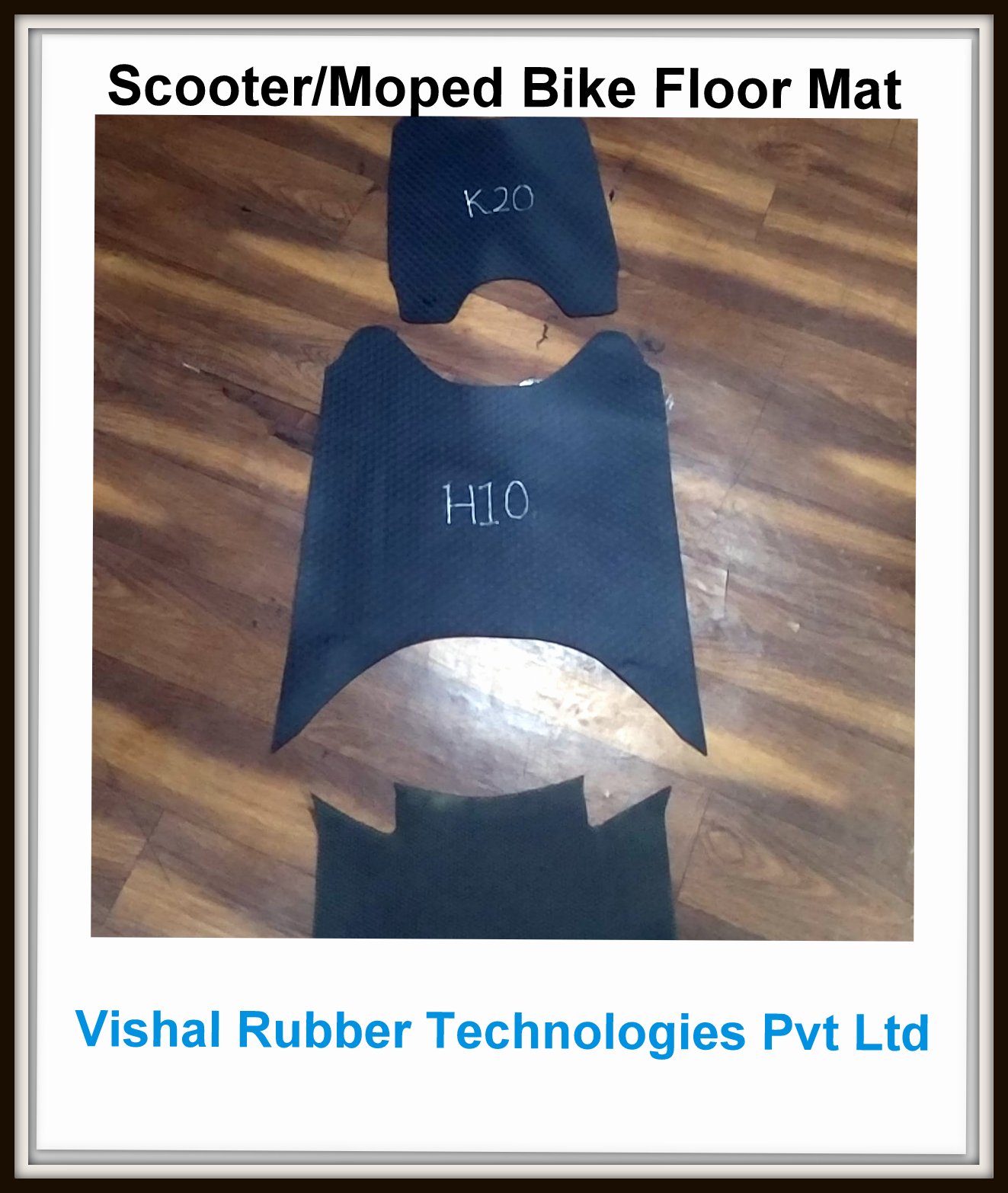

EPDM & Natural Rubber Floor Mats for E Bikes, Mopeds, Scooters.

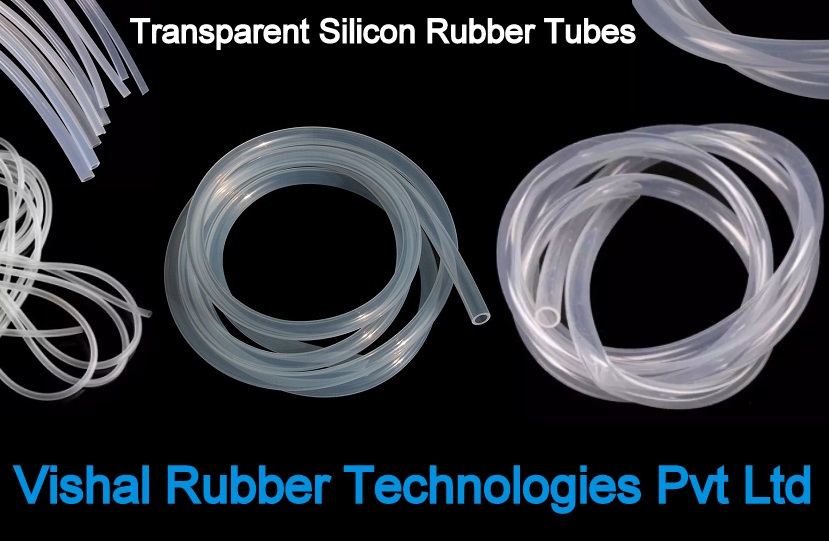

We manufacture Translucent Silicone Rubber Tubes or Sleeves as per requirement. Such Translucent Silicone Tubes or Sleeves are usually used where transperency is required for visual material flow is required. Such Silicone Rubber Tubes or Sleeves are used in Pharma, Chemical, Electrial & Electronics, Machine Manufacturers, etc.
We provide top quality Silicone Rubber Tubes or Sleeves from Short Runs to High Quantity requirements.

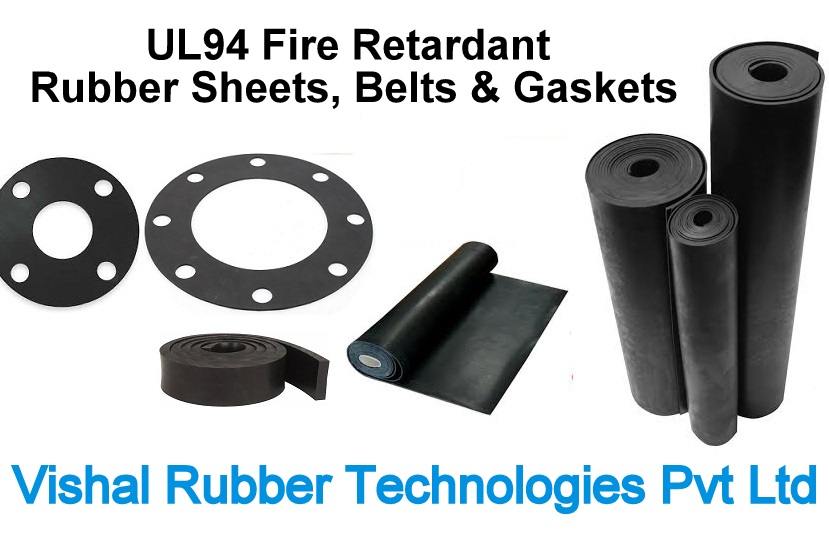

• We manufacture and Supply UL 94 EPDM Rubber Belts, Rubber Gaskets, Rubber Sheets and Rubber Strips as per customer requirements
  From Lowest (Least Flame - Retardant) to Highest (Most Flame - Retardant).
  Standards are given below for details about its details of testing,
• UL 94-5VA
• UL 94-5VB
• UL 94 V-0
• UL 94 V-1
• UL 94 V-2
• UL 94 H-B


• HB: slow burning on a horizontal specimen; burning rate < 76 mm/min for thickness < 3 mm or burning stops before 100 mm
• V-2: burning stops within 30 seconds on a vertical specimen; drips of flaming particles are allowed.
• V-1: burning stops within 30 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
• V-0: burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
• 5VB: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may develop a hole.
• 5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not develop a hole.

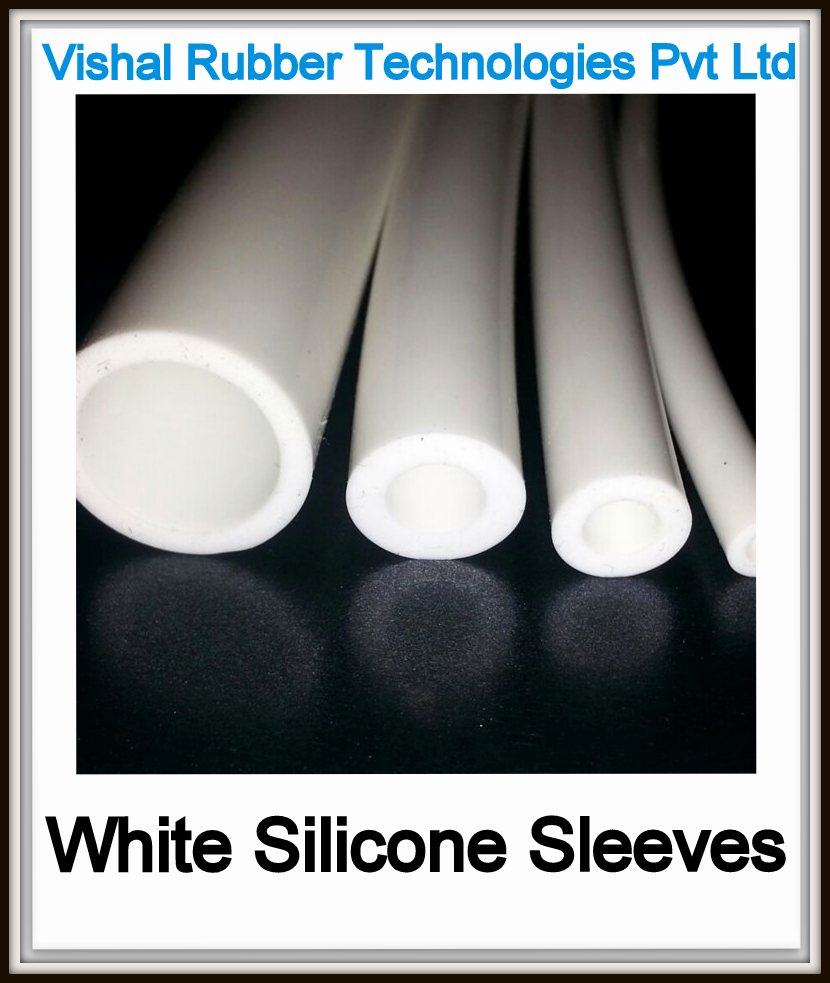

We manufacture White Silicon Rubber Sleeves or Tubes basically to suite its asthetic look in wide industrial applications like home appliances, Chemical Industry, Pharma Sector, Food Industry, Cables, Machine Manufacturers, Medical Machine applications, X-ray machines components, Solar Industry, Water Treatments, etc.
We manufacture Silicon Extruded Tubes and Sleeves as per customer specifications and applications.

INTUMESCENT RUBBER STRIP is Expandable Graphite based Flame Retardant EPDM rubber Strip for use in Fire door seals.

Its is manufactured as per required size.It prevents the door in case of fire from falling & passing of fire from one compartment to another. It holds the door is position and also does not allow the smoke to pass for specified period. It is made from non halogenated flame retardant
The flame retardant used is RoHS & REACH compliant
