The need for power is perpetual; and for an aspiring country like India, we need constant innovation in power infrastructure equipment to transform our nation. That is where Yash is powering ahead with Made in India critical components of world-class quality ensuring our country's future is brighter. Established in 2002, Yash Highvoltage Ltd. is an ISO 9001 company and an independent, indigenous manufacturer of HV & EHV Condenser graded transformer bushings (High voltage and High current) with more than 20,000 bushings performing satisfactorily globally.
View more
Our Leadership Team
Mr. Keyur Shah
Business Head

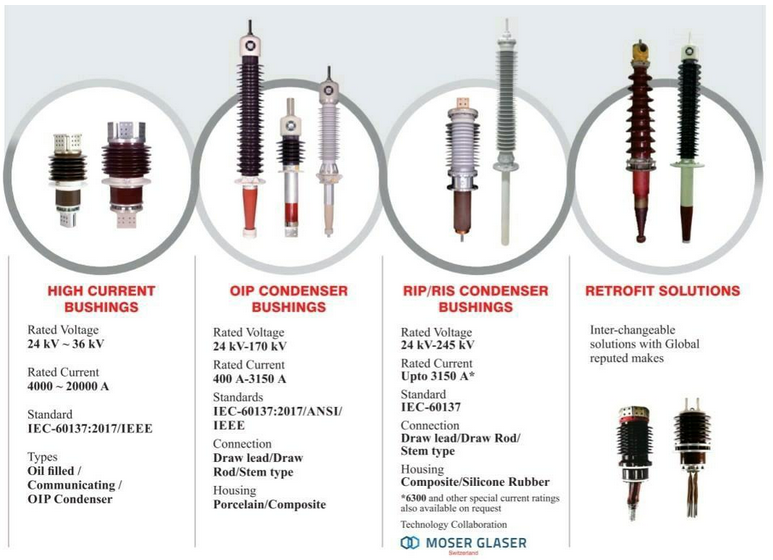

Products & Services

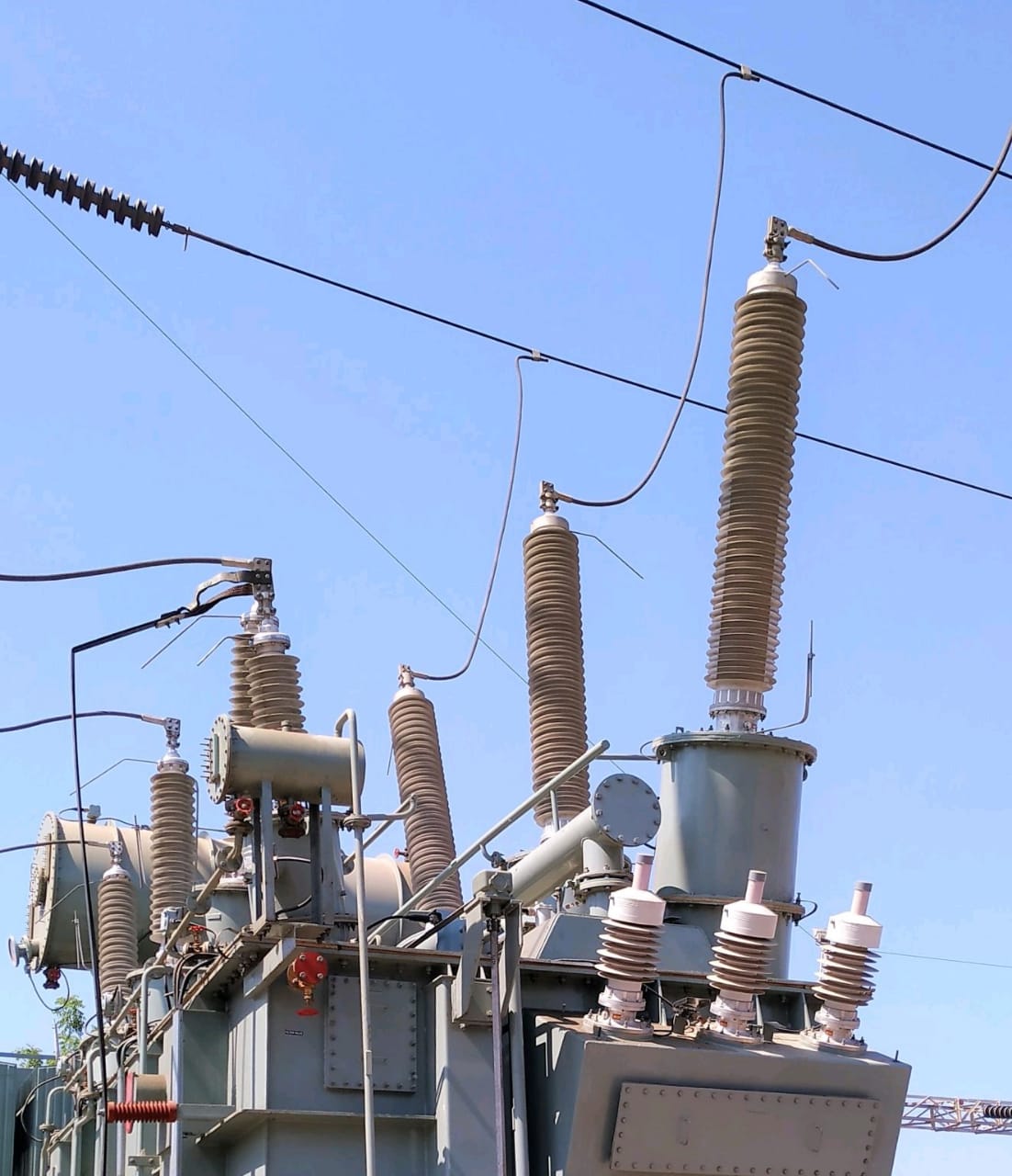

High Voltage OIP Condenser bushings
Product Detail
High Voltage OIP Condenser bushings
Rated Voltage
24kV ͠͠ 170 kV
Rated Current
Up to 4000 A
Standards
IEC-60137:2017/ANSI/IEEE
Connection
Draw lead/Draw rod/Stem type
Housing
Porcelain/Composite
+ Show more
- Show less
.jpeg)
.jpeg)
High Voltage RIP & RIS Condenser bushings
Product Detail
High Voltage RIP & RIS Condenser bushings
Insulation
Resin Impregnated Paper/ Synthetic
Rated Voltage
24kV ͠͠ 245 kV
Rated Current
Up to 6300 A
Standards
IEC-60137:2017
Connection
Draw lead/Draw rod/Stem type
Housing
Silicon/Hollow Composite
+ Show more
- Show less
LV High Current Bushings
Product Detail
LV High Current Bushings
Rated Voltage
24kV ͠͠ 36 kV
Rated Current
4000 ͠͠ 25000 A
Standard
IEC-60137:2017/IEEE
Types
Oil Filled/ Communicating/OIP Condenser
+ Show more
- Show less

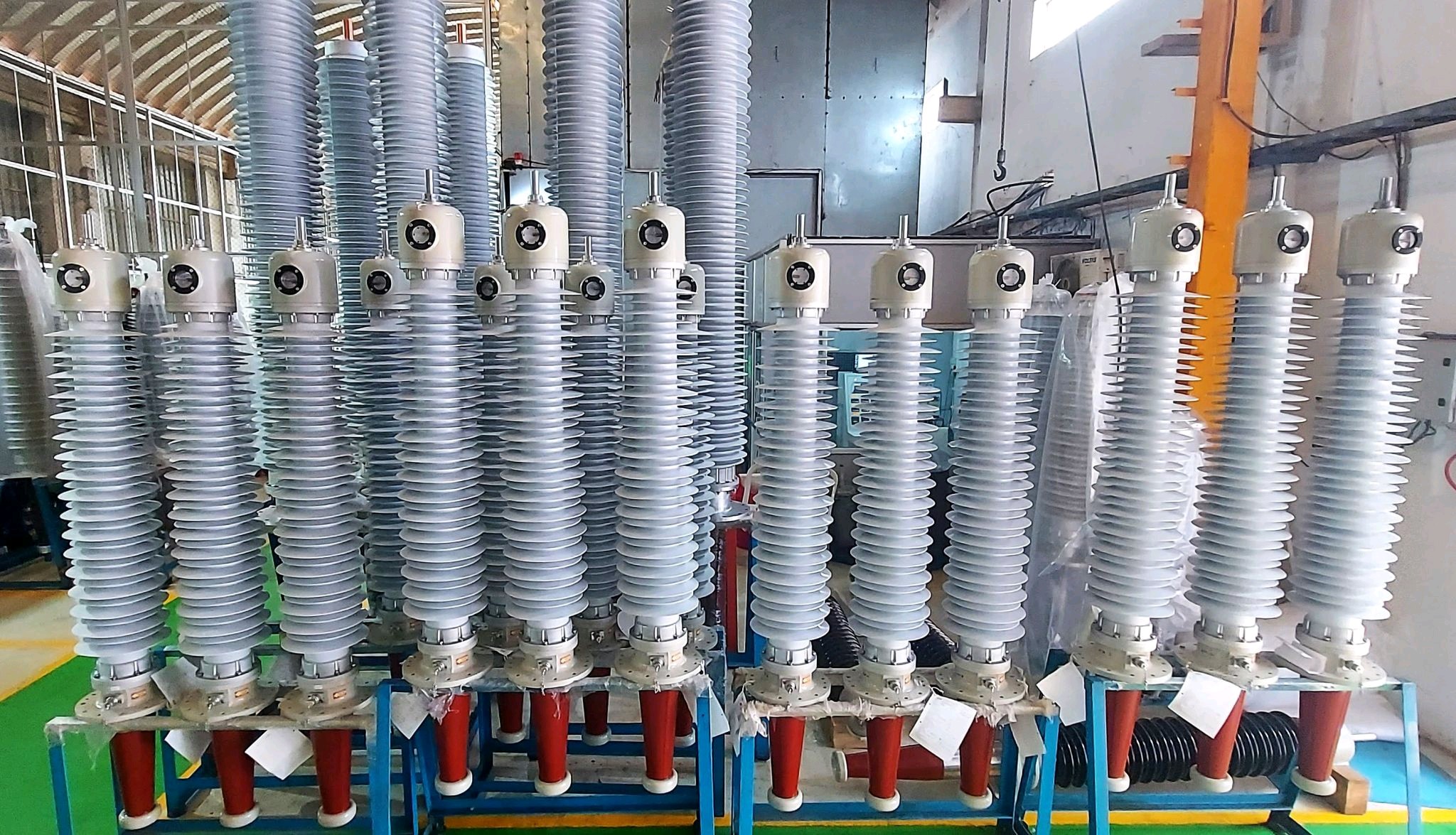

RIPRIS Condenser Bushings
Product Detail
RIPRIS Condenser Bushings
Known for their revolutionary performance, DRY TYPE Resin Impregnated Paper (RIP) /Resin Impregnated Synthetic (RIS) Condenser Bushings are oil-free transformer bushings, wherein the insulation is built directly on the conductor, and consists of high-quality crepe paper wound on the conductor in case of RIP bushings, or special grade synthetic film in case of RIS bushings. Conductive grading layers are embedded during the paper/synthetic wrapping process to form a capacitive core for the best electromagnetic field control, and further, the wound core is impregnated after a process of heat and vacuum application with special grade electrical application resins to make a completely dry RIP/RIS active part solution.
+ Show more
- Show less
RIS Transformer Bushings
Product Detail
RIS Transformer Bushings
+ Show more
- Show less
OIP Condenser Bushings
Product Detail
OIP Condenser Bushings
The most widely used bushings in the high voltage transmission industry globally even today, Oil Impregnated Paper (OIP) Condenser Bushings are manufactured using Kraft paper wound tightly on a conductor, with a finely graded capacitive arrangement using intermediate layers of aluminium foils, dried under heat and vacuum to remove moisture and carefully impregnated with processed transformer oil.
+ Show more
- Show less

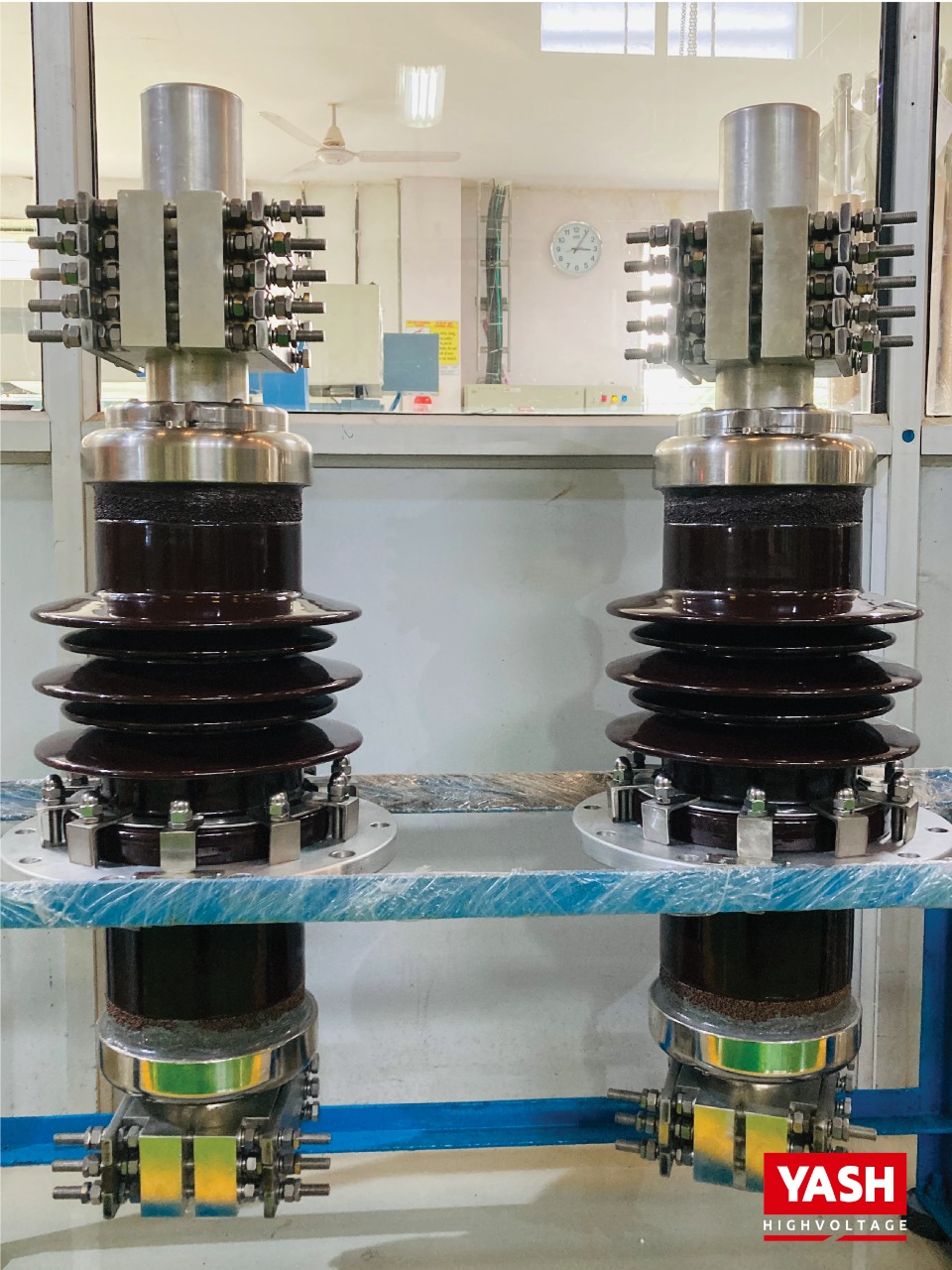

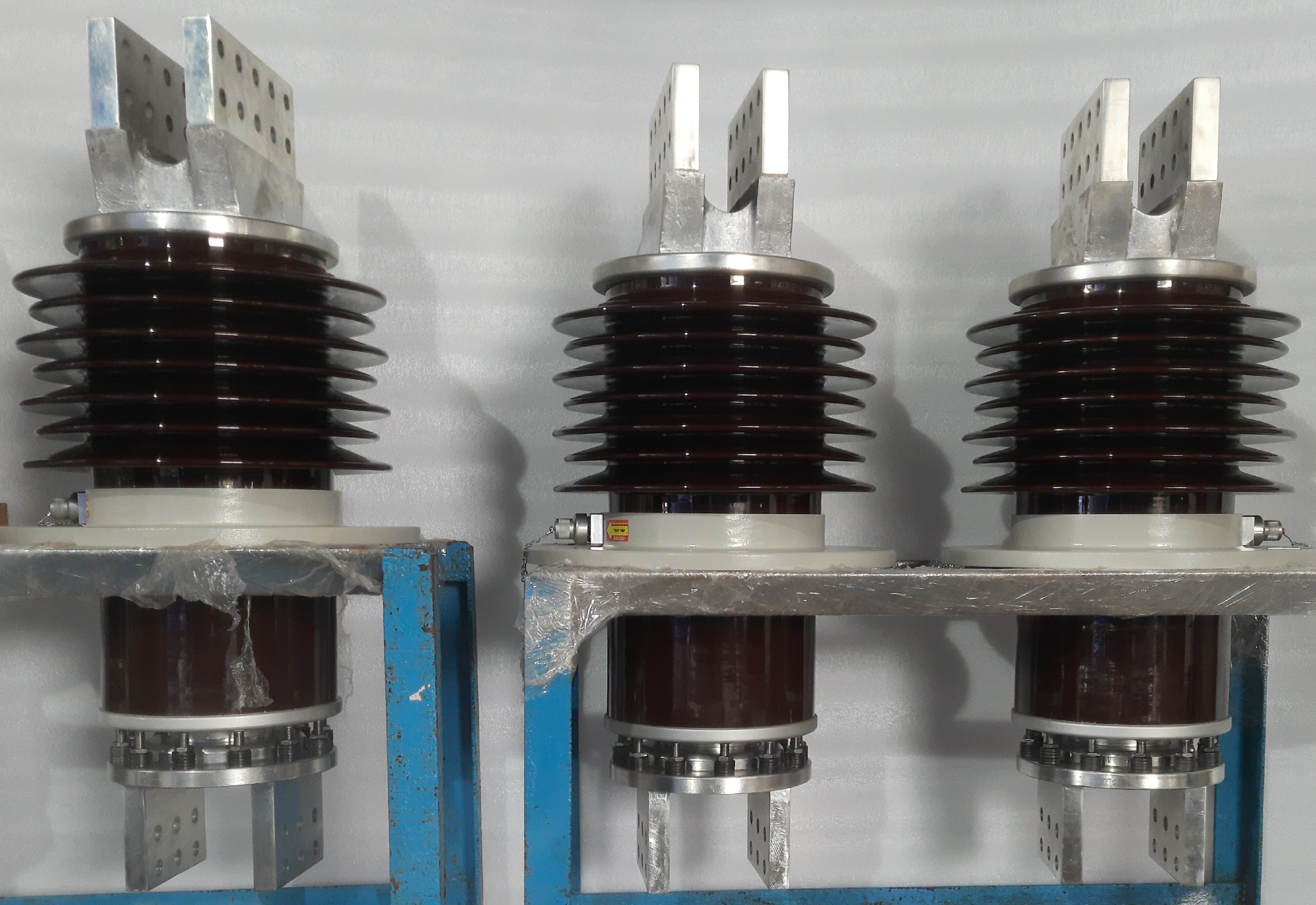

High Current Bushing
Product Detail
High Current Bushing
Through customer-focused innovation, our avant-garde High Current Bushings have been engineered to provide a fine performance in Generation station transformer applications across India and globally. Available in voltage classes from 24 kV to 52 kV with current ratings from 4000 A to 25000 A, our bushings are resilient to endure aggressive applications.
+ Show more
- Show less
OIP Wall Bushings
Product Detail
OIP Wall Bushings
We offer an extensive range of OIP (Oil impregnated Paper) bushings also for the wall through applications as well as Oil-Oil applications inside transformer cable box. Considerablecustomization is available based on the customer s needs for these products, and we continue to supply these specialized solutions to many customers in India and globally.
+ Show more
- Show less
View more
Brochures
Gallery(4)
Awards & Recognition
2009
For carrying out Import substitution under MAKE IN INDIA
2015
FGI Certificate of Merit – Research in Science & Technology
